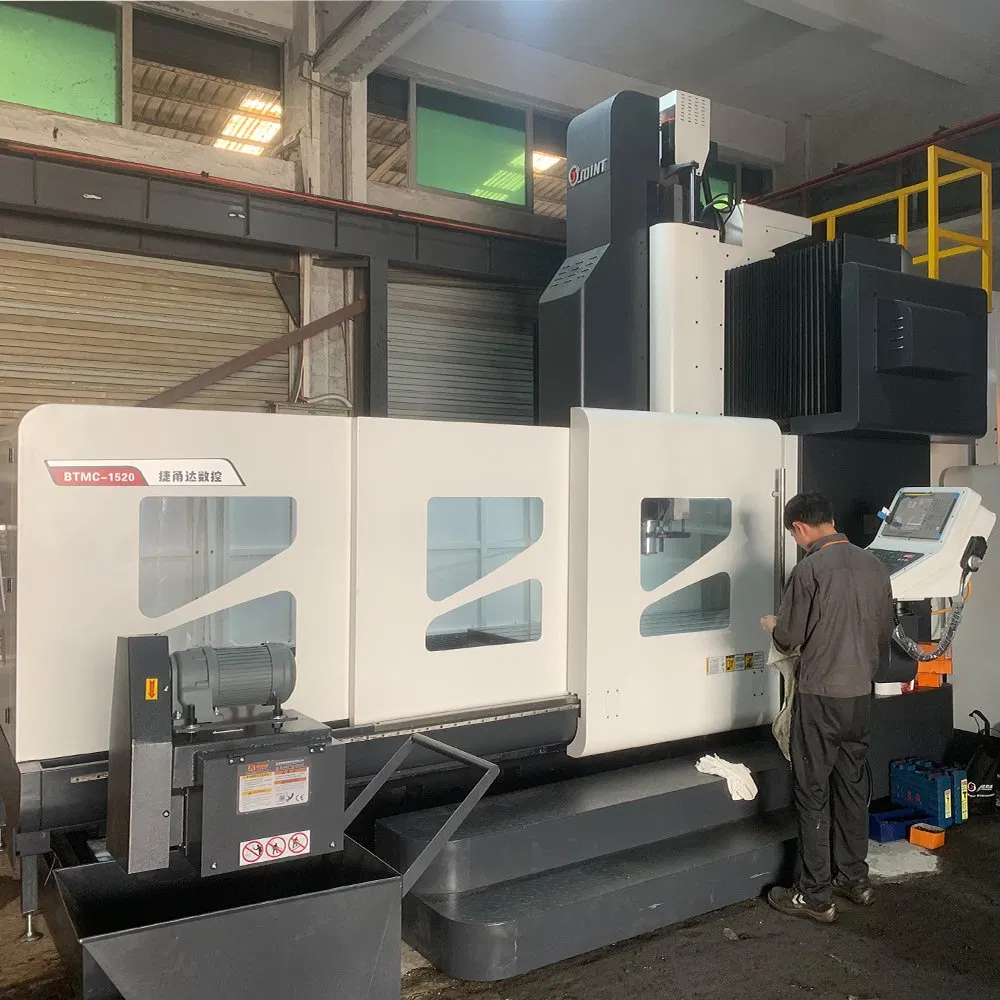

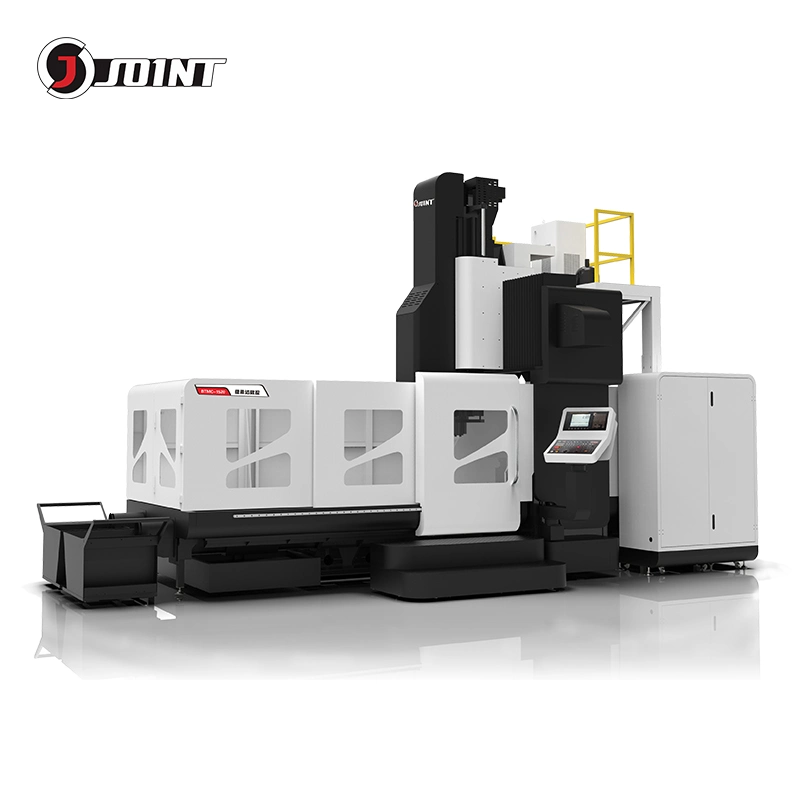

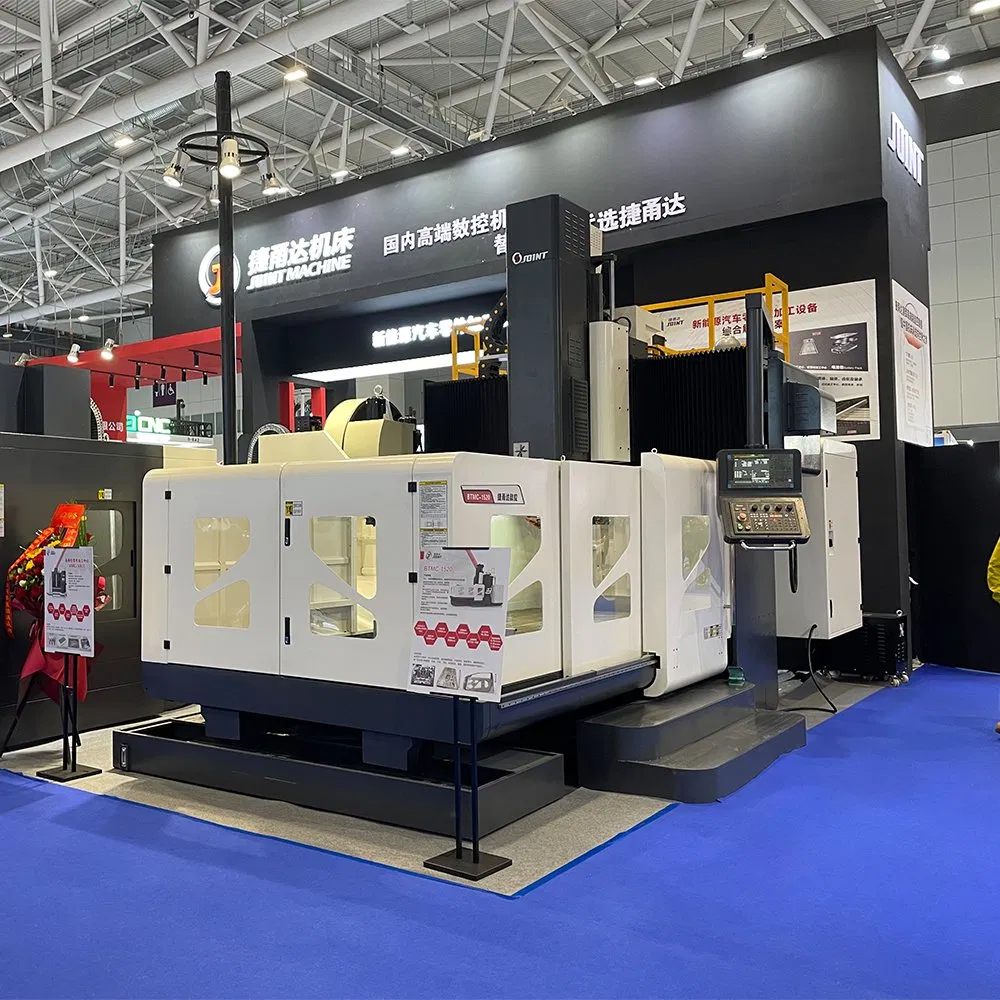

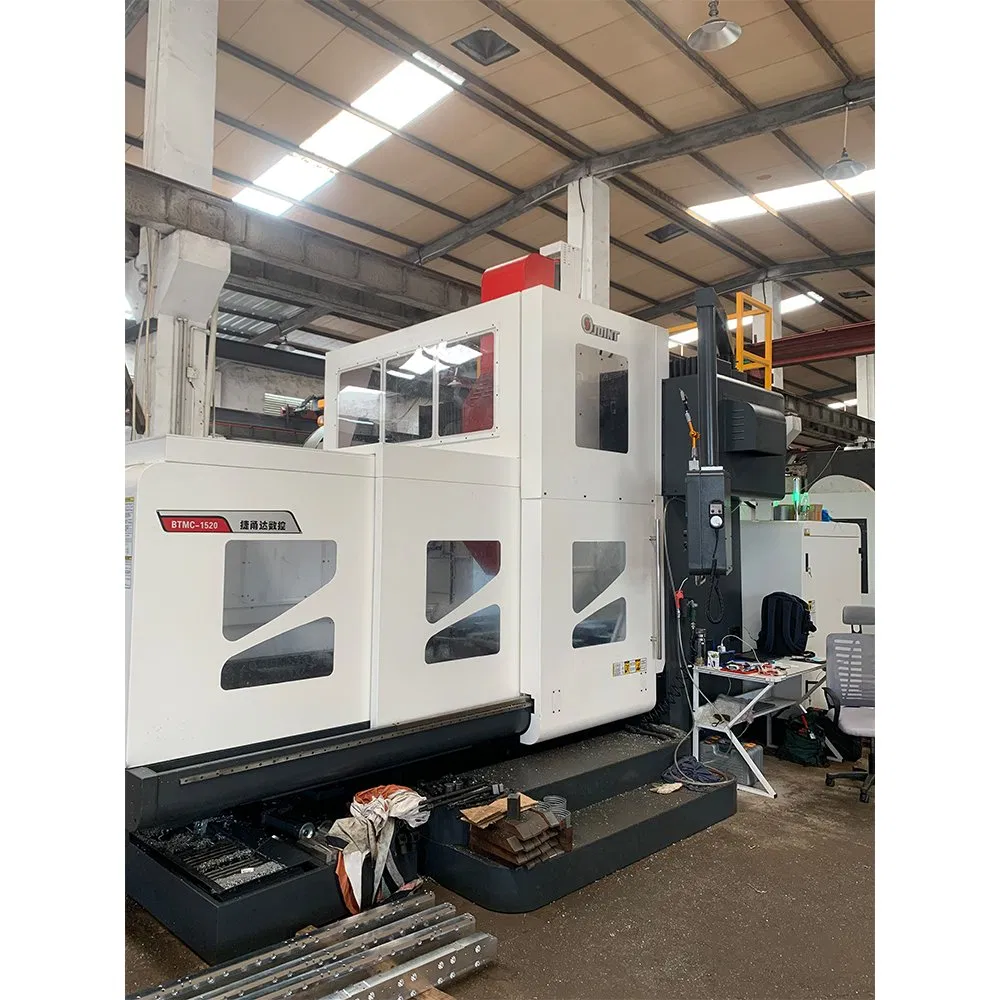

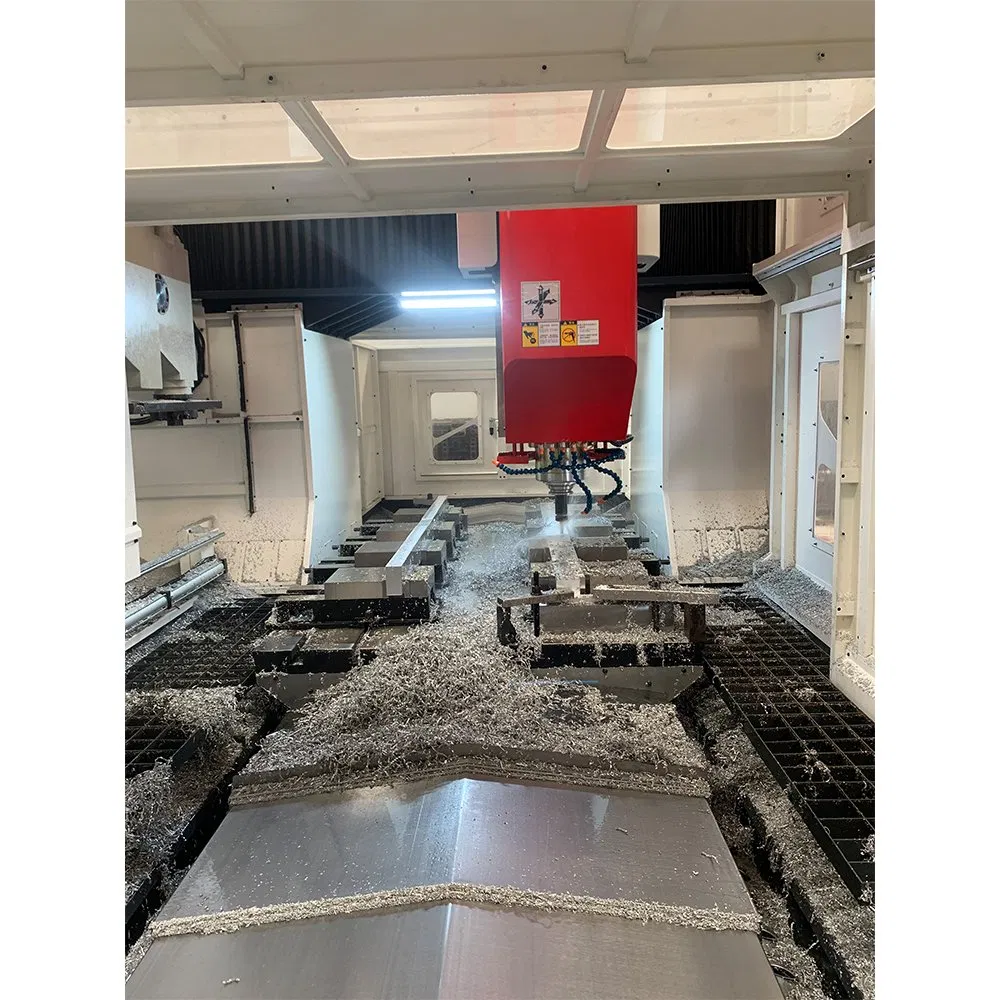

CNC Double Column Metal Mold Milling Machine Gantry Machining Center Btmc-1520

1 / 5

CNC Double Column Metal Mold Milling Machine Gantry Machining Center Btmc-1520

After-sales Service:	Online After-Sale Service
Warranty:	1 Year
Application:	Metal

Send Inquiry

Product Description

Basic Information

Model NO.BTMC-1520

Process UsageMetal-Cutting CNC Machine Tools

Movement MethodLinear Control

Numerical ControlCNC/MNC

CertificationCE, ISO 9001

Table Size1300*2000mm

Rotation Speed6000rpm

X Axis Travel2000mm

Y Axis Travel1500mm

Z Axis Travel800mm

Spindle Power15kw

Gantry Width1550mm

Product Description & Features

Full-Equipped technological process ensure accuracy and stability:

Standard accessory: BT50 belt spindle achieve high rigid processing. Optional with BT40, 10000/12000/15000 RPM direct spindle.
Optional Coolant Through Spindle (CTS) for deep hole processing.
Optional gear box or whole gear box to meet strong cutting requirements.
Spindle center line is close to the Z-axis guide way, eliminating accuracy deviation.
X, Y axis adopt heavy load roller linear guide rails for even stress distribution.
Table load capacity is approximately 50% higher than standard VMC machines.
Z axis adopts nitrogen balance weight for improved reaction speed and smooth operation.

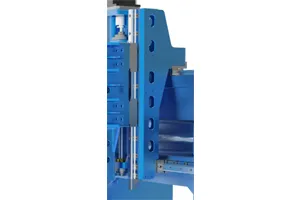

1. High strength linear guide rail layout

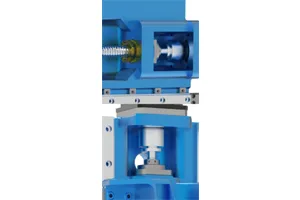

2. All-in-one bearing housing

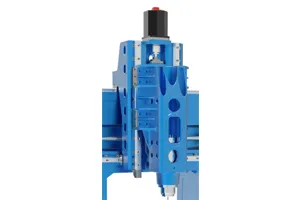

3. Special structure of Z axis

Technical Specifications

Description	Unit	BTMC-1520
Table size	mm	1300*2000
X axis travel	mm	2000
Y axis travel	mm	1500
Z axis travel	mm	800
Gantry width	mm	1550
Distance between spindle and table	mm	186-986
Spindle rotation speed	rpm	6000
Spindle motor	kw	15
X/Y axis linear guide way	-	Roller linear way
Z axis guide way	-	Box way
Positioning accuracy	mm/m	0.01
Max. load of table	kg	4000

Accessories Configuration

Standard Accessories

Controller system
Fully enclosed cover
Anto lubrication system
Spindle oil coolant
Screw type conveyor device
Heat exchange
Working light & Alarming light

Optional Accessories

Rotary table
Coolant through spindle (CTS)
High torque Gear box
24tools Arm type ATC

Application Industries

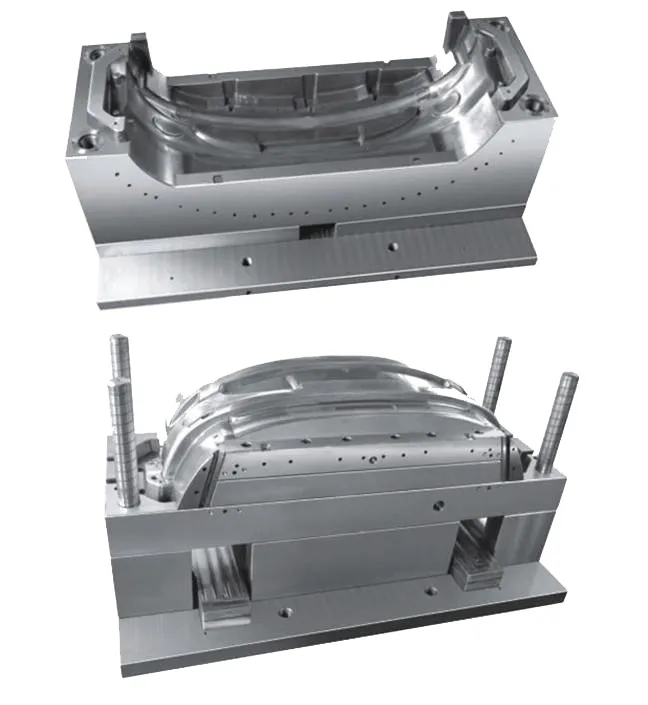

Car front bar mold

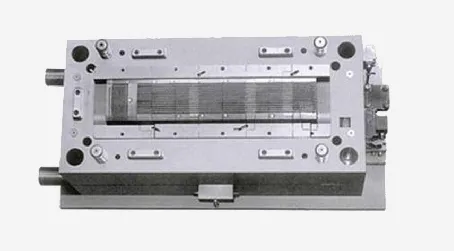

Household appliances mold

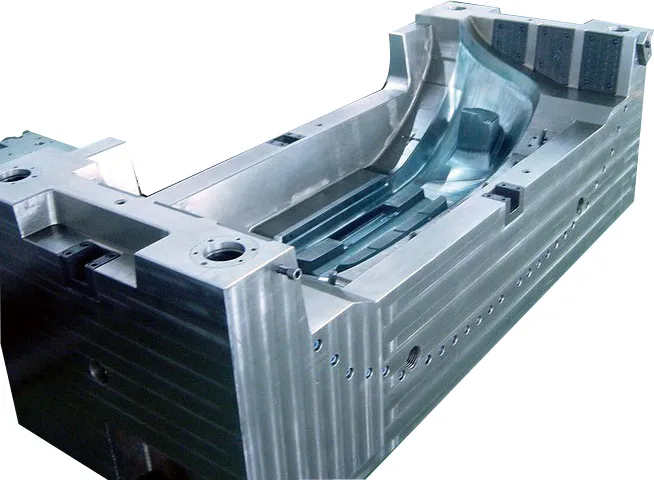

Car interior mold

Core Advantages

Standardized processes and high-standard production testing.
Over 20 years of research and technological precipitation.
Comprehensive information management systems for efficient operation.
Integrated solutions for automated production lines.
Customized product design for specific machining requirements.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer? A1: We are a professional factory specializing in CNC machine tools.

Q2: What are your terms of payment? A2: 30% as a deposit, and the remaining 70% should be paid before delivery.

Q3: How can I choose the most suitable machine? A3: Please provide your specific requirements or product drawings, and our engineers will help select the ideal model.

Q4: What is the standard packaging for shipment? A4: Machines are packed in export-standard wooden packages, waterproof and anti-rust, suitable for long-distance oversea transportation.

Q5: How long is the warranty for the machines? A5: The warranty period is 12 months. We supply free repair parts for quality-related issues during this period.

Q6: Do you provide technical support? A6: Yes, we provide CNC product application support and integrated solutions for production lines.
