CNC Fixed Beam Gantry Moving Frame-Type Machining Center

1 / 5

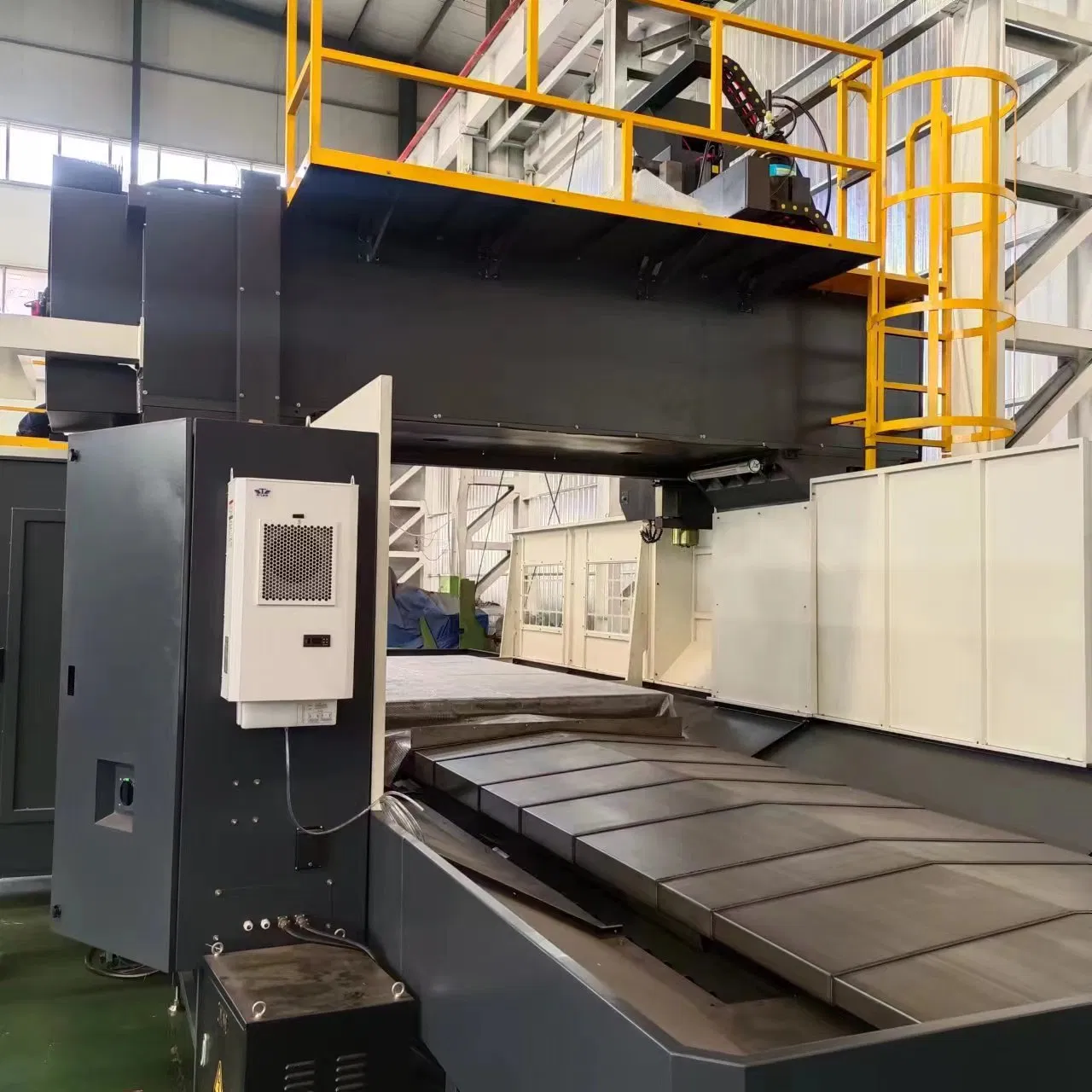

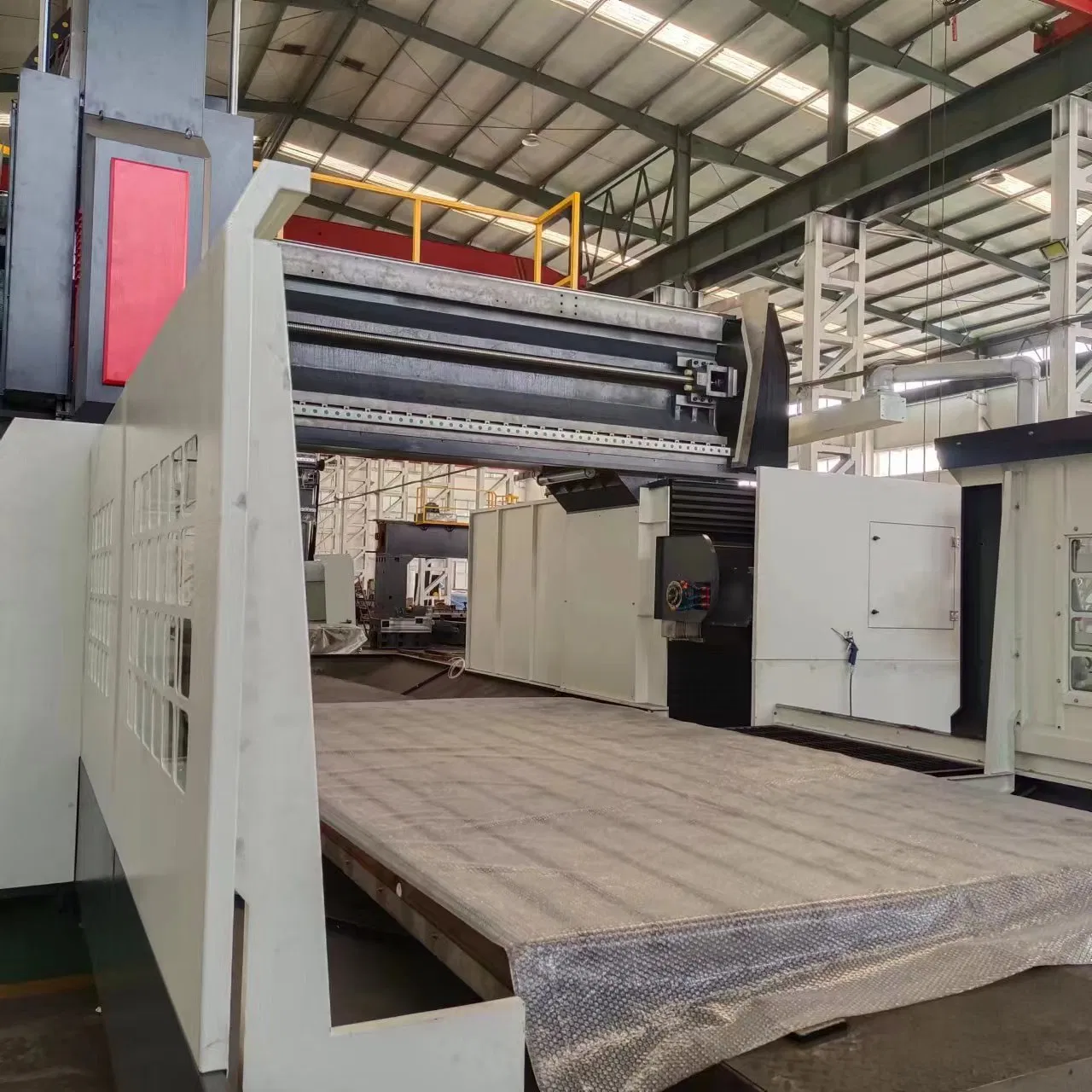

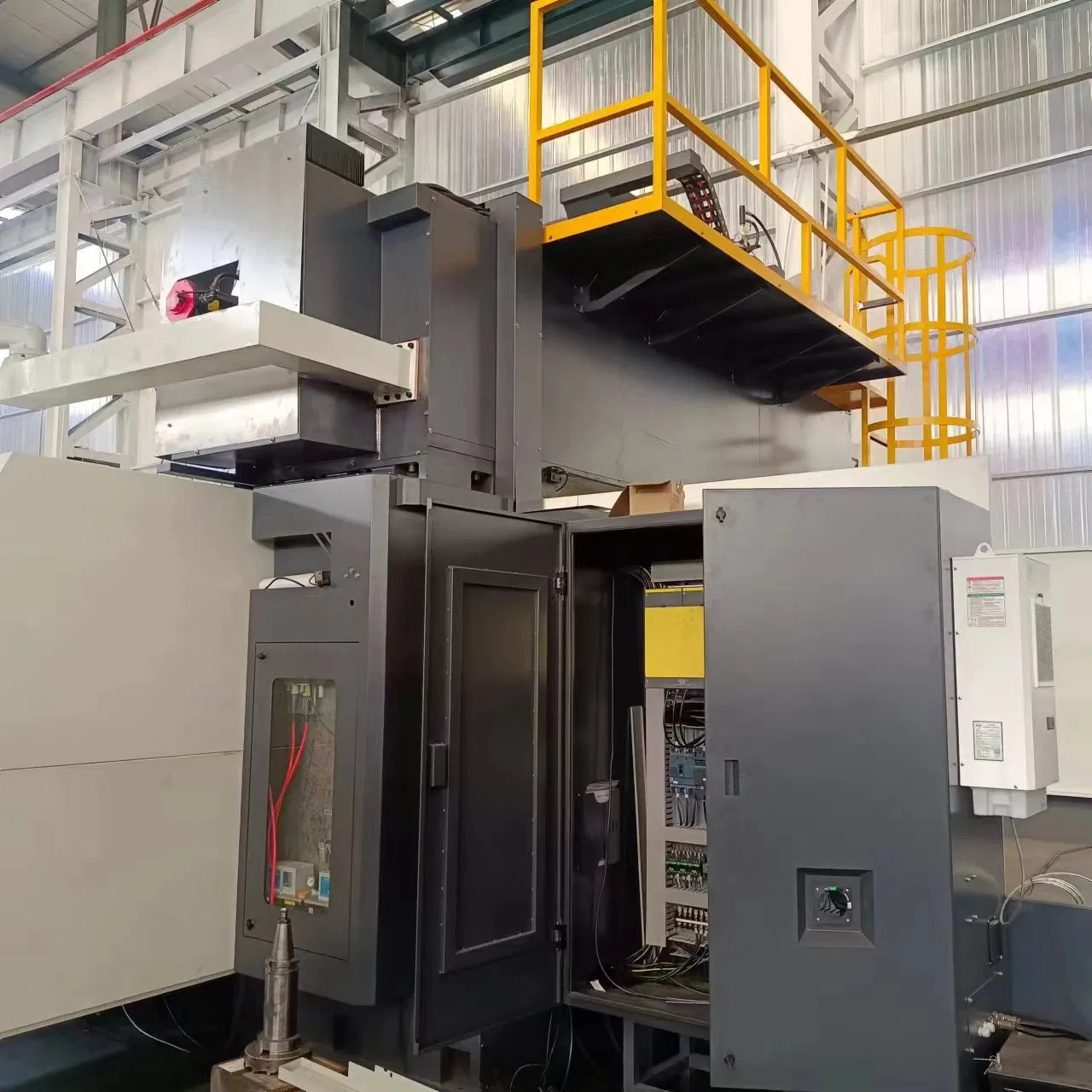

CNC Fixed Beam Gantry Moving Frame-Type Machining Center

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XH4030

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Certification

CE, ISO 9001

Table Width

2200mm

Table Length

4000mm

Max. Load of Table

15000kg

Spindle Speed

6000rpm

Product Description

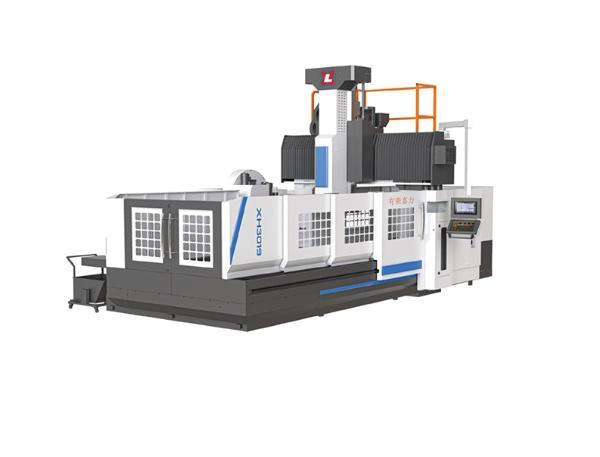

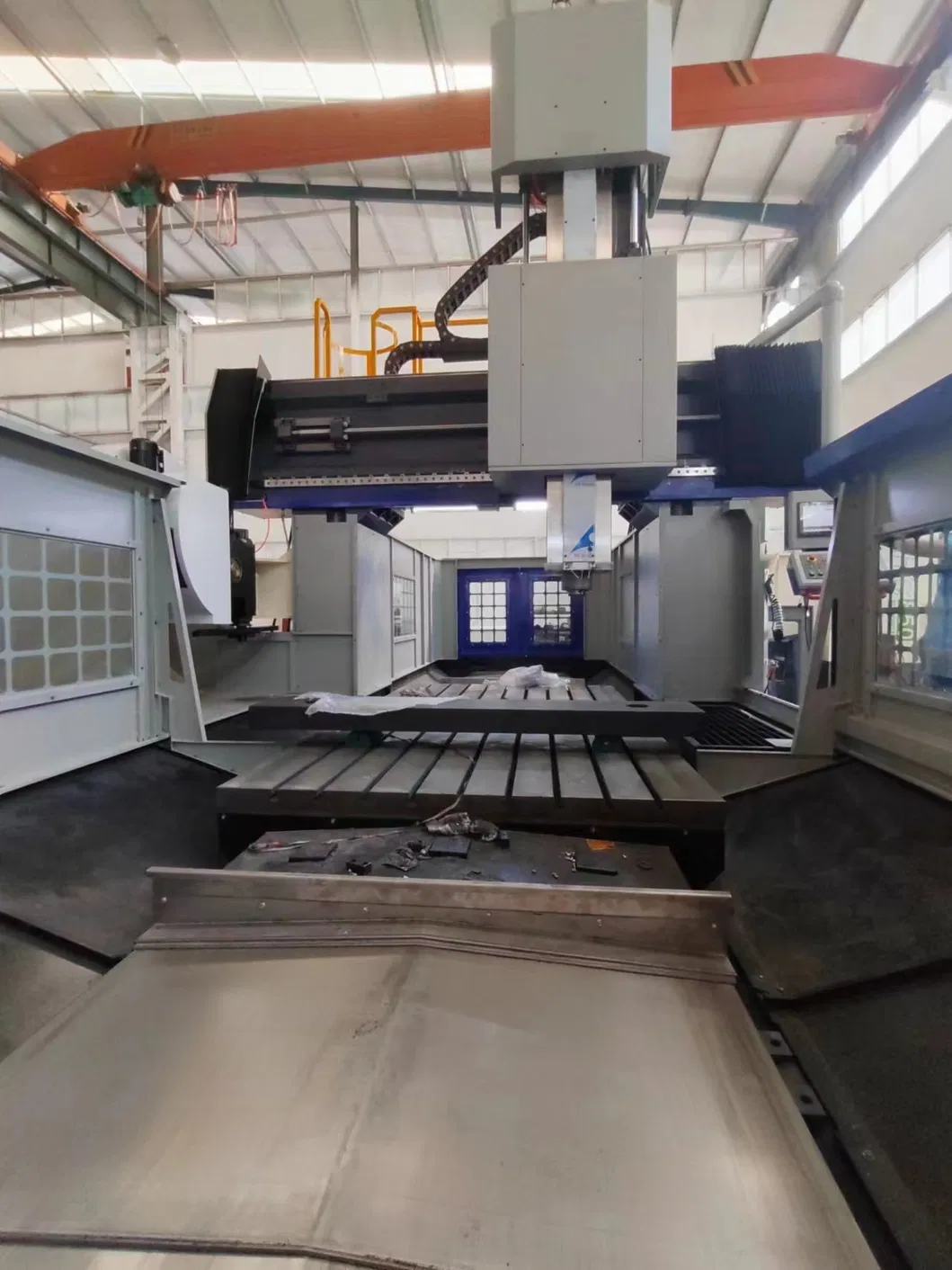

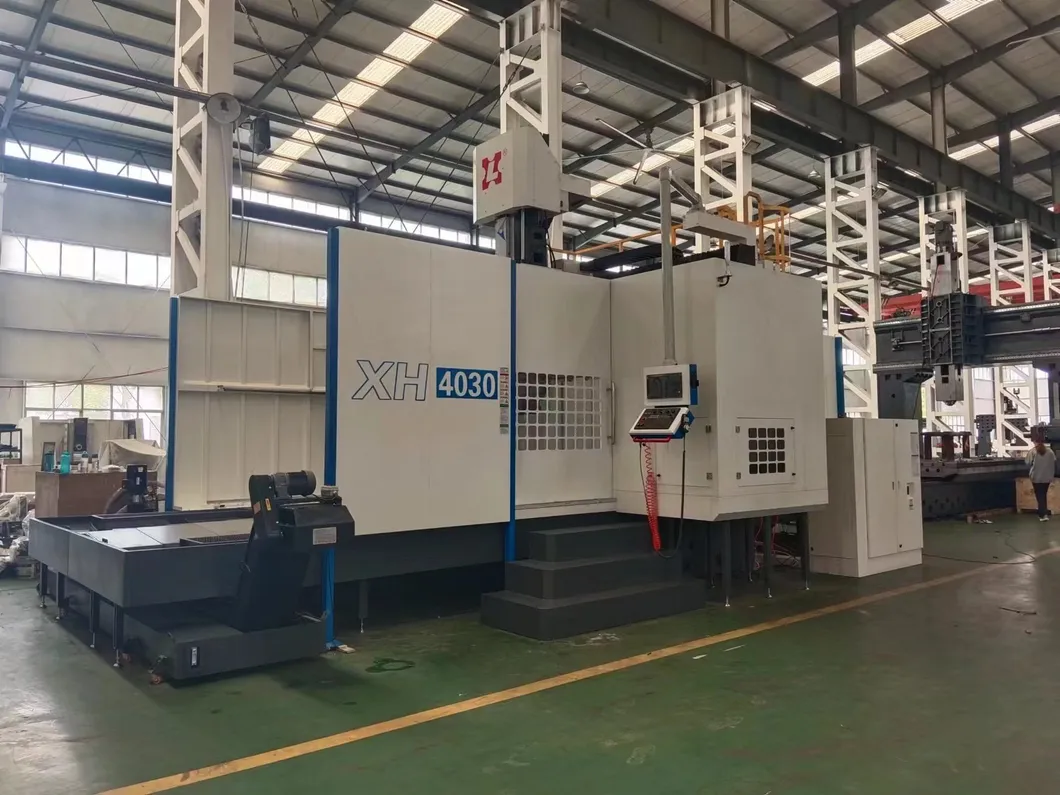

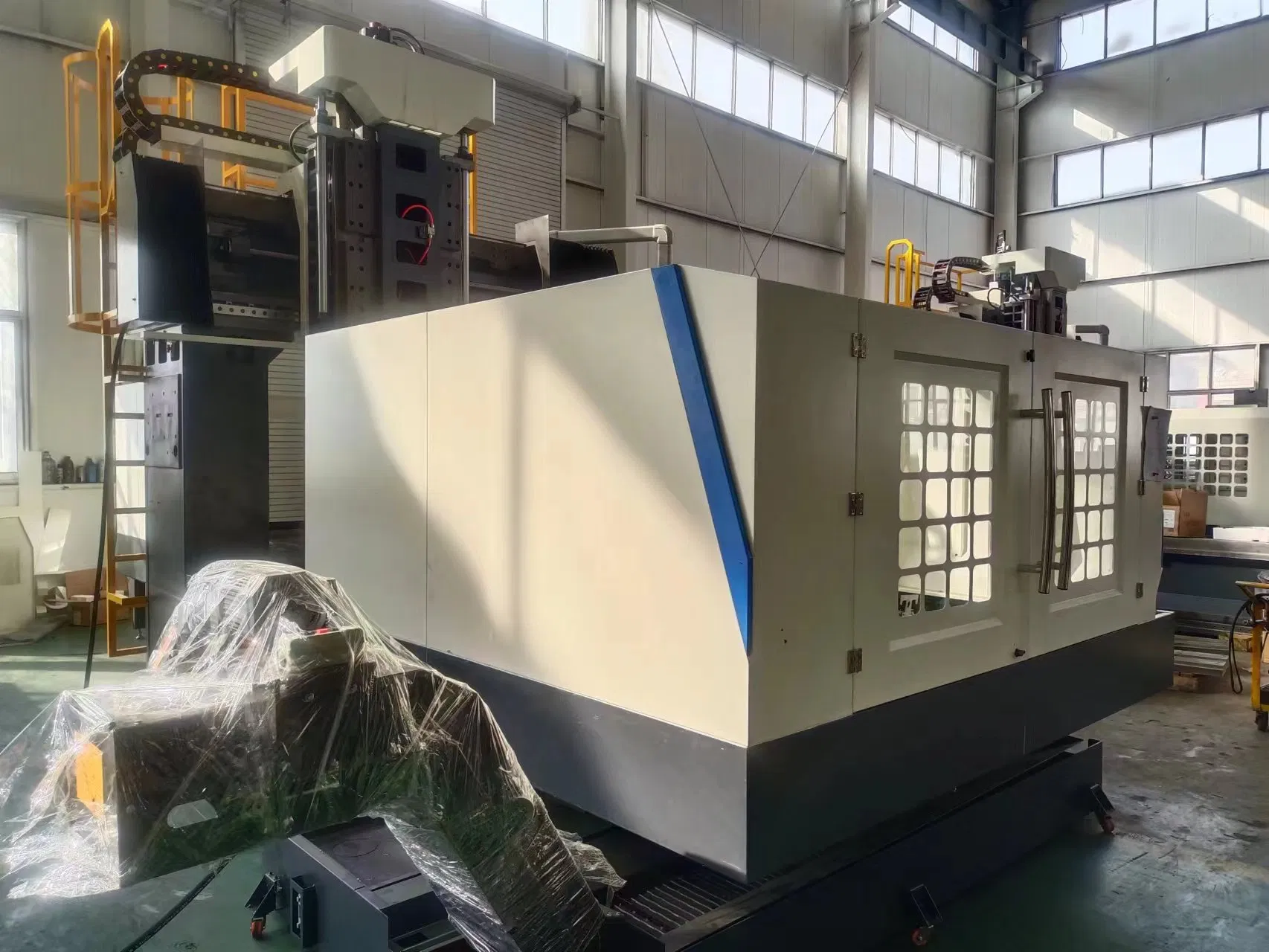

Fixed Beam Gantry Moving Frame-Type Machining Center

The machine tool features strong rigidity, a symmetrical mechanism, and high stability. By optimizing the structure of the basic parts and improving the dynamic performance, it achieves the perfect combination of high power, high torque, high efficiency, and high precision processing.

Suitable for shipbuilding, metallurgy, petrochemical, mining machinery, electric power energy, construction machinery, and other heavy-duty processing fields.

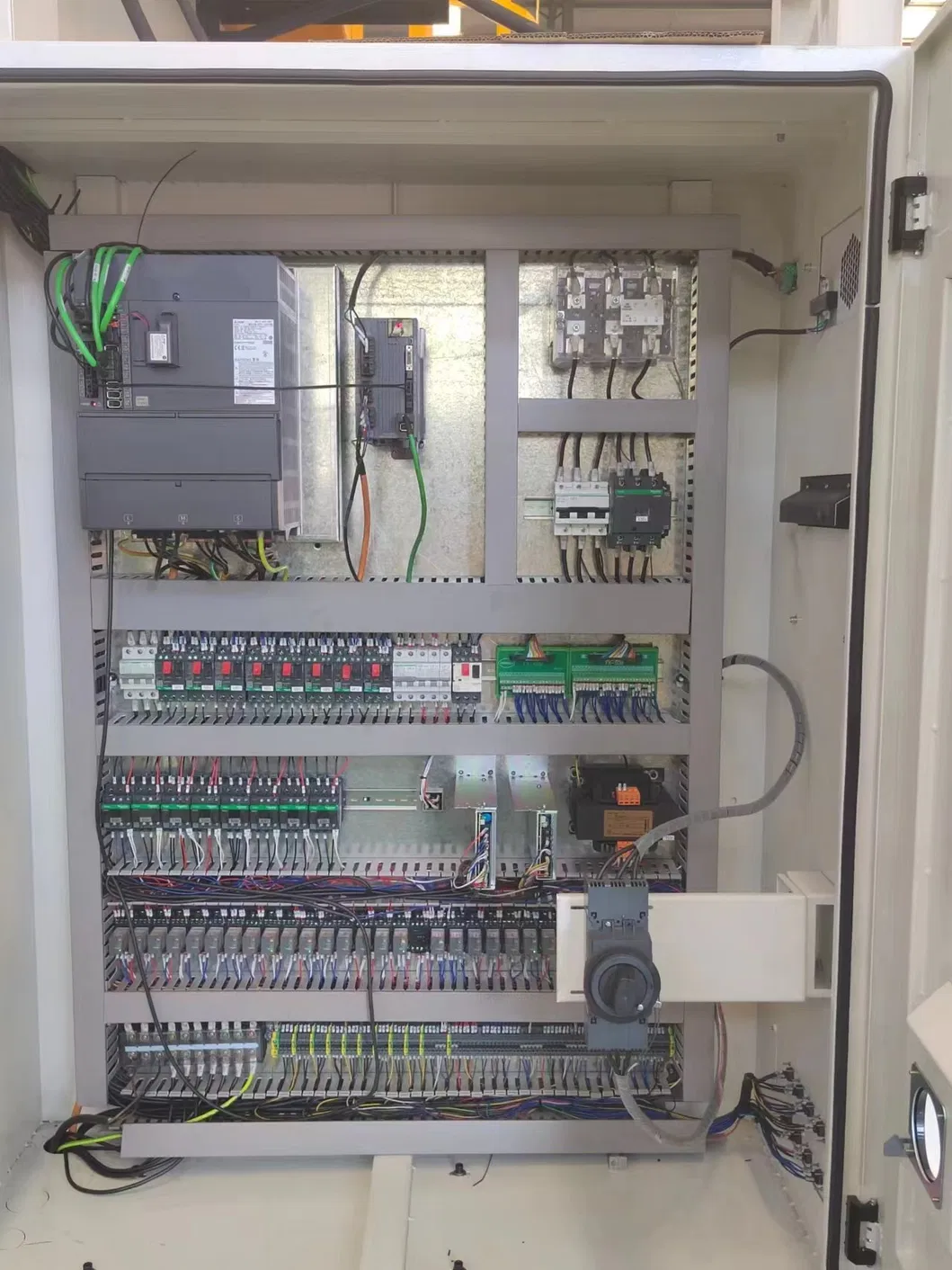

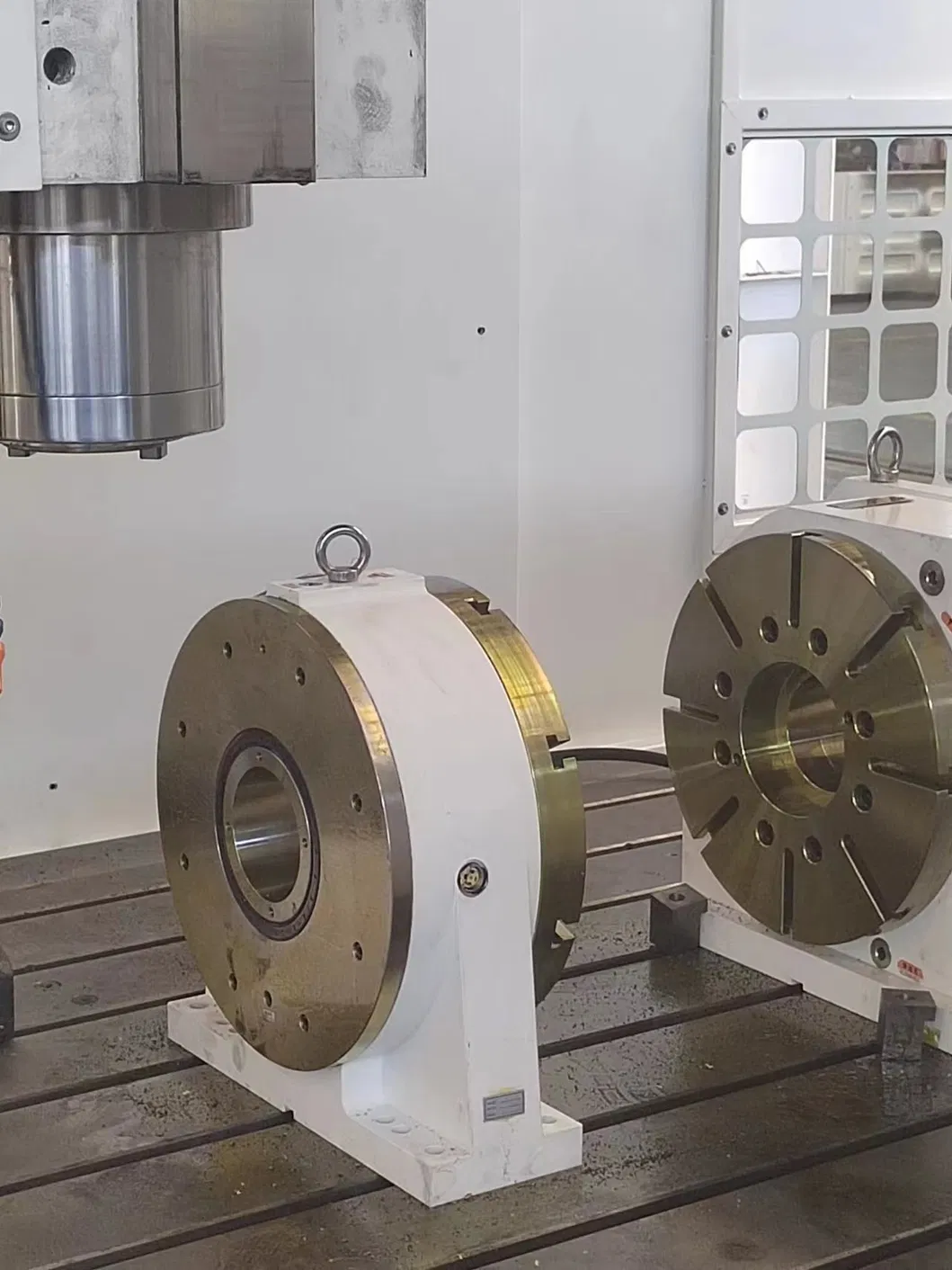

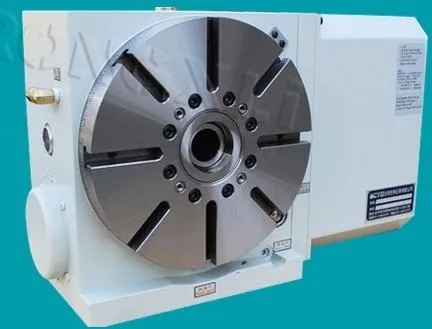

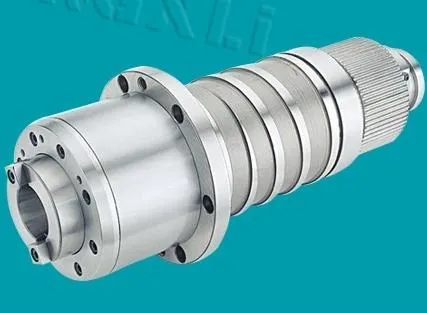

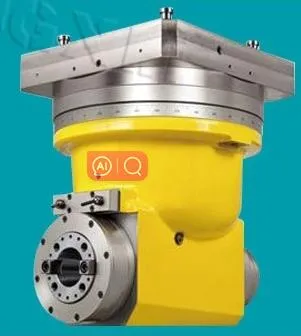

Key Technical Features

01High strength resin sand castings, aging treated, inside with mesh stiffeners to ensure excellent stability.
02X/Y axis adopts heavy-duty roller linear guideways with mandatory automatic lubrication for minimal friction.
03Z axis features rectangular-hard-rail-sliding-structure with double nitrogen-balance-cylinders.
04Automatic clamping spindle box functionality in case of power failure for safety.
053-axis large pitch ball screws, pre-drawn for high rigidity and speed.

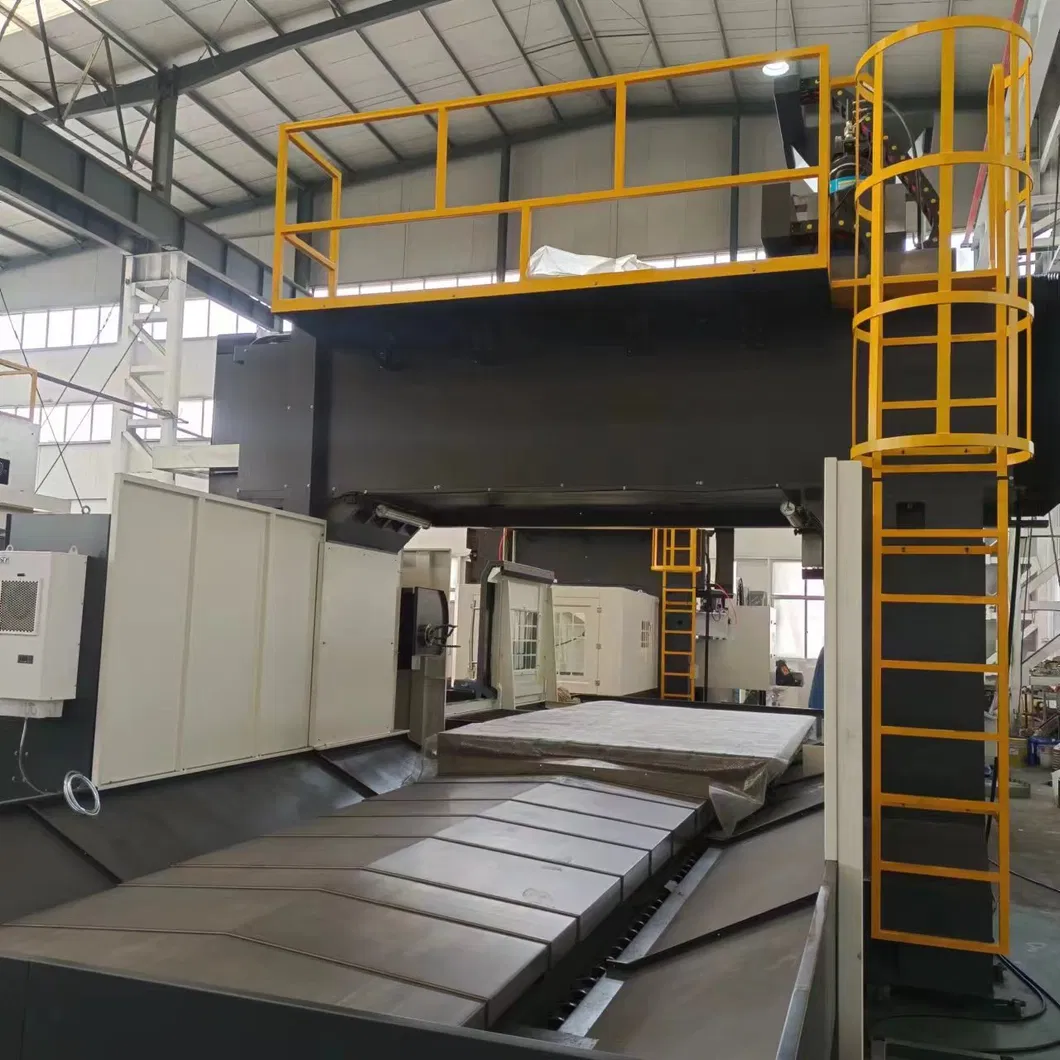

1. Door Beam Design

Integrated casting design with well-word grid ribs and high-quality standard cast iron. Processed through two electric furnace aging cycles and vibration aging to ensure long-term non-deformation and seismic resistance.

2. Stable Base Foundation

Finite element analysis design of the overall ship structure. Double walls and ribs are integrated into one for a stable heavy-duty foundation. Built-in oil-water separation and chip evacuation structure ensure environmental protection.

Technical Specifications

Specification	Unit	XH4030	XH3019	XH2014
Table Width	mm	2200	1500	1200
Table Length	mm	4000	3000	2000
Max. Load	kg	15000	8000	5000
X-axis Travel	mm	4200	3100	2100
Y-axis Travel	mm	3150	1900	1400
Z-axis Travel	mm	1000	900	800
Spindle Taper	-	BT50-190	BT50-190	BT50-190
Spindle Motor	kw	22/26	15/18.5	15/18.5
Rapid Feed (X/Y/Z)	m/min	10/12/10	12/12/10	12/12/10
Positioning Accuracy	mm	0.025	0.02	0.016
Weight	T	45	23	15

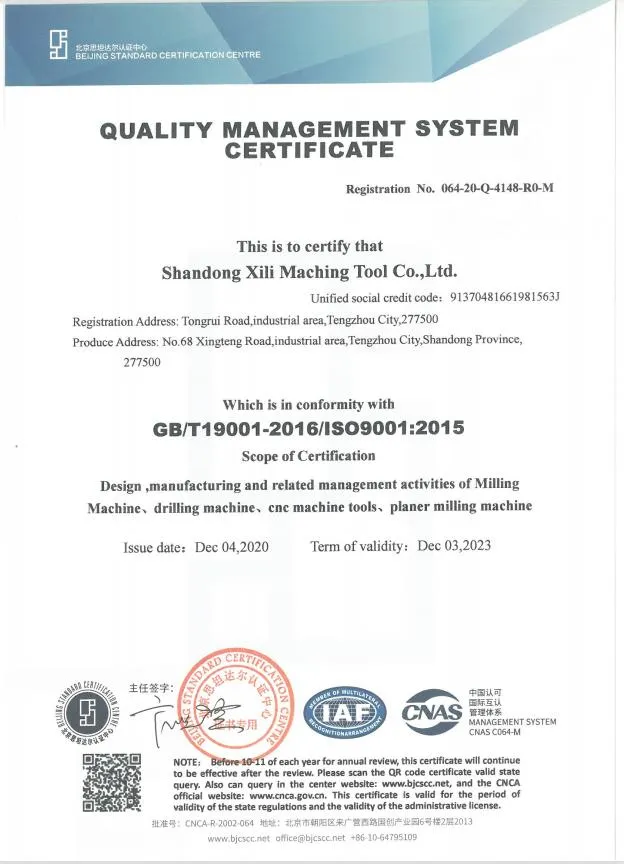

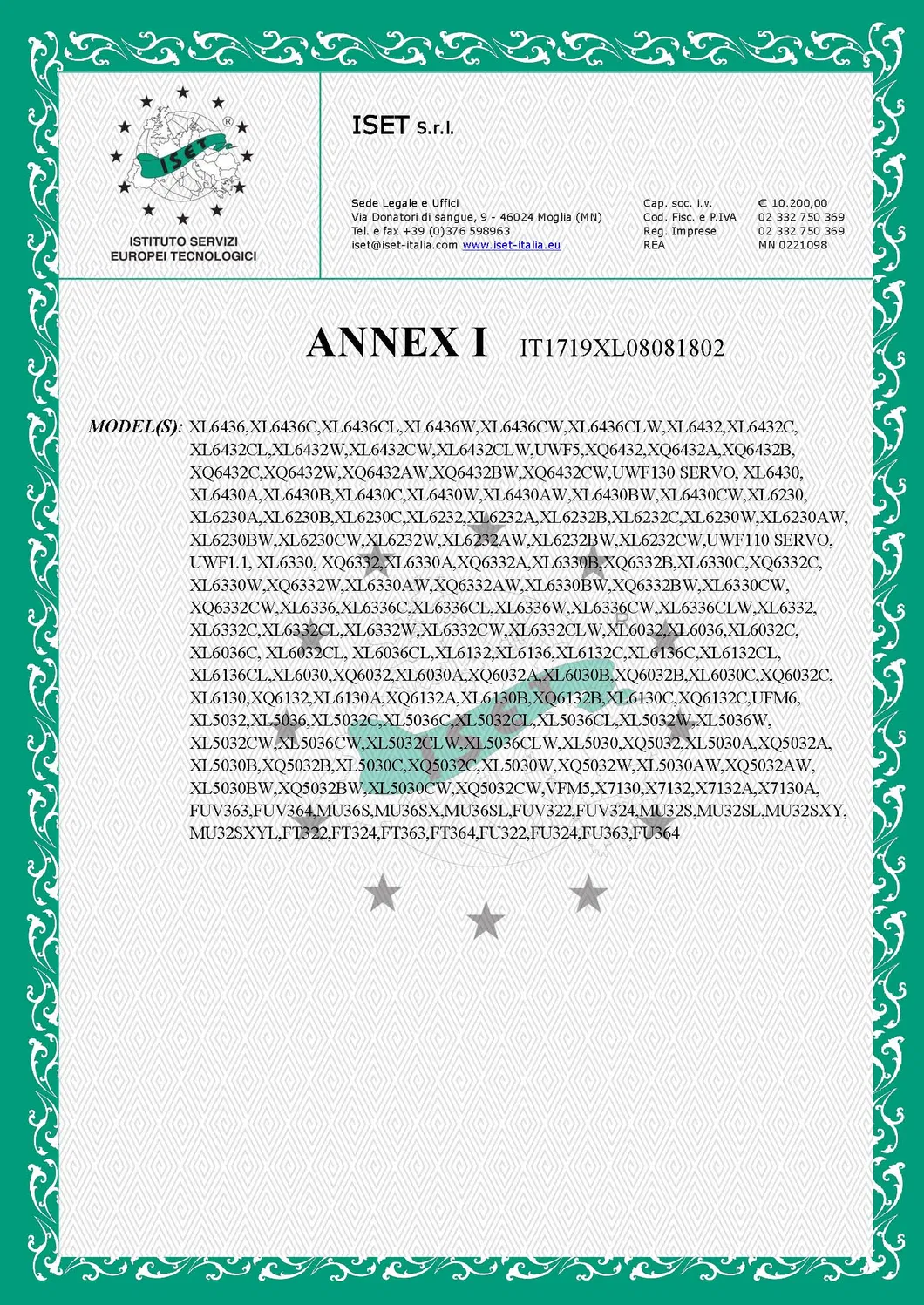

Certifications

Packaging & Delivery

Delivery Time: Generally 3 months production time after order confirmation.

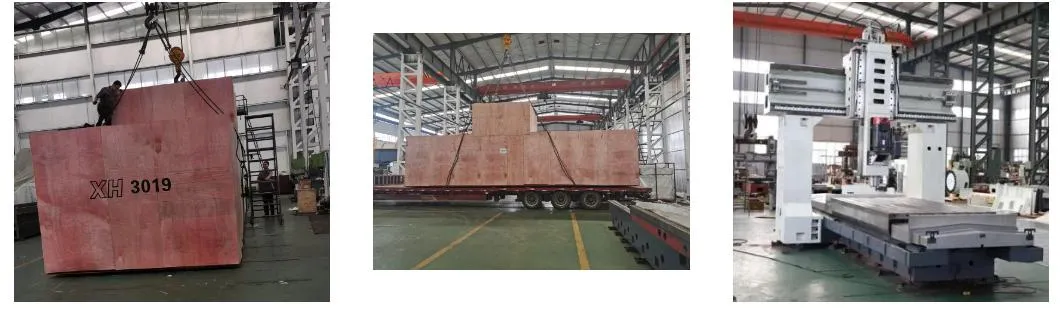

Packing Type: Machines are dismantled for container loading, covered with damp-proof plastic film, and packed in thickened water-proof covers on steel pallets.
