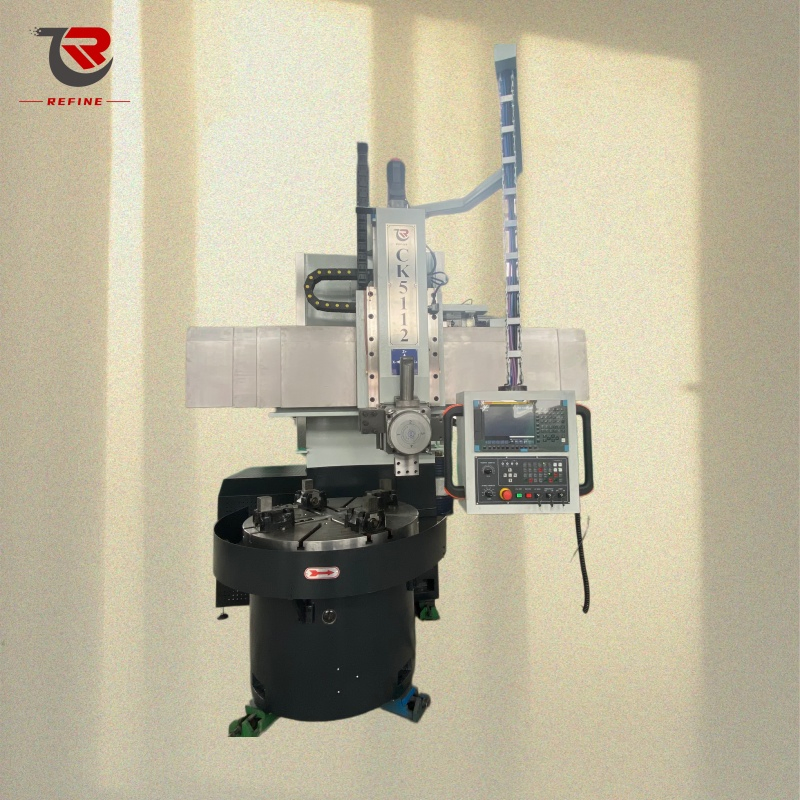

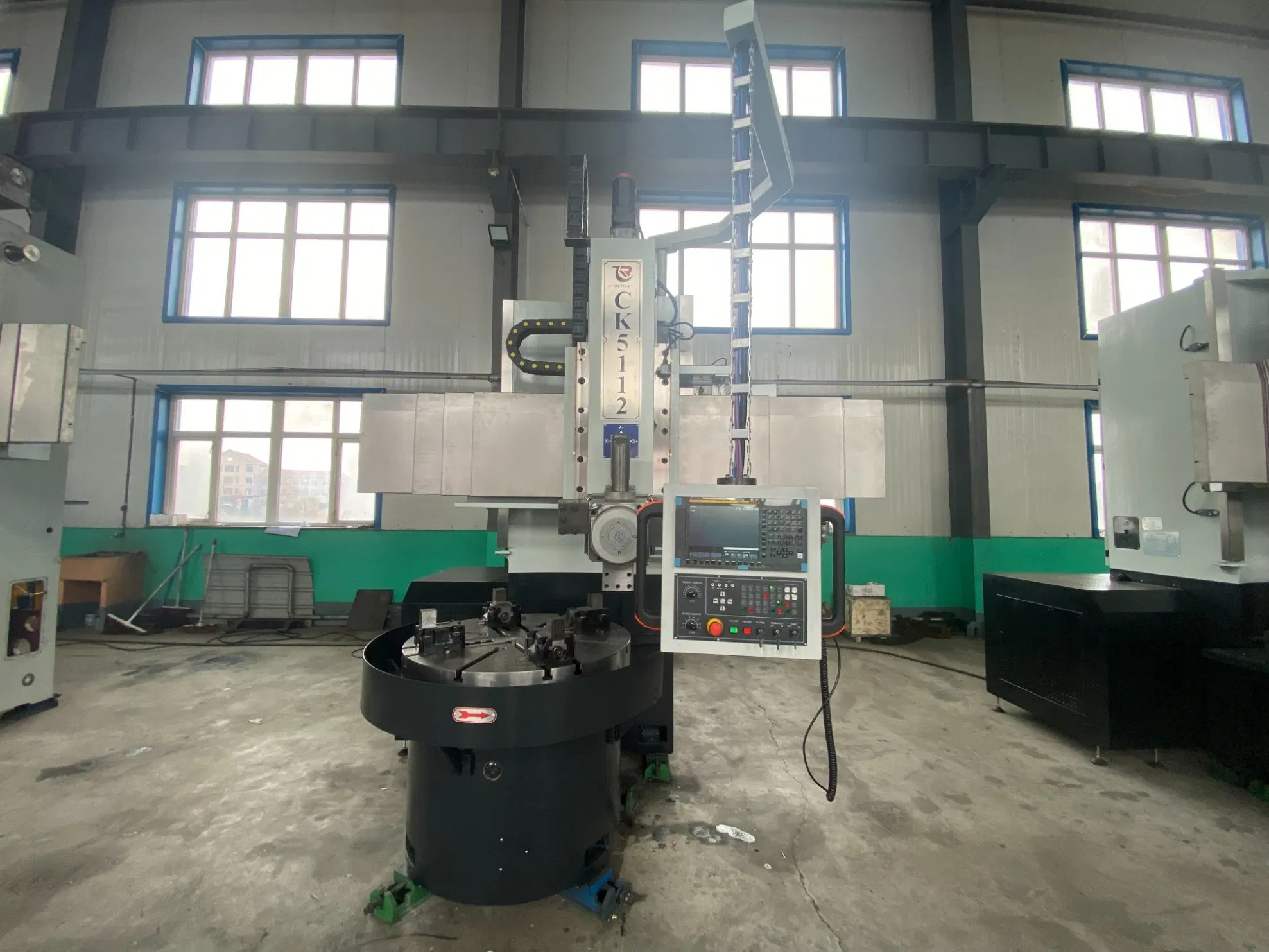

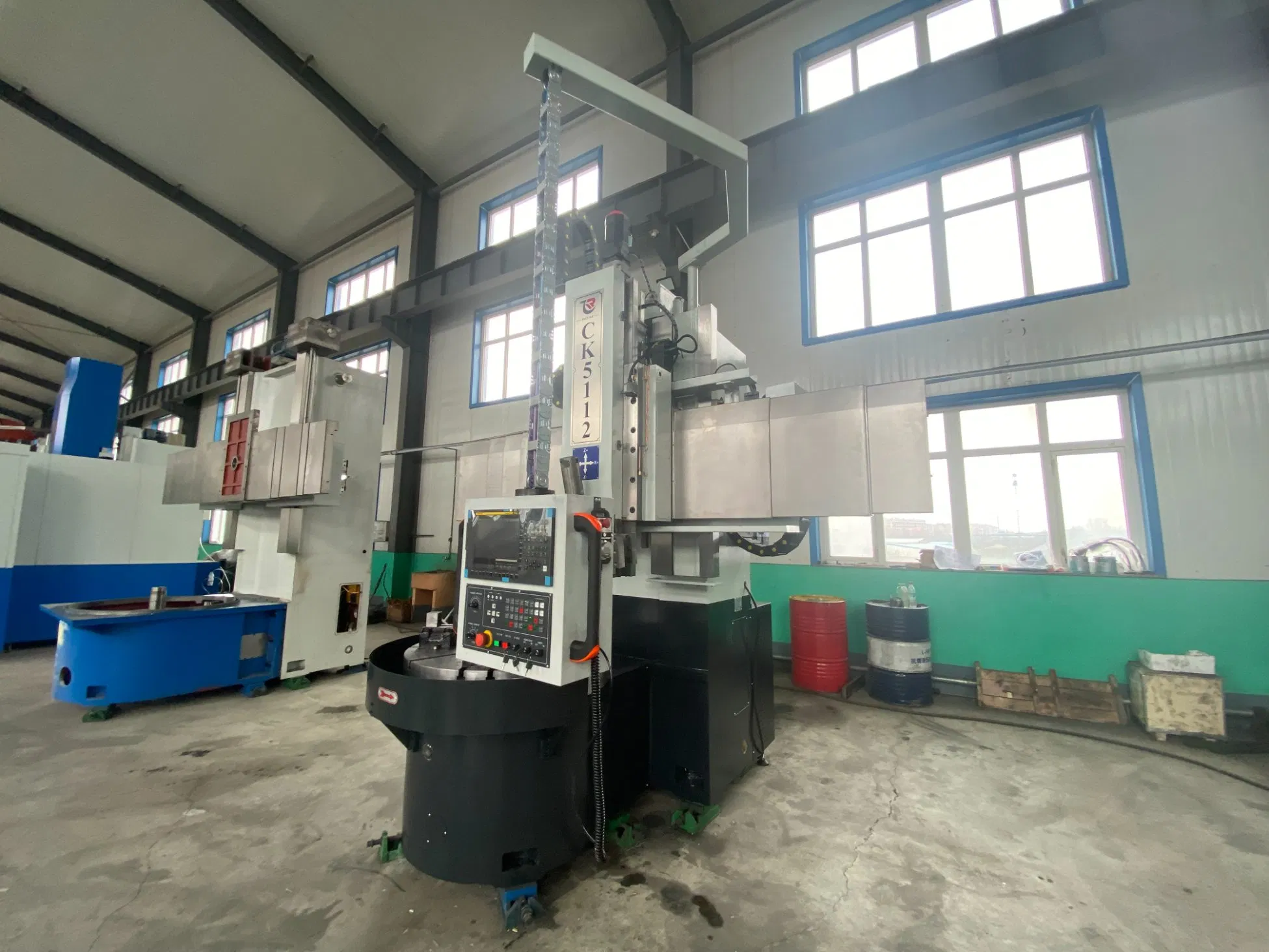

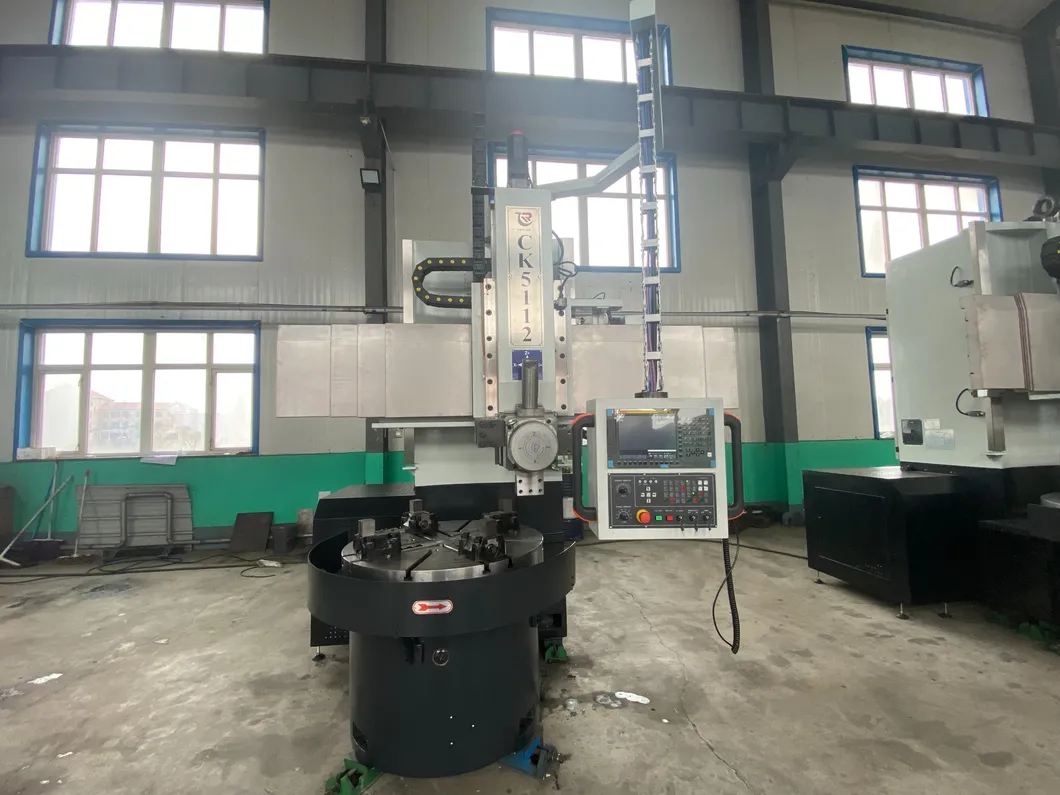

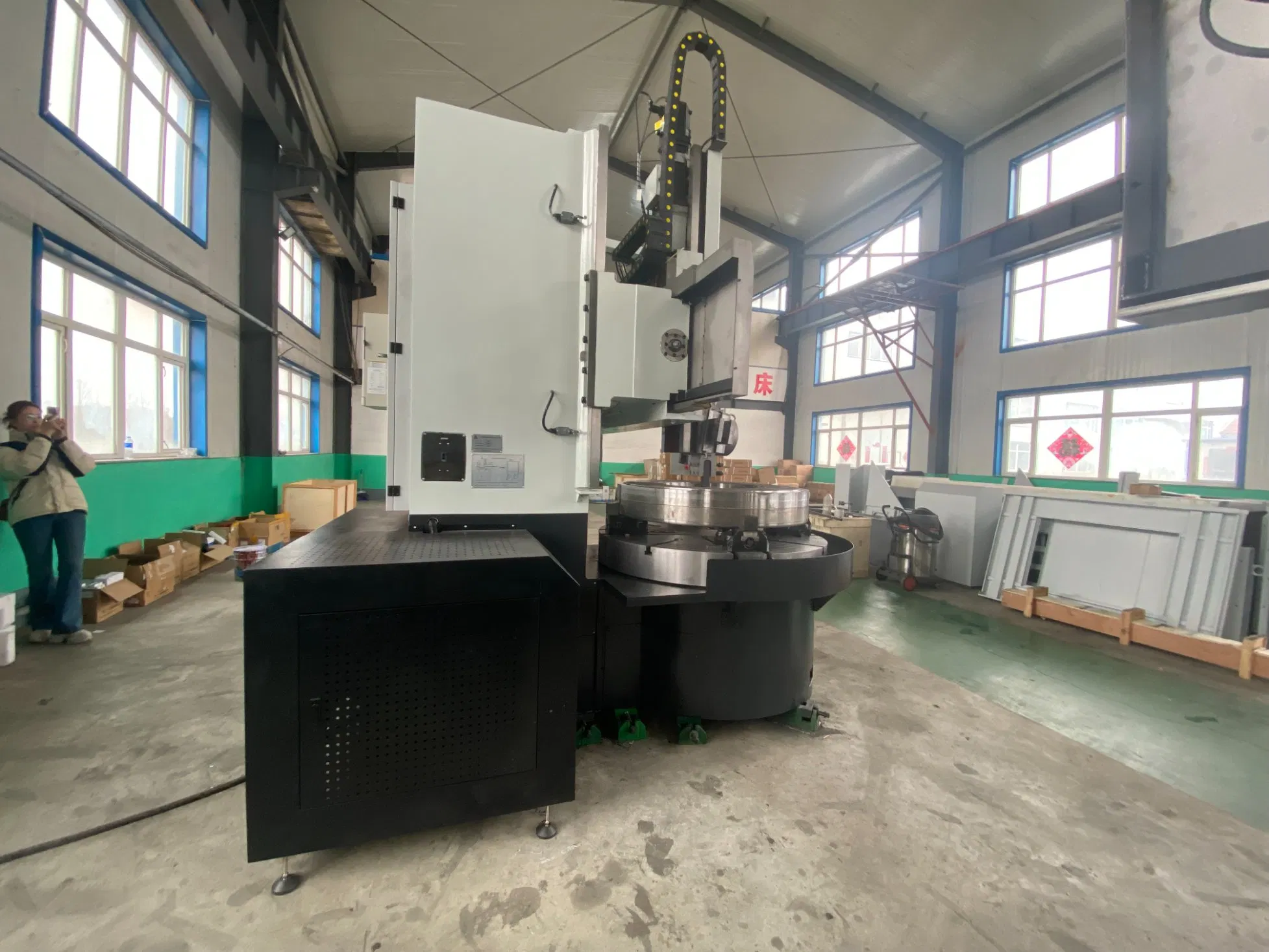

1). It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories, plastic mould, shafts and other work-pieces.
2). It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc.
3). Spindle bearings use domestic famous-brand products.
4). Headstock takes symmetrical structure to make thermal deformation be even, avoiding spindle center offsets.
5). Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6). Vertical lathe table is inlaid with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability.
7). Casting has passed through strict artificially aged and vibration aging to ensure rigidity and stability.
Our facility operates under National ISO9001:2008 Quality Management System Certification, utilizing excellent processing equipment and perfect inspection methods.
| ITEMS | UNIT | CK5112 | CK5116 | CK5120 | CK5123 | CK5126 |
|---|---|---|---|---|---|---|
| Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 | 2600 |
| Max. height of workpiece | mm | 1000 | 1200 | 1250 | 1250 | 1600 |
| Max. weight of workpiece | tons | 3.2 | 5 | 5 | 8 | 10 |
| Worktable diameter | mm | 1000 | 1400 | 1800 | 2000 | 2300 |
| Worktable speed range | r/min | 6.3-200 | 5-160 | 4-125 | 3.2-100 | 2.5-80 |
| Main motor power | KW | 22 | 30 | 30 | 30 | 37 |

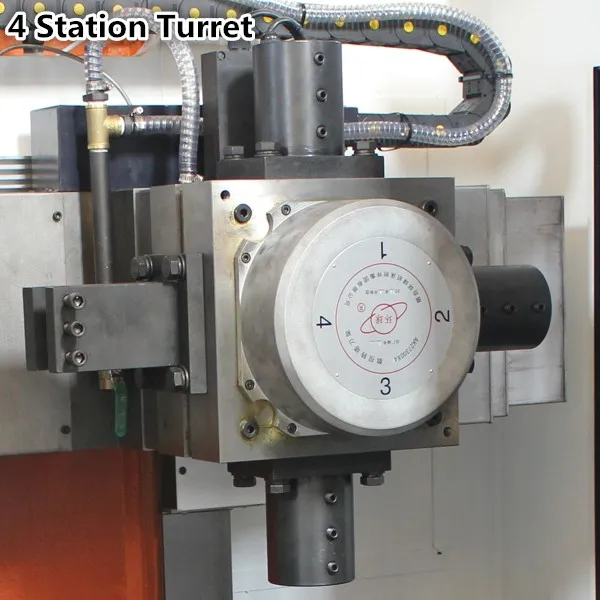

Tool Holder:
The default tool post is a four-position electric tool post, selected from top-tier suppliers in China. We also provide 6-position and 8-position tool posts depending on machine size.

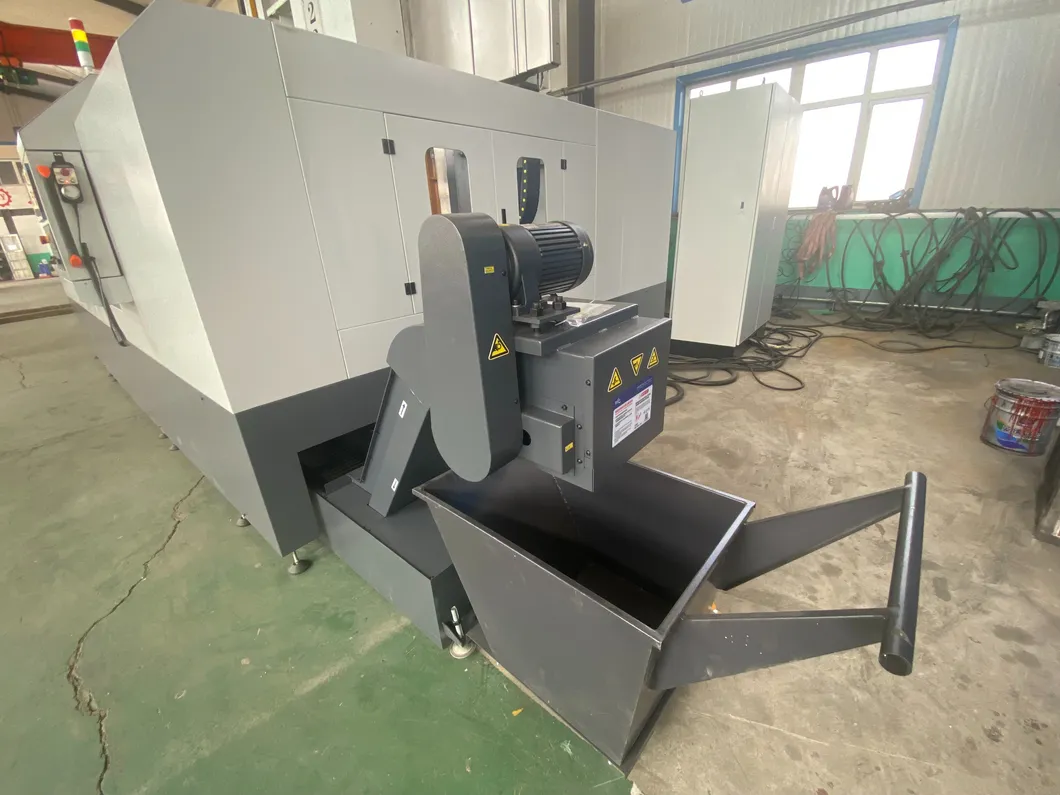

Chip Conveyor:
Suitable for steel industry scrap fast delivery. With special structure, it handles chips under difficult conditions, such as long strip large roll chips from wire machines.

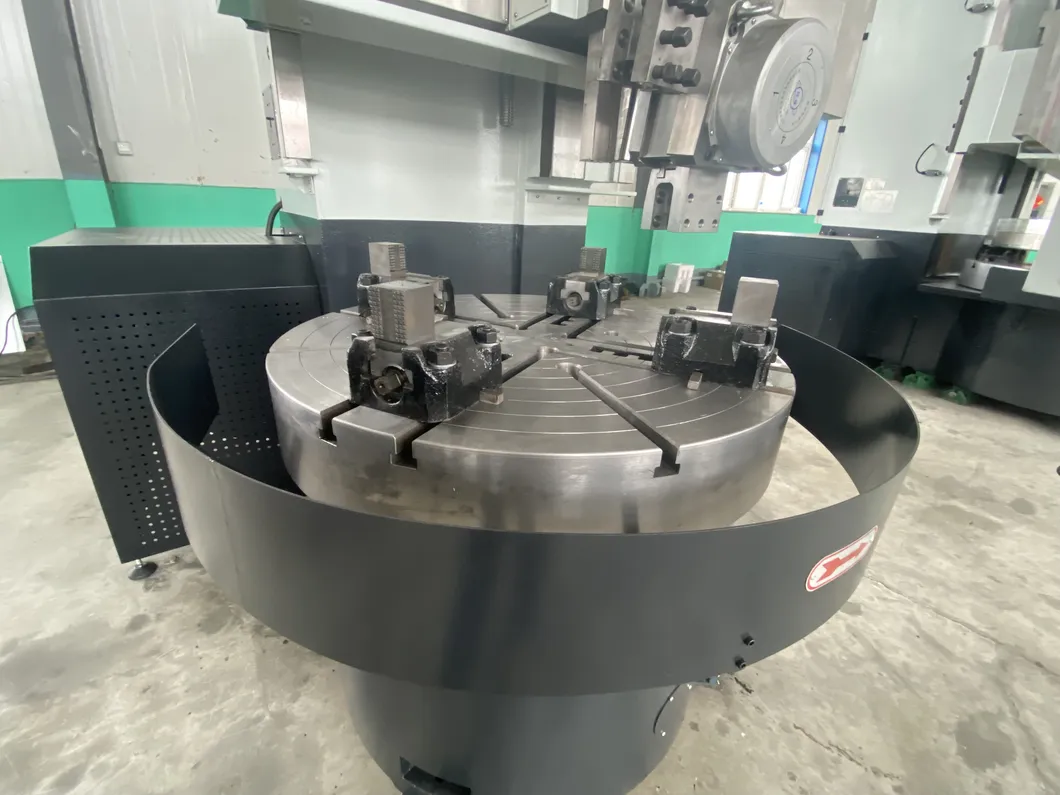

Worktable:
Made of high-hardness materials with large bearing capacity. The guide surface of the workbench base is scraped for higher machining accuracy, providing a significant industry advantage.

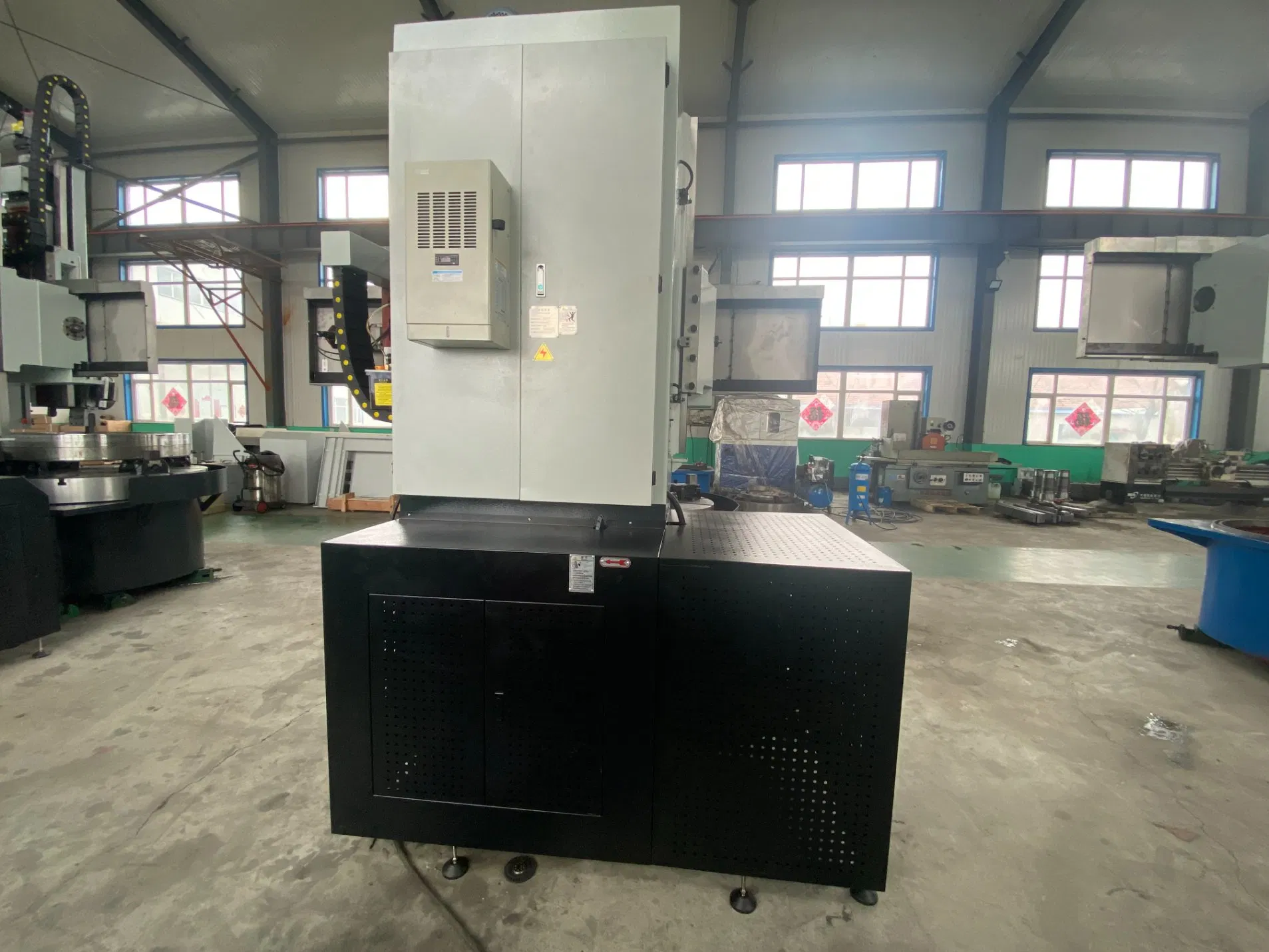

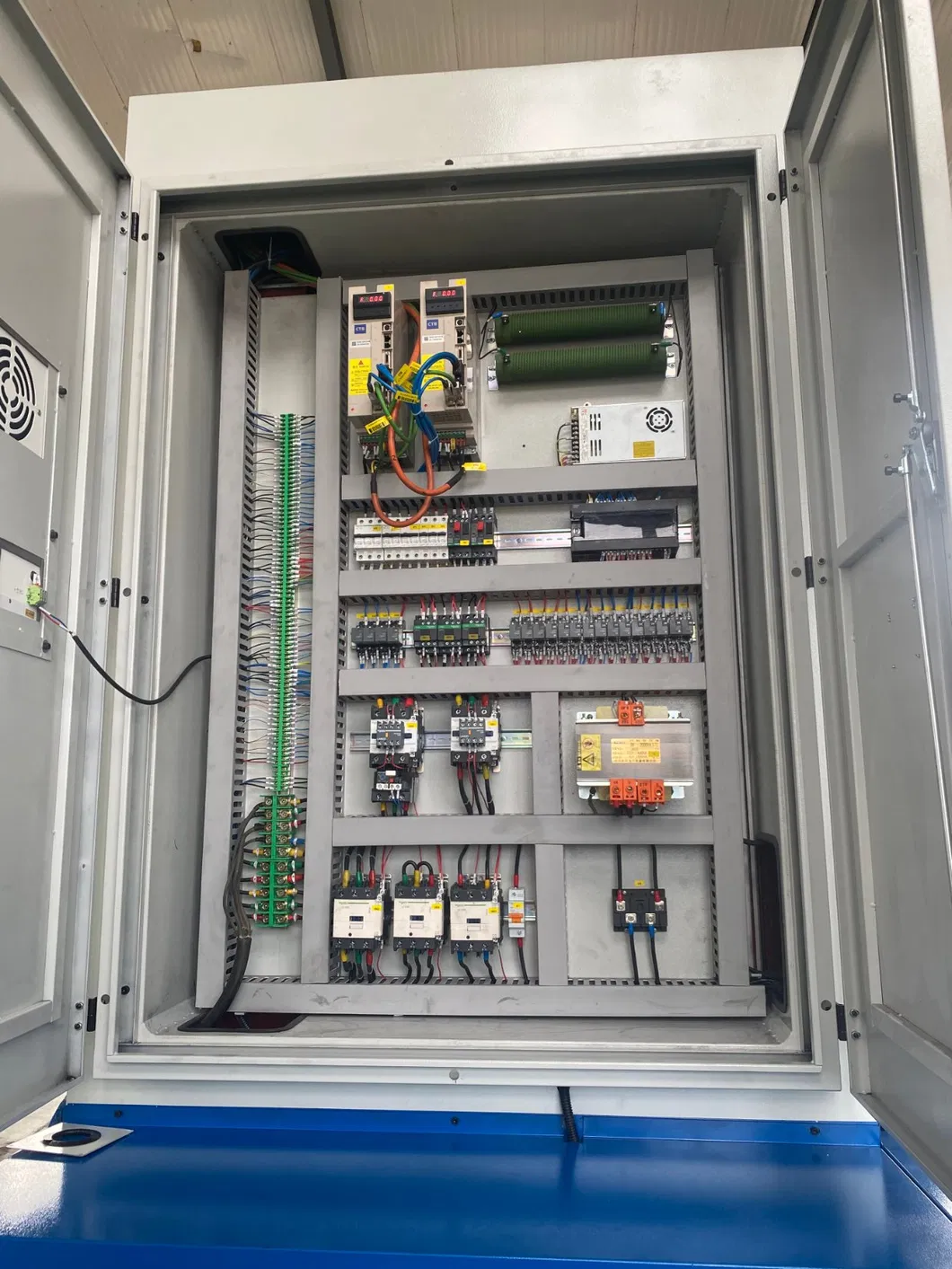

Electrical Control Box:
Elements are installed in a professional power distribution cabinet, with all operating controls centrally located in a hanging button station for ease of use.
We are a professional machine tool manufacturer engaged in R&D, production, and sales in the metal machining field. With 15 years of specialization in Vertical Lathes, we provide high-tech solutions and efficient manufacturing applications.
Our expanded scope includes CNC & Manual Lathes, Vertical Machining Centers, and Boring Machines, ensuring our clients access high-quality products and professional service.
