Five-Axis Gantry Machining Center with Moving Column Suitable for Machining Large Parts

Customization:	Available
After-sales Service:	Video Support for Free
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Type

Vertical Lathe

Processing Accessory

Curved Surface CNC Lathe

Guide Rail

Inclined Guide Rail

Tool Holder

Double-tool Holder CNC Lathe

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Polywood Box

Origin

China

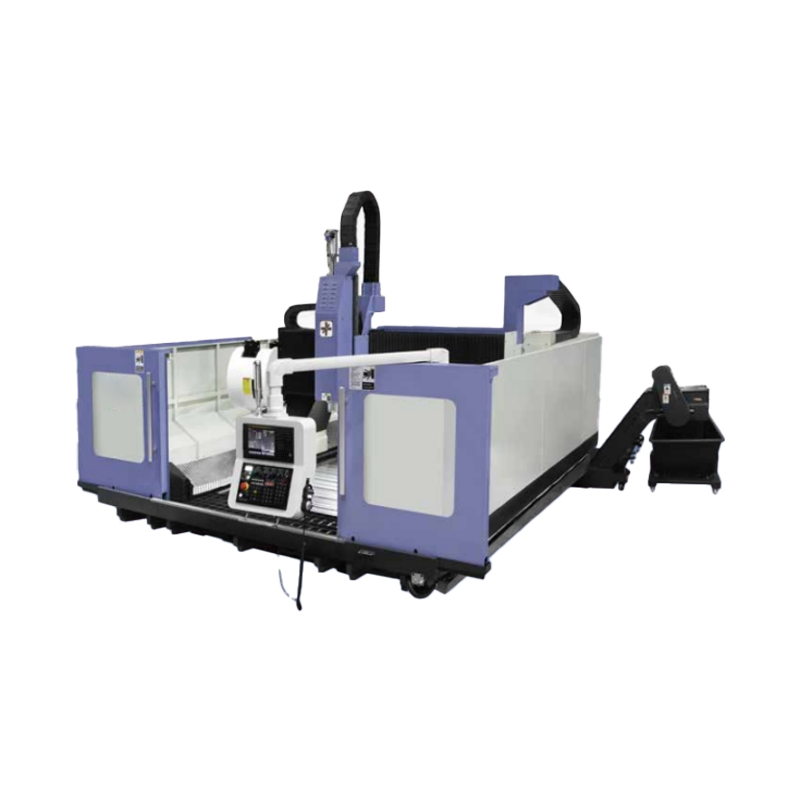

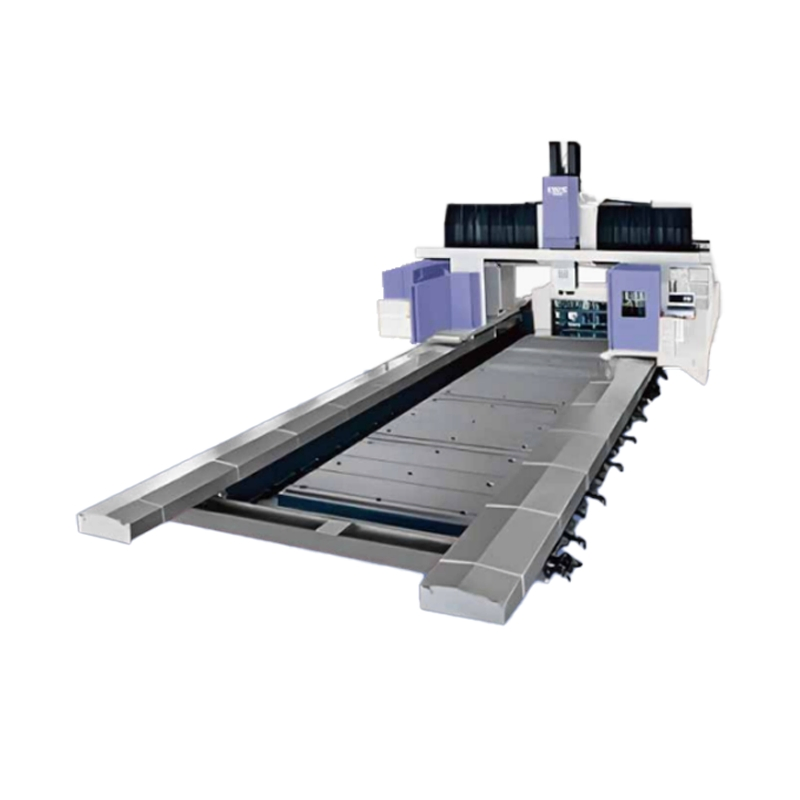

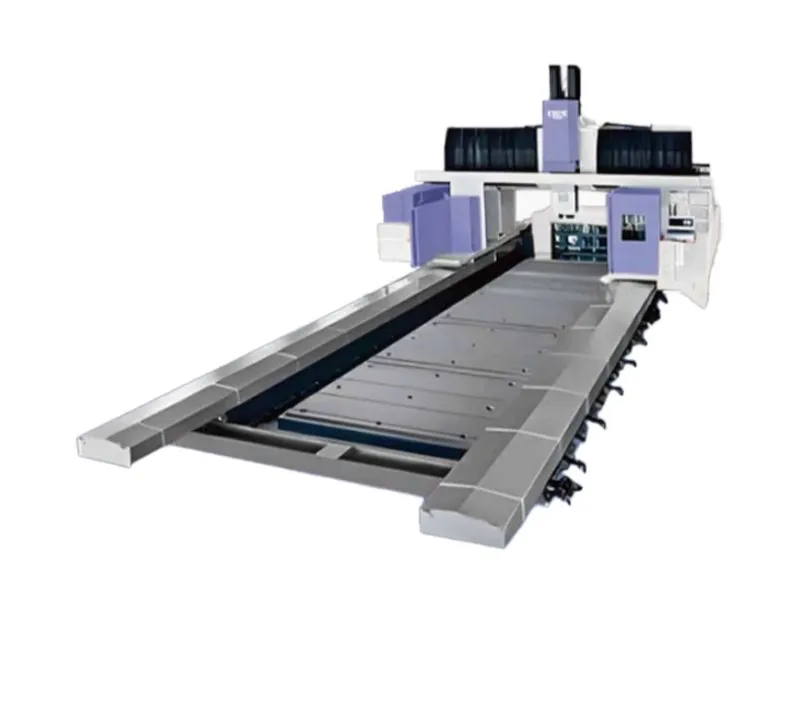

UF Series Five-Axis Gantry Machining Center

Moving-Column Solution for Large Part Machining

Applications: Aerospace components, wind turbine blades, non-ferrous metals, steel parts.
Flexible Design: Movable gantry frame with fixed worktable for small footprint and high load capacity.
High Performance: Dual-motor backlash-free drive ensures smooth heavy-duty transmission.
Stability: Heavy-duty roller guide structure for high rigidity and long-term precision.
Efficiency: Spacious processing area minimizes loading, unloading, and inspection time.

Technical Specifications

Custom configurations available upon request.

ITEM	Unit	UF1625	UF2030	UF2040	UF3060	UF3580	UF4080	UF4580
X/Y/Z Travel	mm	2000/1650/800	3200/2200/1000	4200/2920/1250	6200/3000/1250	8200/4200/1250	8000/4000/1500	8000/4500/1800
A/C Rotation	°	±110/±360	±110/±360	±110/±360	±110/±360	±110/±360	±110/±360	±110/±360
Table Size	mm	1600x2500	2000x3000	2500x4000	3000x6000	3500x8000	4000x8000	4500x8000
Max Load	kg/m²	1000	1000	1000	1000	15000	15000	15000
Spindle Speed	r/min	20000	20000	18000	18000	10000	10000	10000
Control System	-	Siemens	Siemens	Siemens	Siemens	Siemens	Siemens	Siemens

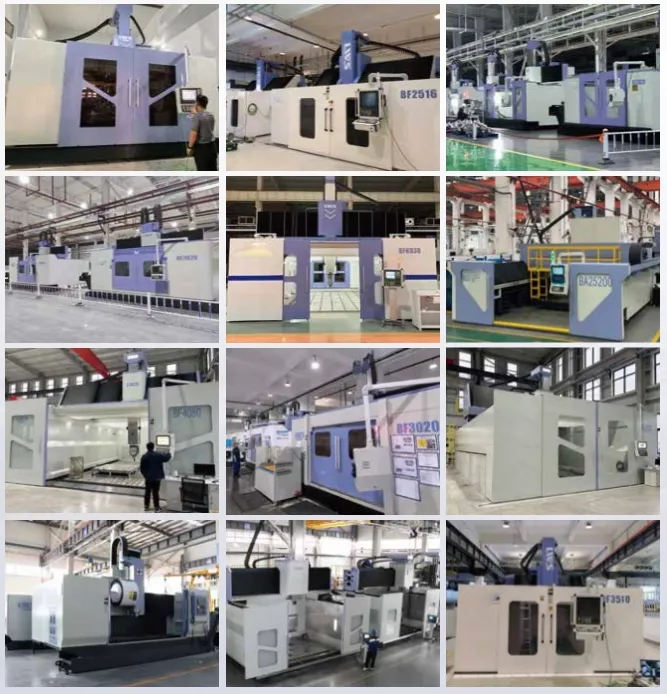

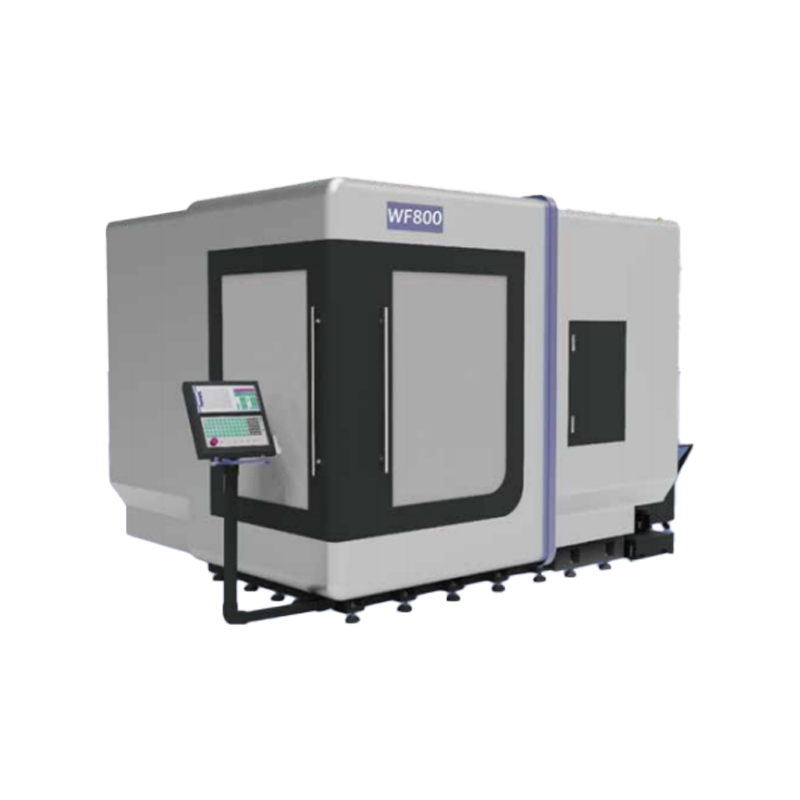

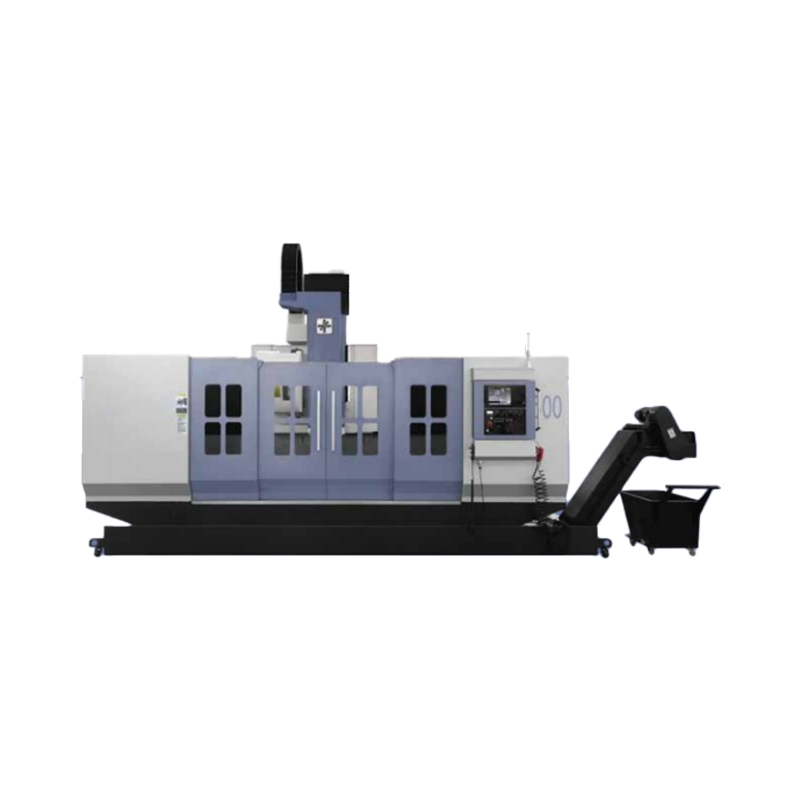

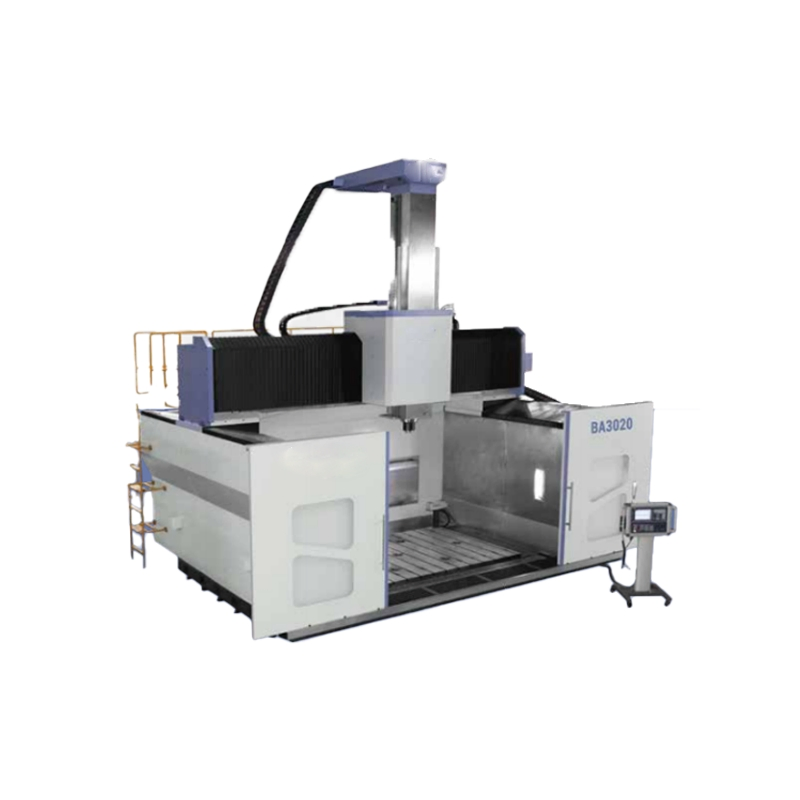

Other Series Showcase

After Sales Service

Standard Warranty

12 months after shipping

Extended Warranty

Optional coverage up to 36 months

Global Support

24/7 technical assistance and service group

Training

On-site or remote operation/maintenance training (Free)

Company Profile

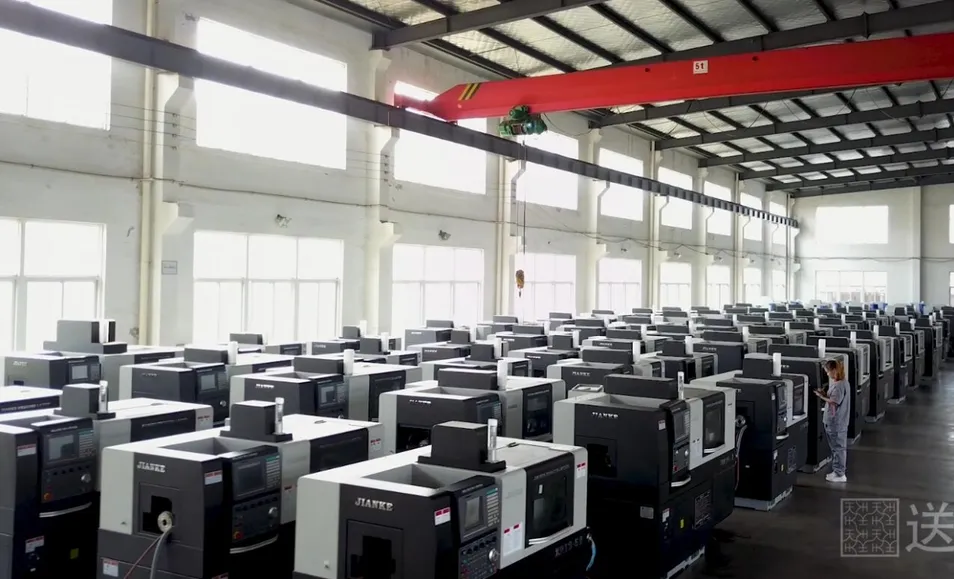

The factory is a high-tech enterprise specializing in R&D, production, and sales of high-end CNC equipment. Facilities include a precision assembly workshop, CMM room, and electrical automation workshop. With over 150 employees (30% R&D), we hold over 100 patents.

Our core products include high-speed five-axis machining centers (BF, SF, UF, CF, TF, PF series). We serve industries including aerospace, rail transportation, automotive manufacturing, wind power, and shipbuilding with customized turnkey solutions.

Frequently Asked Questions

Are you a factory or a trading company?

We are a factory manufacturing lathes and CNC equipment. We also collaborate with professional suppliers to provide comprehensive machining solutions for our clients.

What is the typical delivery time for machines?

For standard models, it usually takes 1-3 months. Popular items may be in stock for faster delivery, while special large-scale projects may require more time.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer) and L/C (Letter of Credit) for machine orders. Other payment terms can be discussed for tools and smaller accessories.

How can I contact you for a consultation?

You can send an inquiry or message directly through the "CHAT" feature on this shop page to discuss your technical requirements.

How quickly can I receive a formal quotation?

We typically respond to messages within 1 hour. For technical machine specifications, a formal quotation is usually provided within 3 days for standard machines and 1 week for special projects.

Are custom machine configurations available?

Yes, we provide customized turnkey services based on specific industry characteristics and client needs, including custom travel ranges and spindle configurations.
