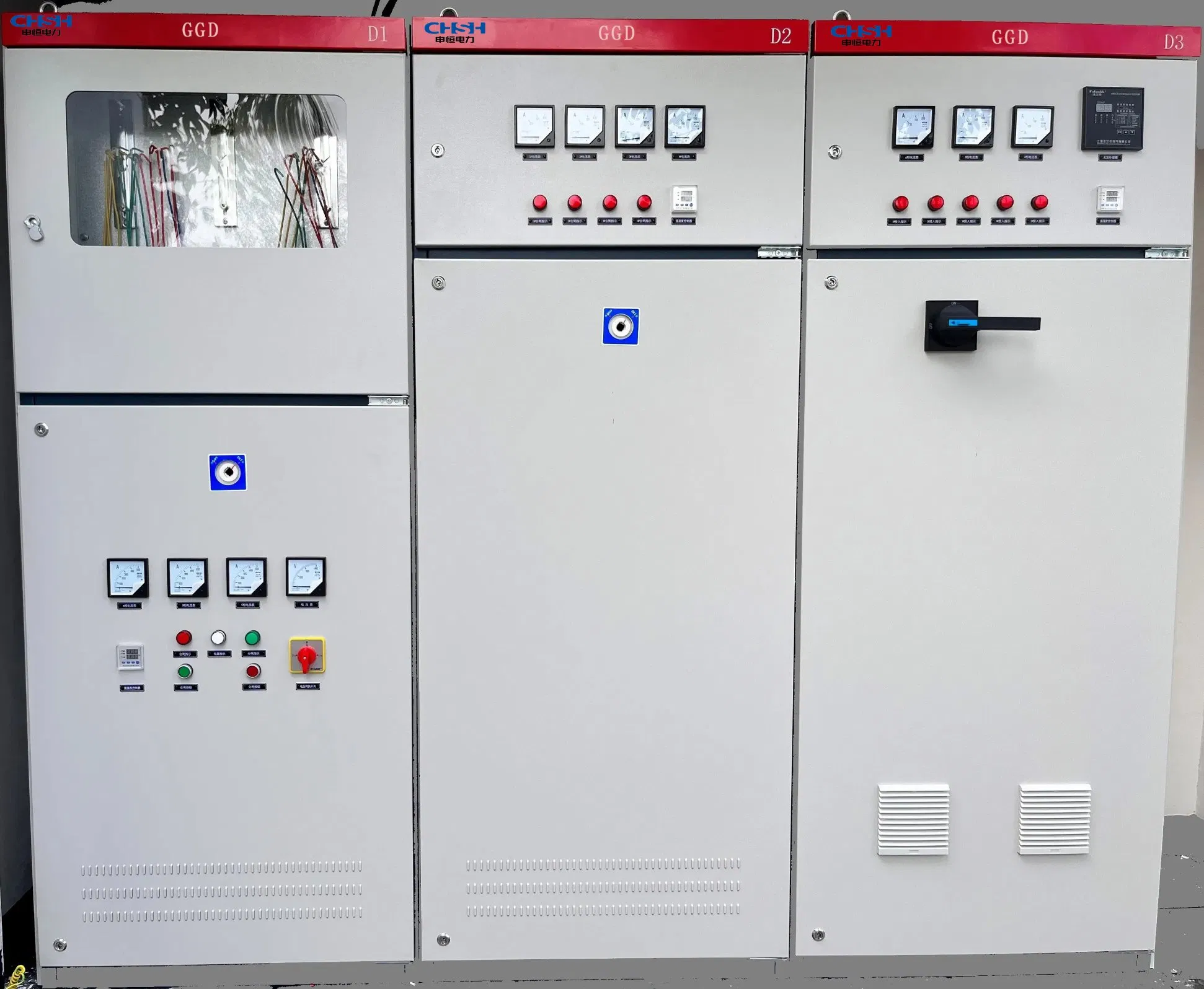

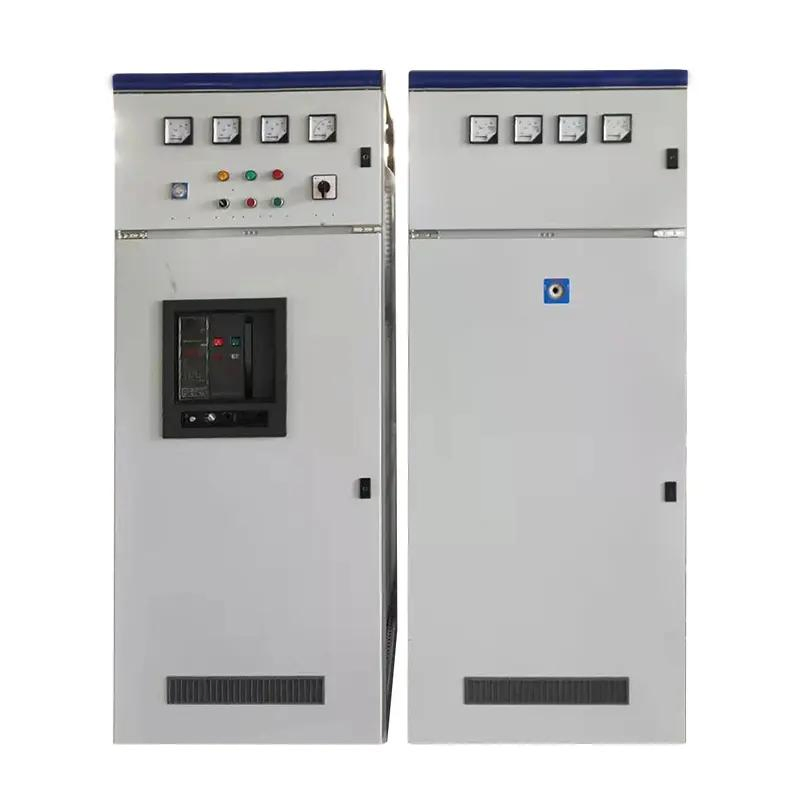

General Description:
The GGD AC low voltage distribution cabinet is applied to certain distribution system of AC 50/60Hz, rated voltage 400V, rated current being 3150A or lower, mainly used for power transforming, distributing and controlling of power equipment, lighting and distribution equipment.
High breaking capacity, well dynamic, thermal stability, flexible electric plant, simple combination, strong series performance and printability, novel structure, high protection rank etc. It conforms with technique demand of IEC60439.1 and GB7251.1 low-volt complete set switch equipment etc.

Product Features:

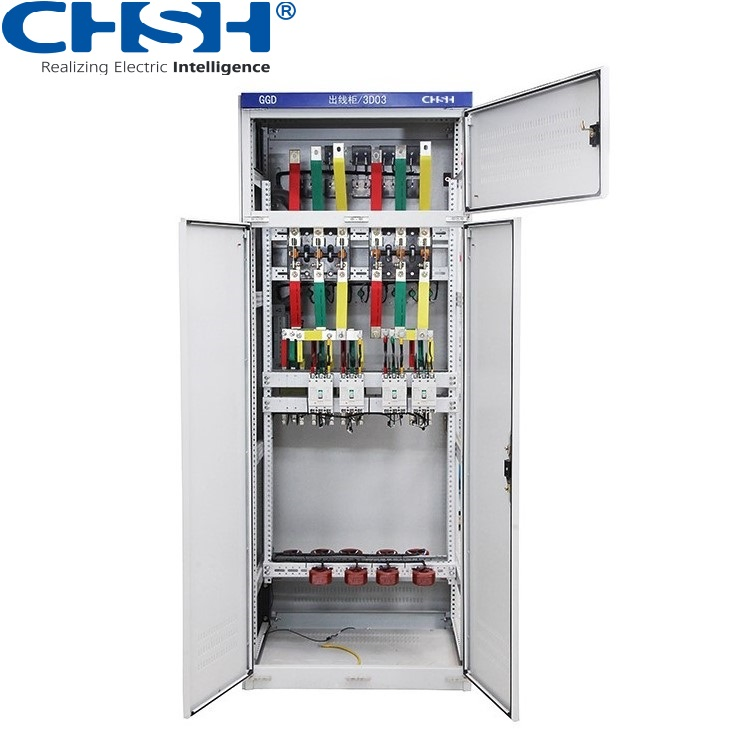

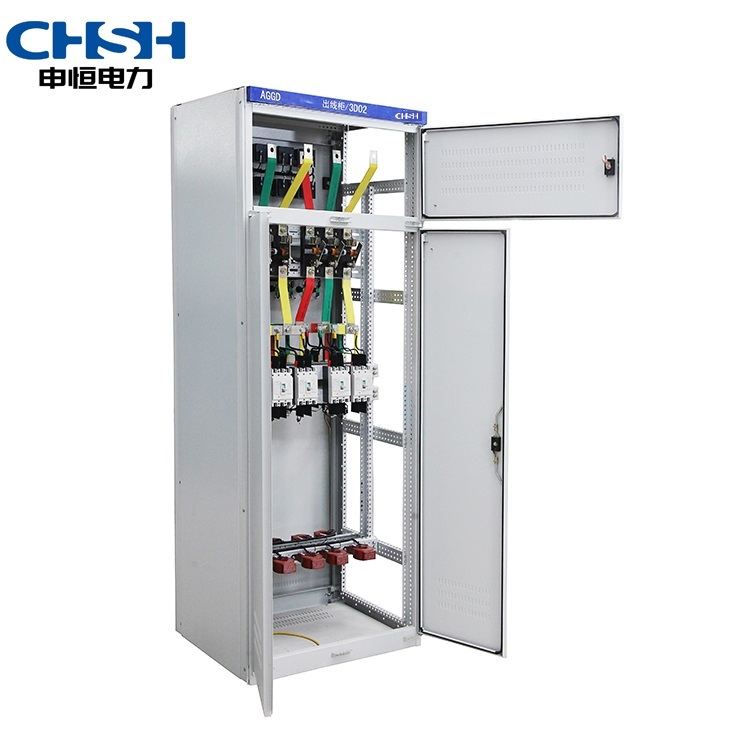

• The body of GGD AC LV fixed type switchgear adopts universal cabinet type. Framework is assembled with 8MF cold bending bar steel through part welding.
• Components of universal cabinet are designed according to module principle, with 20 modulus mounting holes and high universal coefficient.
• Optimized heat rejection slots are installed in upper and underside both ends of the cabinet for efficient cooling.
• Cabinet gate is connected with framework with rotation axis type movable hinge for convenient installation and disassembly.
• Equipped with a complete earthing protective circuit.
• Top cover can be disassembled for convenience of assembly and adjustment for main bus bar at site.
• Protection grade: IP30. Users can choose between IP20-IP40 based on environmental requirements.
