High Efficiency Pipe Fitting up Workstation Center for Pipe Spool Fabrication Line

Customization:	Available
Production Scores:	Multiple Varieties
Production Continuity:	Continuous

Basic Information

Model NO.

PPFUM

Condition

New

Automation

After-sales

Quality Assurance

Keywords

Pipe Fitting up Machine

Warranty

1 Year

Transmission

Flexible

Production

Assembly Line

Certification

ISO

Origin

China

Capacity

1000 Sets/Year

Product Description

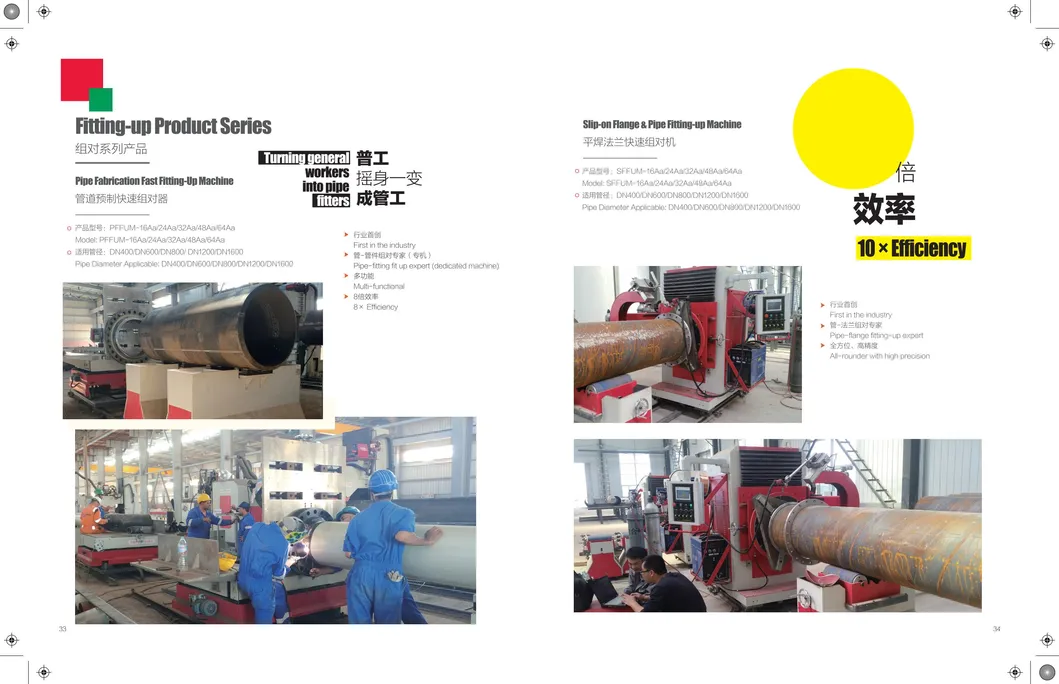

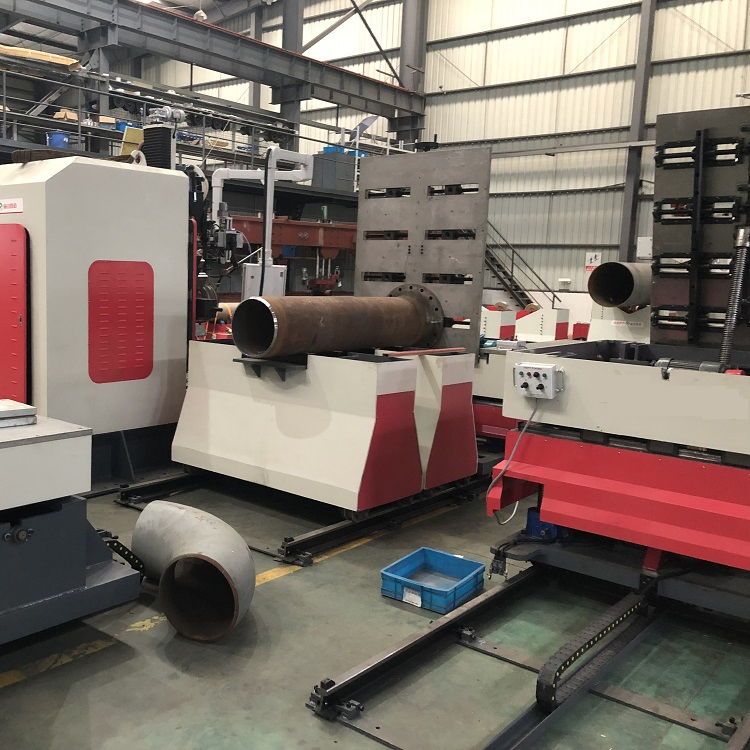

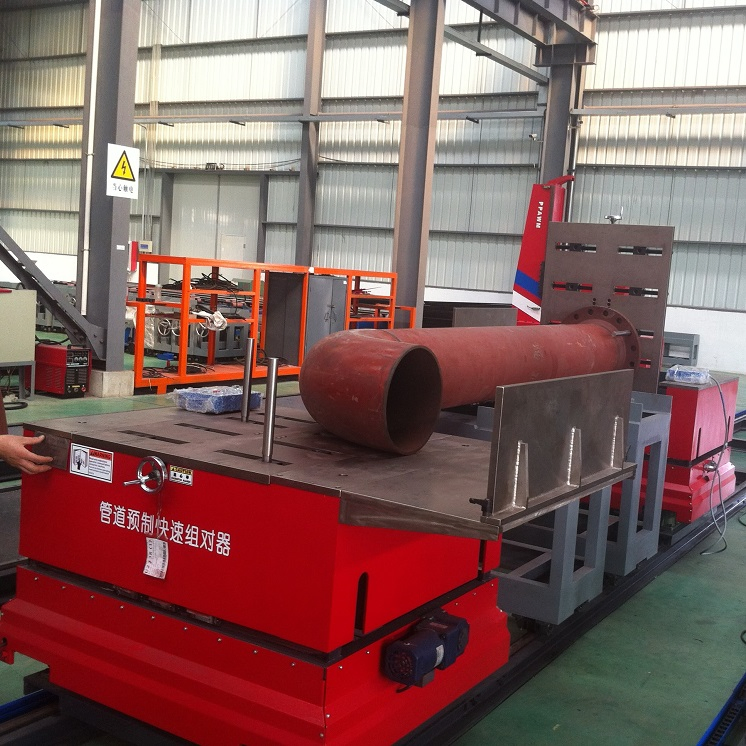

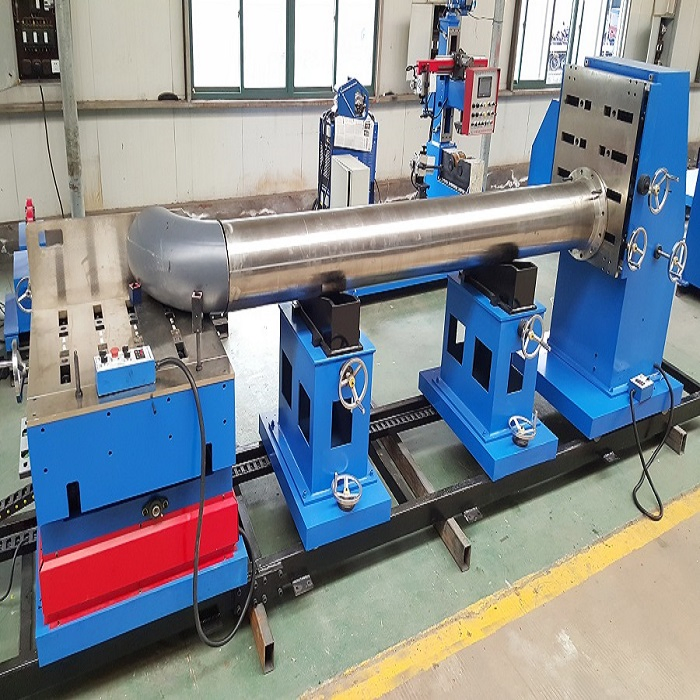

Pipe and Flange Fitting up Machine

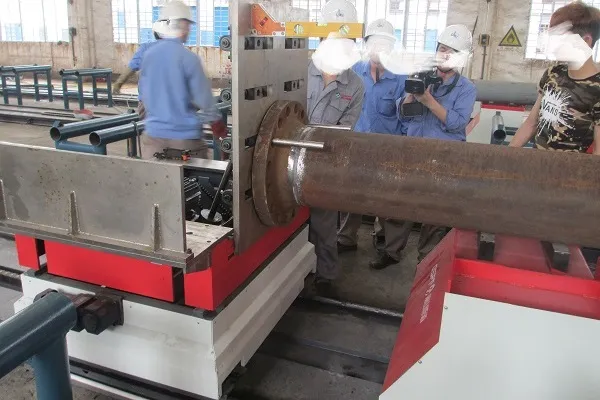

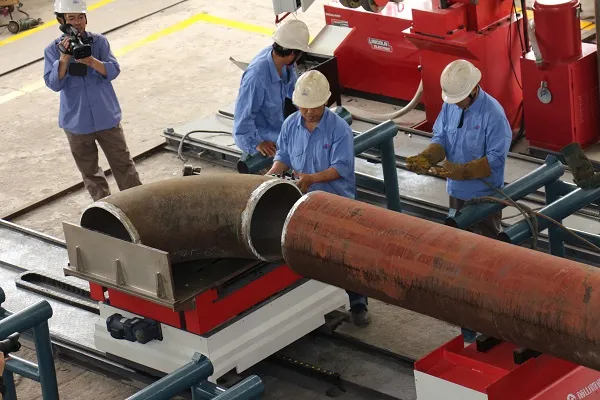

Multifunction Piping Fitting Up Machine is used for pipe to pipe, pipe to flange, pipe to elbow, pipe to reducer, pipe to tee, etc.

Models: PPFUM-16A2; PPFUM-24A2; PPFUM-32A2

Applicable Industry: Oil & Gas, Refinery, Petrochemical, Petroleum, Chemical Industry, Onshore & Offshore, Marine Engg, Shipbuilding & Shipyard, Thermal & Nuclear Power Plant, Boiler, Heat Exchanger Refrigeration, Medical, Voyage, Pressure Vessel, Foodstuff Machinery, Atomic Power, Beverage etc.

Product Parameters

Pipe diameter applicable	DN50-400 (2-16 inch); DN150~600mm (6~24 inch); DN200-800mm (8-32 inch); Or custom made
The longest pipe	12m or 6M (or depend on the situation)
Fitting-up system	2 sets
Moving up/down	With screw lifter, driven electrically
Moving left/right	Linear guiding rail, driven & movement electrically
Vertical turnover	With screw lifter, driven electrically
Max loading capability	750KG / 1000KGS / 1500KGS (depend on configuration)
Track type	Hexagonal steel track (7.5M or 10M)

Product Features & Configuration

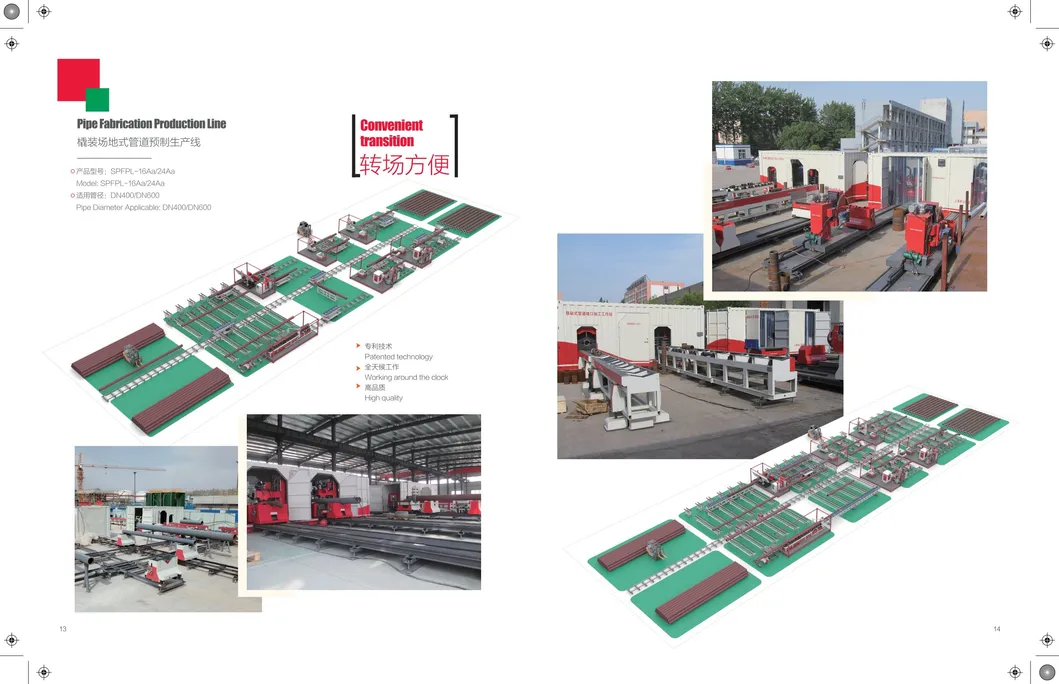

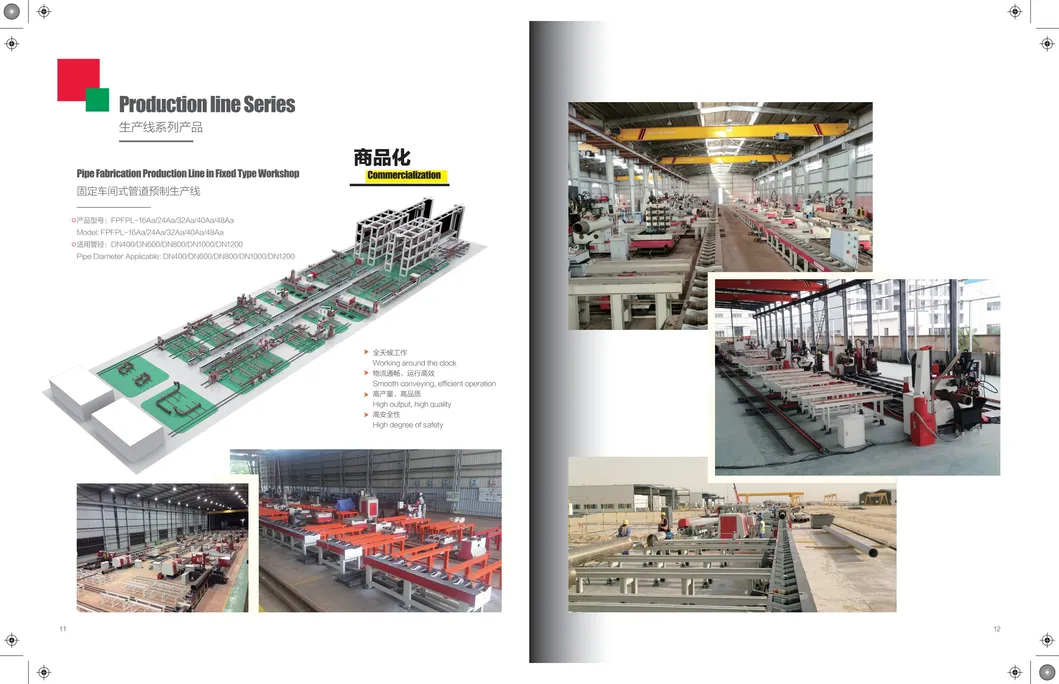

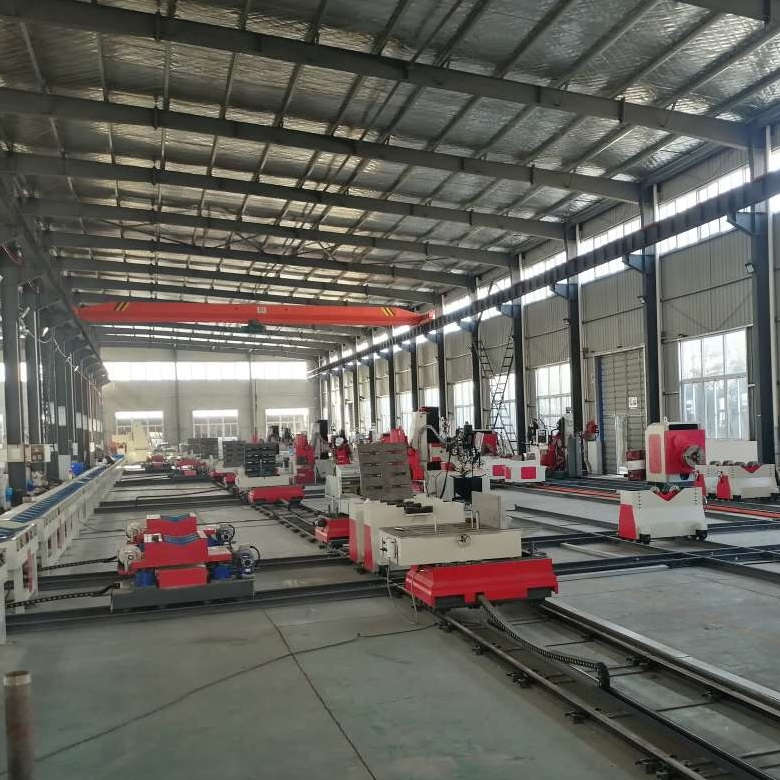

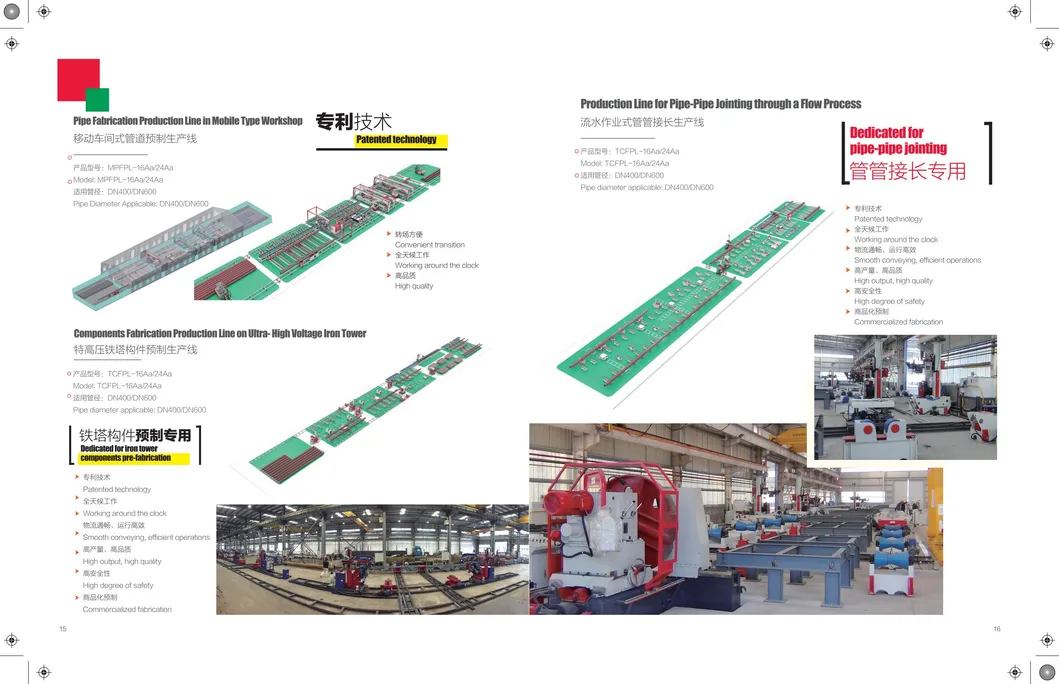

Containerized Type Piping / Pipe Spool Fabrication System
Multiple sets of Pipe Cutting & Beveling Machining Workstations

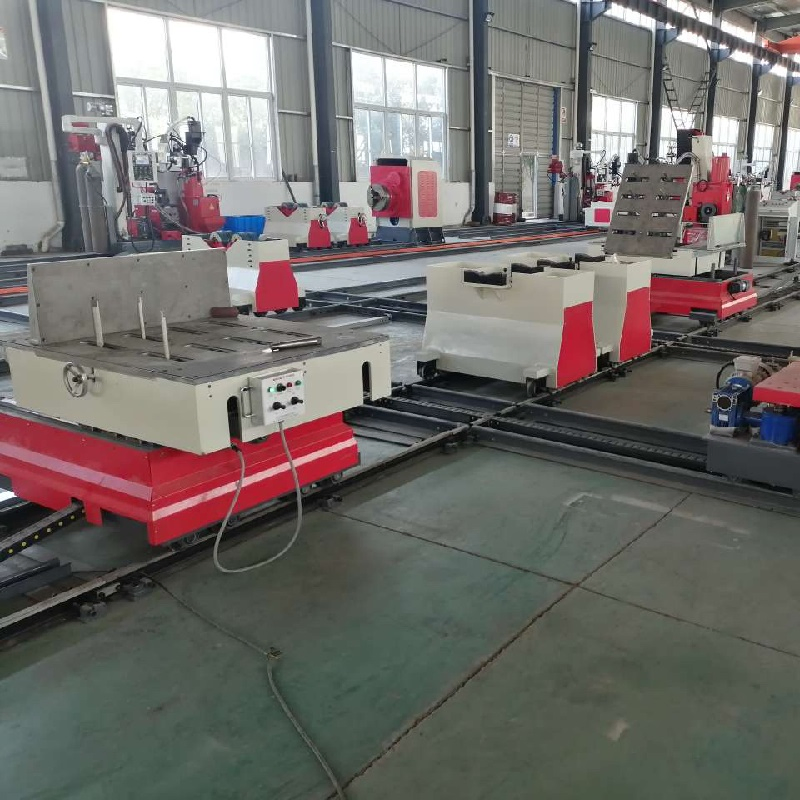

Mechanical Pipe Fitting Up Workstations
Piping Automatic Welding Workstations
Integrated Logistics Transport or Conveying Systems
Steel Structure Pipe Racks system

Production Efficiency: Extremely high. Utilizes overhead traveling cranes, high-speed pipe cutting and beveling, and automatic welding stations to maximize output.

Production Capacity: 20,000 ~ 150,000 DI/month depending on field size and machine configuration, significantly reducing manpower and improving automation.

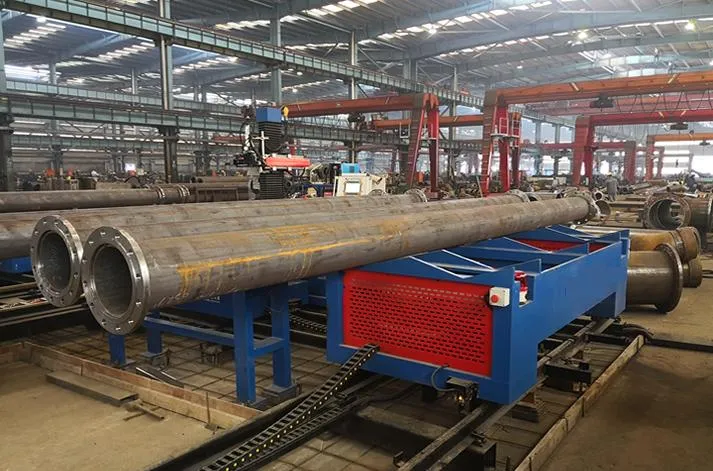

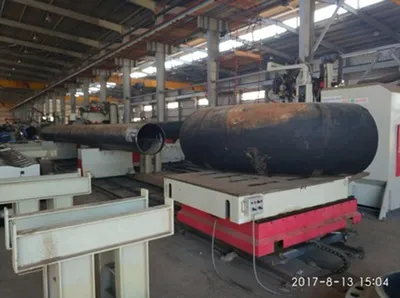

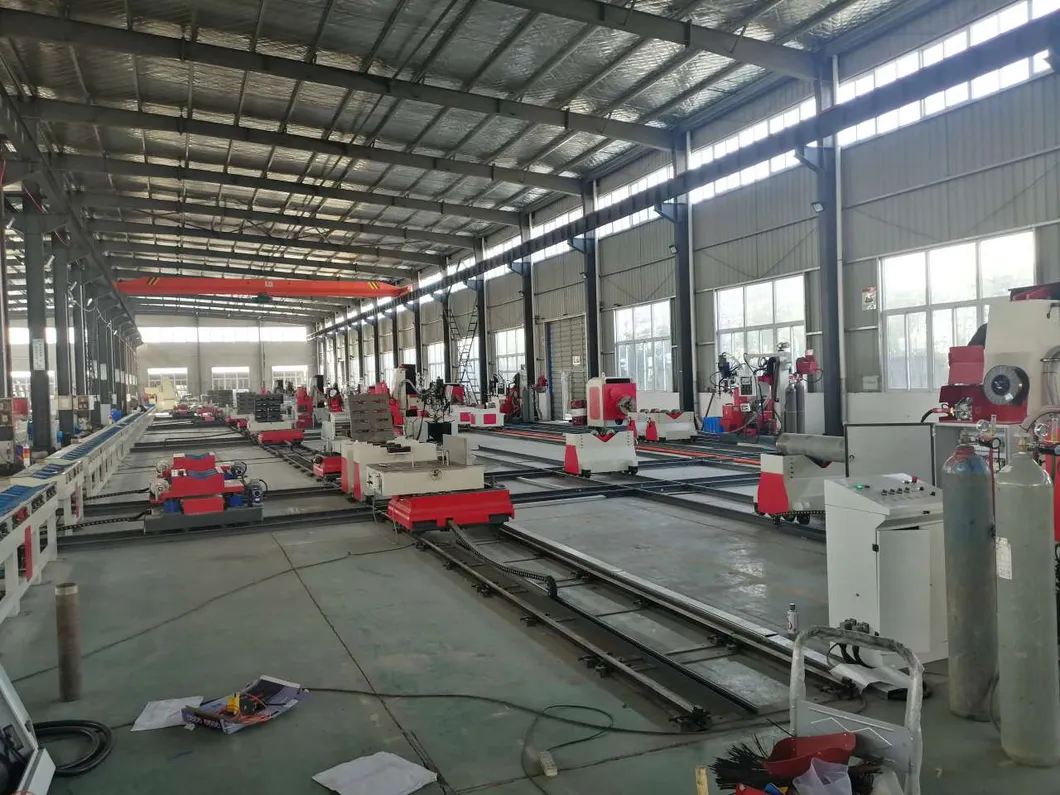

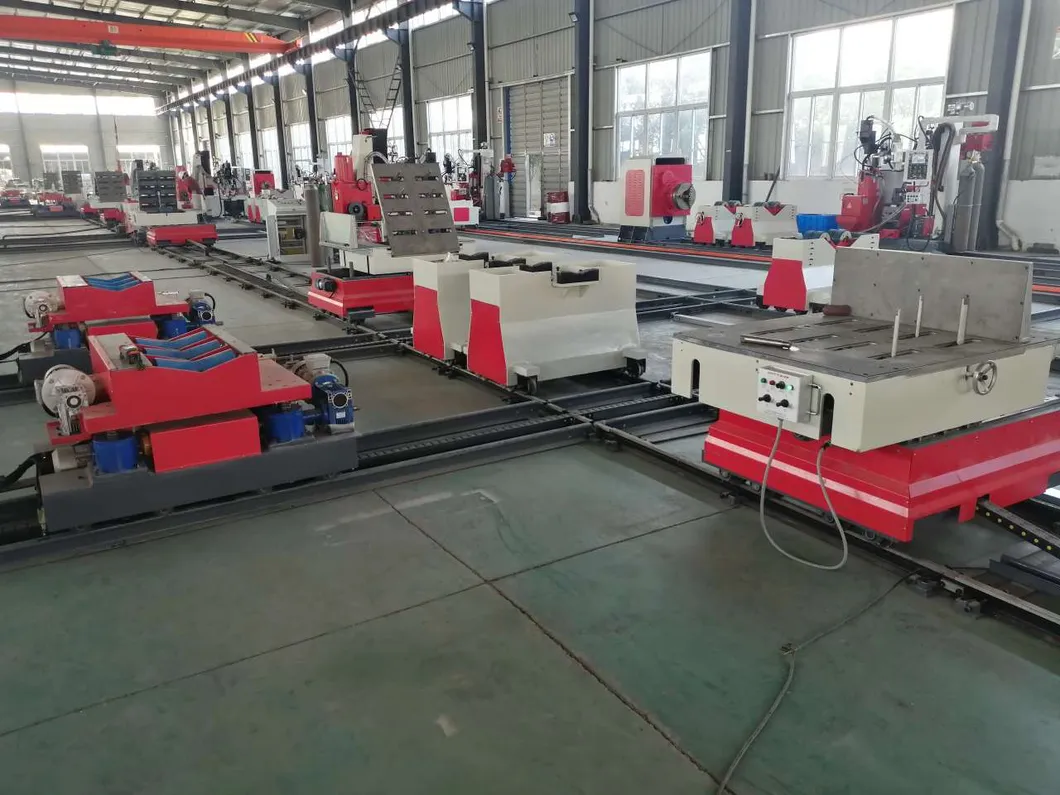

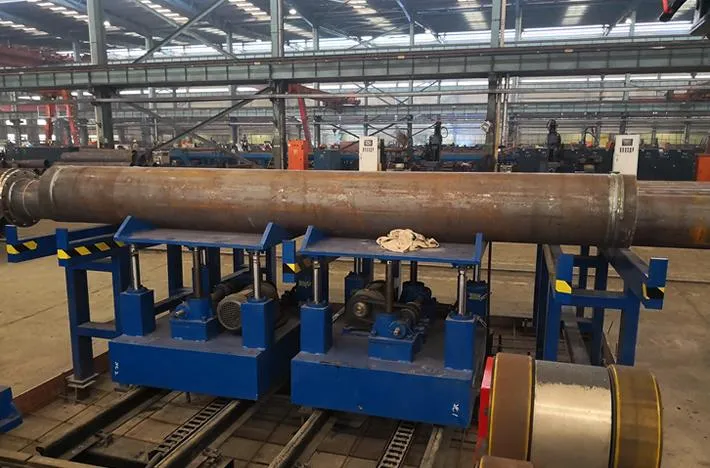

Detailed Photos

Company Services & Strength

The company is engaged in bringing the most suitable solutions and equipment for clients, fabricators, and EPC companies regarding pipe fabrication, tank construction, pipeline construction, industrial production lines, and clean energy projects.

Ability to provide workable solutions to shorten project execution time and reduce man-hour costs.
Customized design based on facility/site space availability to match productivity requirements.
Prompt supply of project materials, tools, and specialized equipment to support execution.
Acting as a procurement resource to seek required supply assets globally.

Frequently Asked Questions

Q: What is the scale of your manufacturing facilities?

A: We operate 3 joint factories in China covering a total of approximately 10,000 square meters with a team of more than 150 professionals.

Q: Does the equipment come with necessary certifications?

A: Yes, our machines are CE certified, and other specific certifications can be provided upon request.

Q: Can I see a demonstration of the machine's operation?

A: Certainly. We have prepared video demonstrations for every machine to show exactly how they work.

Q: How is the quality of the machine ensured before delivery?

A: Prior to delivery, we conduct rigorous testing of the machine's working conditions. We also warmly welcome clients to visit for in-person inspections.

Q: What are the available shipping and payment methods?

A: Shipping can be handled via international express or sea transportation. Payments are accepted via T/T, L/C, and Trade Assurance, depending on customer requirements.
