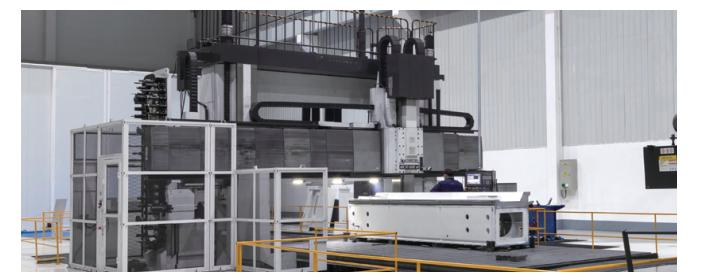

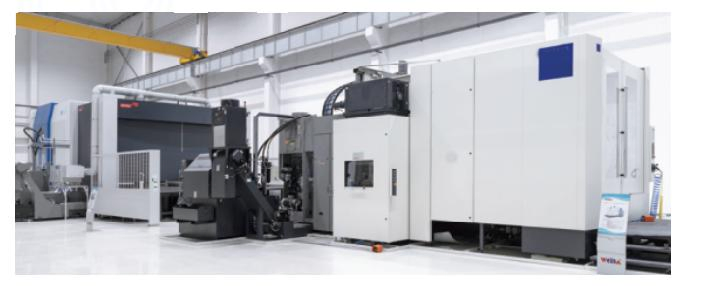

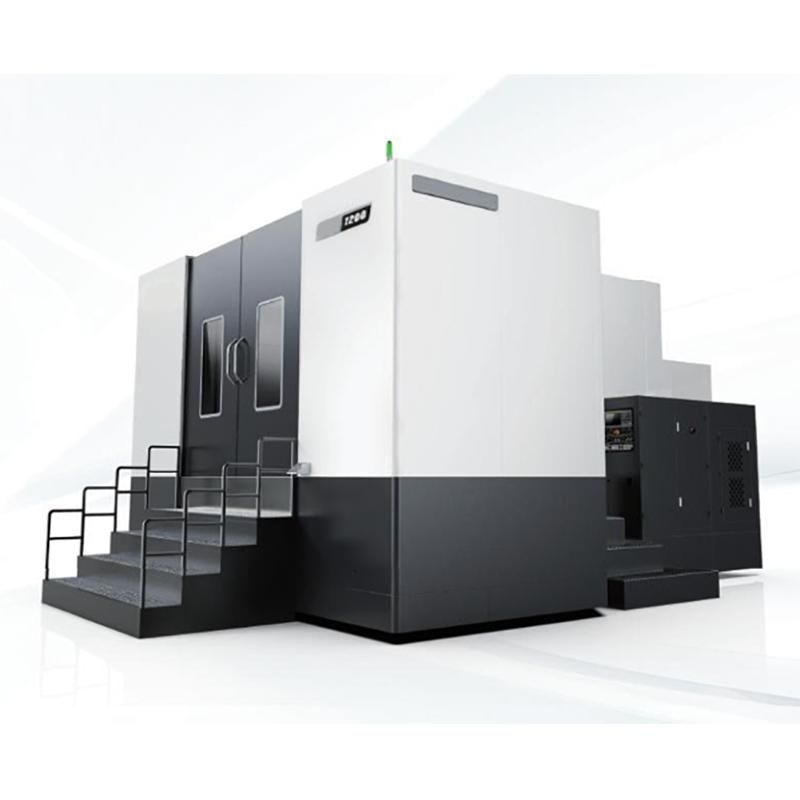

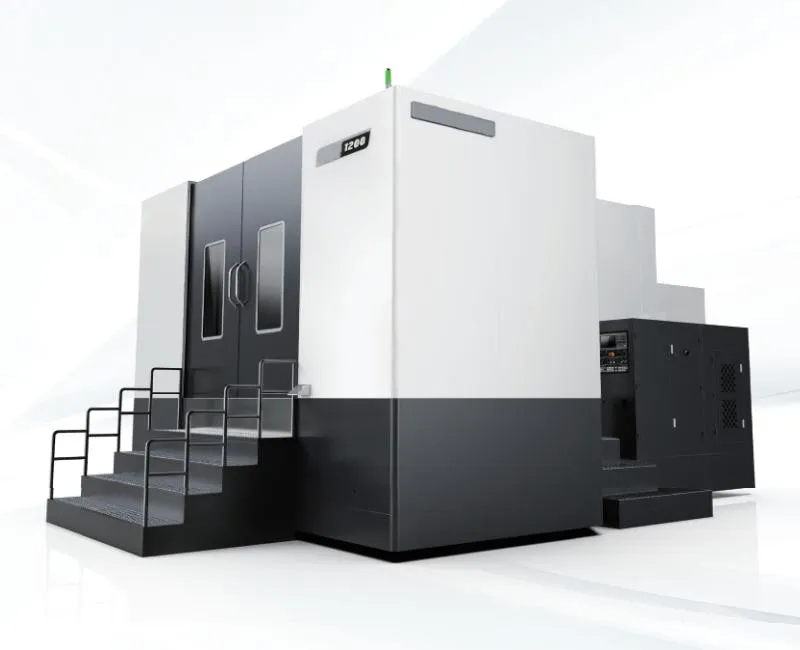

Hmc1000/Hmc1200d, CNC Horizontal Machining Center

Customization:	Available
Application:	Metal
Process Usage:	Metal-Cutting CNC Machine Tools

Send Inquiry

Product Description

Basic Info.

Model NO.

HMC1000/HMC1200D

Numerical Control

CNC/MNC

Performance

High-End CNC Machine Tools

Certification

GS, CE

Condition

New

Transport Package

Woodencase

Specification

7160X4760X4100 / 7300X5050X4600

Origin

China

Capacity

1000pic/Year

Product Description

Suitable for processing spare parts in aerospace, automotive, mold-making, environmental protection equipment, valve, and other industries, especially in box & disc type and complicated parts.
Inverted T type with large travel in three axes and wide machining range.
Mobile vertical hanging, positive hanging spindle box, the overall structure of the machine is compact, small thermal deformation, high rigidity, high precision.

Product Parameters

Specifications	Units	HMC1000D	HMC1200D
Table size	mm	1000X1000	1200X1200
Number of table	pc	1	1
Max. table load	kg	3000	5000
Minimum indexing unit	°	1	1
Max speed of turning table	rpm	11.1	5.5
X axis travel	mm	1600	2000
Y axis travel	mm	1200	1500
Z axis travel	mm	1300	1300
Distance from spindle center to table surface	mm	80-1280	30-1530
Distance from spindle nose to table center	mm	350-1650	350-1650
Max. Workpiece swing diameter	mm	φ2000	φ2200
Spindle taper	--	BT50	BT50
Max. Spindle speed	rpm	3000	3000
Main motor power	kW	22/30	22/30
Spindle torque	N.m	770/1050	770/1050
Max. Taping dia in casting / carbon steel	mm	M36 / M30	M36 / M30
X/Y/Z/B Servo motor power	kW	7/7/7/4	7/7/7/4
Tool magazine type	--	Hydraulic swing chain	Hydraulic swing chain
Tool magazine capacity	pcs	32	32
Max. Tool dia (full/empty)	mm	125/250	125/250
Max tool length	mm	400	400
Max. Tool weight	kg	25	25
Min. Time of tool exchange (T-T)	s	15	15
Rapid feed speed (X/Y/Z)	mm/min	18000	18000
Positioning accuracy (X/Y/Z)	mm	0.020/0.015/0.015	0.020/0.015/0.015
Machine weight	kg	24000	26000

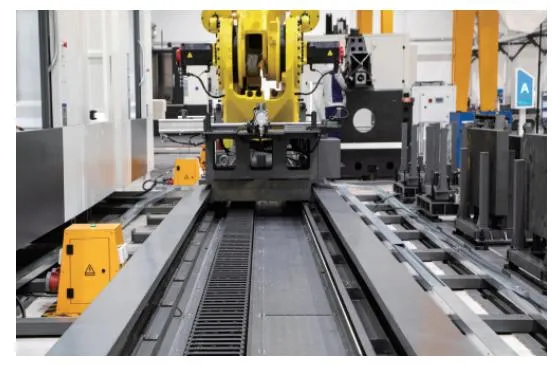

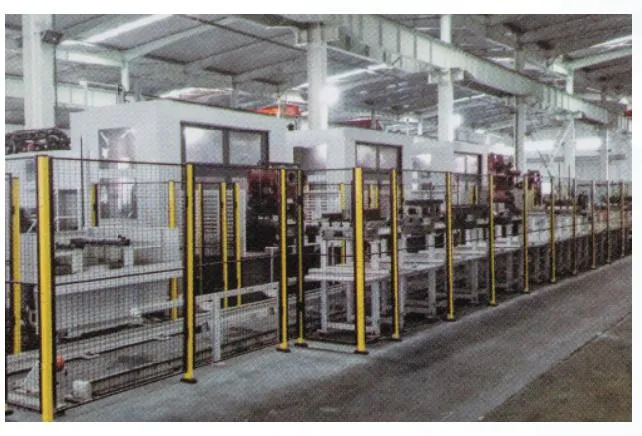

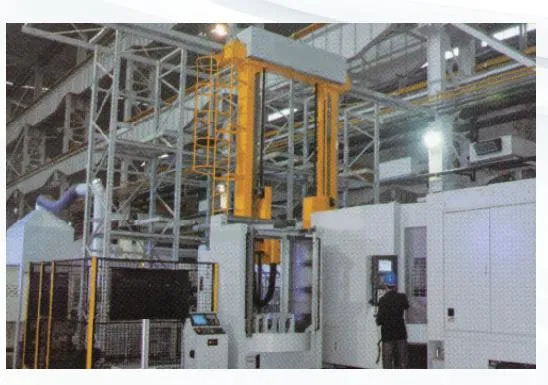

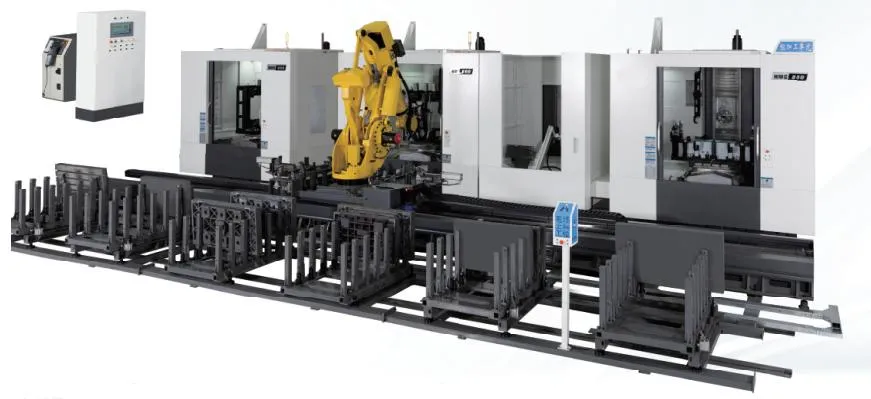

Our Advantages: Flexible Production Line

Integrated Processing: Realizes multi-surface, multi-process cutting from rough parts to finished products for cylinders, valves, and machine tool parts.
High Efficiency: High operating speed and cutting torque, ideal for large batch production.
Smart Operation: 24-hour unattended production with online tool inspection and tool life management.
Intelligent Management: Real-time monitoring and logistics integration for multi-level interconnection of manufacturing units.
Cost Reduction: Significantly increases efficiency while reducing production operating costs.
