Hmc1000d/Hmc1200d CNC Horizontal Machining Center

1 / 5

Hmc1000d/Hmc1200d CNC Horizontal Machining Center

Customization:	Available
Application:	Metal
Process Usage:	Metal-Cutting CNC Machine Tools

Send Inquiry

Product Description

Basic Specifications

Model NO.

Hmc1000/Hmc1200d

Numerical Control

CNC/MNC

Performance

High-End CNC Machine Tools

Certification

GS, CE

Condition

New

Transport Package

Wooden Case

Origin

China

Production Capacity

1000 Units/Year

Product Description & Performance

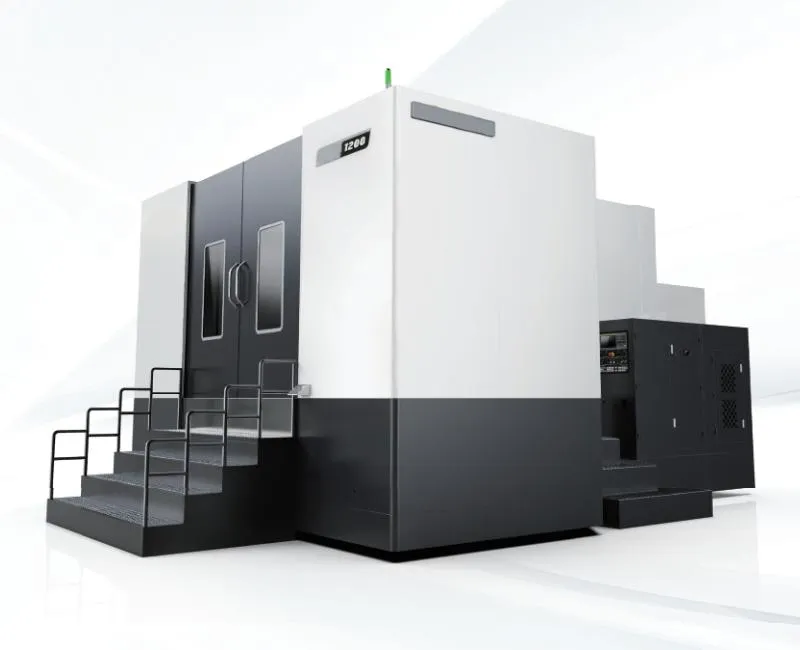

Hmc1000d CNC Horizontal Machining Center

Ideal for processing spare parts in aerospace, automotive, mold-making, and valve industries.
Excellent for box & disc type components and complicated part geometries.
Inverted T-type design with large travel across three axes for a wide machining range.
Compact structure with mobile vertical hanging and positive hanging spindle box.
Engineered for small thermal deformation, high rigidity, and superior precision.

Technical Parameters

Specifications	Units	HMC1000D	HMC1200D
Table size	mm	1000X1000	1200X1200
Max. table load	kg	3000	5000
Minimum indexing unit	°	1	1
X/Y/Z axis travel	mm	1600 / 1200 / 1300	2000 / 1500 / 1300
Max. Workpiece diameter	mm	φ2000	φ2200
Spindle taper	--	BT50	BT50
Max. Spindle speed	rpm	3000	3000
Main motor power	kW	22/30	22/30
Max. Tapping dia (Steel)	mm	M30	M30
Tool magazine capacity	pcs	32	32
Rapid feed speed (X/Y/Z)	mm/min	18000	18000
Positioning accuracy	mm	0.020/0.015/0.015	0.020/0.015/0.015
Machine weight	kg	24000	26000

Standard Configuration

Fanuc 0i-MF Plus CNC controller
40 pcs chain type tool magazine
One-piece gear box
Constant oil coolant

Optional Configuration

Germany or Italy BF gear box
Tool variable pressure internal cooling system
Random indexing of worktable
60 pcs chain type tool magazine
Heidenhain or Fagor linear scale

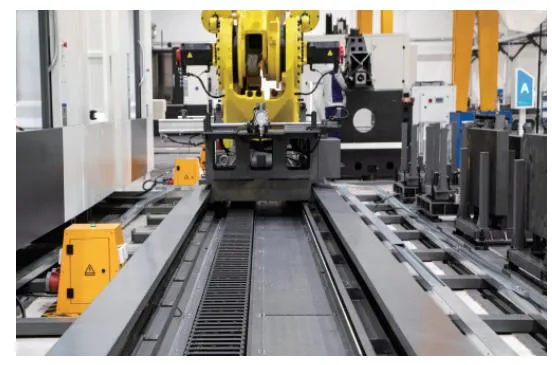

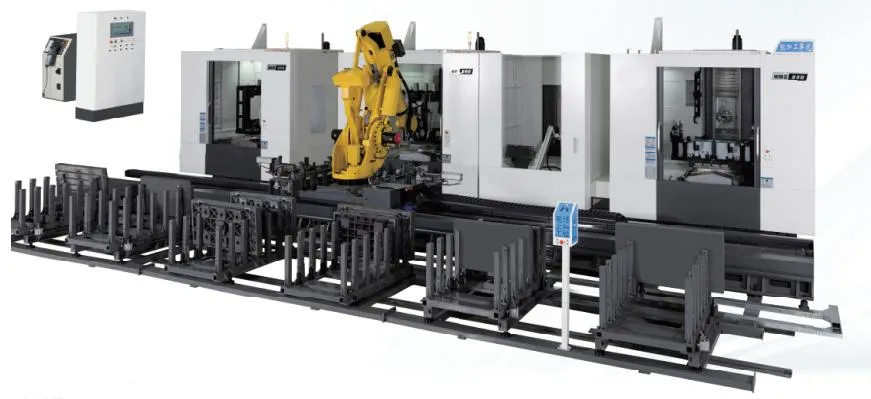

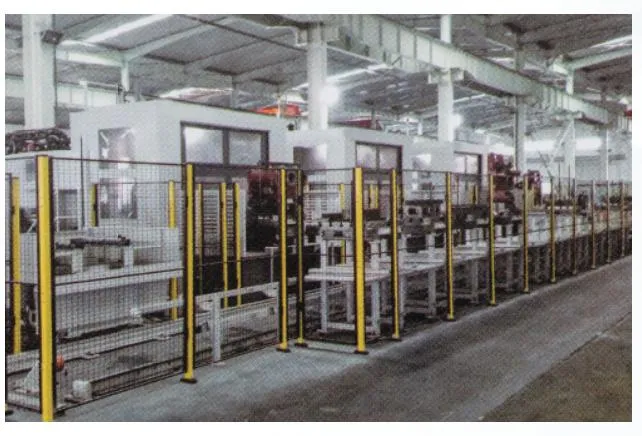

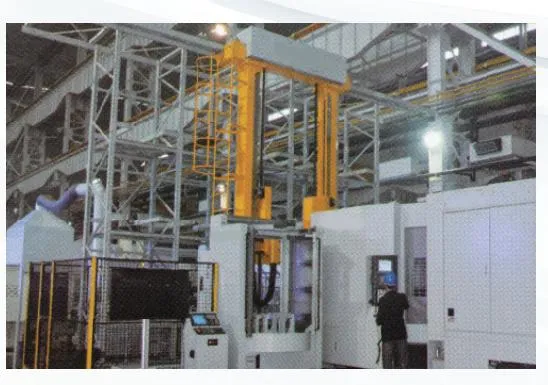

Flexible Production Line Advantages

Our horizontal machining center flexible production line is designed for high-efficiency drilling, milling, and boring of cylinder bodies, valve bodies, and other complex CNC parts.

24H Unattended Production: Features online tool inspection and lifecycle management for continuous operation.
Intelligent Integration: Combined with logistics systems and real-time monitoring for multi-level interconnection.
High Batch Efficiency: Specifically suited for large batch and multi-species production needs.
Cost Reduction: Significantly increases manufacturing efficiency while lowering production operating costs.

Frequently Asked Questions

What industries benefit most from the HMC series?

The HMC series is specifically designed for high-precision industries including aerospace, automotive, mold-making, and heavy engineering, particularly for box-type and complex mechanical parts.

What is the difference between HMC1000D and HMC1200D?

The main differences are table size and load capacity. The HMC1200D offers a larger 1200x1200mm table and can support up to 5000kg, compared to 3000kg for the HMC1000D.

Can this machine support automated production?

Yes, these machines can be integrated into intelligent flexible production lines with 24-hour unattended production capabilities, including real-time monitoring and tool life management.

What CNC controller is provided as standard?

The standard configuration includes the Fanuc 0i-MF Plus CNC controller, known for its reliability and precision in high-end machining.

What type of spindle taper and tool capacity does it have?

Both models feature a BT50 spindle taper. The standard tool magazine capacity is 32 or 40 pieces, with an optional upgrade to a 60-piece chain-type magazine.

What measures are taken for thermal stability?

The machines utilize a constant oil coolant system and a compact, high-rigidity structure to minimize thermal deformation and maintain high precision during long operations.
