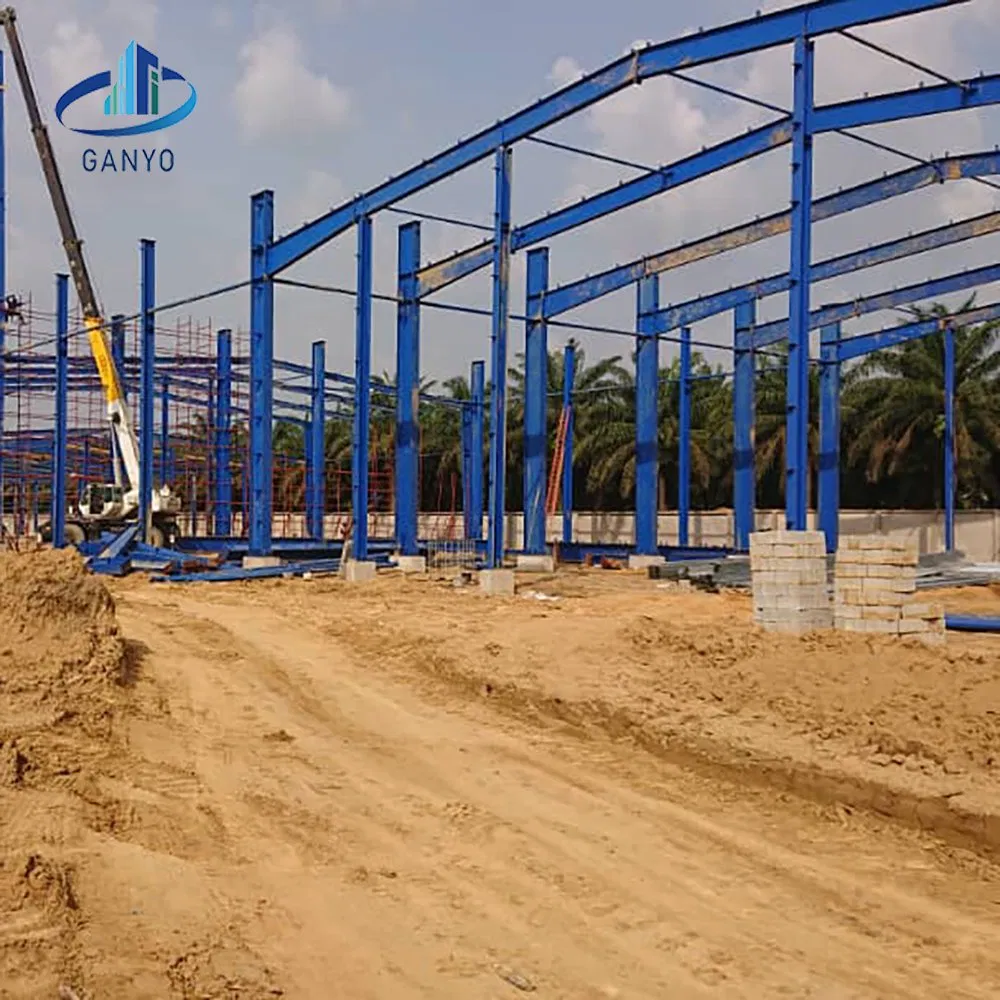

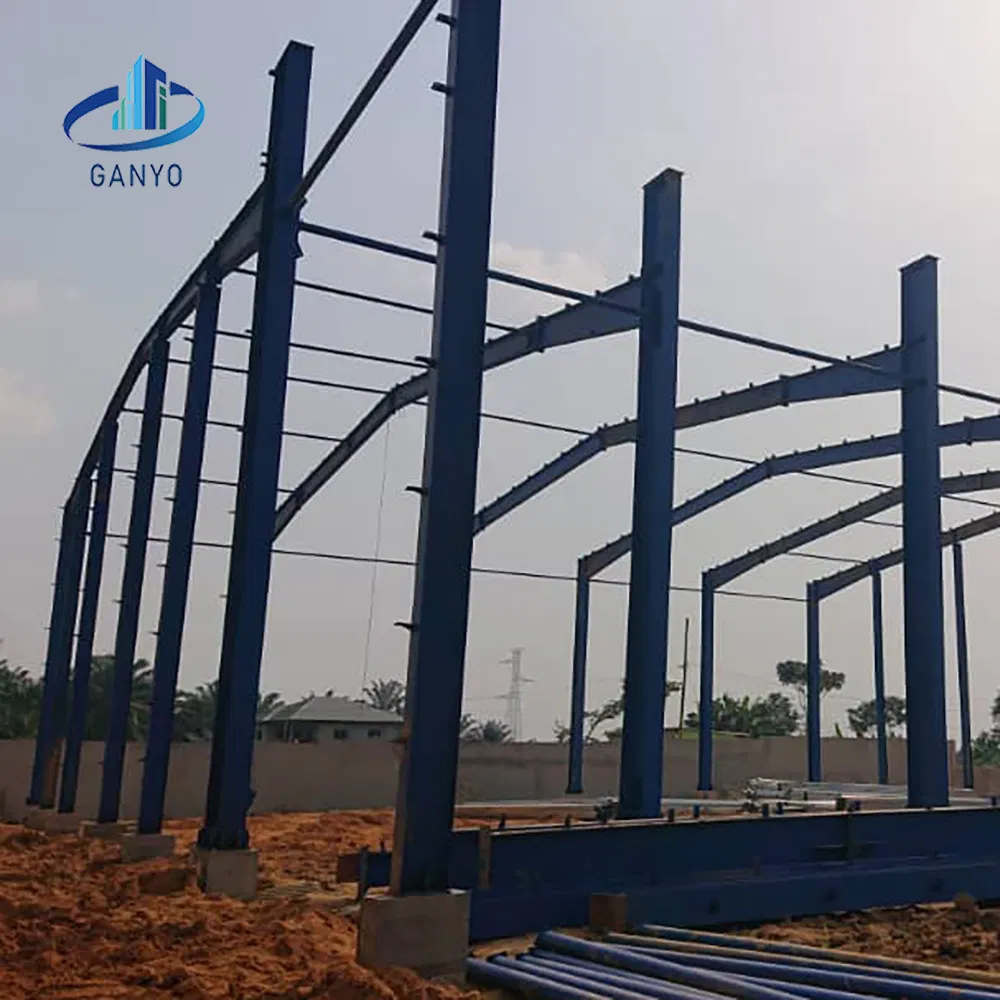

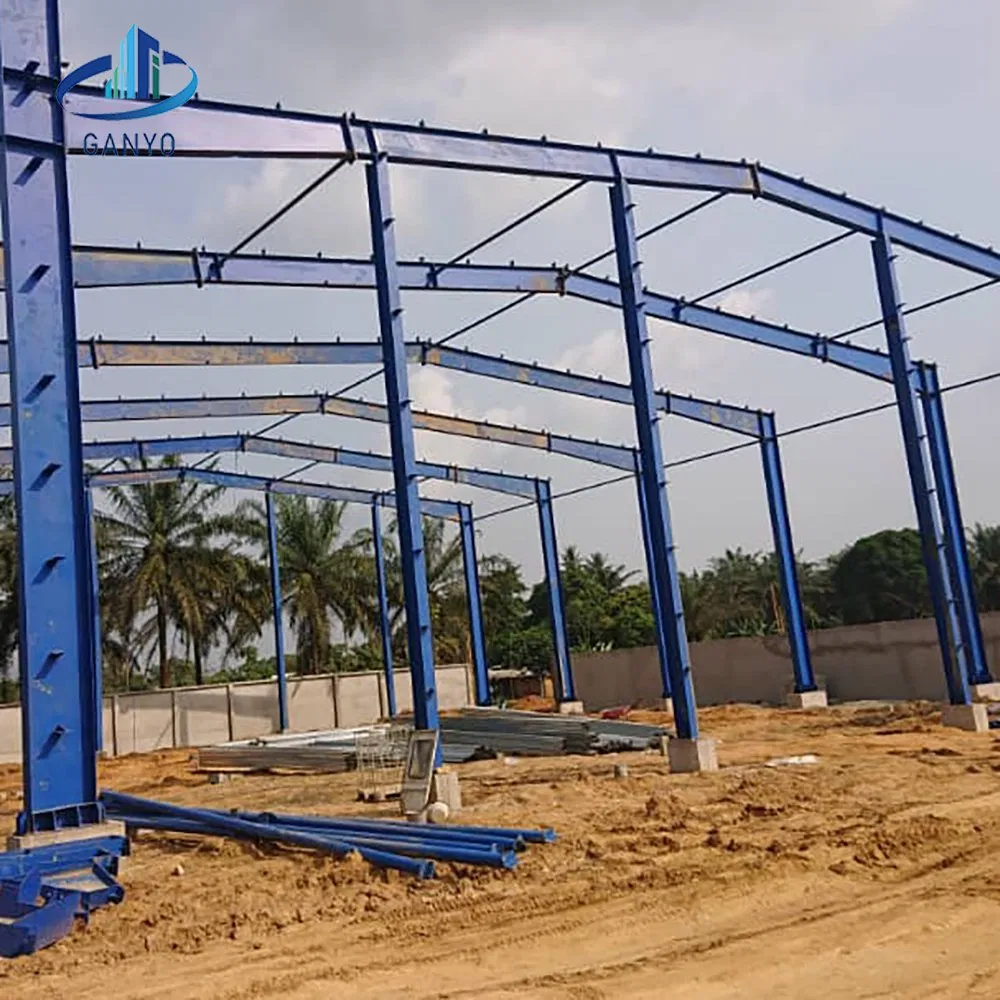

Pre Engineered Steel Structure Workshop for Production with Free Design

Customization:	Available
After-sales Service:	Full Drawing, Install Guide or Training
Install:	Online Guidance

Basic Information

Model NO.

GY-SW703

Mobility

Fixed

Usage

Building Platforms, Industrial Platform, Warehouse Rack

Material

Steel Structure

Structure Frame

Portal Frame

Software Used

Auto CAD, Pkpm, Tekla

Steel Code

Q355 & Q235

Wind Loading

80km/H-120km/H

Seismic Grade

7 Grade

Warranty

30-50 Years Service Life

Advantages of Steel Structure Building

Flexible layout according to requirements
Good ductility, strong plasticity, and high seismic and wind resistance
Quick construction process and exceptionally long service life
Lightweight materials providing high quality at a low cost
Environmental friendly: materials are 100% recyclable or degradable

Technical Specifications

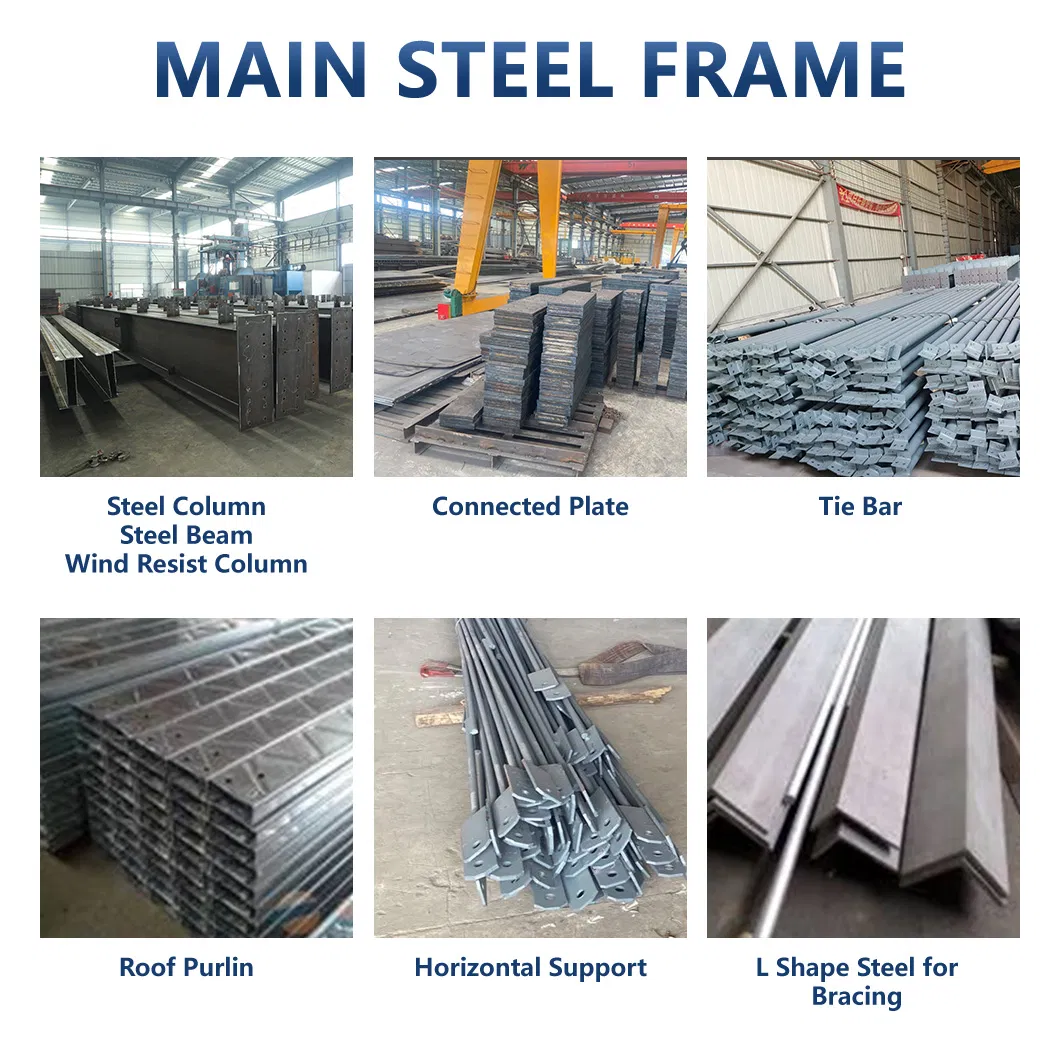

Component	Description	Material/Standard
Steel Column & Beam	Hot rolled H-beam or welded H beam	Q355B
Tie Bar	¢89*3 size based on building load	Q235B
Roof Purlin	C1605020*2.0 or customized sizes	Q235B Galvanized
Surface Treatment	Painting or Hot-dip Galvanize	Any color choice

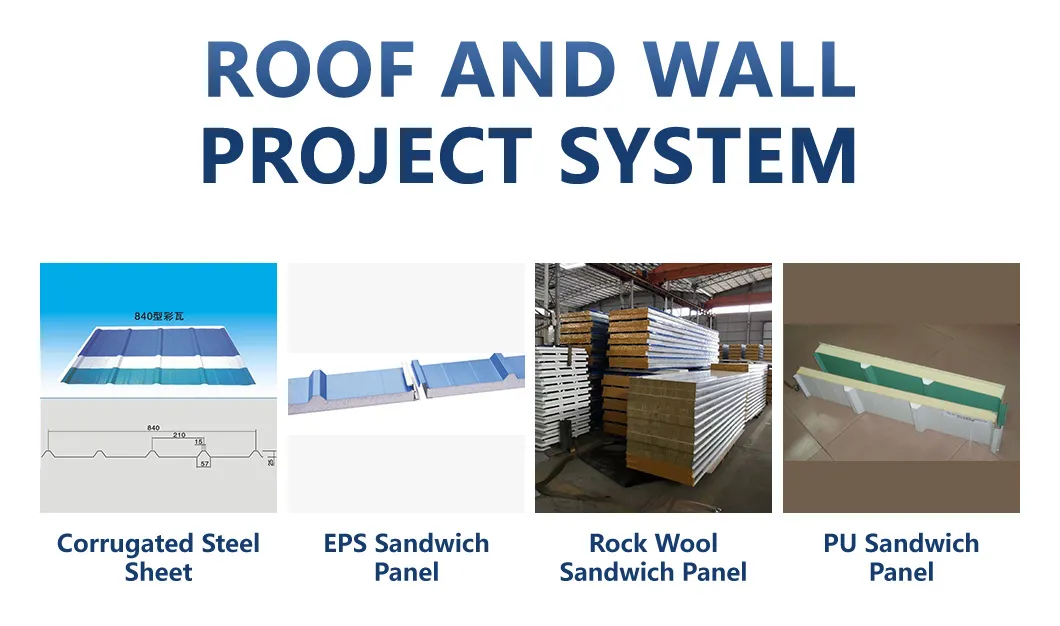

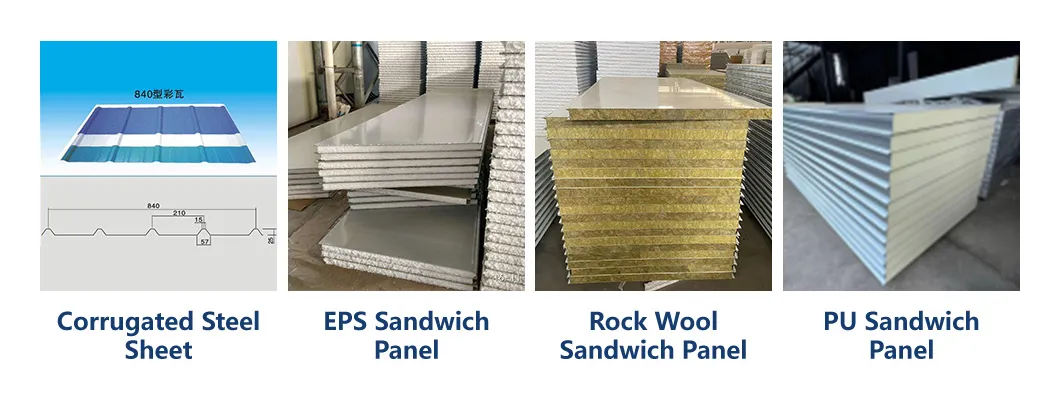

Cladding Systems

Type	Available Materials	Thickness Options
Roof & Wall Claddings	EPS / Rock Wool / PU Sandwich Panel	50mm / 75mm / 100mm
Single Sheet	Corrugated Steel Sheet	0.426mm / 0.476mm

Professional Services

Professional Design and Engineering
Complete solutions for house and industrial building design based on your specific site requirements.

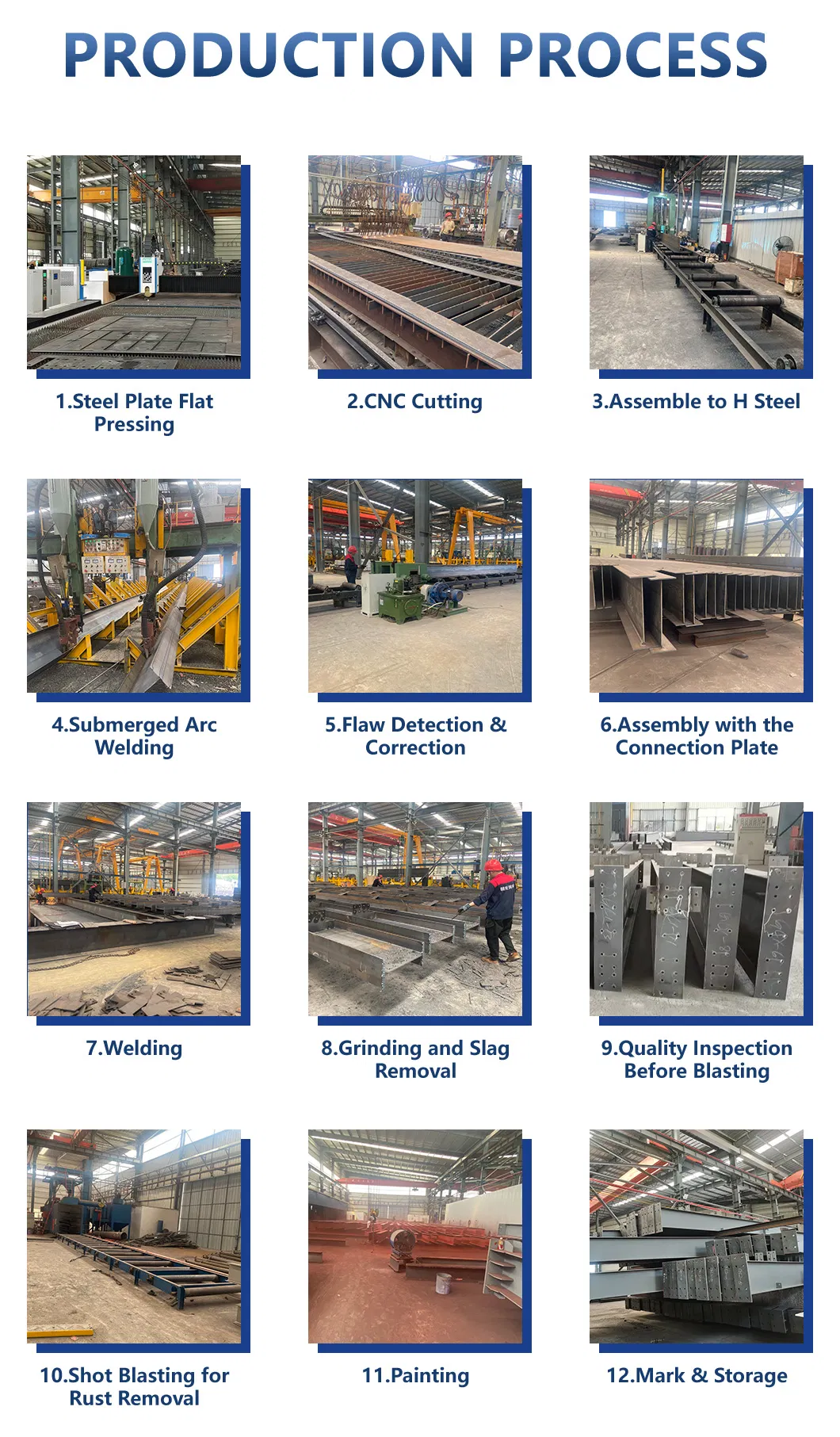

Procurement and Manufacturing
All materials for prefabricated buildings are sourced with quality control and manufactured under ISO standards.

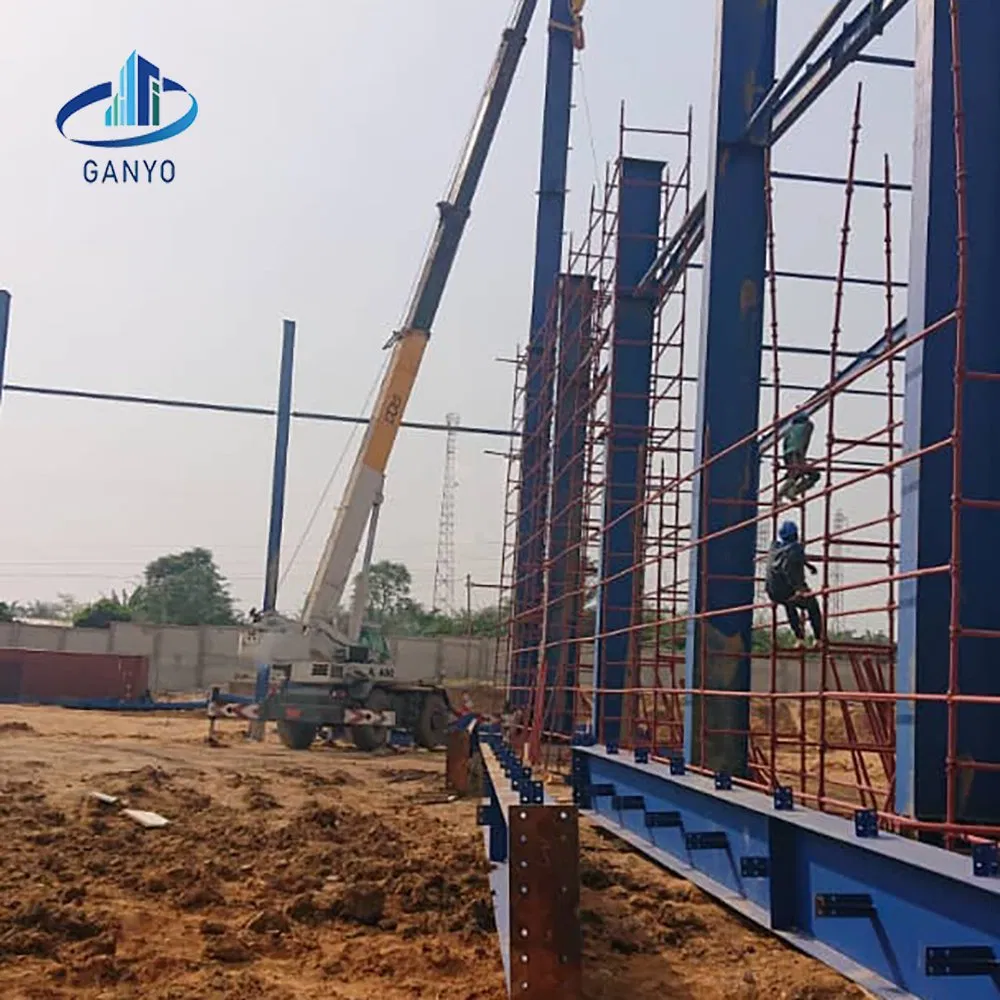

Site Management & Installation Supervision
Engineers available to provide on-site supervision and technical training for your construction team.

Custom Design Questionnaire

To provide an accurate design and quotation, please provide the following details:

Location: Country and specific area
Dimensions: Length * Width * Height (mm)
Local Environmental Loads: Max wind speed (km/h) and max snow load (mm)
Seismic rating for the local area
Cladding Needs: Type of insulation (EPS, Rockwool, PU) or single steel sheets
Openings: Quantity and sizes of doors and windows
Crane Requirement: Max lifting weight and height if needed

Frequently Asked Questions

Are you a manufacturing factory?

Yes, we are a manufacturing factory. You are welcome to visit our facility to see our quality control flow and professional fabrication processes firsthand.

How do you ensure product quality?

We have established strict procedures to check products at all stages: raw materials, in-process testing, and finished goods inspection. Third-party testing like SGS and BV is also available.

Do you provide design services for custom buildings?

Yes, our experienced design team can create full-solution architectural and engineering drawings based on your specific project requirements.

Do you offer overseas installation guidance?

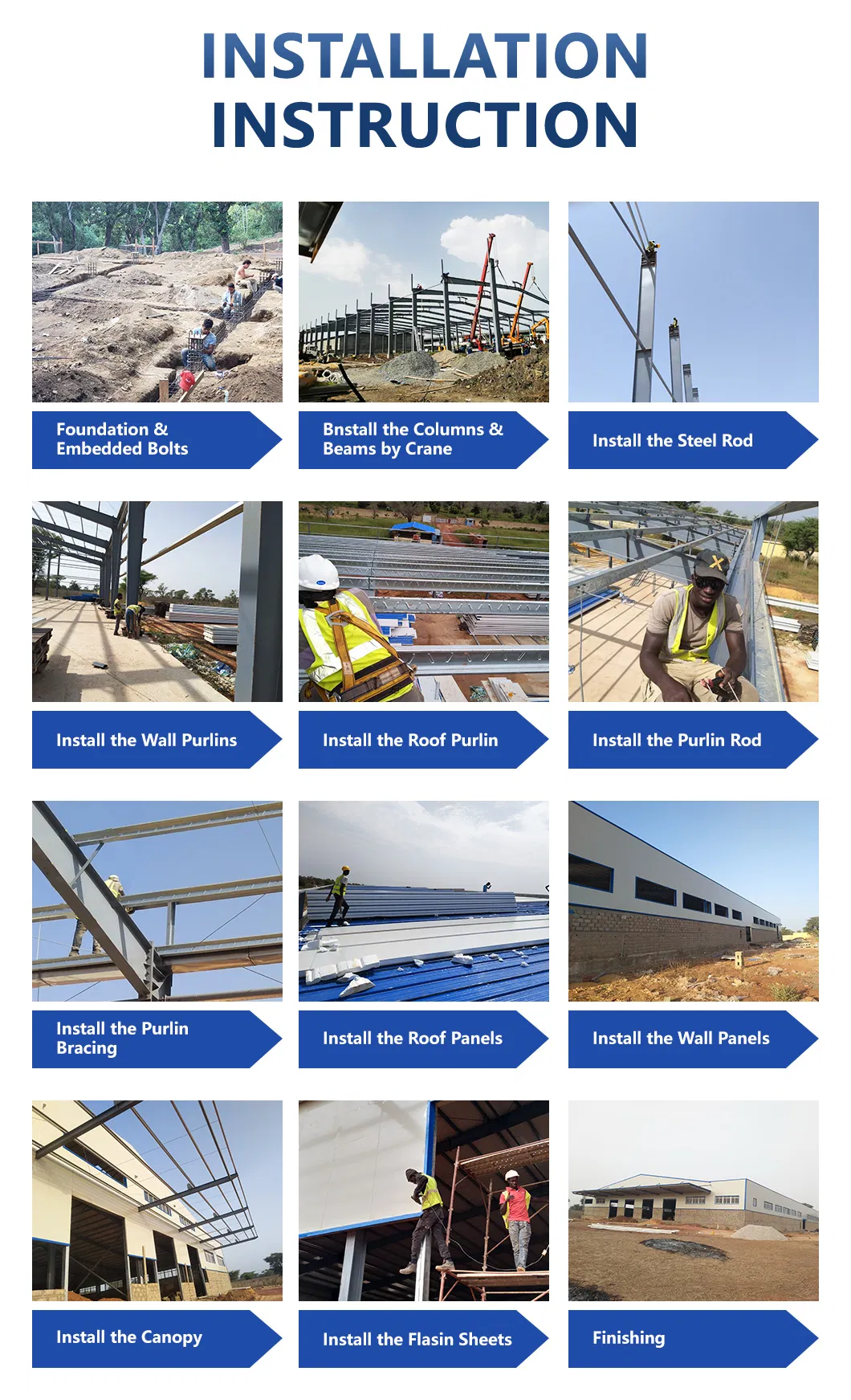

We provide detailed installation drawings and instruction videos. Additionally, we can send engineers for on-site supervision and training for an extra fee.

What cladding materials can I choose for the walls and roof?

You can choose from single corrugated steel sheets or various sandwich panels including EPS, Rock Wool, and PU (Polyurethane) depending on your insulation needs.

What is the expected service life of these steel structures?

Our steel structure buildings are designed for durability, typically offering a service life of 30 to 50 years depending on the maintenance and environment.
