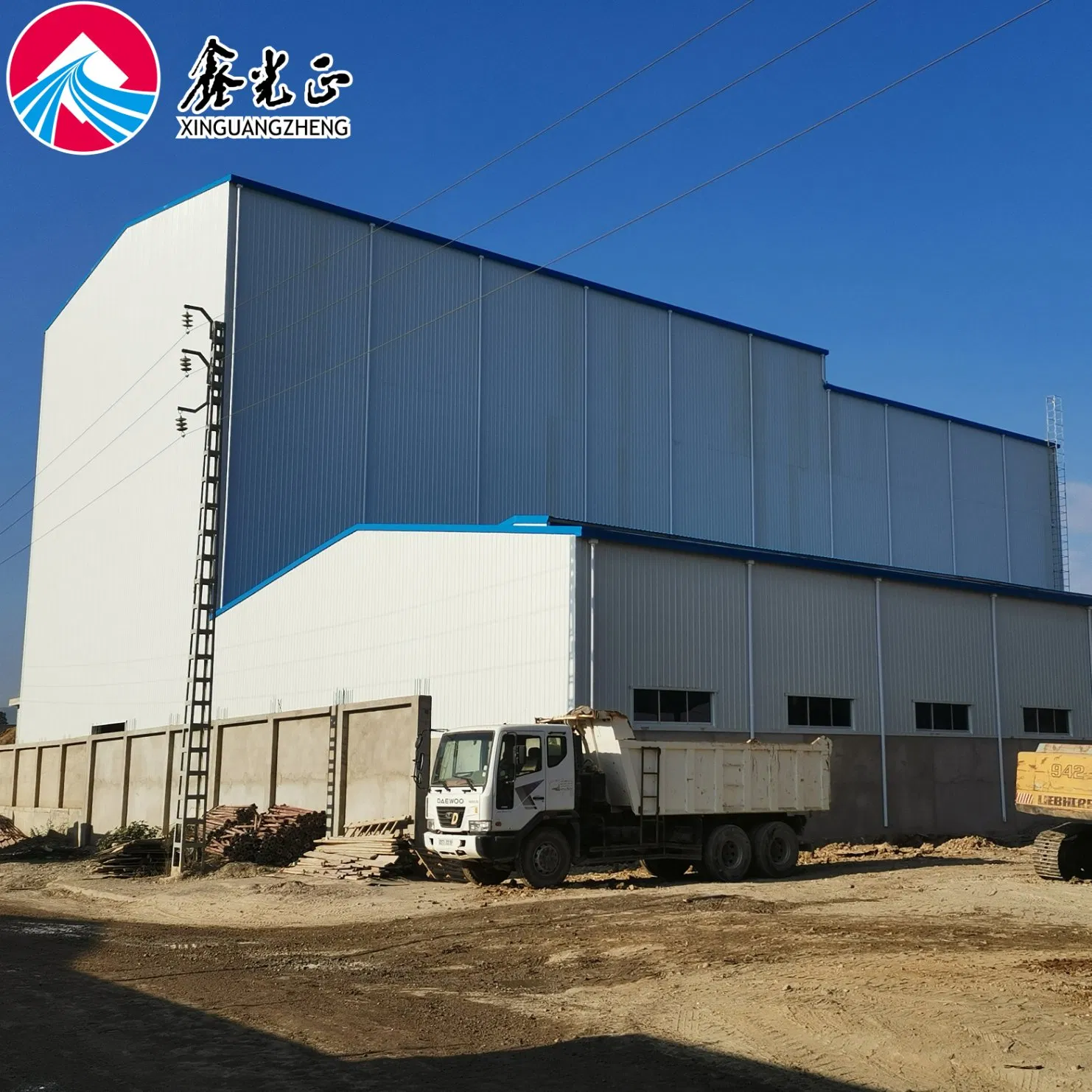

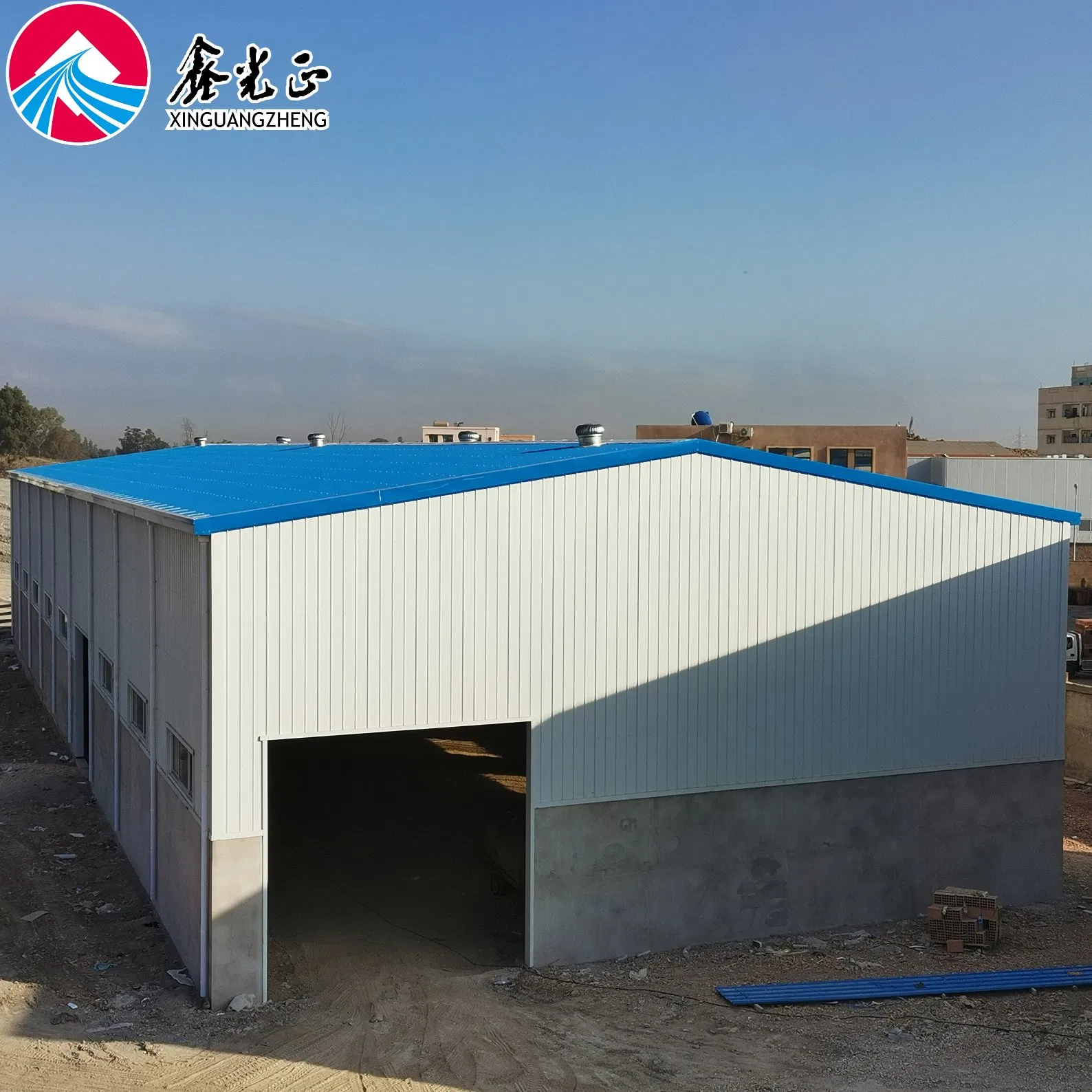

Prefabricated Steel Structure Factory Building Used as Cold Storage

1 / 5

Prefabricated Steel Structure Factory Building Used as Cold Storage

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

BT125

Size

as Customer Request

Steel Frame

H Welded Section Steel or Steel Truss

Surface Treatment

Painted or Galvanized

Cladding

Corrugated Steel Sheet or Sandwich Panel

Accessories

High Strength Bolt, Self Tapping Screw, etc

Covering Sheet

Ridge Covering Sheet, Trim and Flashing, Gutter

Window

Aluminum Alloy Window

Door

Sliding Door, Roller up Door, etc

Type

H-Section Steel

Standard

Forming

Hot-Rolled Steel

Connection Form

Bolt Connection

Member

Steel Column

Type of Steel

H-Section Steel

Production Capacity

5000 Tons/Month

Product Description

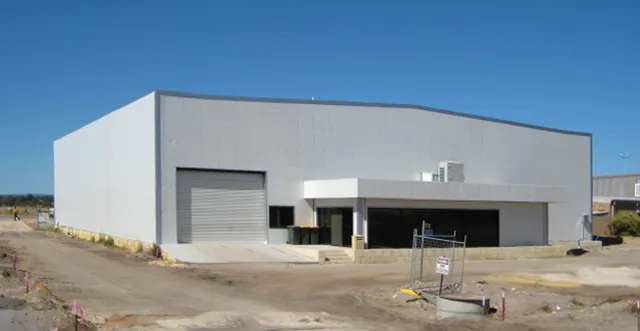

Prefabricated Steel Structure Factory Building

Prefabricated steel building is a new kind of building system, which breaks through the industrial boundary among real estate industry, construction industry, and metallurgy industry. It becomes a new industrial system that insiders are generally optimistic about.

The system is combined by steel structure frame, roof and wall steel cladding, aluminum windows & doors, etc. The steel structure frame refers to steel columns, beams, tie bars, bracing, and C/Z purlins. Design and drawings are completed by professional engineers based on specific customer requirements to ensure a safe and economic solution.

Advantages

1. More saving on cost Steel structure is lighter than traditional building materials, which helps to reduce foundation size and material costs.

2. Shorter installation time Erection is quicker as most steel members are accurately cut and manufactured in the factory, then bolted together on-site.

3. Good wind and earthquake resistance Steel structures are engineered to resist strong winds and seismic activity, ensuring long-term durability.

Product Parameters

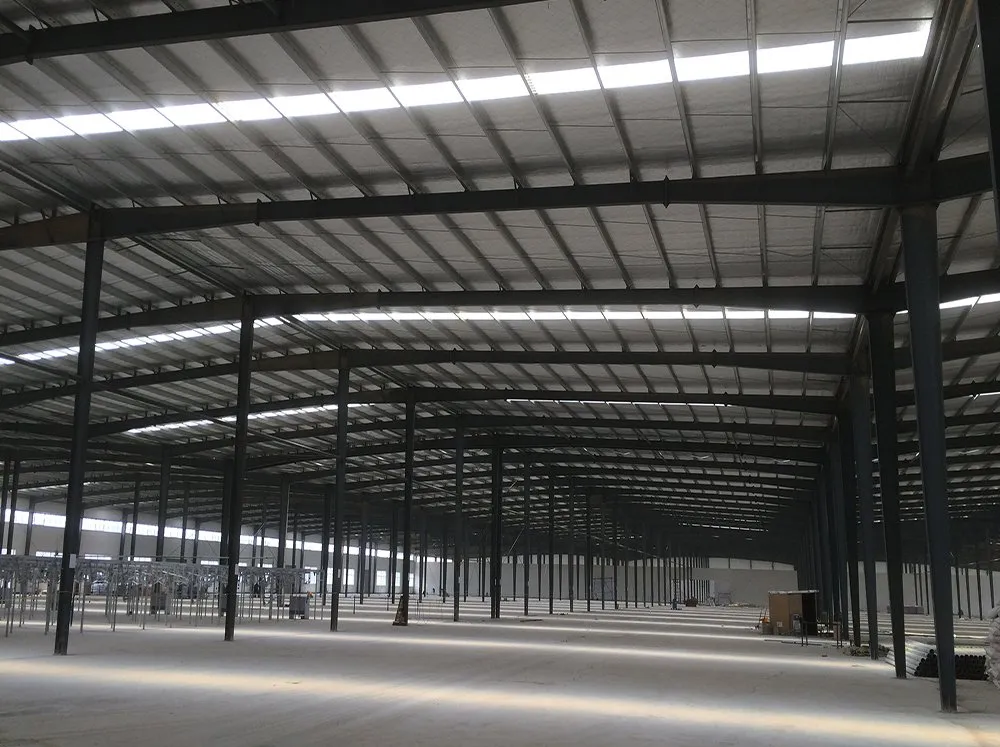

Steel Structure

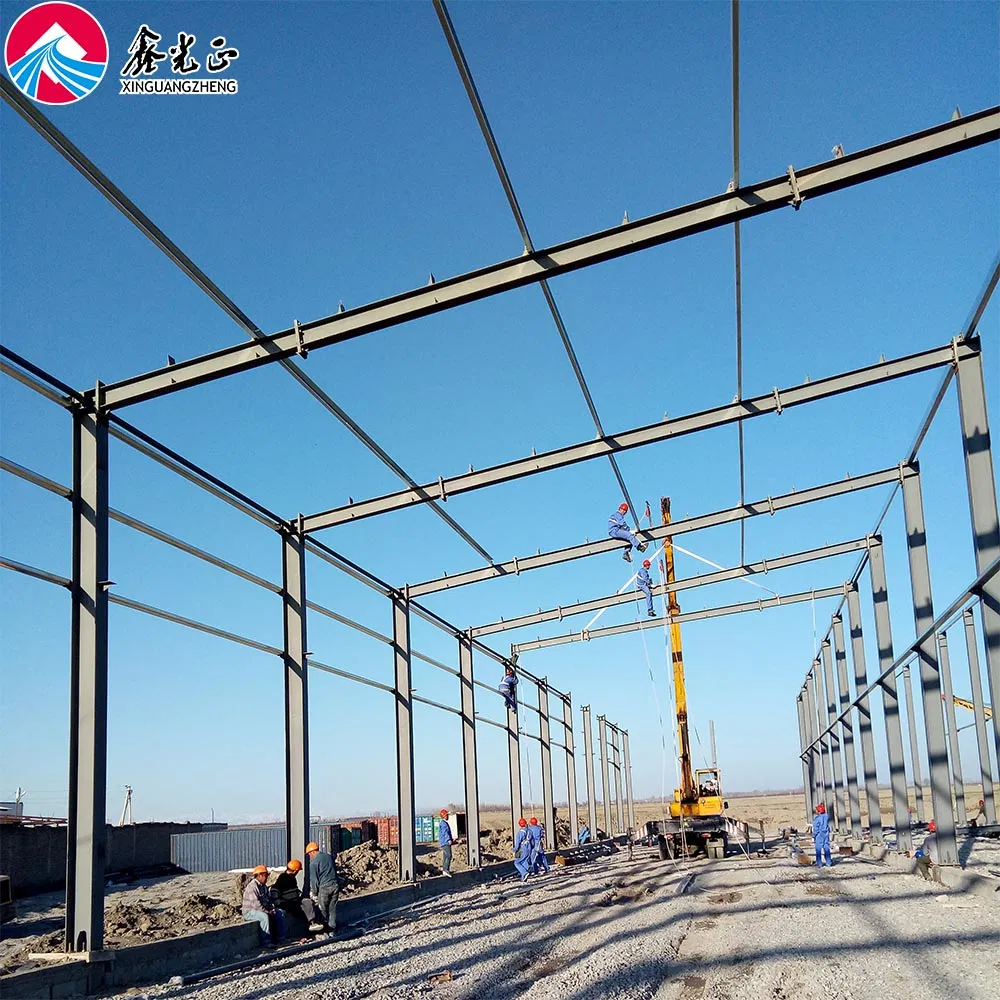

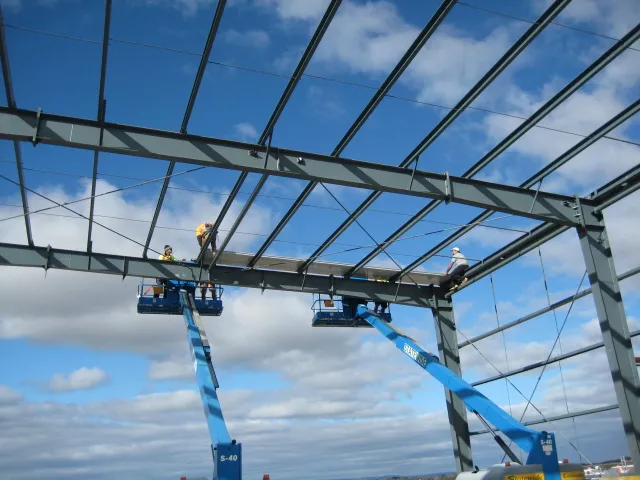

Primary frame elements such as steel columns and beams are made from hot-galvanized hot-rolled H section steels or welded section steel. Factory galvanization treatment provides superior anti-rusting and anticorrosion effects.

Secondary framing including galvanized purlins, tie bars, and supports improve the stability and durability of the entire structural building.

Cladding System

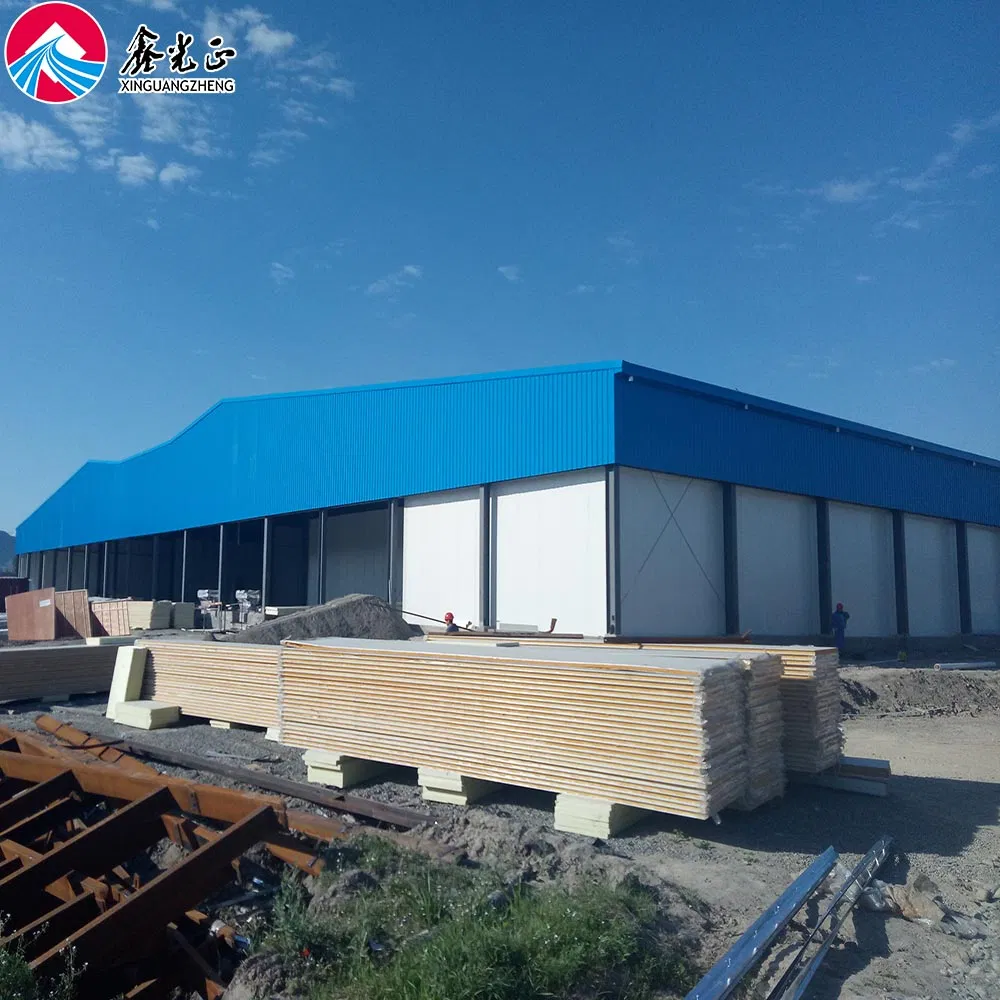

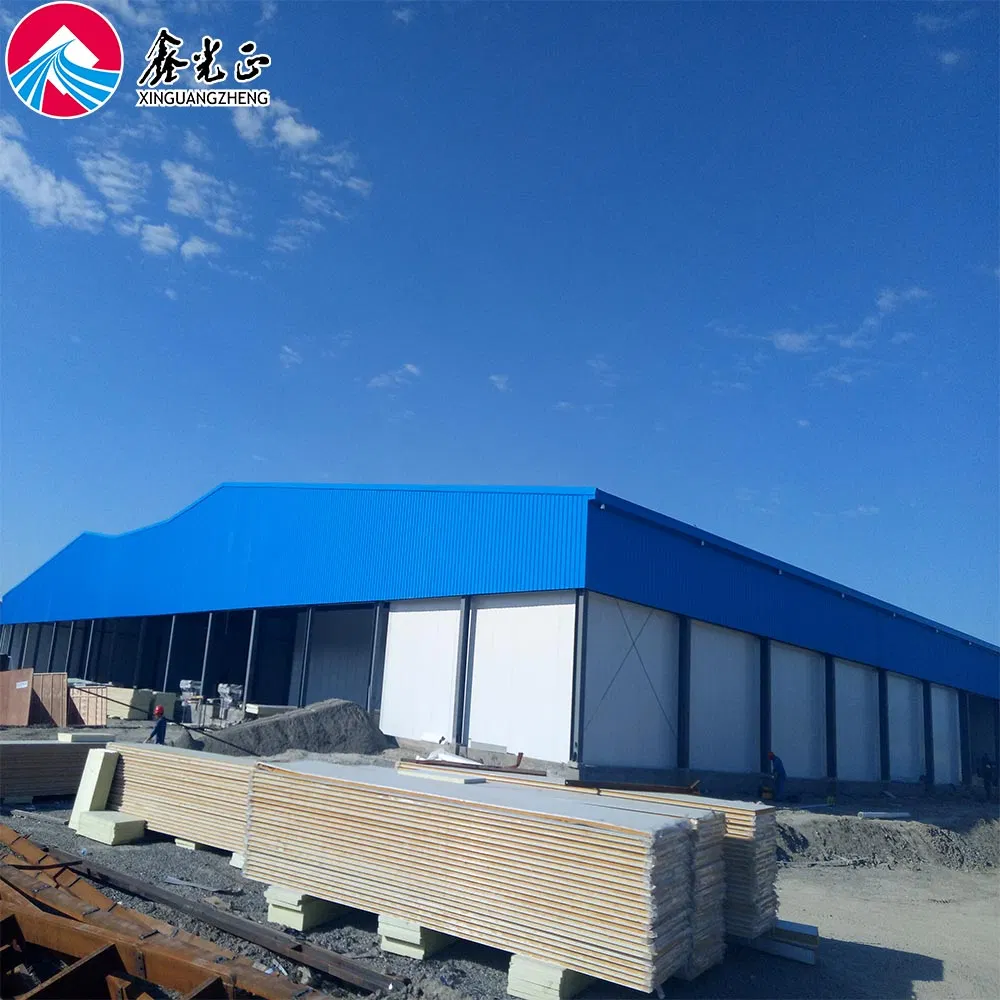

Roof and walls are covered with color-coated corrugated steel sheets or sandwich panels, fixed to protect against harsh weather conditions while providing a modern appearance.

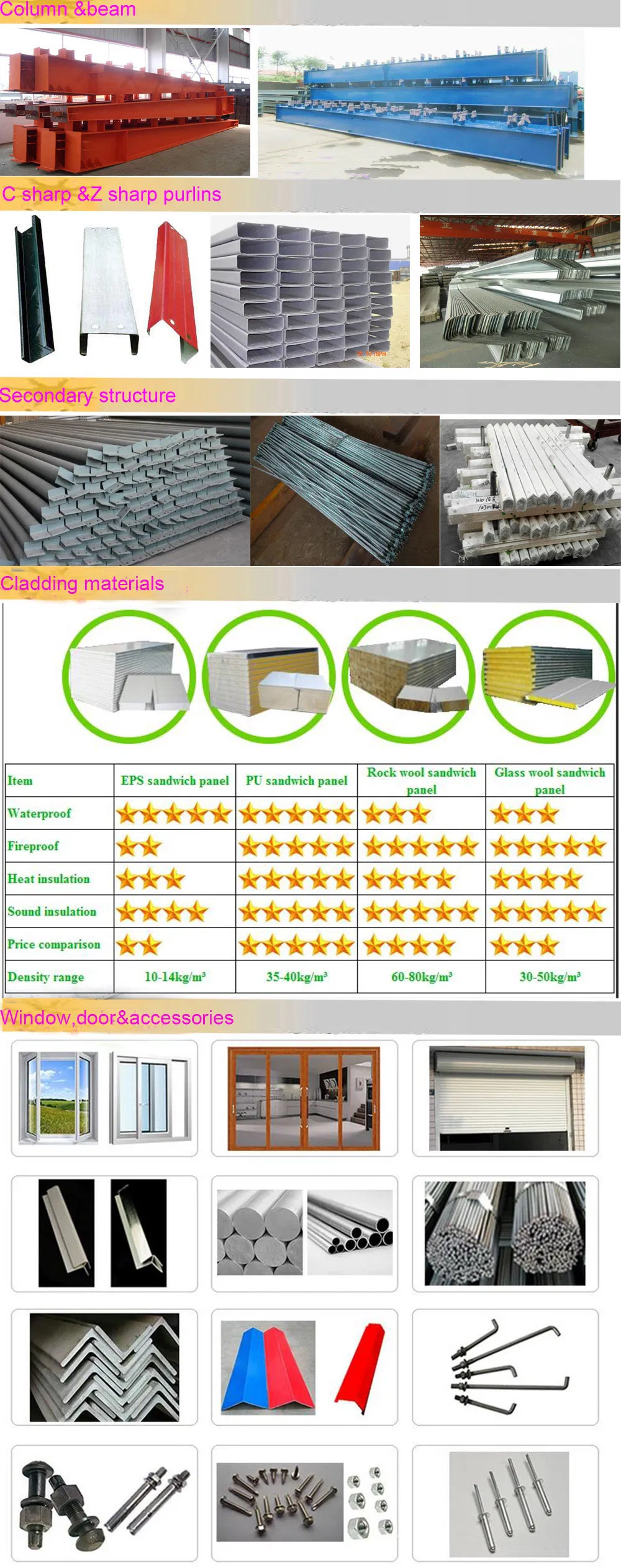

Item	Materials	Remark
Steel Frame	H section column and beam	Q345 steel, paint or galvanization
Secondary Bracing	Roof/Wall purlin	Q235B C/Z section galvanized steel
Tie bar	Round steel pipe	Q235, φ89*3
Protecting System	Wall and roof panel	Corrugated steel sheet / sandwich panel
Fastener	High strength bolts	According to design specifications
Window/Door	Aluminum / Industrial doors	Customizable EPS, roll-up or sliding doors

Fabrication & Installation

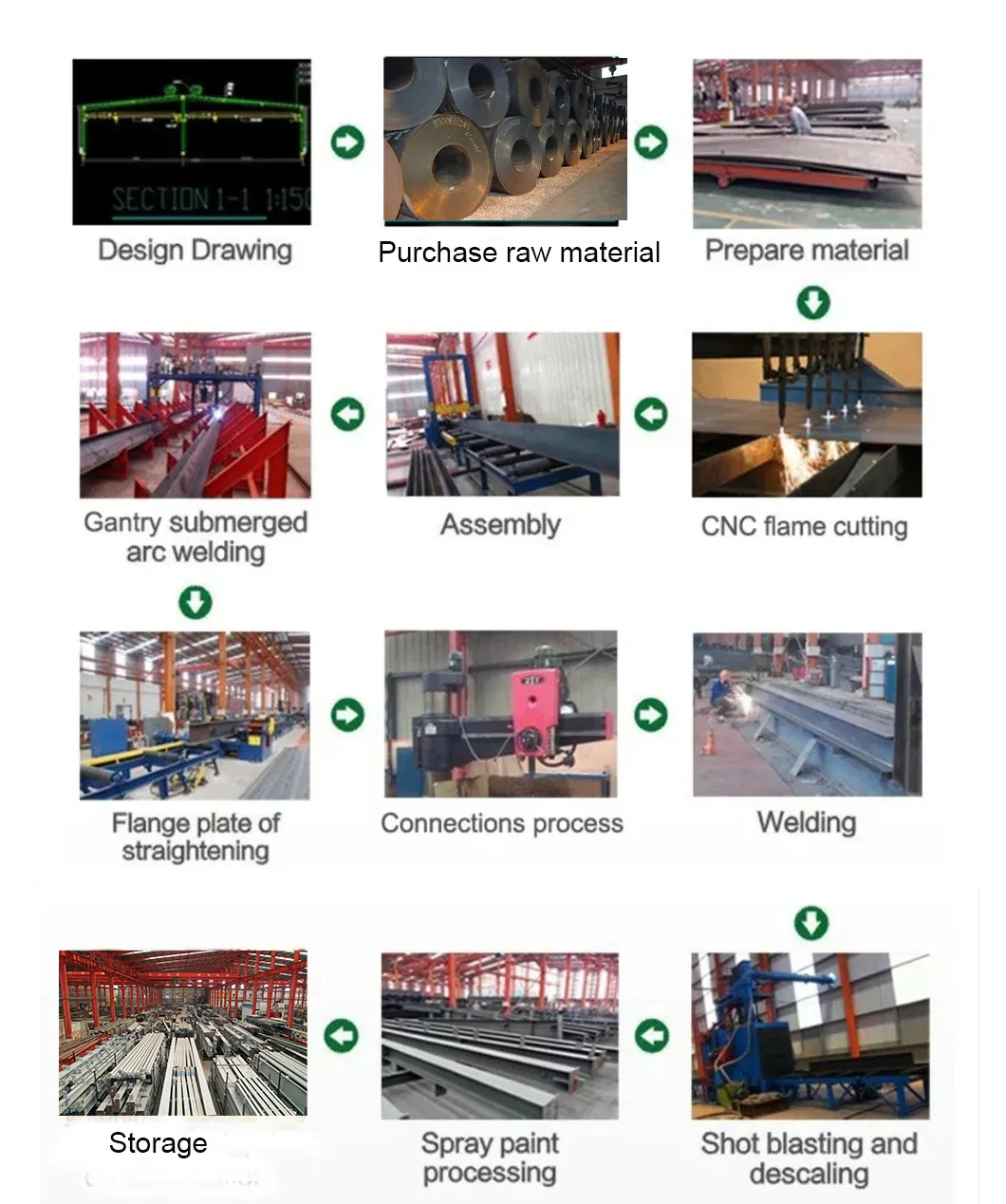

Fabrication Progress

We provide full visual production updates with strict quality inspections from raw materials to final steel processing. Our facilities utilize advanced equipment such as CNC laser cutting machines and vertical machining centers.

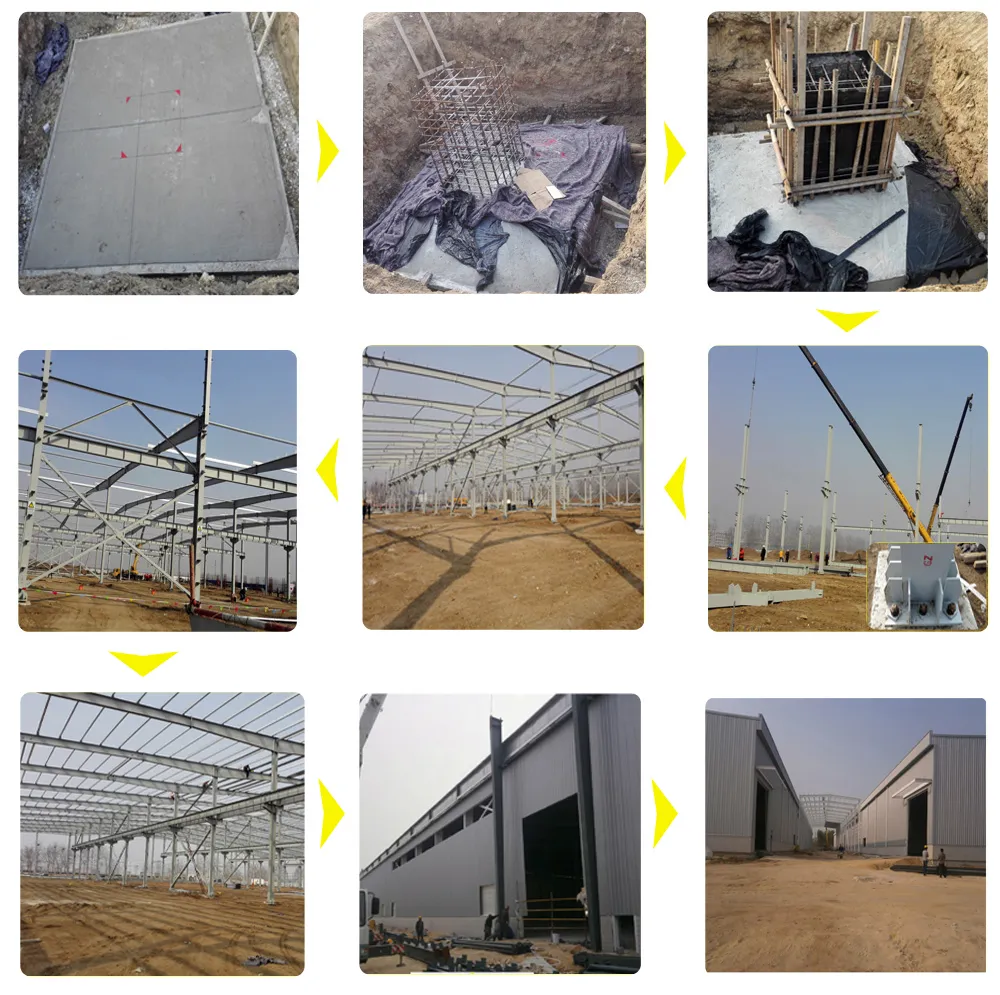

Installation Instructions

Detailed installation instructions and videos are provided. Our construction teams and skilled engineers are available for on-site guidance to ensure your project is completed efficiently.

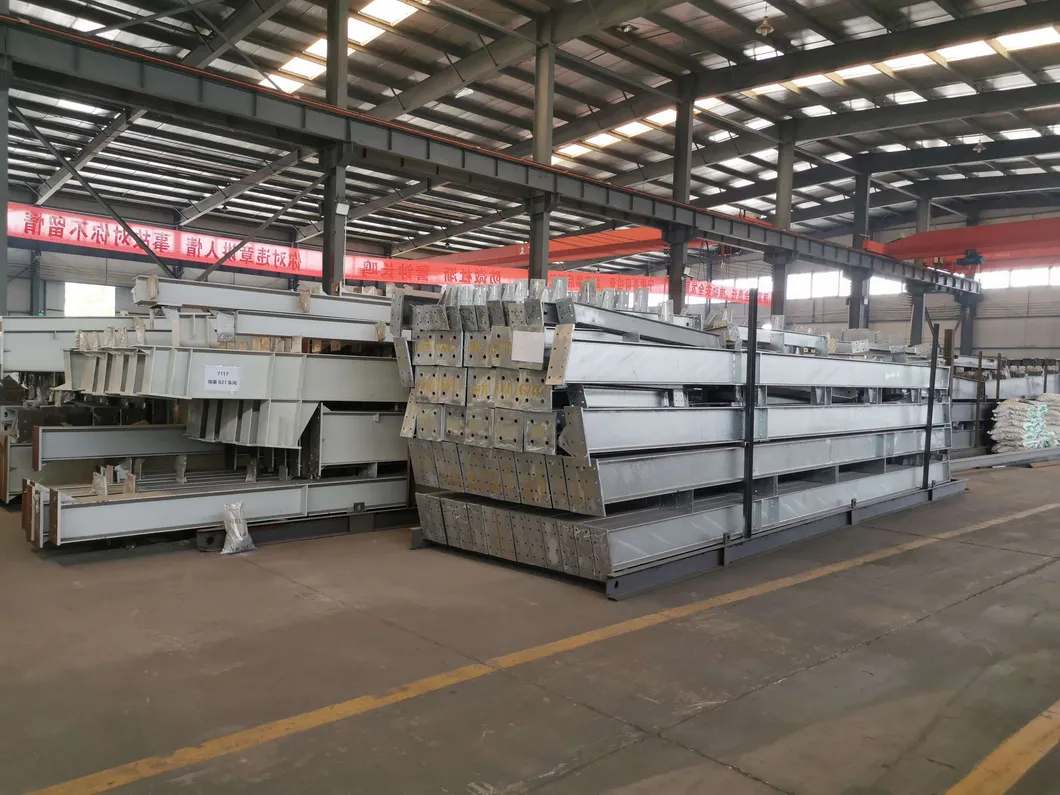

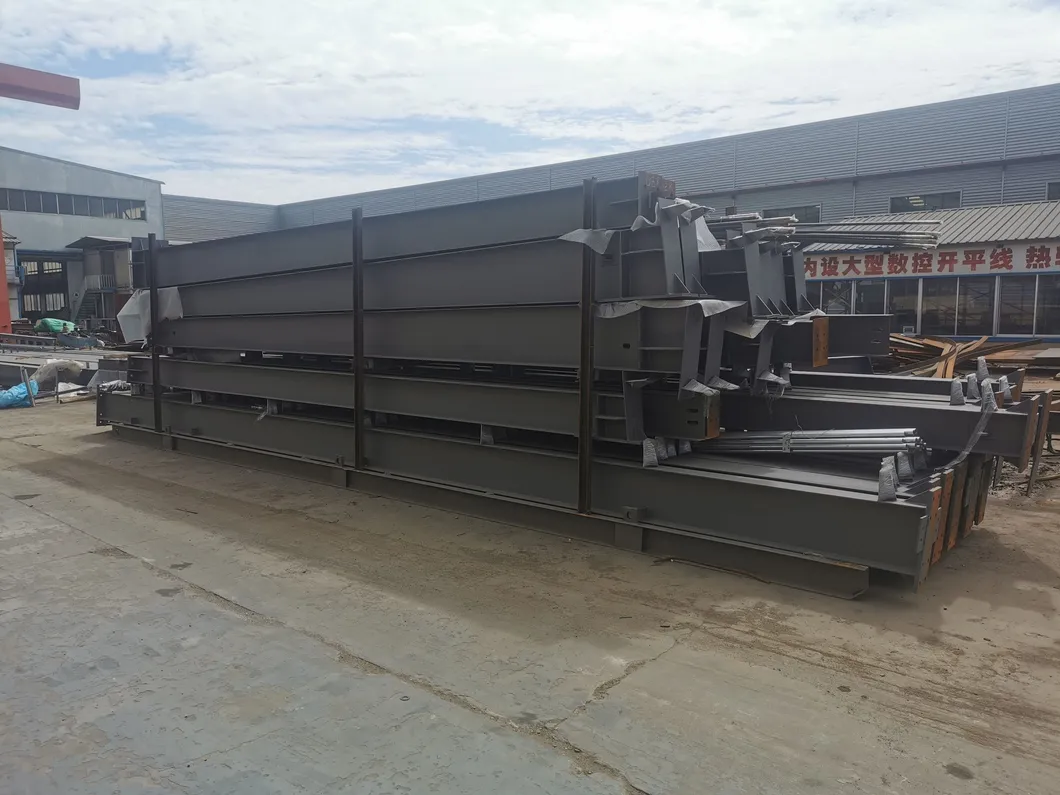

Packaging & Shipping

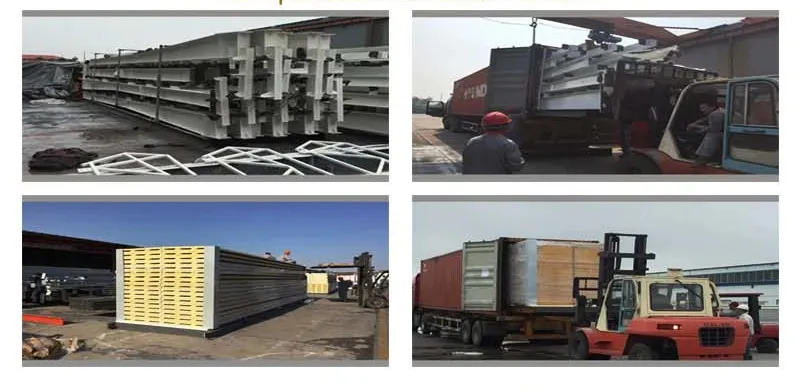

All steel frames are packaged using steel pallets to protect the surface paint or zinc coating. All goods are securely loaded into containers for international shipping.

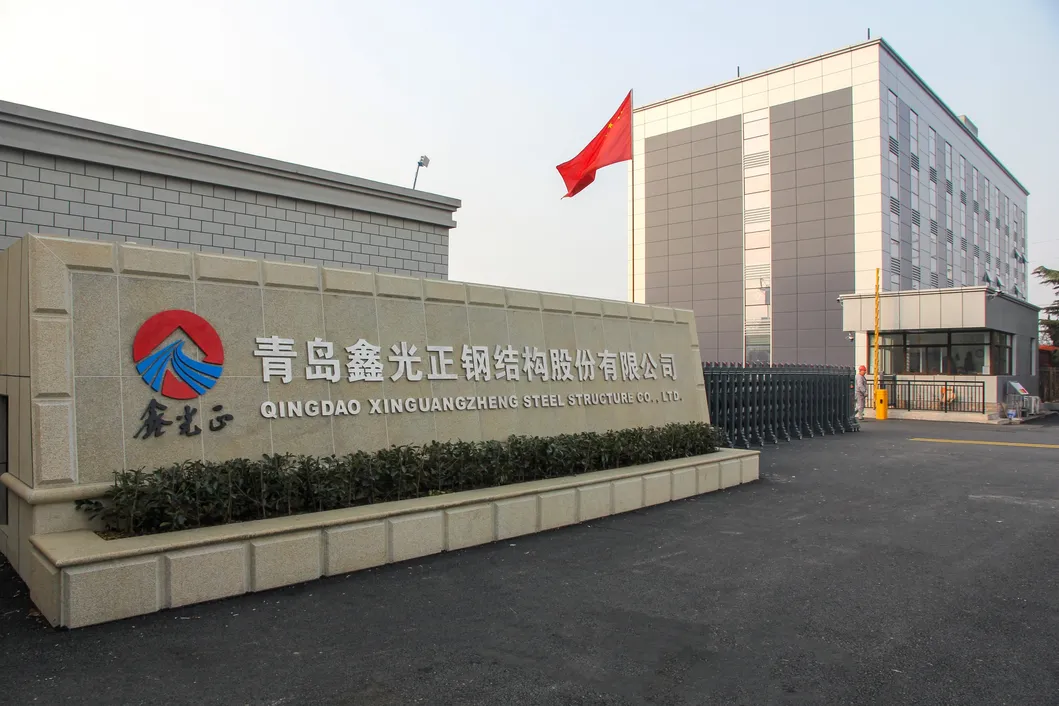

About the Manufacturer

Established in 1997 and listed in 2015, the group consists of over 20 subsidiaries and 6 main production factories. We have become a leading manufacturer in the steel structure industry.

With over 20 years of steady development, our products and construction services have been exported to more than 80 countries across Asia, Africa, the Americas, Oceania, and Europe.

Required inquiry information for design:

Usage: What will the building be used for?
Location: Which country/region will it be built in?
Climate: Wind speed and Snow load requirements.
Dimension: Length * Width * Height.
Crane: Are internal cranes required?

Frequently Asked Questions

Q1: What are the main benefits of choosing a steel structure?

A: Steel structures offer cost savings, faster installation, and excellent resistance to wind and earthquakes compared to traditional concrete buildings.

Q2: Can the building size be customized?

A: Yes, all buildings are designed and manufactured according to the customer's specific size and usage requirements.

Q3: How do you prevent the steel from rusting?

A: We use hot-galvanized or high-quality painted surface treatments on all primary and secondary framing elements to ensure maximum corrosion resistance.

Q4: Do you provide on-site installation support?

A: Yes, we provide detailed installation manuals and videos, and can also send engineers or construction teams to guide the work on-site.

Q5: What materials are used for walls and roofs?

A: We typically use color-coated corrugated steel sheets or various types of sandwich panels (EPS, Glasswool, Rockwool, or PU) depending on insulation needs.

Q6: How are the products protected during shipping?

A: Steel members are packed on steel pallets to prevent surface damage, and all components are securely loaded into shipping containers.
