Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
1 / 5
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building
Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building

Competitive Price Light Portal Frame Steel Structure Warehouse Shed Workshop Building

Customization: Available
Characteristics Of Goods: Cold Storage Warehouse
Type: Multi-Storey Warehouse, H-Section Steel
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
KA1226
Standard
GB
Steel Type
Low-Alloy High-Tensile Structural Steel
Forming
Hot-Rolled Steel
Connection Form
Bolt Connection
Member
Steel Column
Building Type
High-Strength Steel Structure
Carbon Structural Steel
Q235
Application
Steel Workshop, Warehouse, Shed, Hangar
Color Options
Navy Blue, White Gray, Red or Customized
Service Life
50 Years
Roof/Wall Panel
Glass Wool Sandwich Panel
Main Frame
Hot-Rolled H Steel
Purlin
Z, C Section Steel
Production Capacity
200,000 Tons/Year
🏗️

Steel Structure Warehouse & Workshop

Competitive price light portal frame steel structure solutions for industrial buildings.

Steel Structure Warehouse

Product Advantages

  • Flexible layout according to requirements
  • Good ductility, strong plasticity, and superior earthquake/wind resistance
  • High construction efficiency and long service life
  • Lightweight, high quality with low maintenance costs
  • Environmental protection: 100% recyclable materials
Construction Details
📋

Project Details

Component Material & Specification
Main Steel StructureSteel Q345(S355JR) or Q235(S235JR) H shape; Straight or Variable cross-section
Sub Steel StructureQ235 steel; Bolt connections; Anti-rust painted or galvanized; X/V-type bracing
Roof & WallSandwich panel (PU/EPS/Fiberglass/Rock wool) or Colorful steel tile
Doors & WindowsSteel rolling shutters and Alu. Alloy windows
BoltsM24, M22, M16 high-strength and galvanized ordinary bolts
FoundationCement and steel foundation bolts
🏢

Applications & Projects

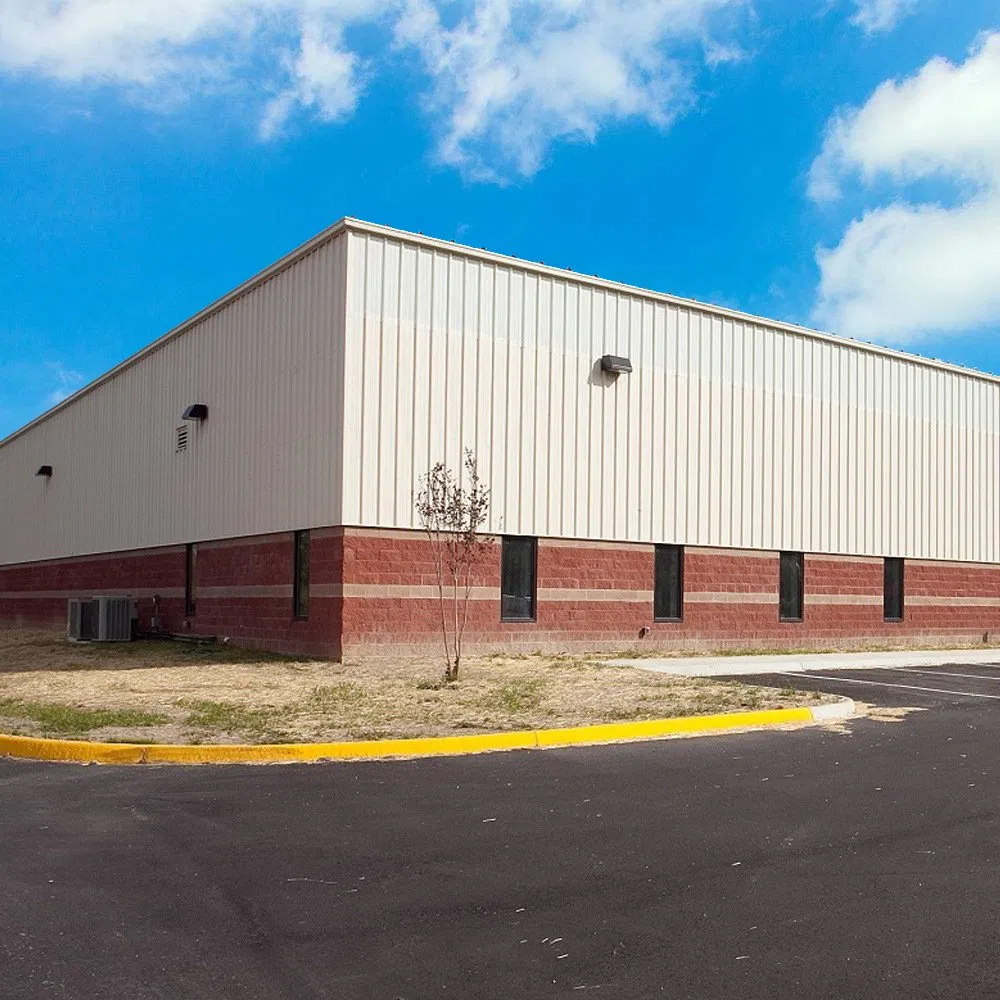

Application 1

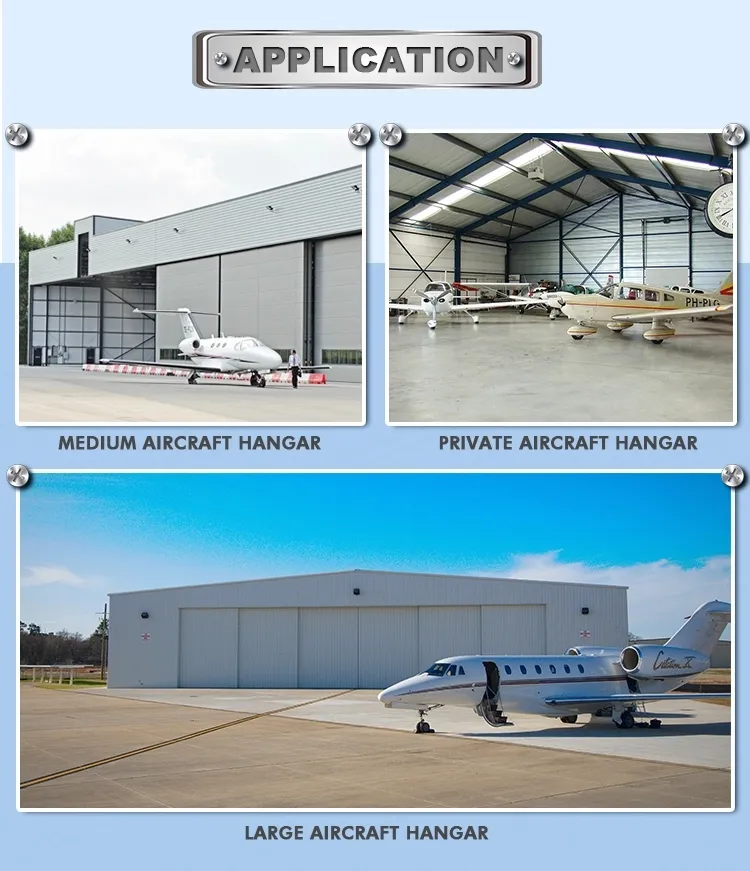

Application 2

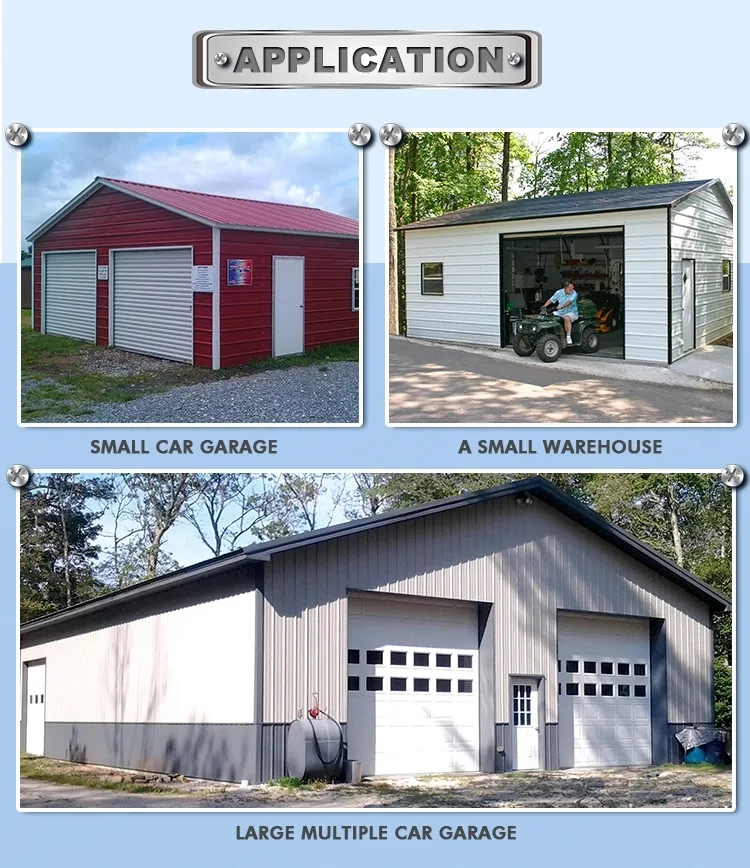

Application 3

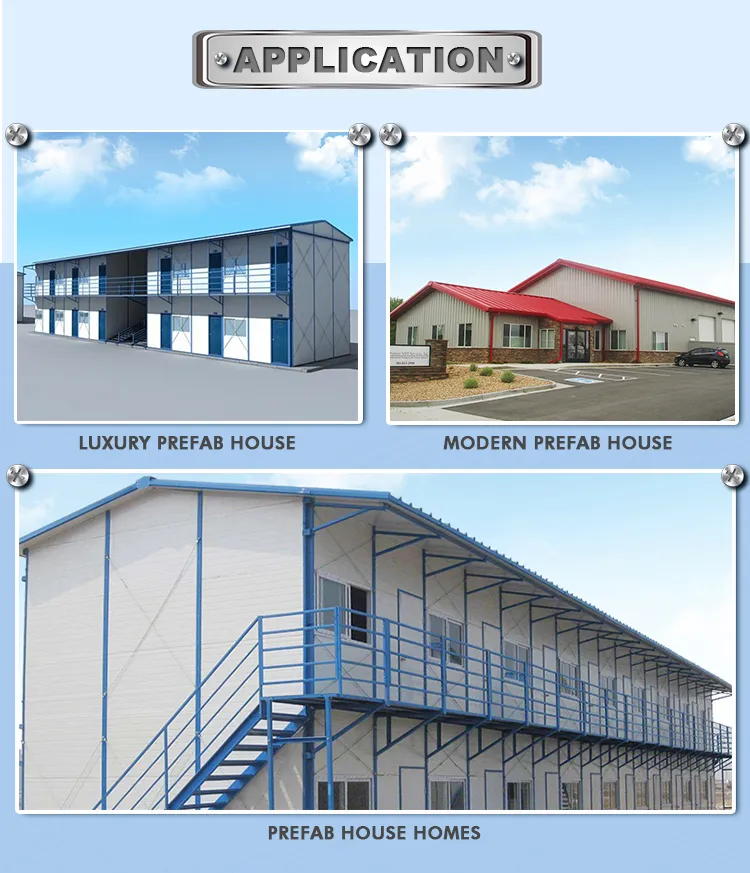

Application 4

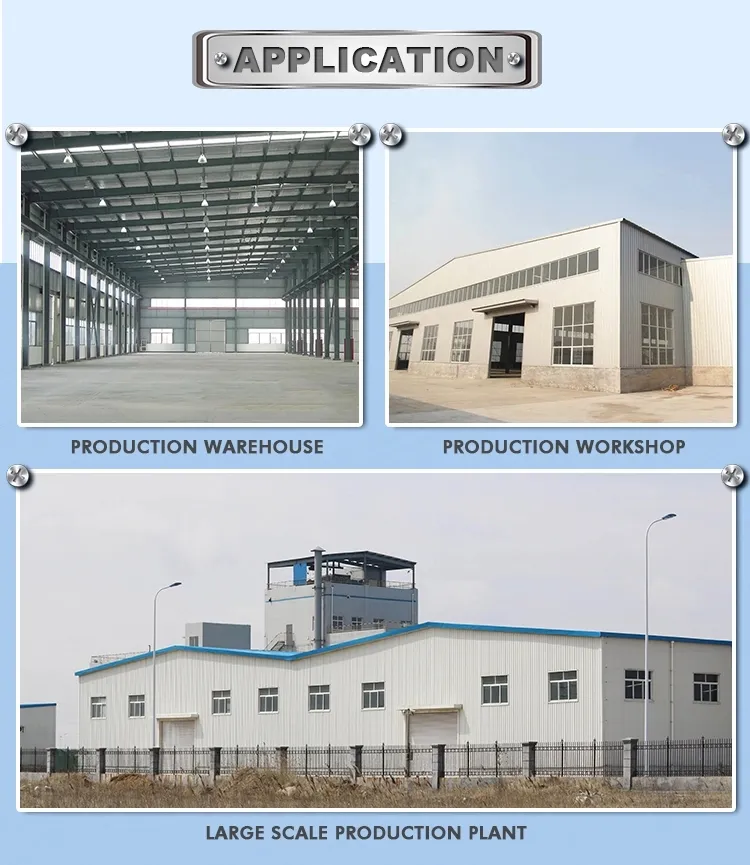

Application 5
⚙️

Design Parameters

For a customized design, please provide the following parameters:

  • Live load on roof (KN/M2)
  • Wind speed (KM/H)
  • Snow load (KG/M2)
  • Earthquake load (if applicable)
  • Crane requirements: Max lift capacity and height

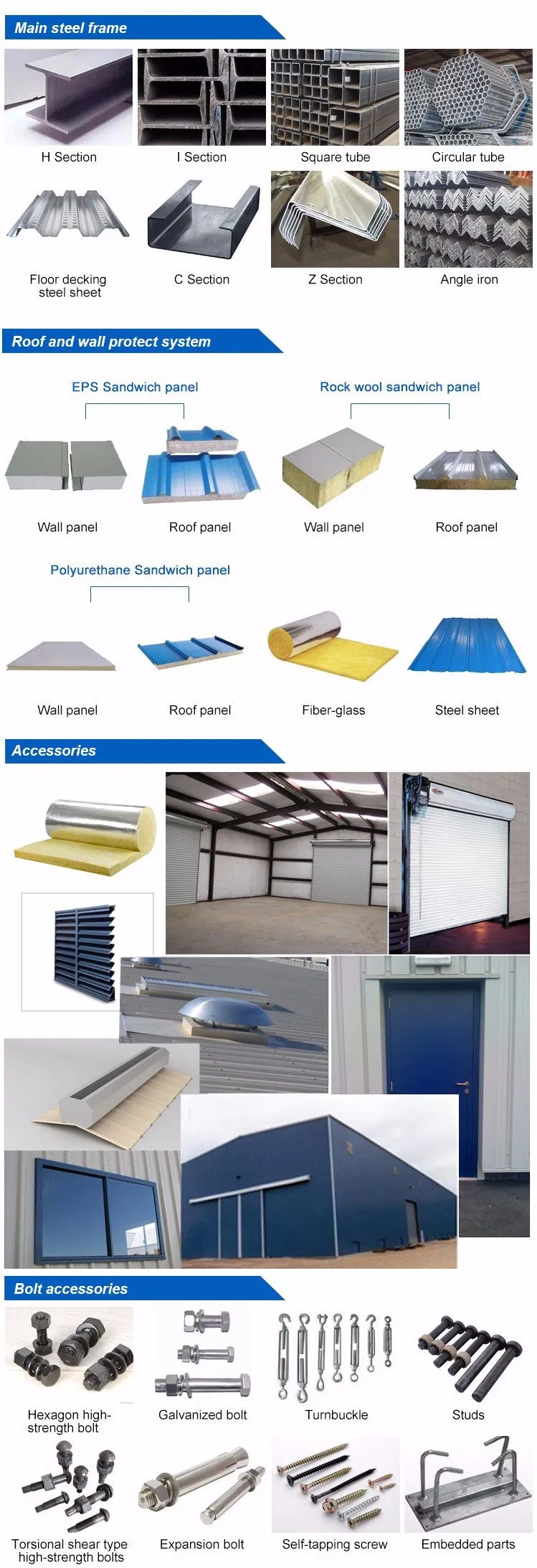

Technical Drawing
🌟

Why Choose Us

Established in 2011, we have become a professional steel structure supplier specialized in processing, design, and installation. Our products are exported to over 60 countries, including South Africa, Ghana, Argentina, and Australia.

  • Professional engineers with over 10 years of experience.
  • Over 80 sets of precision processing equipment including automatic submerged arc welding.
  • One-stop service from design and manufacture to installation guide.
  • Strict quality control ensuring service life over 20-50 years.
Logistics
Certification

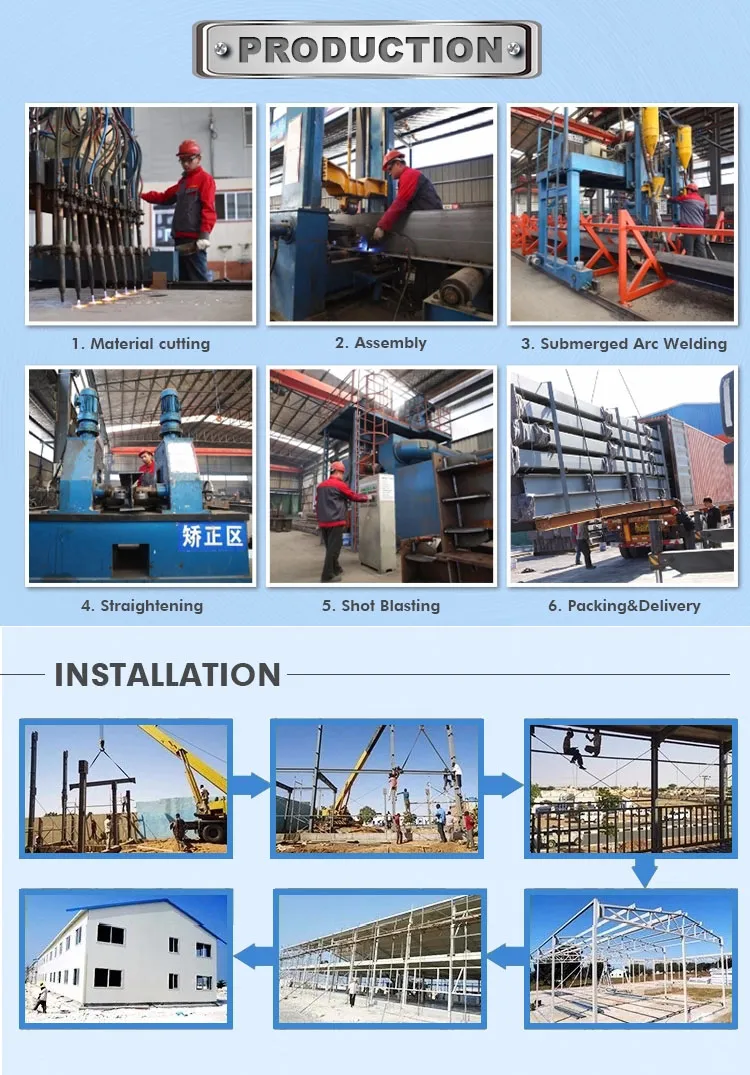

Workshop
❓

Frequently Asked Questions

How does the cost of prefabricated steel buildings compare to concrete?
Steel assembly buildings are more economical and lighter. Factory production reduces labor intensity and construction time significantly compared to traditional concrete buildings.
What is the expected service life of the steel frame?
The service life of the main H-type steel frame can last for up to 50 years with proper maintenance.
Are these steel structures safe against natural disasters?
Yes, our structures are designed for high stability. They offer earthquake resistance up to Grade 8+ and wind resistance up to Grade 12 (wind speeds ≤ 120km/h).
How is the installation handled?
All components are bolted (no welding required). Walls and roofs are fixed with self-tapping screws. We can provide technical guidance or send a team to assist with on-site installation.
What materials are used for insulation in walls and roofs?
We offer various sandwich panels including EPS, Rock Wool, PU, and Glass Wool with thicknesses ranging from 50mm to 100mm depending on thermal requirements.
What are the main advantages of steel over traditional buildings?
The main advantages include lightweight construction, cost-effectiveness, fast assembly, and lower labor intensity for onsite workers.
