Heavy Gauge Peb Industrial Steel Structure Pre-Engineered Building

1 / 5

Heavy Gauge Peb Industrial Steel Structure Pre-Engineered Building

Customization:	Available
After-sales Service:	30 Year Limited Warranty
Characteristics Of Goods:	Customized

Send Inquiry

Product Description

📋

Technical Specifications

Type:

Multi-Storey Warehouse

Delivery Time:

Normally 30-45 Days

Forming:

Hot-Rolled Steel

Surface Treatment:

Painted or Galvanized

Software:

CAD, Tekla, Sketchup, Pkpm, Bim

Quality:

CE ISO9001:2000 SGS GB, ISO BV

Material Grade:

Q345/Q355 / Q235

Main Frame:

H Steel, Z or C Purlin

Connection:

Bolt Connection

Capacity:

100,000 Tons Per Year

🏗️

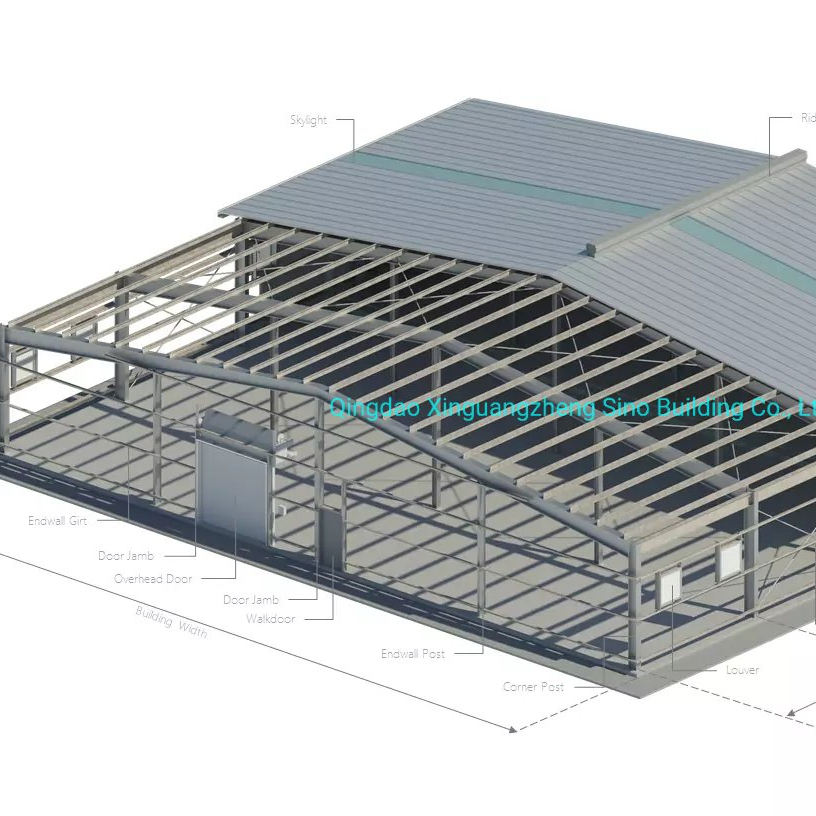

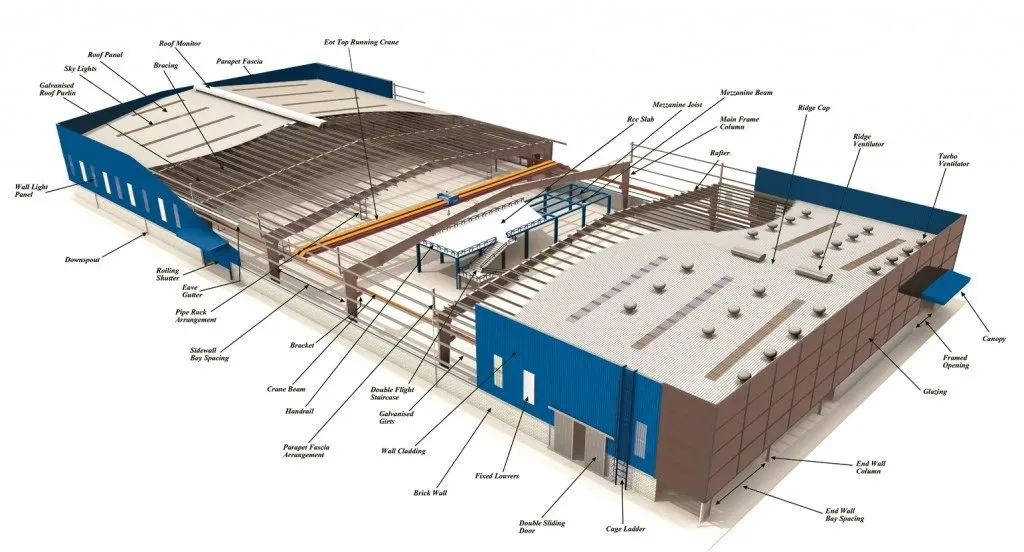

Pre-Engineered Building System

Steel structure buildings are widely used as warehouses, factories, hotels, churches, and garages. They offer a durable, economical, and environmentally friendly solution for industrial and commercial needs.

✔Versatile Sizing: Width X Length X Eave height tailored to requirements.

✔Flexible Types: Single/Double/Multi-span; Single or Multi-floor options.

✔Durable Components: High-grade Q345(S355JR) or Q235(S235JR) steel.

🛠️

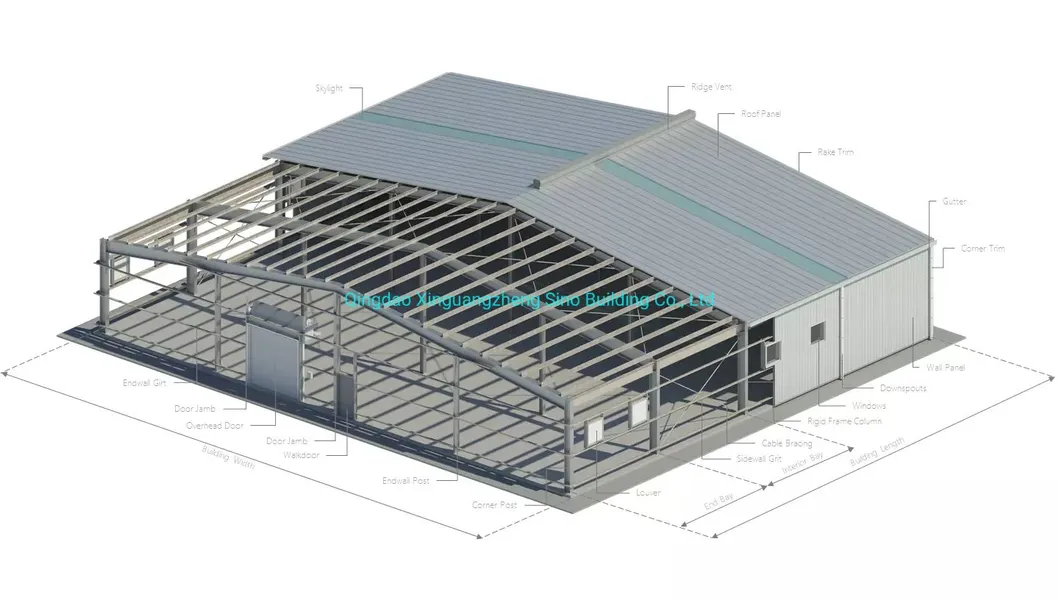

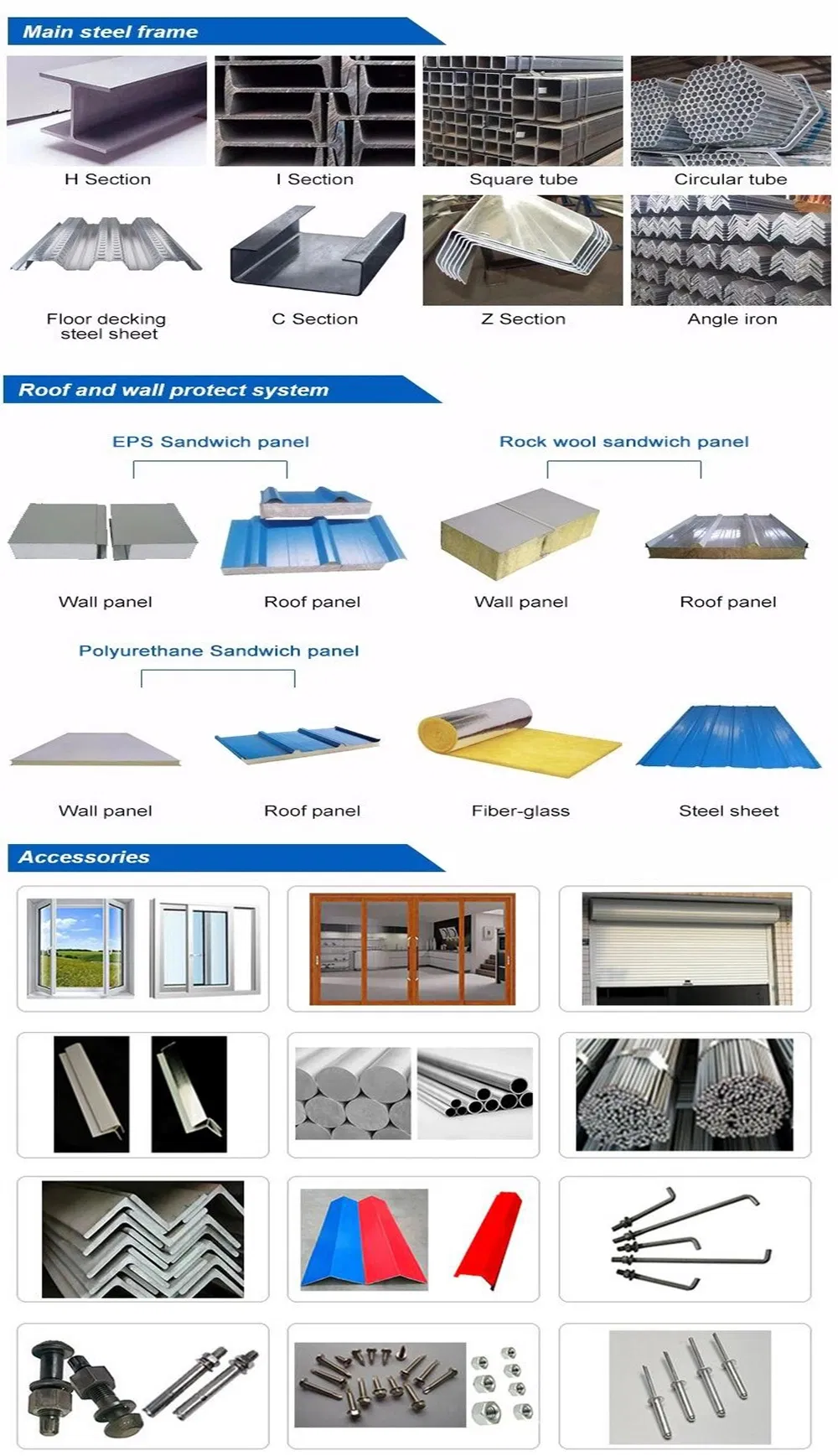

Components & Materials

Item	Materials	Remark
Steel Frame	H section column and beam	Q345 steel, paint or galvanization
Secondary Bracing	Roof & Wall purlin (C/Z section)	Q235B galvanized steel
Protecting System	Wall and roof panel	Corrugated steel sheet / Sandwich panel (EPS, Rock Wool, PU)
Fastener System	Anchor bolts / High strength bolts	Determined by structural design
Window & Door	Aluminium/PVC/EPS	Sliding, roll-up, or windproof options

🖼️

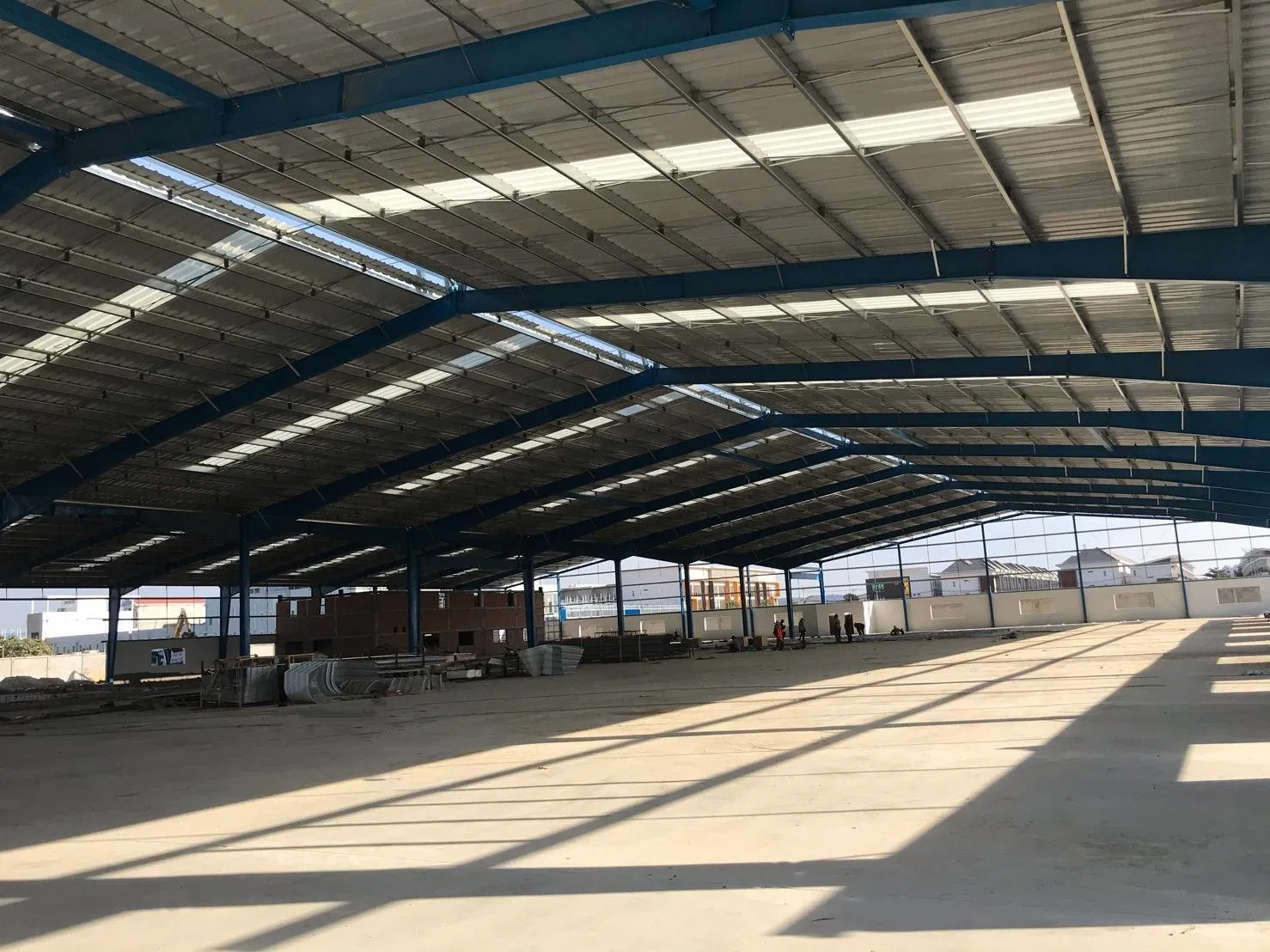

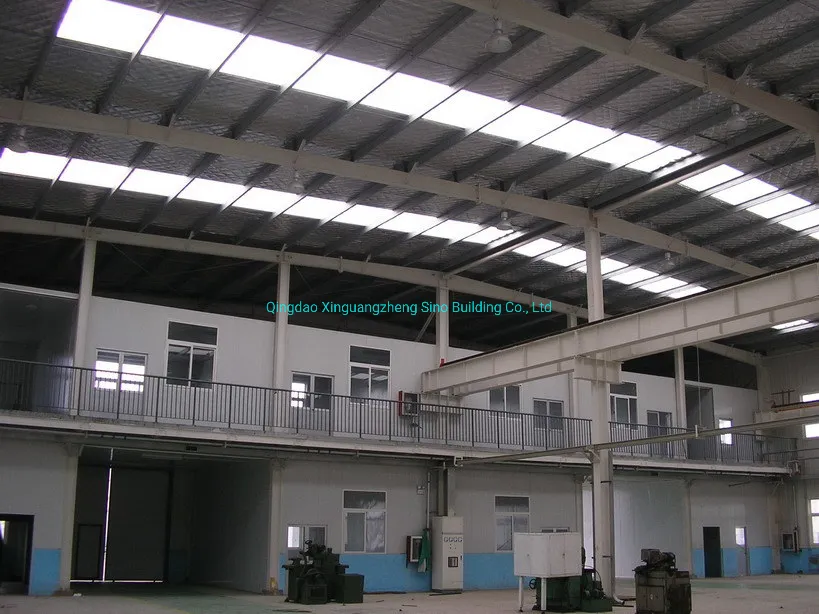

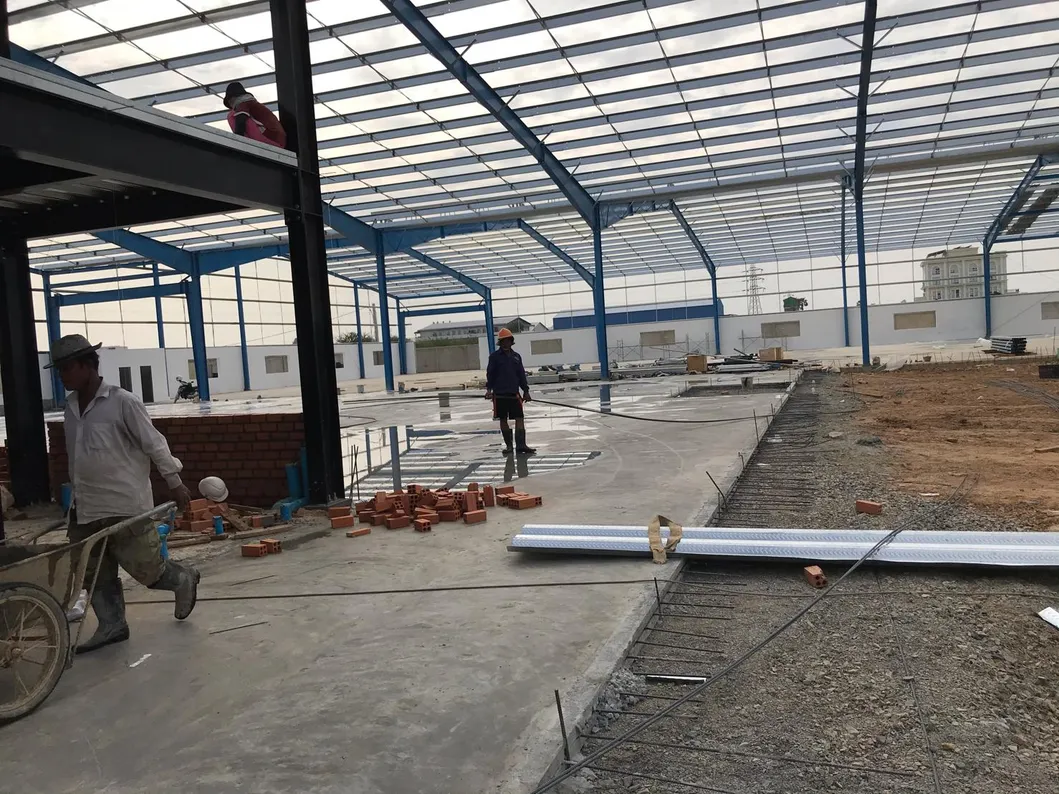

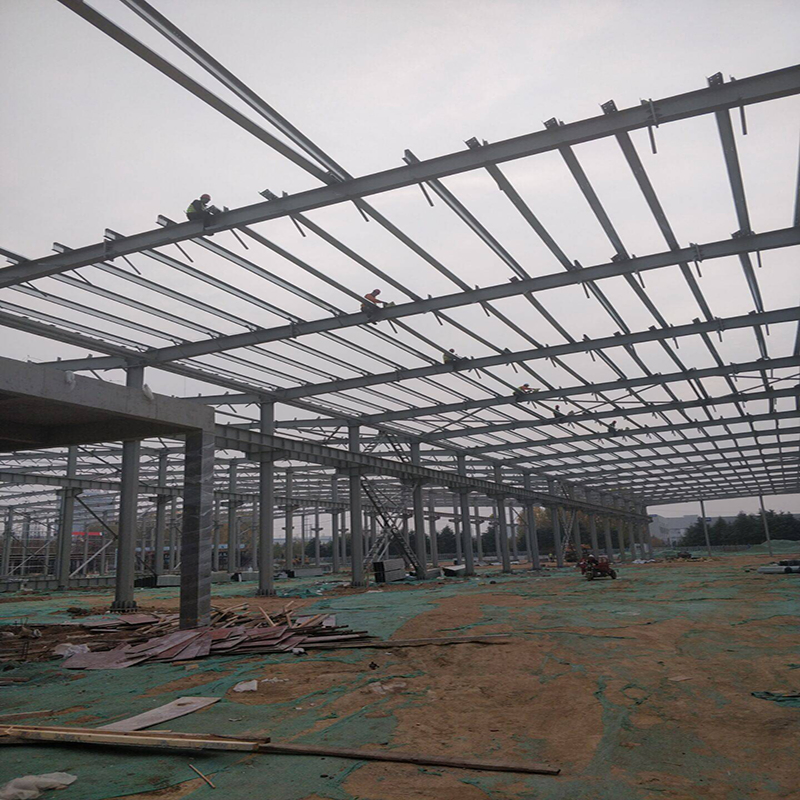

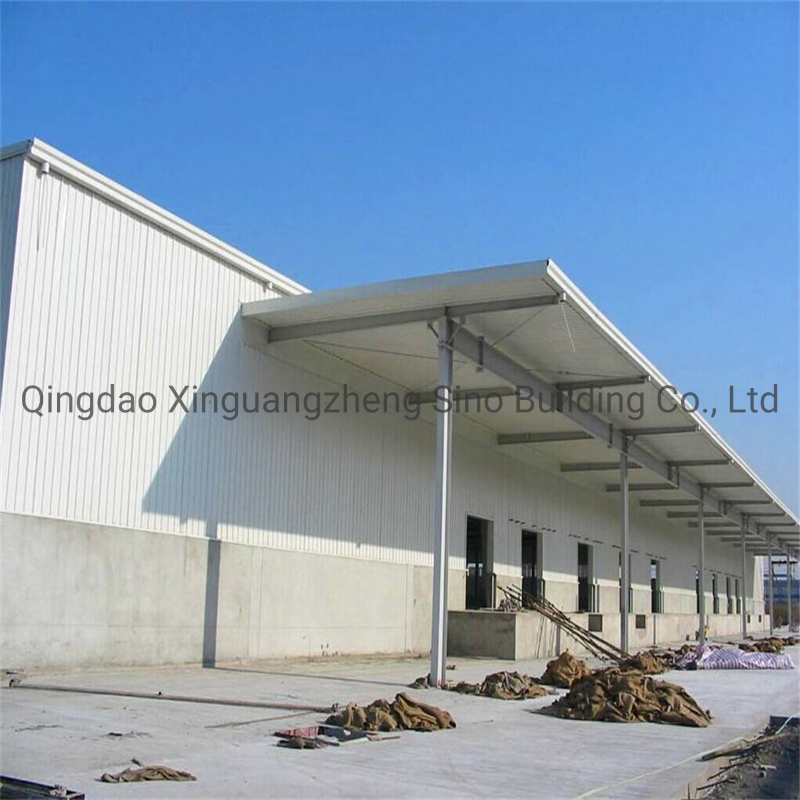

Project Showcase

📏

Design Parameters Required

To provide an accurate design and quotation, please provide the following details:

🔹Live load on roof (KN/M2)

🔹Wind speed (KM/H)

🔹Snow load (KG/M2) - If applicable

🔹Earthquake load - If applicable

🔹Crane data (Lift capacity, height)

🔹Dimensions: Width X Length X Height

🏢

Manufacturing Excellence

Our manufacturing facility has been operating since 1997, integrating design, manufacture, construction, and service. With 6 main production factories, our services have been exported to more than 80 countries across Asia, Africa, North and South America, Oceania, and Europe.

❓

Frequently Asked Questions

Q: Are you a manufacturing factory or a trading company?

A: We are a manufacturing factory. You are welcome to visit us for inspection. Our quality control flow demonstrates our professionalism, ensuring the best quality and competitive price.

Q: What quality assurance do you provide?

A: We have established procedures to check products at all stages—raw materials, in-process materials, finished goods, etc. Third-party testing like SGS and BV is available.

Q: Can you offer a comprehensive design service?

A: Yes, we have more than 10 design engineers. We can design full solution drawings using software like Auto CAD, PKPM, MTS, 3D3S, and Tekla Structures based on your requirements.

Q: Do you offer on-site installation guidance overseas?

A: Yes, we provide detailed installation drawings. If needed, we can also provide installation, supervision, and training services by sending professional technical engineers to your site.

Q: What are the main materials used in the structure?

A: The main load-bearing parts are usually made of Q345 steel, while the purlins and bracing systems are typically made of Q235 steel.

Q: How is the steel structure packaged for transport?

A: The main steel frame is typically loaded in 40'OT containers without extra packing, while roof and wall panels are loaded in 40'HQ containers for maximum protection.
