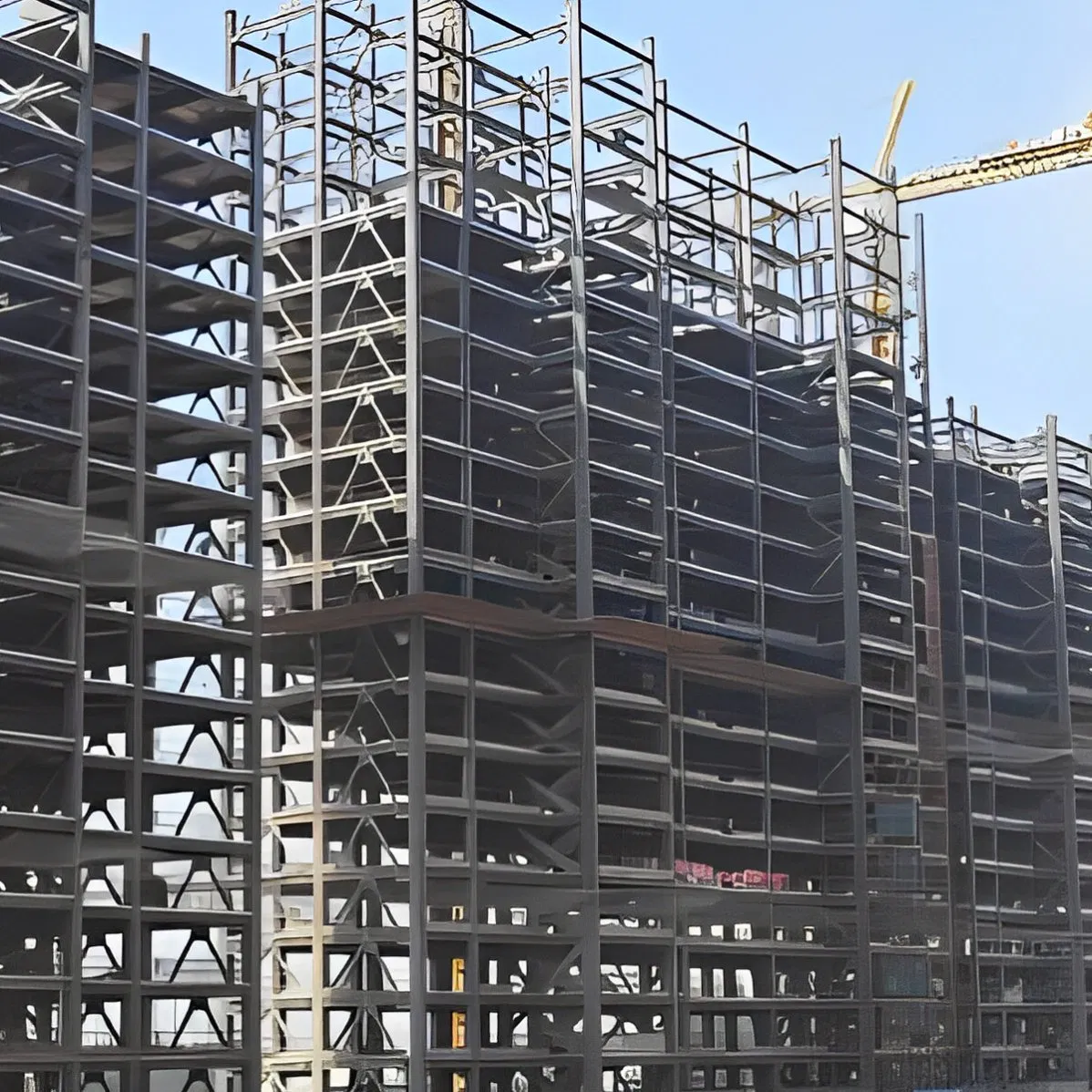

Large-Span Space High Rise Tempered Glass Modular Construction Industrial Commercial Hybrid House Office Prefab Prefabricated Metal Steel Structure Building

📊 Basic Product Specifications

Model NO.

CC-PB

Feature

Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity

Application

Steel Workshop Warehouse, Office Building

Standard

GB, ASTM, DIN, JIS, AISI, BS

Wall Structure

Wallboard

Forming

Welding

Steel Grade

Q355b/Q235B/S275/S355

Leadtime

25 Days

Column & Beam

H Steel

Purlin

C Steel, Z Steel

Panel Thickness

50-200mm

Capacity

2,000,000 Tons Per Year

🏢 Industrial Modular Construction

🏗️

Resource Integration & Delivery Capability:
Relying on strategic industry clusters, we achieve cost optimization and shorten delivery cycles by 10-15 days compared to the industry average through rapid inventory management.

🛠️

EPC Service Capability:
Integrated design, procurement, and construction services. Professional installation teams and management systems ensure efficient project execution.

Application Scope	Key Characteristics
• Steel structure workshop • High rise steel building • Steel warehouse / Large span frame • Steel bridge / Airport hanger • Exhibition hall / Gym shed • Multi-storey office buildings	• High strength & Light dead load • Good plasticity and toughness • Save 65% of construction time • Flexible space & High accuracy • 98% recyclable components • Environmentally friendly

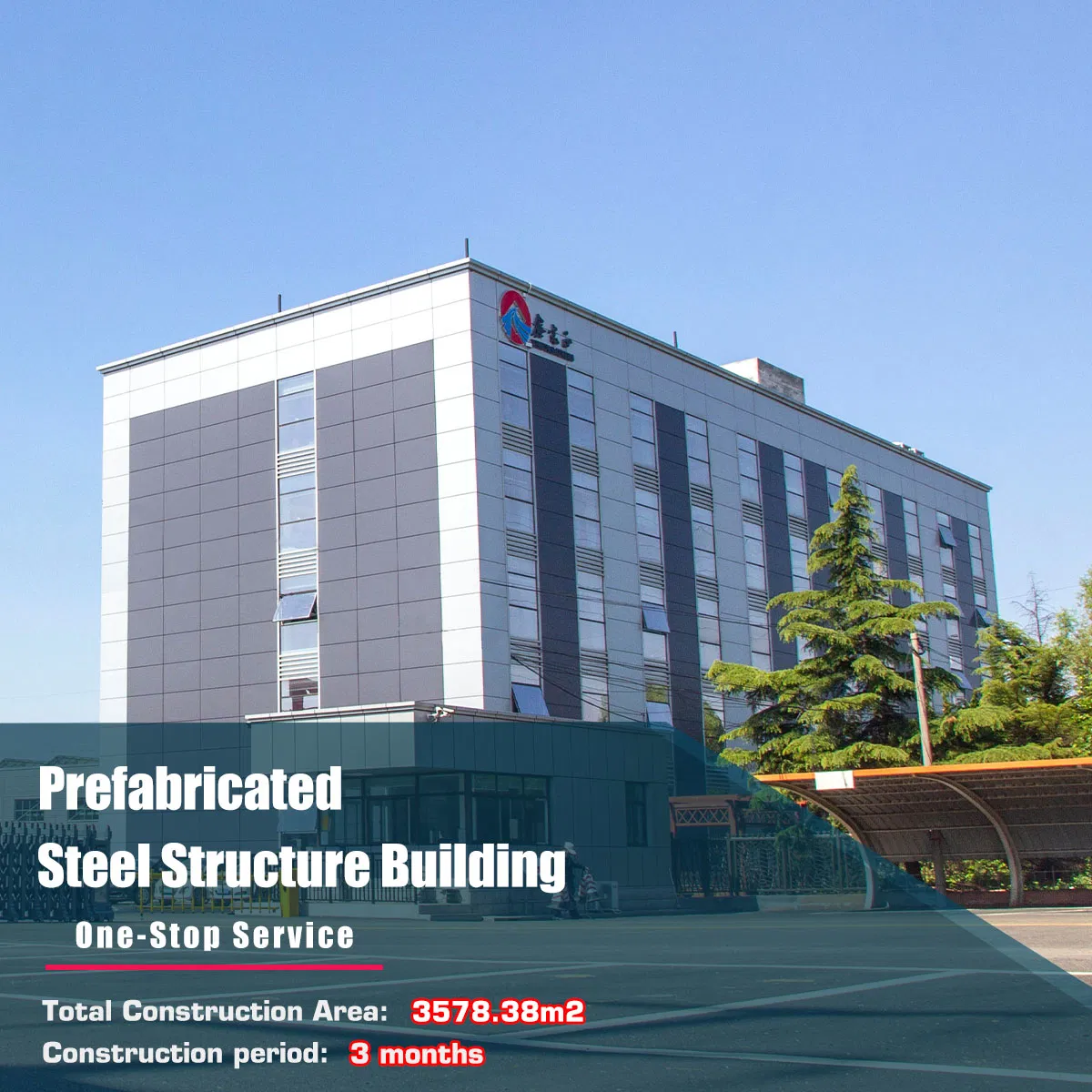

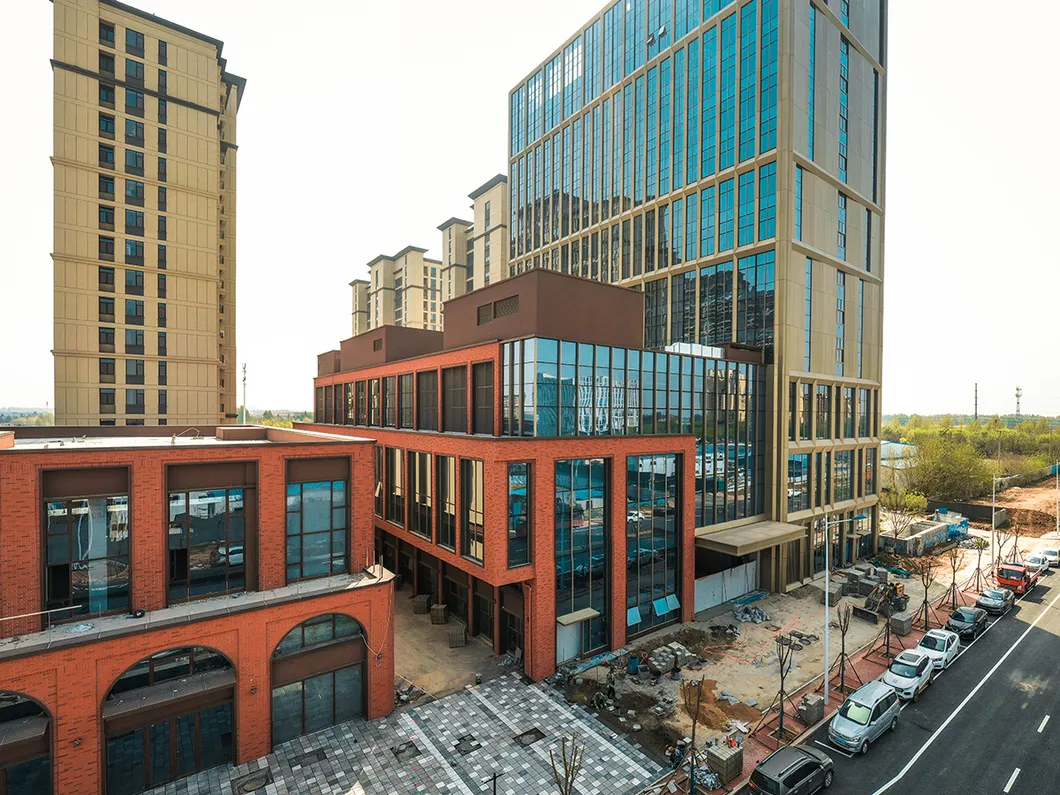

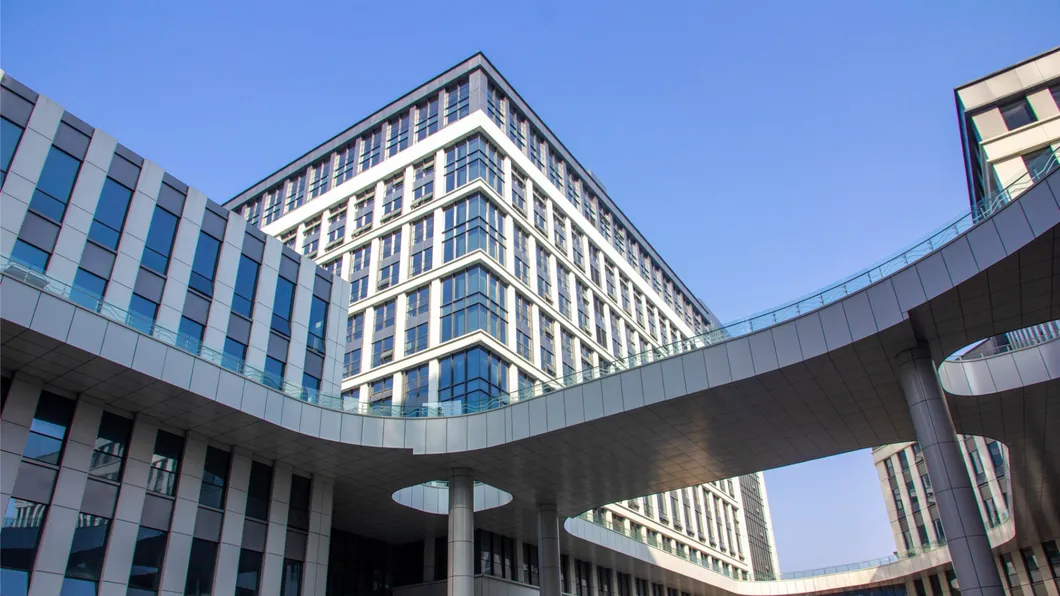

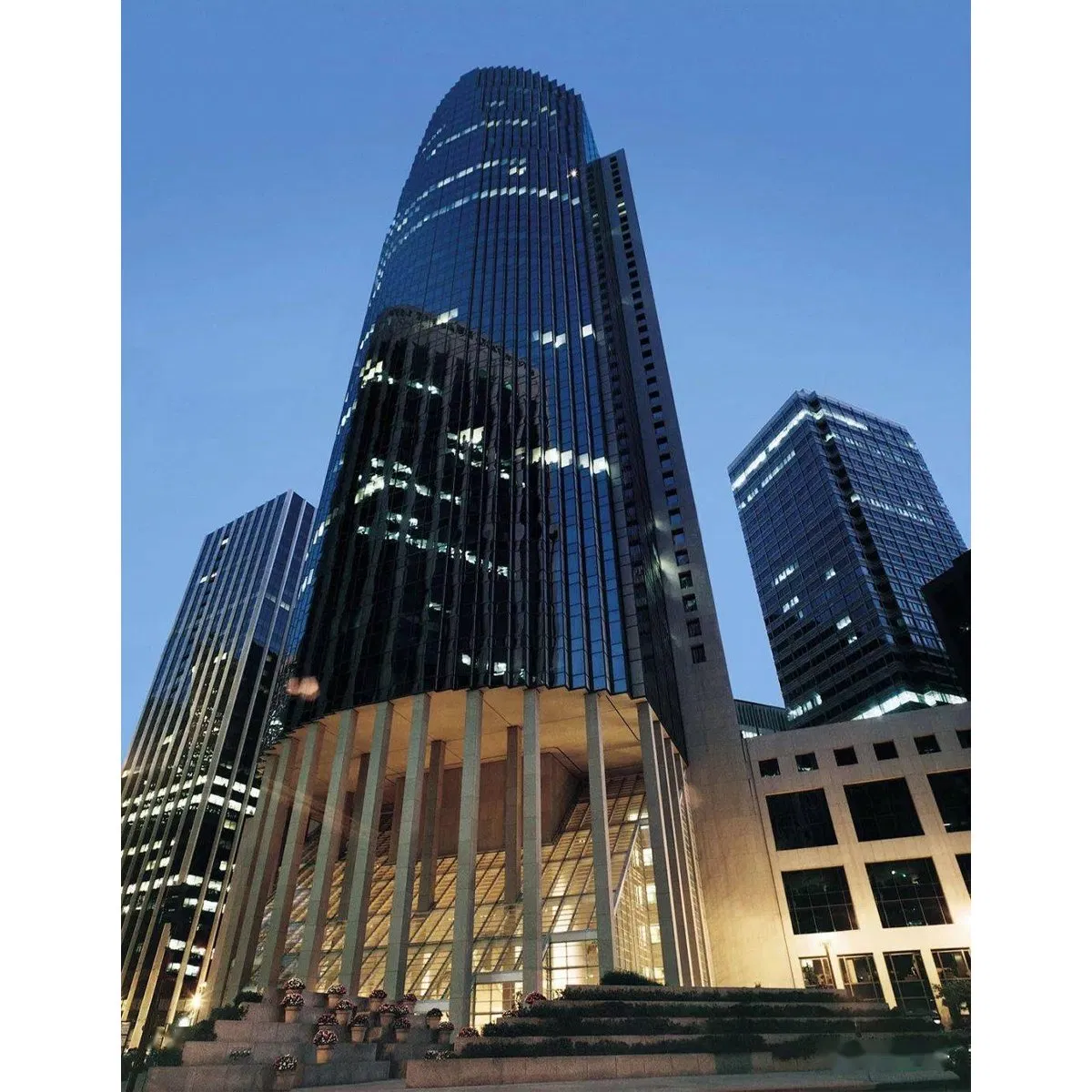

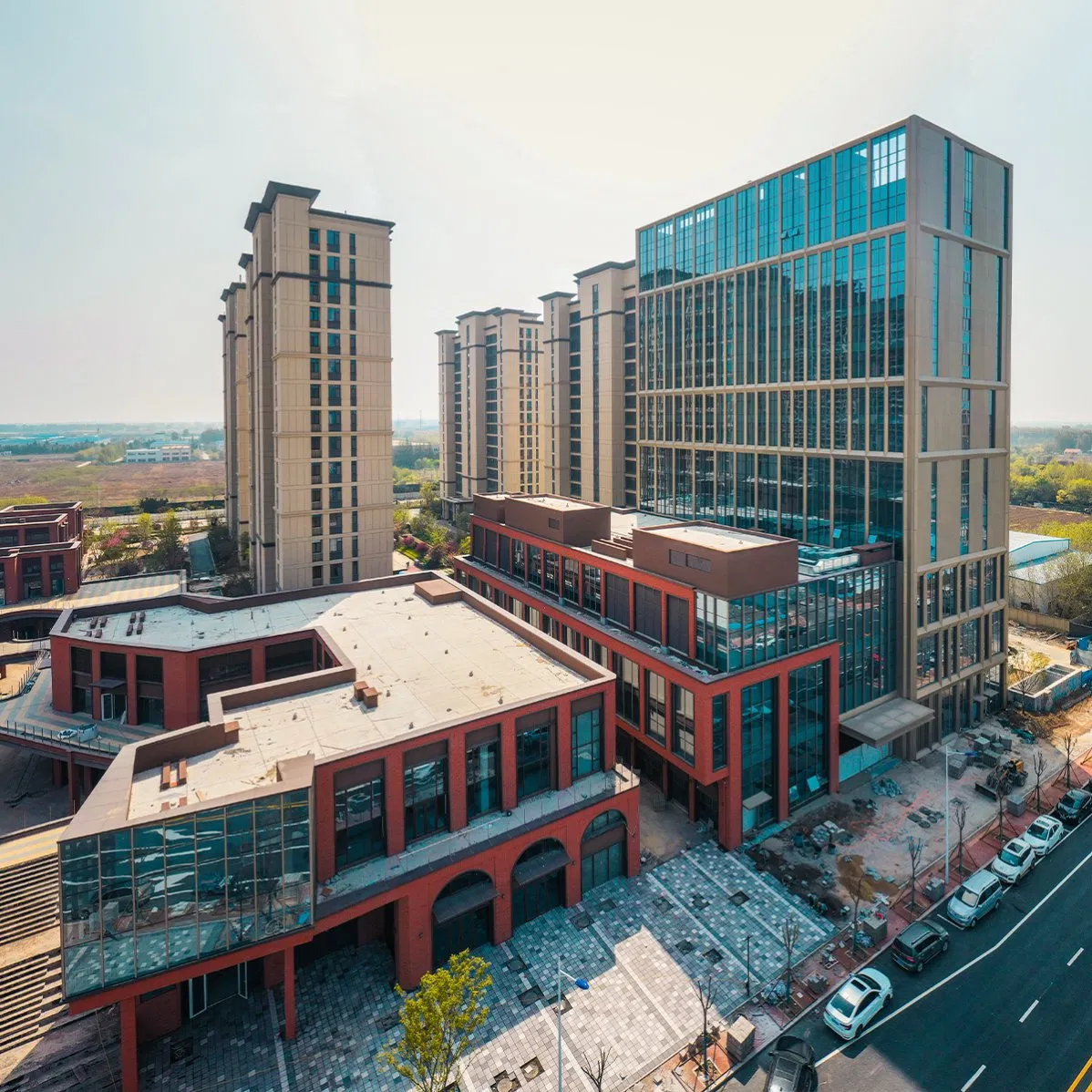

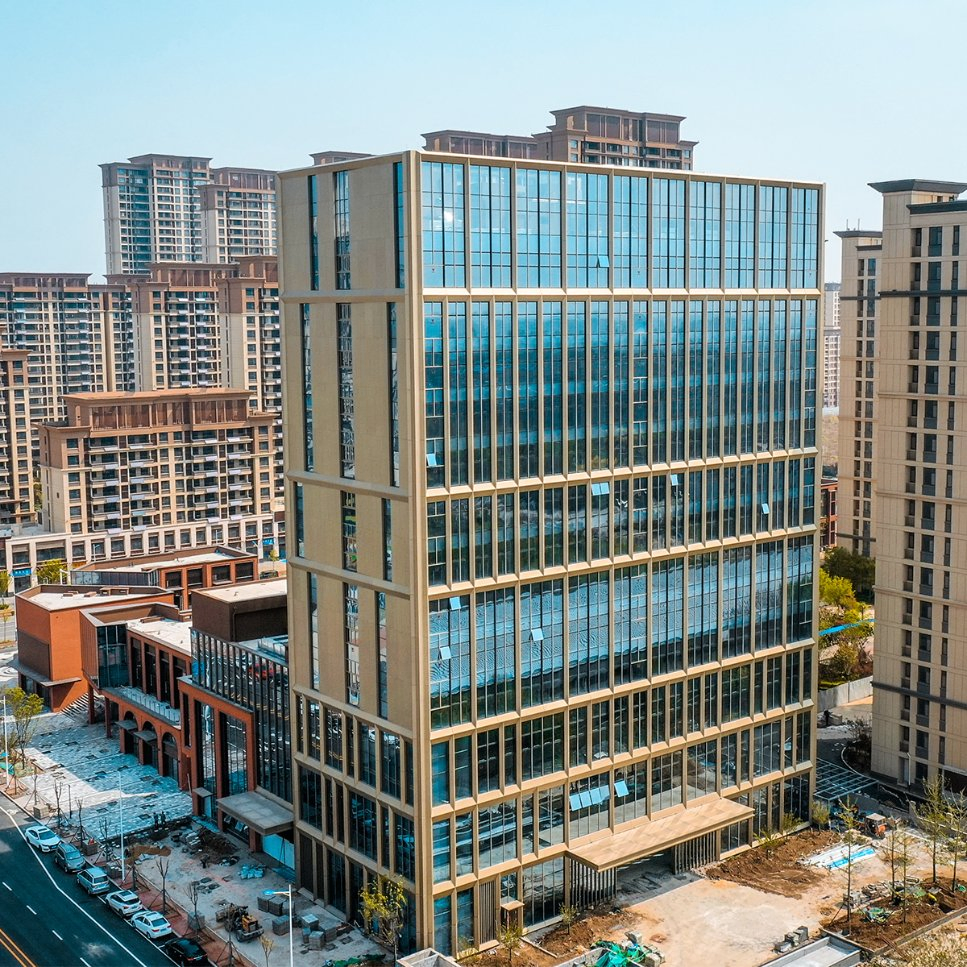

📸 Product Display

⚙️ Technical Parameters

1. Material Standards

Steel Grades: Q235, Q345, Q390 (GB); ASTM A36, A572; S235, S355 (EN).
Strength: Tensile strength ≥375-550 MPa, yield strength ≥235-420 MPa.
Section Types: Hot-rolled H-sections, square tubes, I-beams, box columns.
Auxiliary: High-strength bolts (Grade 8.8, 10.9), Fireproof coatings (1-40mm).

2. Structural Components

Columns: H-sections (up to H500x500) and Box columns (up to 800x800).
Beams: Horizontal load-bearing H-sections with spans of 6-12m.
Floor Systems: Composite deck slabs (0.8-1.5mm profiled steel + concrete).
Bracing: Concentric (X/V-shaped) or eccentric seismic-resistant braces.

3. Design & Performance

Seismic: Fortification intensity 6-9 degrees.
Wind Load: Basic pressure 0.3-0.7 kN/m².
Protection: Hot-dip galvanizing or epoxy zinc-rich primer; 1-3 hours fire resistance.
Tolerance: Component length ±2 mm/6 m; Verticality deviation ≤H/1000.

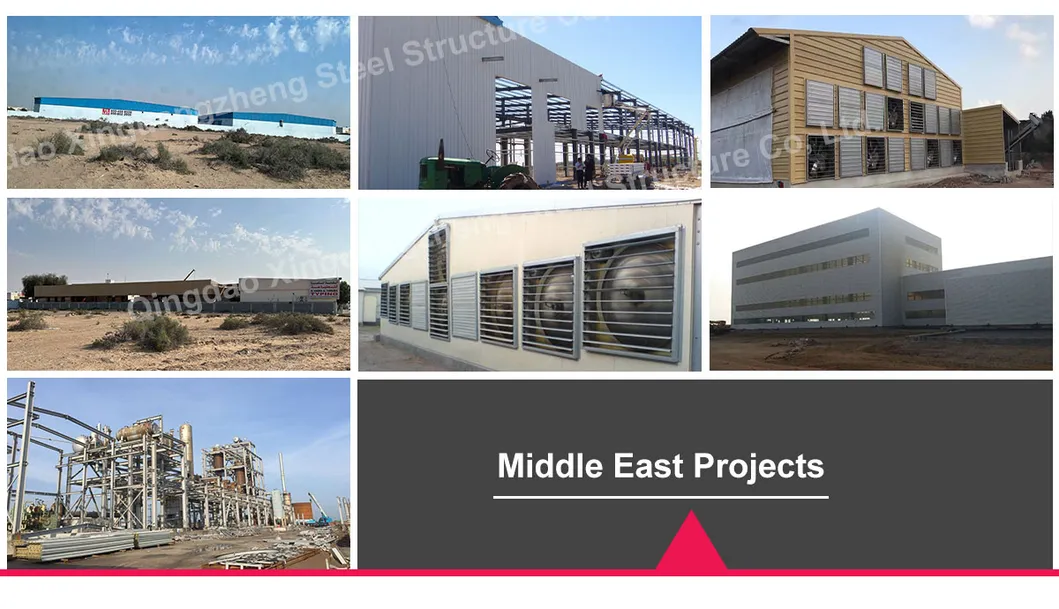

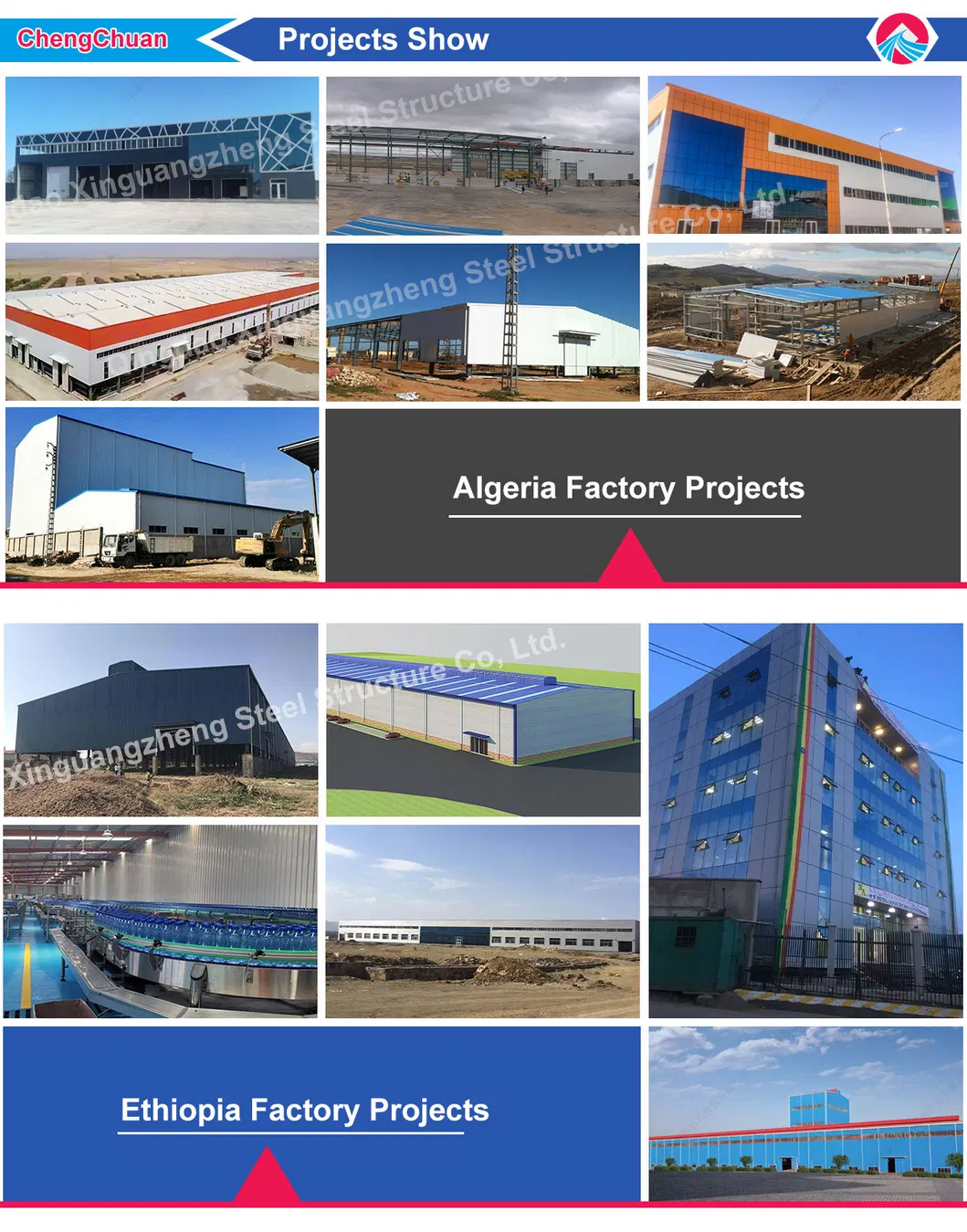

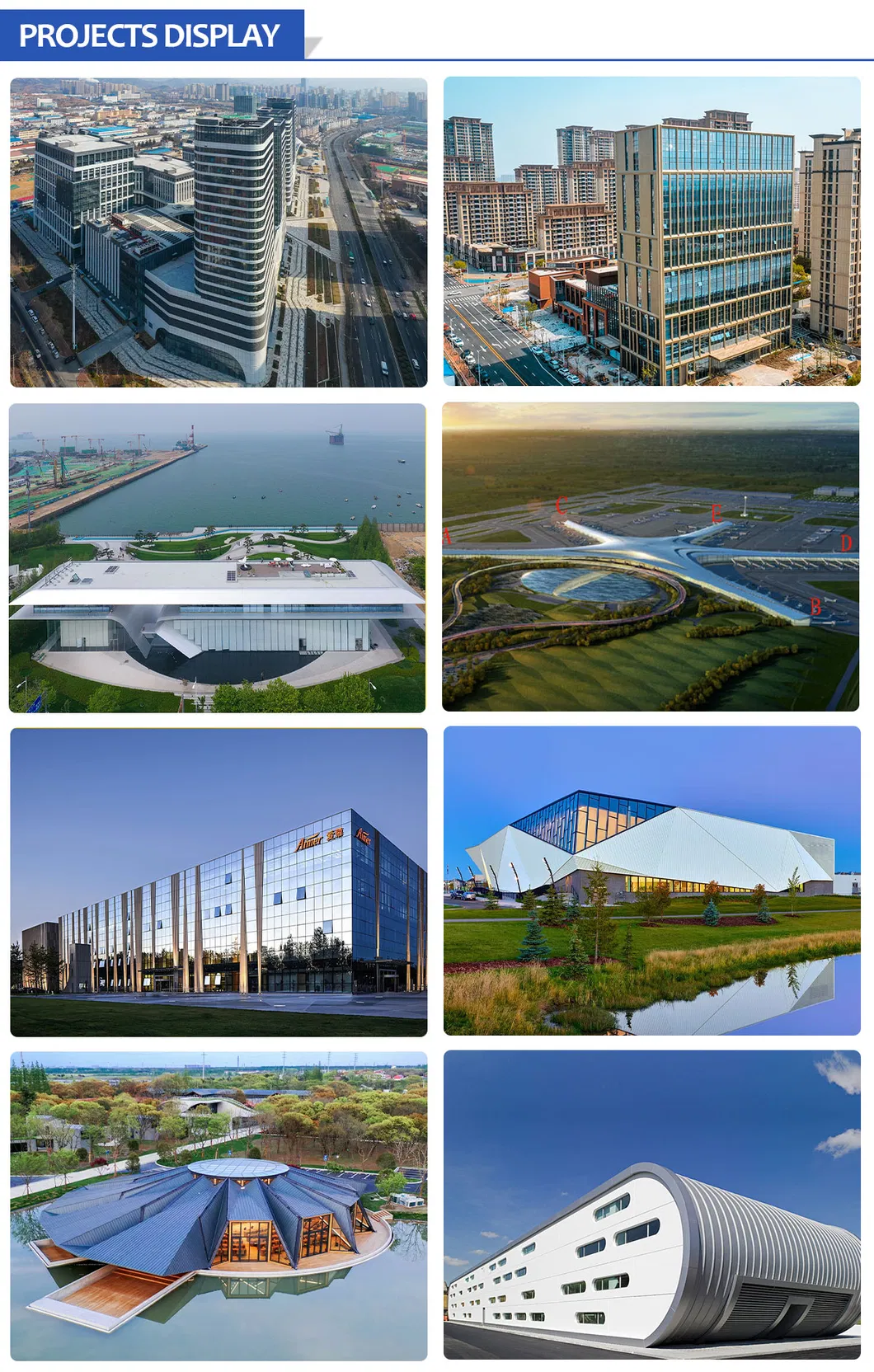

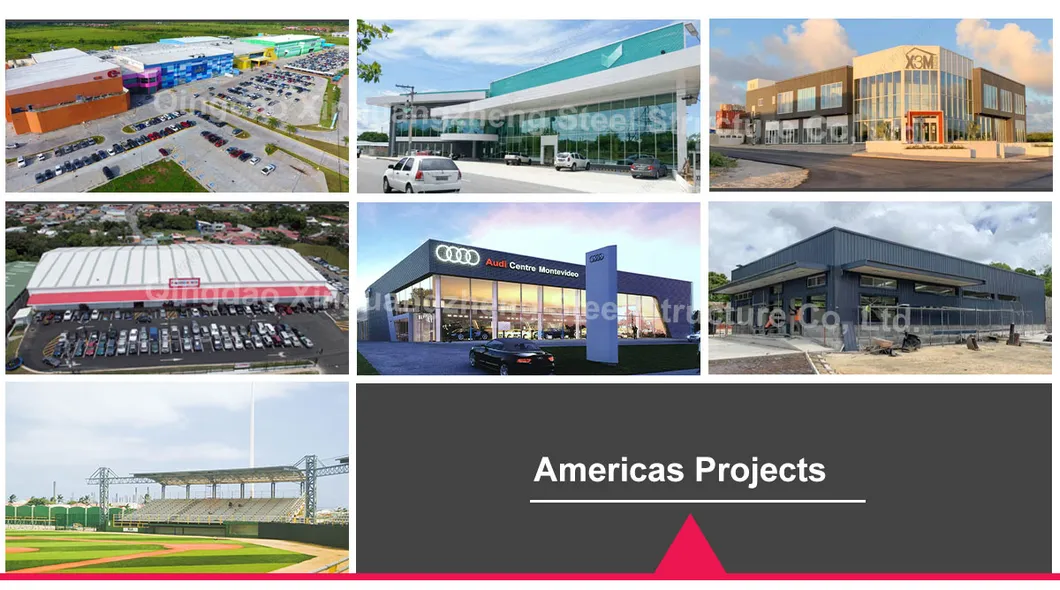

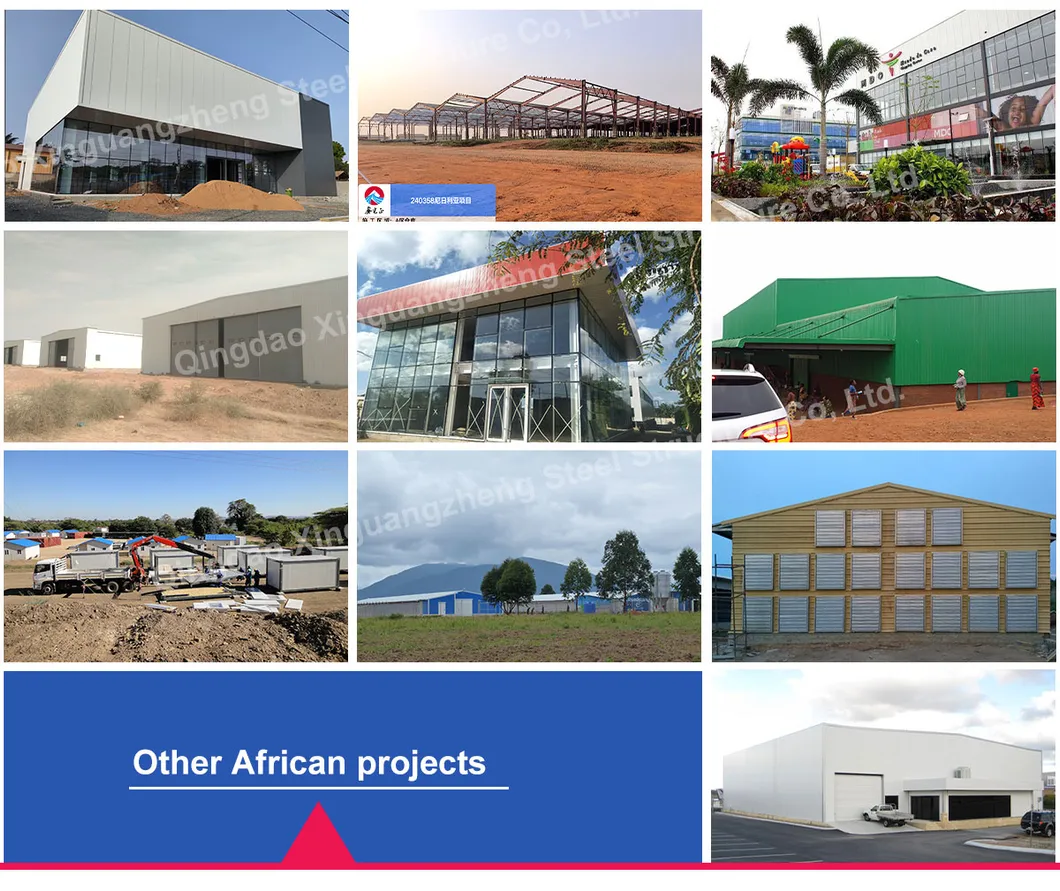

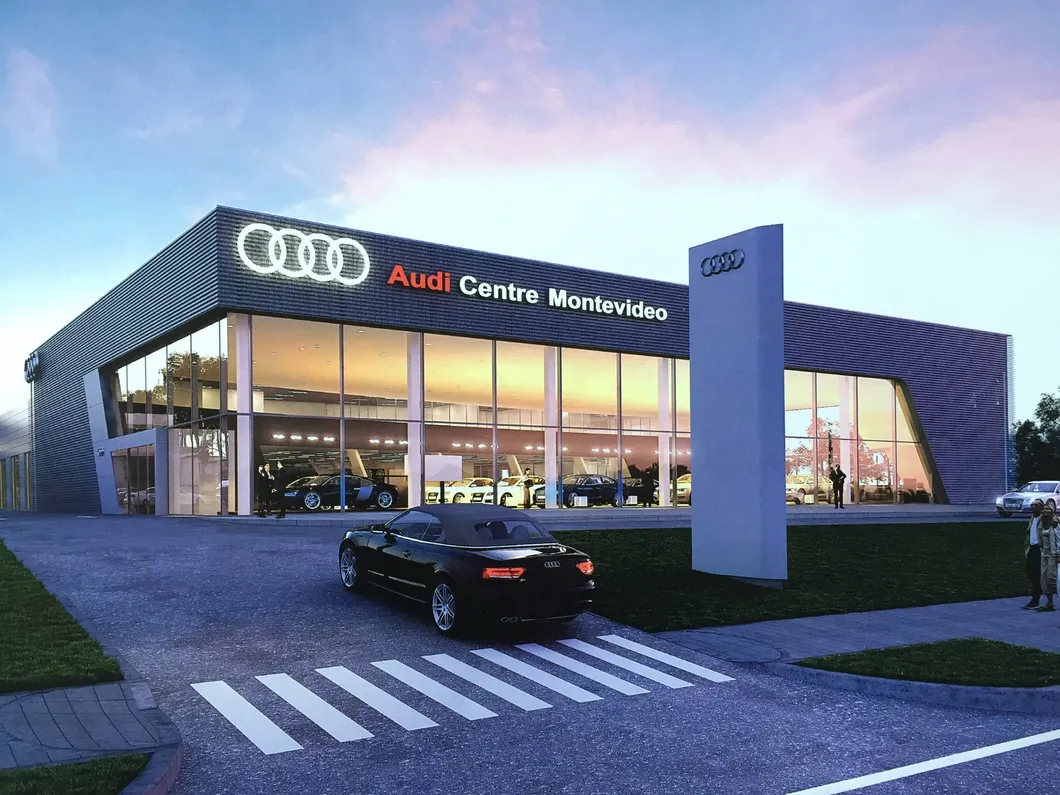

🌎 Global Project Show

📜 Quality & Service

Service Scope:

Professional project consulting and solution formulation.

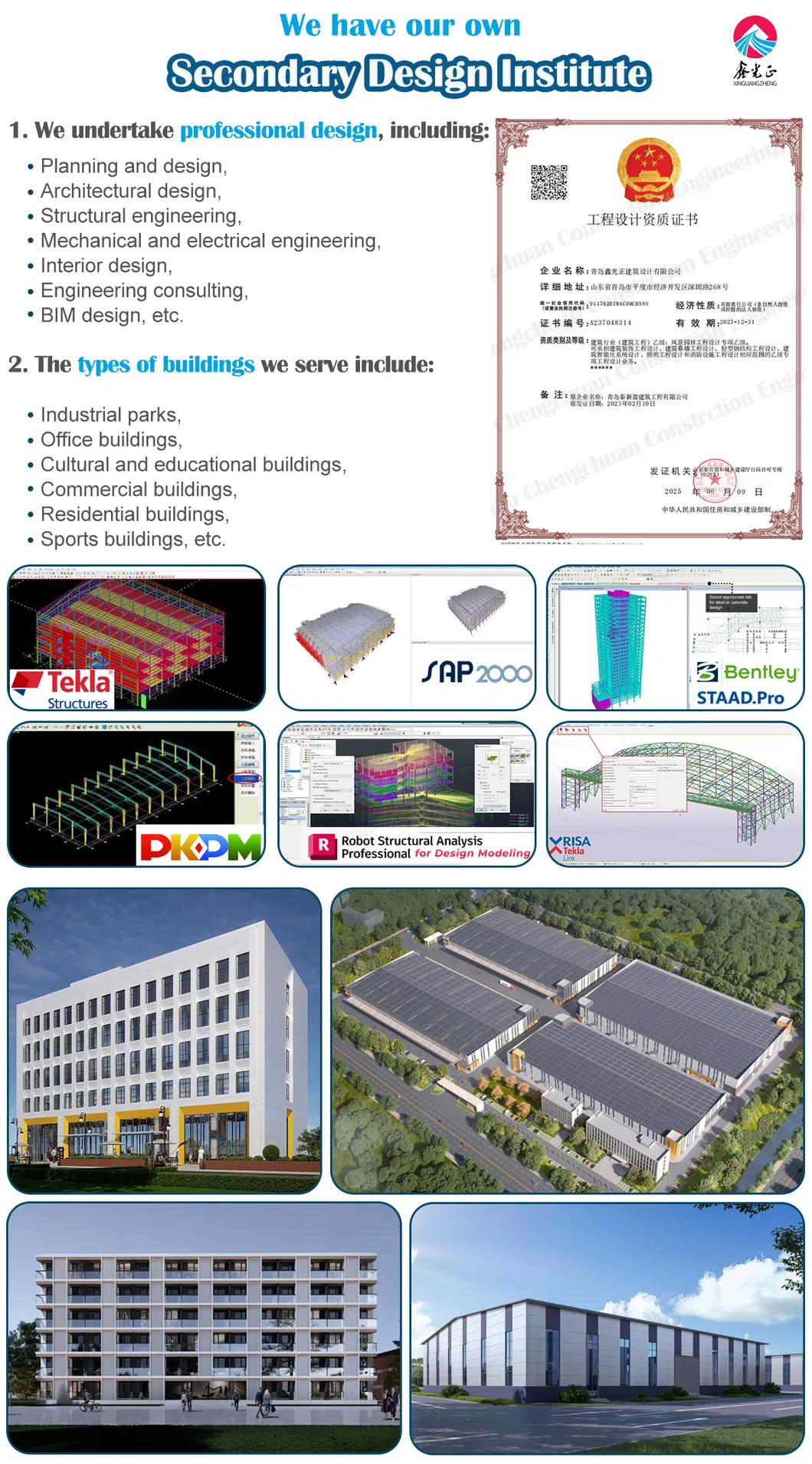

Advanced design services using AutoCAD, PKPM, 3D3S, and Tekla Structures.
High-quality manufacturing and rigorous logistics control.
Overseas construction guidance and full after-sales support.

❓ Frequently Asked Questions

Q1: What information is needed for a precise quote?

A: Please provide: 1. Project location. 2. Dimensions (L*W*H). 3. Wind and snow load data. 4. Seismic requirements. 5. Wall/Insulation preferences. 6. Crane requirements (if any).

Q2: Is your pricing competitive?

A: Yes. Our objective is to provide the best quality at the same price point or the best price for the same quality level, ensuring maximum value for your investment.

Q3: Do you support third-party inspections?

A: Absolutely. You are welcome to send an inspector not only for container loading but at any stage during the production process.

Q4: Can you provide full design services?

A: Yes, we design full solution drawings using AutoCAD, PKPM, 3D3S, and Tekla Structures for complex industrial and commercial projects.

Q5: What is the typical delivery timeframe?

A: Delivery depends on order quantities. Generally, it takes approximately 30 days to the nearest seaport after receiving the deposit.

Q6: Can I visit the production facility?

A: We welcome visits to our factory. Please coordinate your schedule with us, and we can arrange airport pickup for your convenience.
