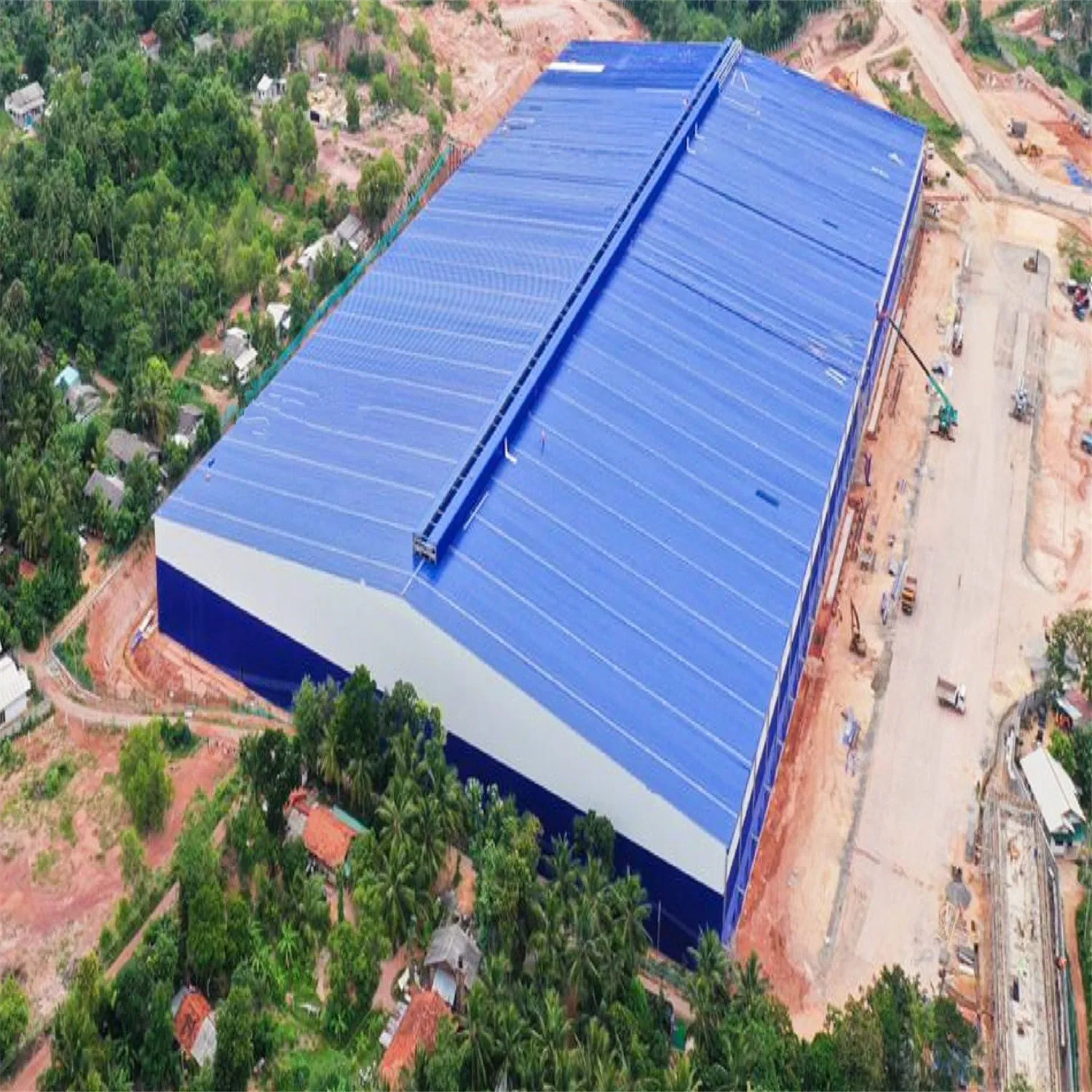

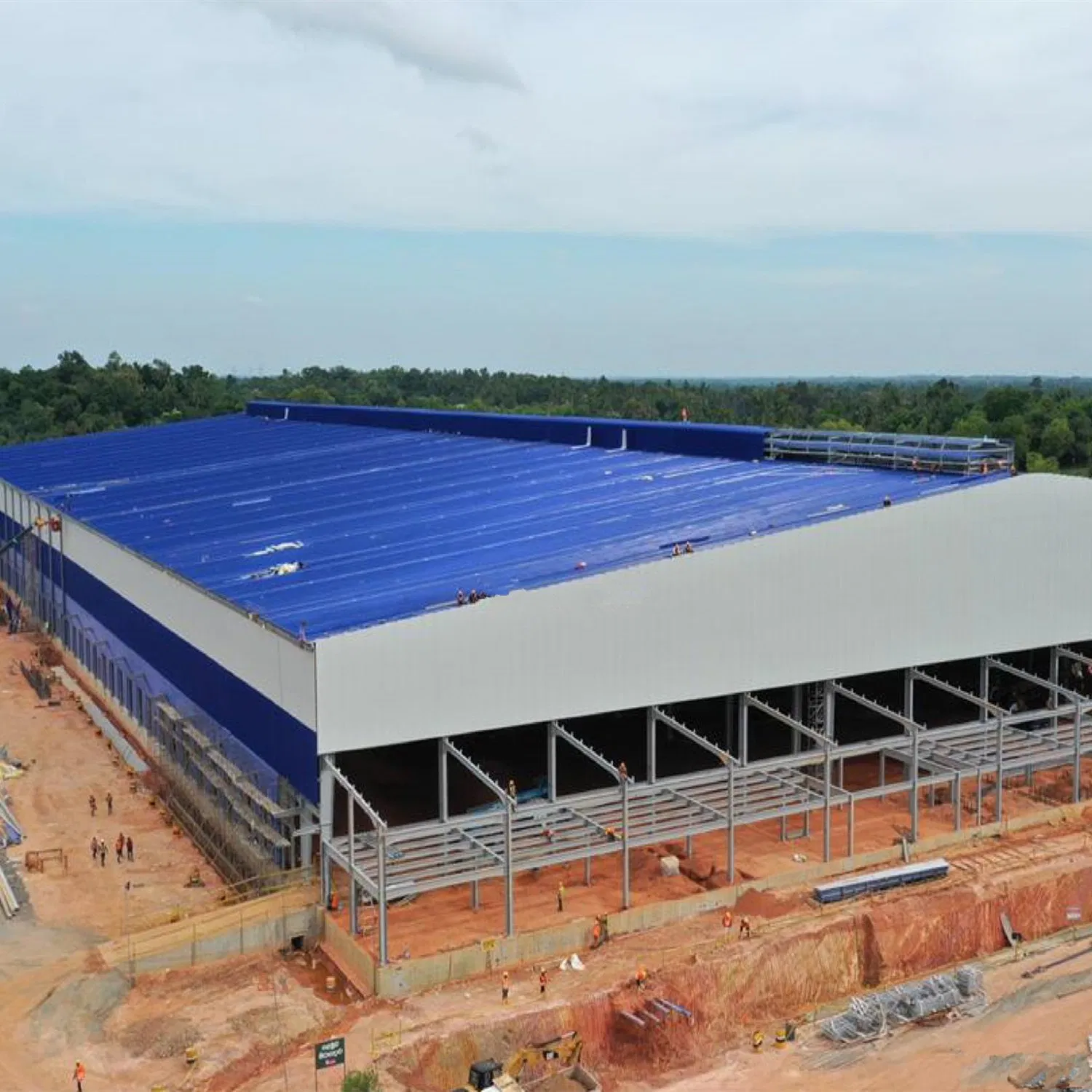

Prefab Industrial Building Steel Structure Workshop Processing Plant with Crane

1 / 5

Prefab Industrial Building Steel Structure Workshop Processing Plant with Crane

Customization:	Available
After-sales Service:	7*24h
Hardness:	Full Hard

Send Inquiry

Product Description

Basic Information

Model NO.steel workshop

StandardASTM, GB

Surface TreatmentCustomized, Galvanized, Painted

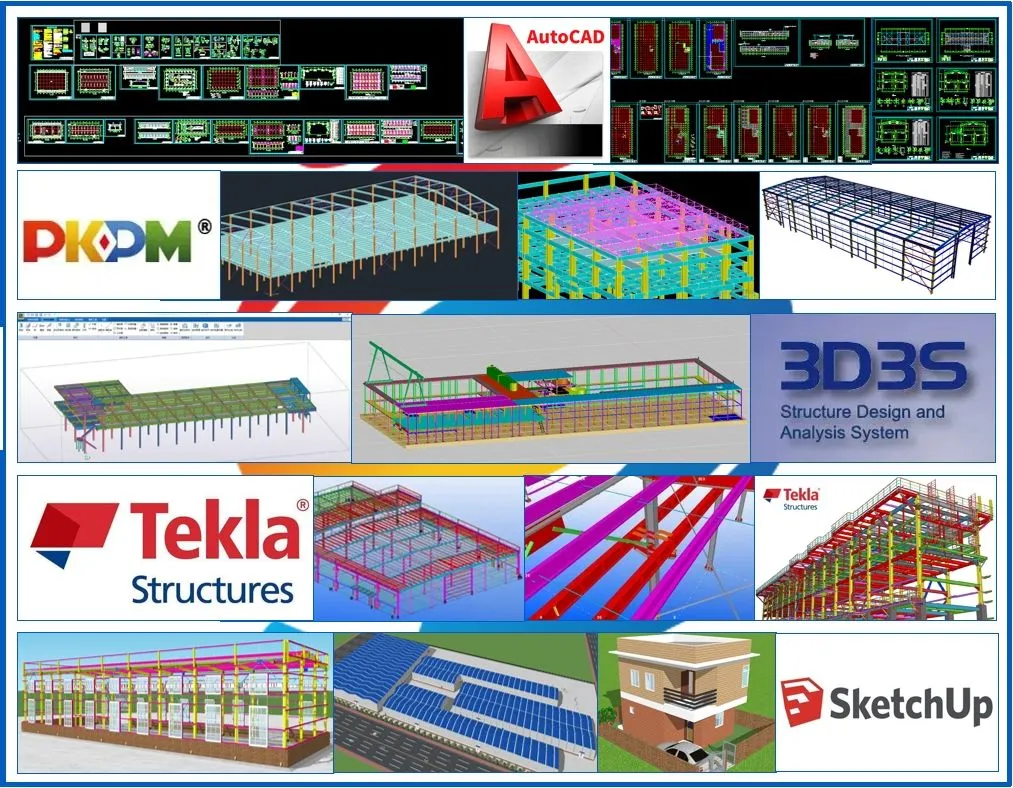

Drawing DesignAutocad, Pkpm, 3D3s, Tekla Structures, Sketch up

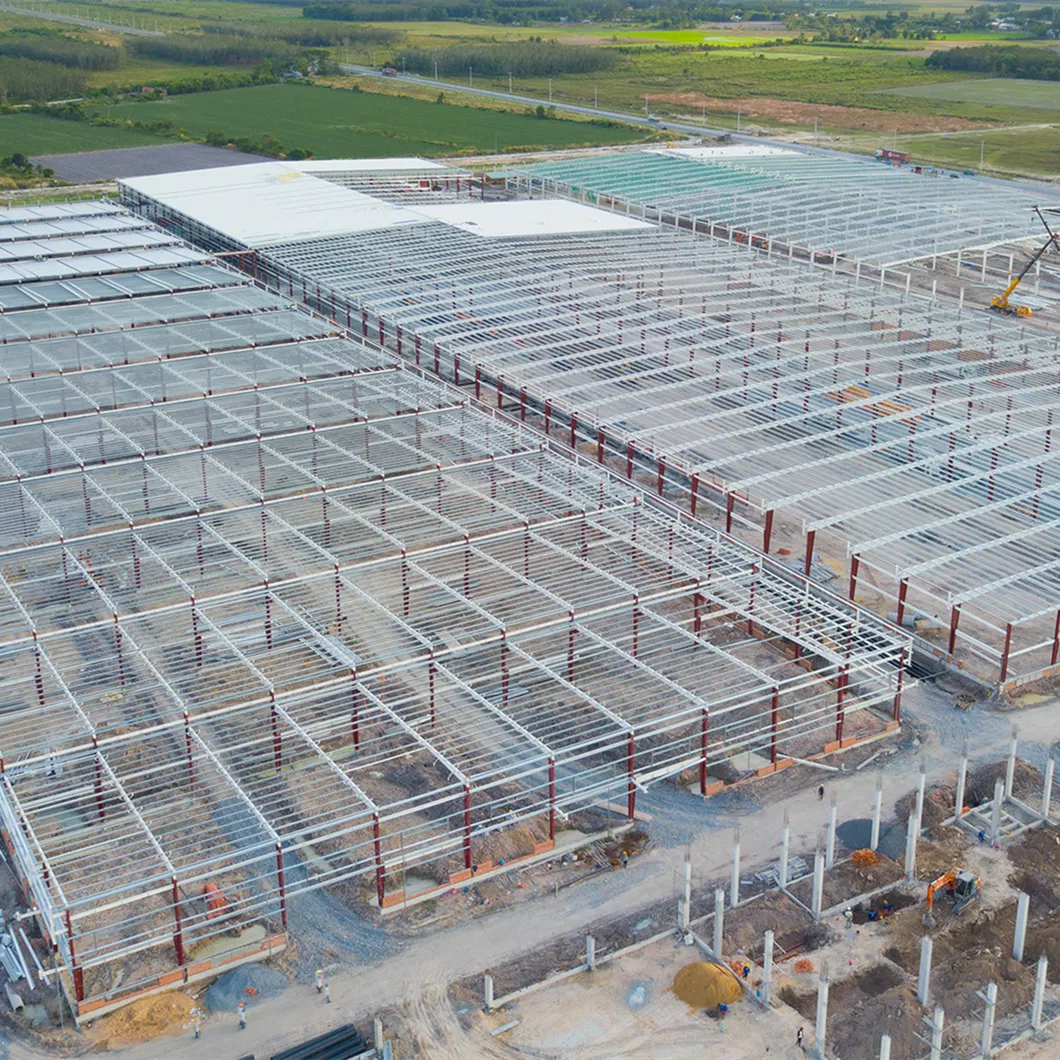

Main StructureSteel Structure -H Steel, Z or C Purlin

Roof & WallCorrugated Steel Sheet/Sandwich Panel

Connect MethodWelding or Bolt

OriginChina

Capacity2000 tons Per Months

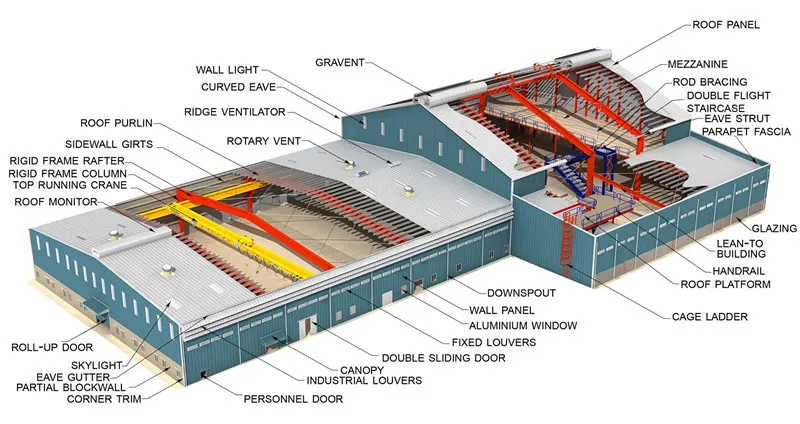

Main Parameters Of Steel Structure Building

Length: The total length of the plant needs to be determined. Column spacing is generally 6m, but can be 7.5m, 9m, or 12m.
Span: Generally 9-36m. For large spans, multi-span designs can be implemented.

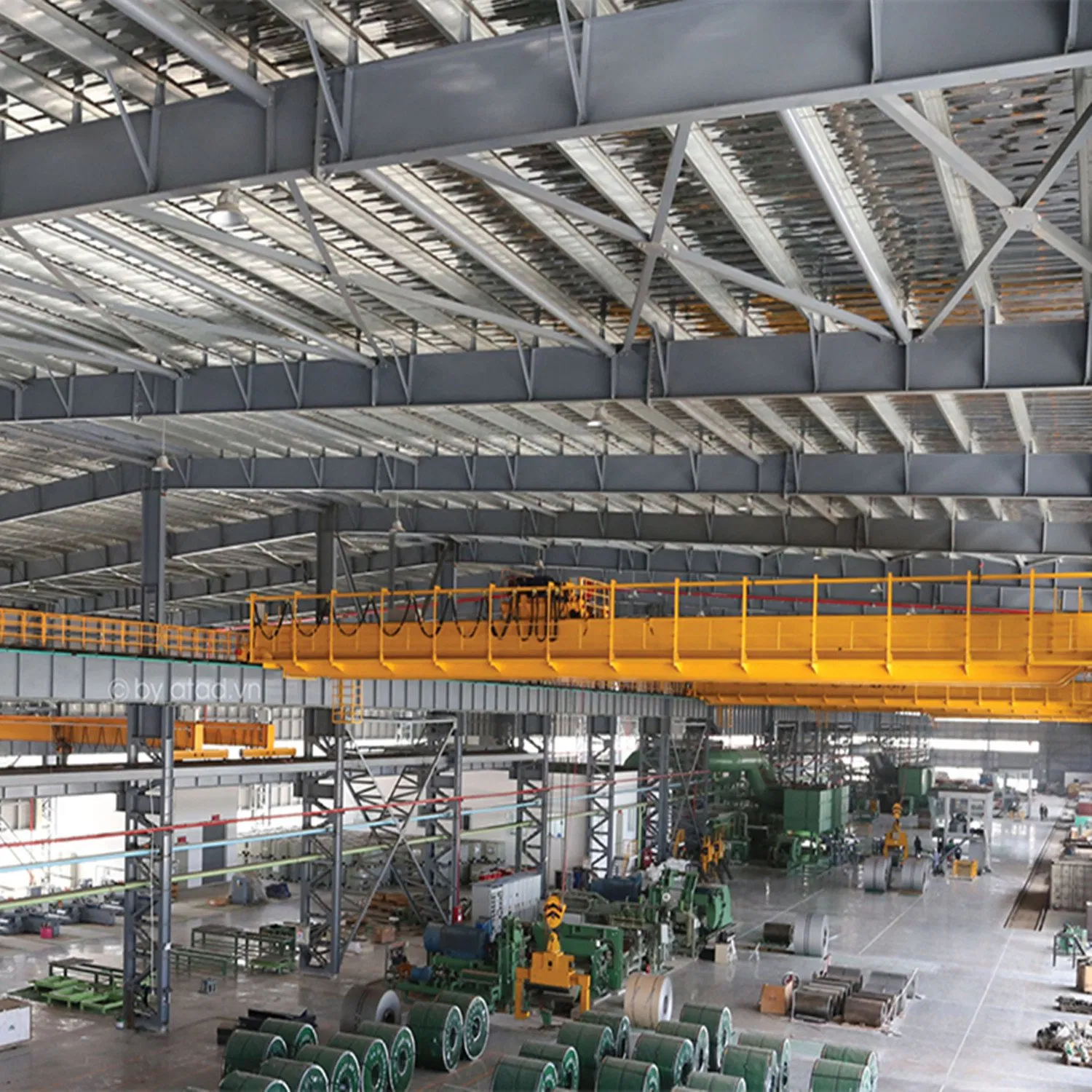

Height: Standard heights range from 4.5-9m (without cranes). For crane systems, specific lifting heights must be determined.
Insulation: Customizable options for roof and wall insulation based on requirements.

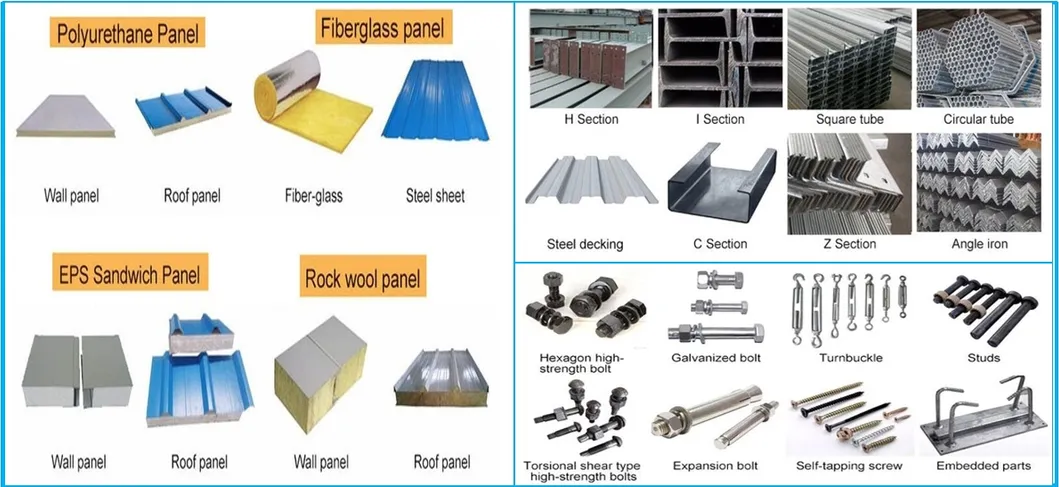

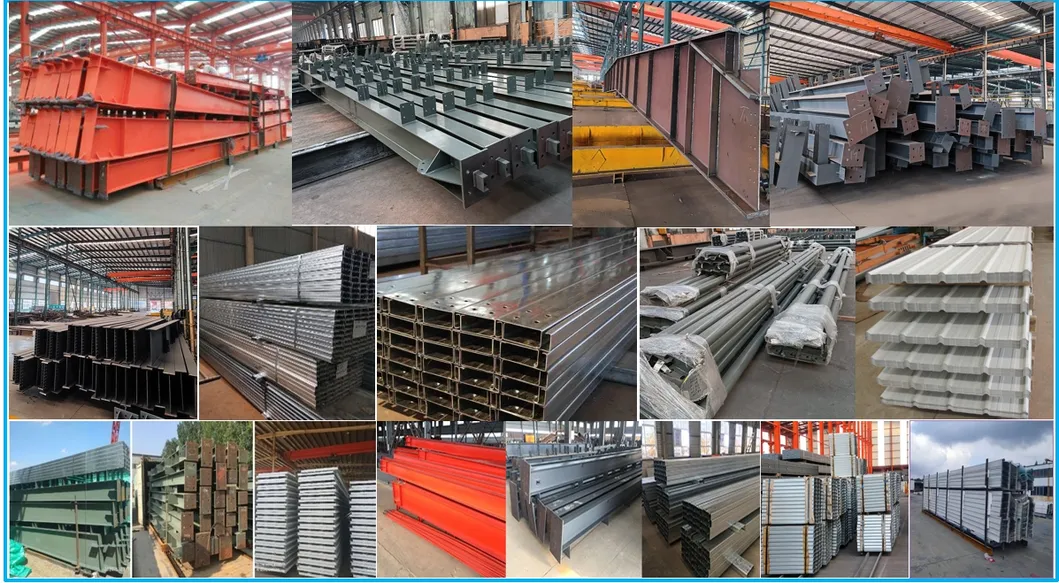

Component	Material Specification
Main steel frame	H section steel beam and columns, painted or galvanized
Secondary frame	Galvanized C purlin, steel bracing, tie bar, knee brace
Roof & Wall Panel	Corrugated Steel Sheet or Sandwich Panel
Doors	Aluminium alloy shutter door or sliding door
Windows	Aluminum alloy push-pull window

About Our Services

Established in 2014, our company is a high-tech, diversified international enterprise integrating R&D, design, production, and construction. We hold qualification certificates for overseas contracted project management, CE certification (EN1090), and ISO9001.

Why Choose Us

Complete equipment and sufficient production capacity.
Professional design team for customized solutions.
Reliable quality with reasonable pricing.
7*24 hours professional services.
Overseas construction and installation guidance available.

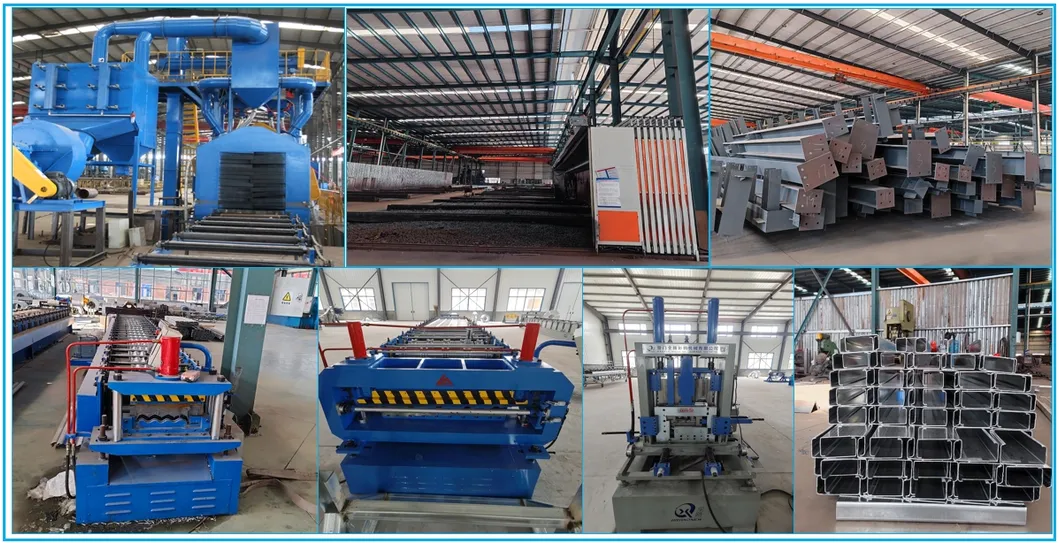

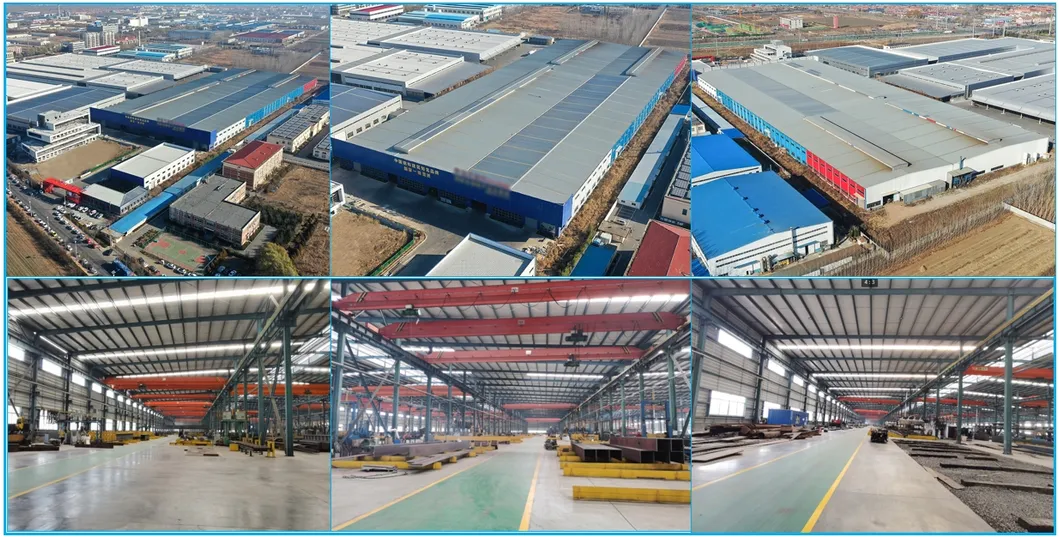

Production Capacity

Line Name	Line Qty	Annual Output
Composite board production lines	2	More than 1,000,000 meters
Color steel plate production lines	5	2,000,000 meters
H-beam CNC production lines	2	20,000 tons
C-beam production line	1	2,500 tons
Z-beam steel productions line	1	2,000 tons

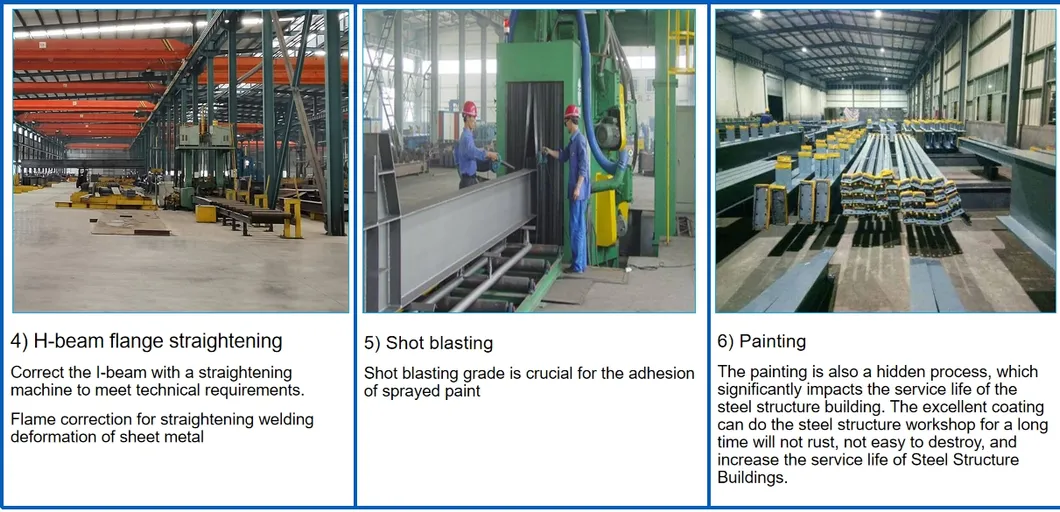

Design Strength & Production Process

Our in-house design team provides customized structural plans tailored to your specific geography and usage requirements.

Packing, Delivery & Installation

Steel components are packaged with steel pallets and coded for easy unloading.
Fasteners are secured in wooden cases for protection.
Roof and wall panels are protected with plastic film and detailed labeling.
Container types used: 40ft HC, 20ft GP.

Frequently Asked Questions

Q: What are the primary advantages of steel structure buildings? A: Compared to traditional concrete, steel structures offer faster construction periods, better energy saving, superior earthquake resistance, and are more environmentally friendly.

Q: Can the building span and height be customized? A: Yes, the span generally ranges from 9-36m, and the height from 4.5-9m, but both can be customized based on your specific requirements and crane needs.

Q: What information is needed for an accurate design? A: We need the project location, geological bearing capacity, dimensions (length, span, height), crane requirements (if any), and preferred wall/roof materials.

Q: How do you handle shipping and delivery? A: We use 40ft HC or 20ft GP containers. Components are palletized and coded to ensure easy identification and safe transport.

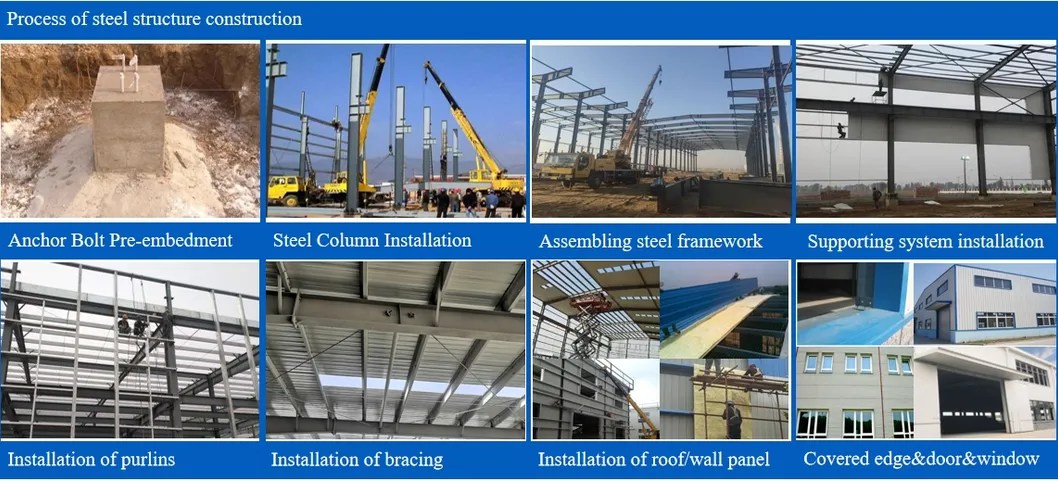

Q: Do you provide installation support? A: Yes, we provide detailed installation drawings and guidance once shipment is completed. On-site installation guidance services are also available if required.

Q: What are the main materials used for the structure? A: The main structure consists of H-section steel beams and columns, with C or Z section purlins. Panels are typically corrugated steel or sandwich panels.
