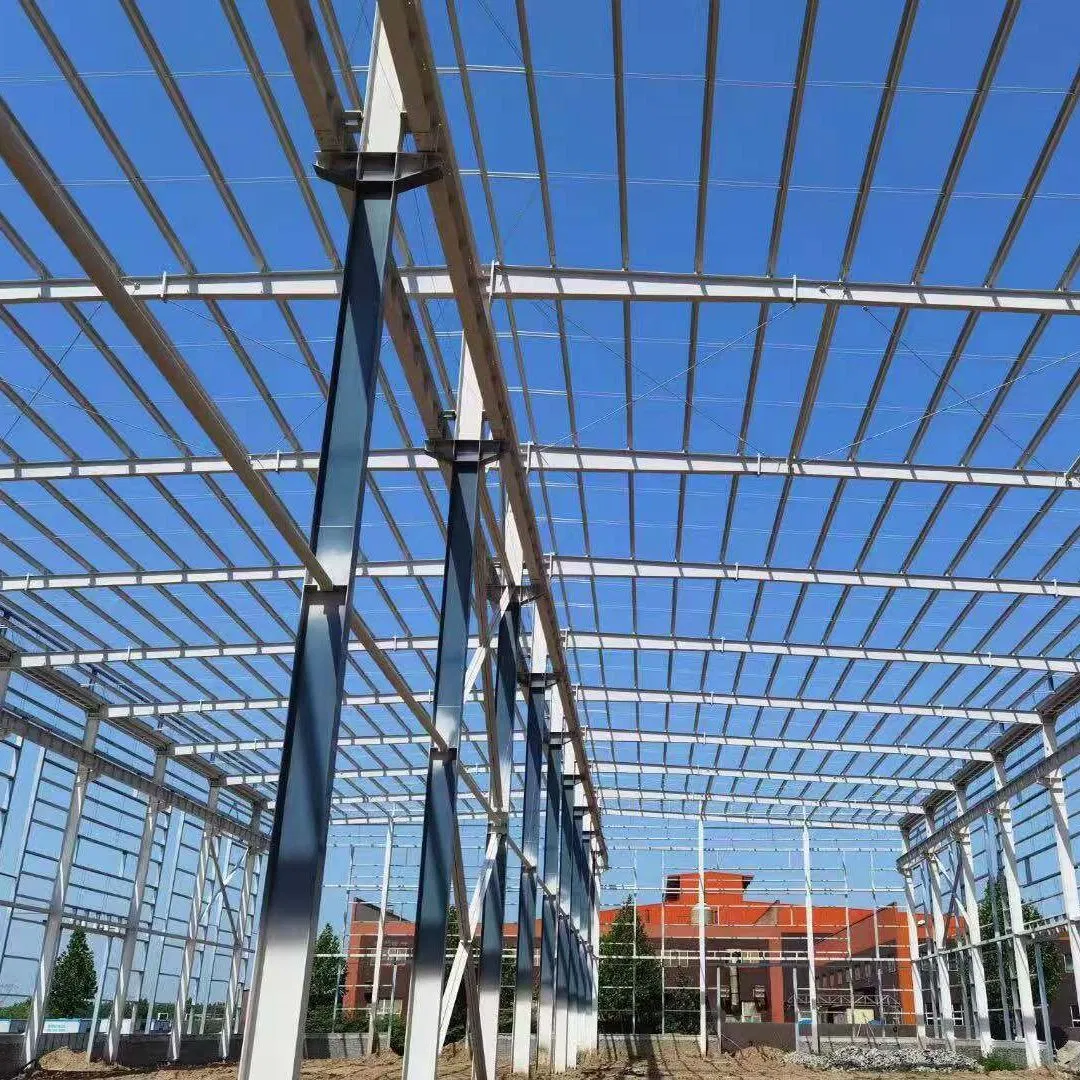

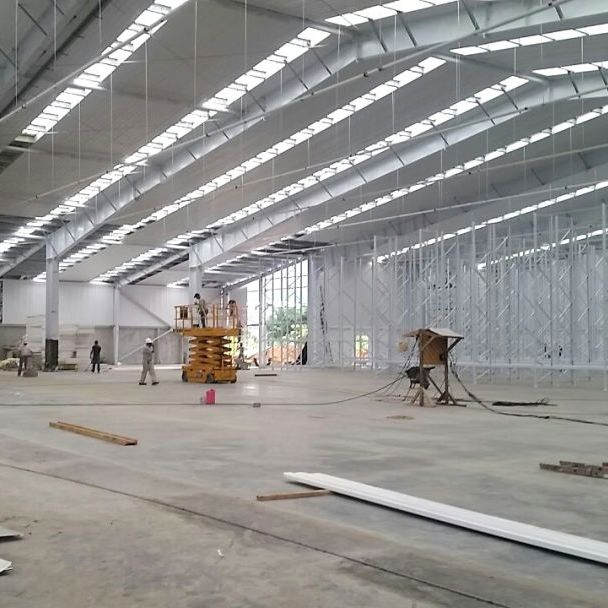

Steel Structure Gasket Manufacturing Plant

1 / 5

Steel Structure Gasket Manufacturing Plant

Customization:	Available
After-sales Service:	15-Year Limited Warranty
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.xgz-crr-202306260003

InsulationFiberglass, Sandwich Panel

Life Span30~50years

Design LoadWind Speed, Snow Load, Earthquake etc

Anti Rust GradeHot DIP Galvanized

SizeLength*10-16m

Auger Capacity450kg/H

Design SoftwareCAD, 3D, Sketchup

Specification40 feet container

Production Capacity50000sets Per Month

Product Description

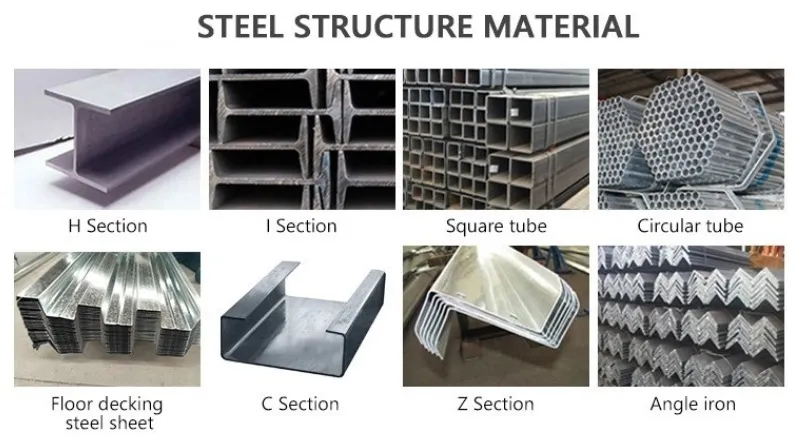

Item	Materials	Remark
Steel Frame	1 H section column and beam	Q345 steel, paint or galvanization
	2 wind resistant column	Q345 steel, paint or galvanization
	3 Roof purline	Q235B C/Z section galvanized steel
	4 Wall purline	Q235B C/Z section galvanized steel
Supporting system	1 Tie bar	Q235 round steel pipe
	2 knee brace	angle steel L50*4, Q235
	3 roof horizontal bracing	φ20, Q235B steel bar
	4 column vertical bracing	φ20, Q235B steel bar
	5 purline brace	Φ12 round bar Q235
	6 knee brace	angle steel L50*4, Q235
	7 casing pipe	φ32*2.0, Q235 steel pipe
	8 gable angle steel	M24 Q235B
Roof and wall system	1 Wall and roof panel	corrugated steel sheet/sandwich panel
	2 self tapping screw	Standard
	3 Ridge tile	color steel sheet
	4 gutter	color steel sheet/galvanized/stainless
	5 down pipe	PVC/Steel
	6 corner trim	color steel sheet

Design & Customization Information

To provide a satisfactory drawing, please provide the following details:

📍
Location: Where will it be built? (Country, Area)
📐
Size: Length * Width * Height (mm)
💨
Loads: Max wind speed (kn/m2, km/h) and Snow load (kn/m2, mm)
🧱
Structure: Anti-earthquake level; Brick wall requirements (1.2m or 1.5m high)
🌡️
Insulation: EPS, fiberglass wool, rockwool, or PU sandwich panels
🚪
Openings: Door and Window quantity & size

Our Services

⚙️
Custom Development: Make new parts according to detailed requirements.
🛠️
Full Cycle: Service of designing, engineering, manufacturing, and installation.
👨‍🔧
On-site Help: Expert technicians available to assist project assembly at site.
🏆
Experience: More than 23 years of designing experience and top-quality production.
🌍
Global Reach: Products exported to more than 120 countries and regions.

Frequently Asked Questions

1. What is the expected lifespan of this steel structure?

The steel structure is designed for durability with a lifespan ranging from 30 to 50 years, depending on environmental conditions and maintenance.

2. What insulation materials do you offer for the workshop?

We suggest EPS, fiberglass wool, rockwool, or PU sandwich panels for thermal insulation. If no insulation is needed, simple metal steel sheets are a cost-effective alternative.

3. Is the steel structure resistant to rust?

Yes, the structure uses Hot DIP Galvanized steel, which provides a high anti-rust grade suitable for long-term industrial use.

4. Can you help with the installation on-site?

Absolutely. Our expert technicians are available to provide on-site guidance and assist in the assembly of the project to ensure structural integrity.

5. What information is needed to get a custom design?

We require the building location, dimensions (L*W*H), local wind and snow loads, anti-earthquake requirements, and your preference for doors, windows, and insulation.

6. What software do you use for designing the projects?

Our engineering team utilizes professional software including CAD, 3D modeling, and Sketchup to create precise and satisfactory drawings.
