Professional Design Fireproof Long Span Light Frame Aircraft Shed Prefabricated Steel Structure Hangar

Customization:	Available
Connection Form:	Bolt Connection
Surface:	Painted or Galvanized

Basic Specifications

Model NO.:Customized

Material:Light Steel Frame

Steel Grade:Q235B, Q345b

Max Span:70m

Using Life:30-50 Years

Roof & Wall:Sandwich Panel/Color Single Panel

Certification:ISO, CE, SGS

Connection:Bolt/Welded Connection

Derusting:Ball Blast

Main Frame:H Steel, Z or C Purlin

Capacity:100000 Sqm Per Month

Warranty:1 Year

Product Description

1. Brief Introduction

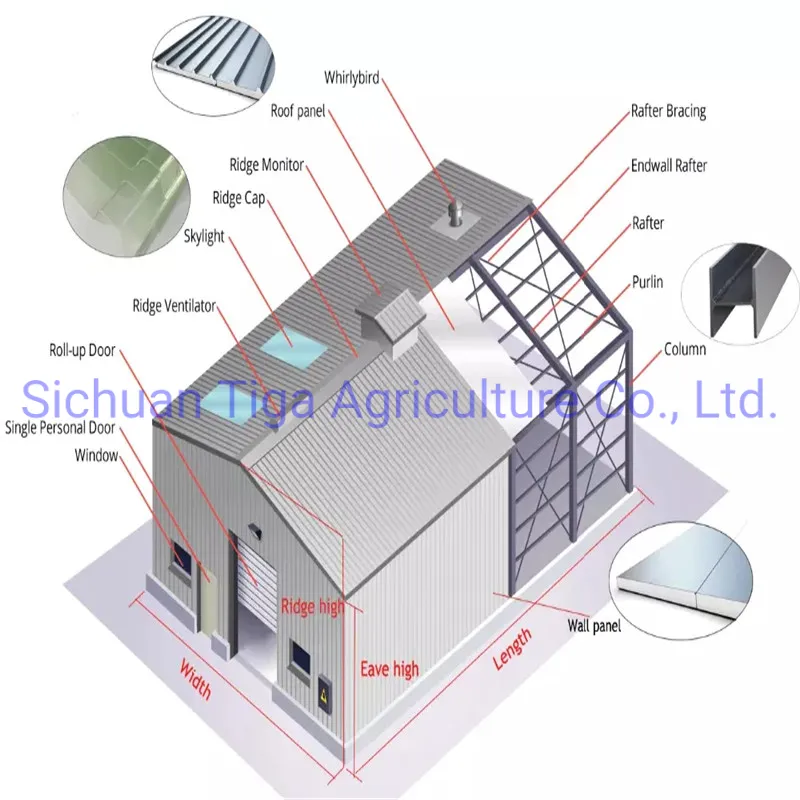

It is a Green economy building system, which is formed by the main structure (H-section steel for beam/column, C channel steel or Z channel steel for purlin), substructure (Round steel bar or Angle steel for bracing, Round steel tube for tie bar, Angle steel for angle brace), roof and wall system (using sandwich panel or single steel sheet), door and window system.

2. Scope of Application

Widely used in large-span steel structure housing, factories, storage, office buildings, gymnasiums, hangars and so on. It is suitable for single-storey long-span buildings, but also for multi-storey buildings.

3. Main Features

◈ Light weight and high reliability of steel structure
◈ Vibration (earthquake) resistance and impact resistance
◈ Higher industrialization and accurate assembly
◈ Large indoor space and easy to make sealing structure

Technical Parameters

Name	Pre Engineered Building Prefabricated Steel Structure Workshop/Warehouse
Steel Dimension	Length	1000-15000mm, customized
	Height	200-1200mm
	Thickness	Web plate: 6-32mm; Wing plate: 6-40mm
Main Components	Material	Q235B, Q345B or others
	Purlin	C120~C320, Z100~Z20
	Bracing	X type, V type or others
	Surface	Shot blasting, Painted or Galvanized

5. Information needed for CAD drawings

✔ Location & Local environment (wind load, snow load, earthquake level)
✔ Size: Length x Width x Height
✔ Wall & Roofing material (Single sheet or insulated sandwich panel)
✔ Overhead crane requirements (lifting weight and height)
✔ Door and window quantity & size

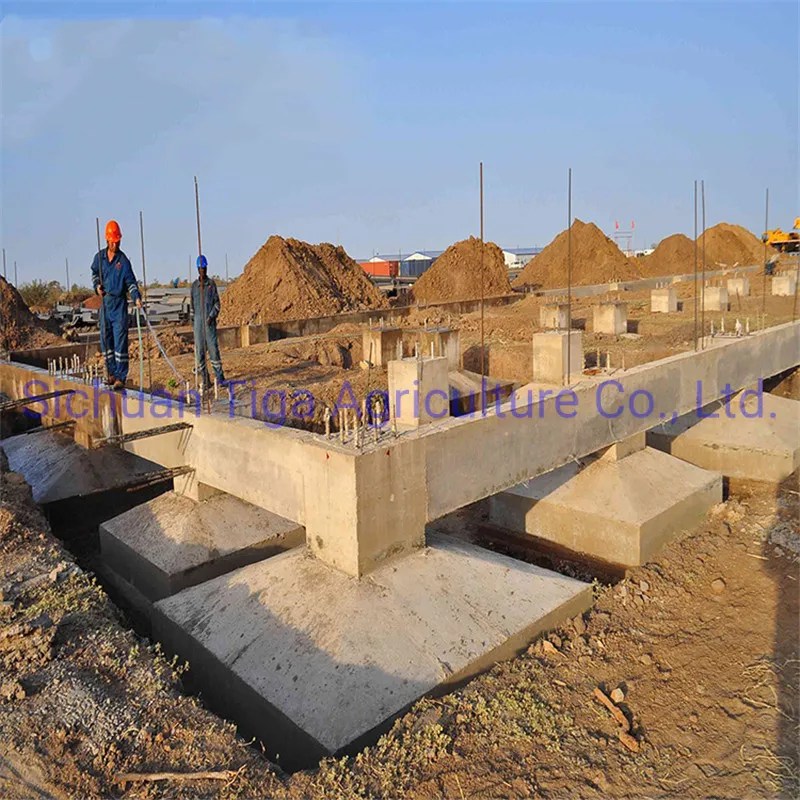

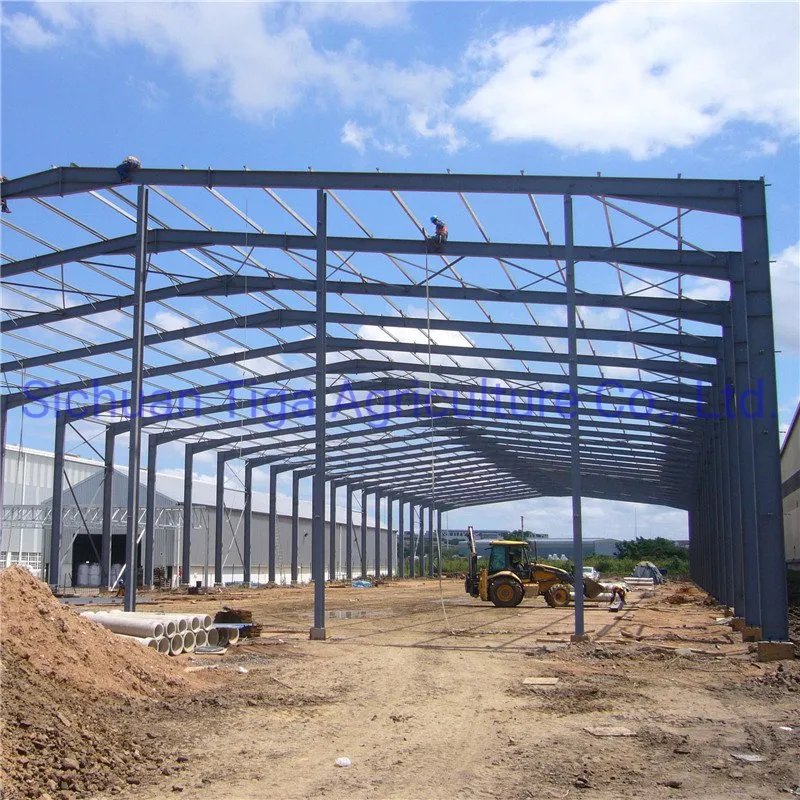

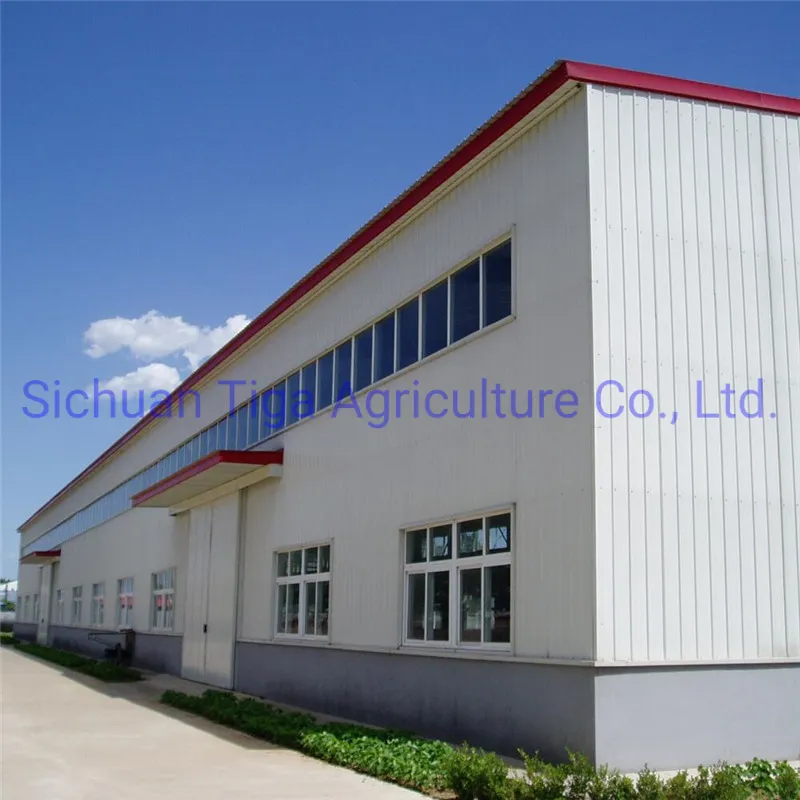

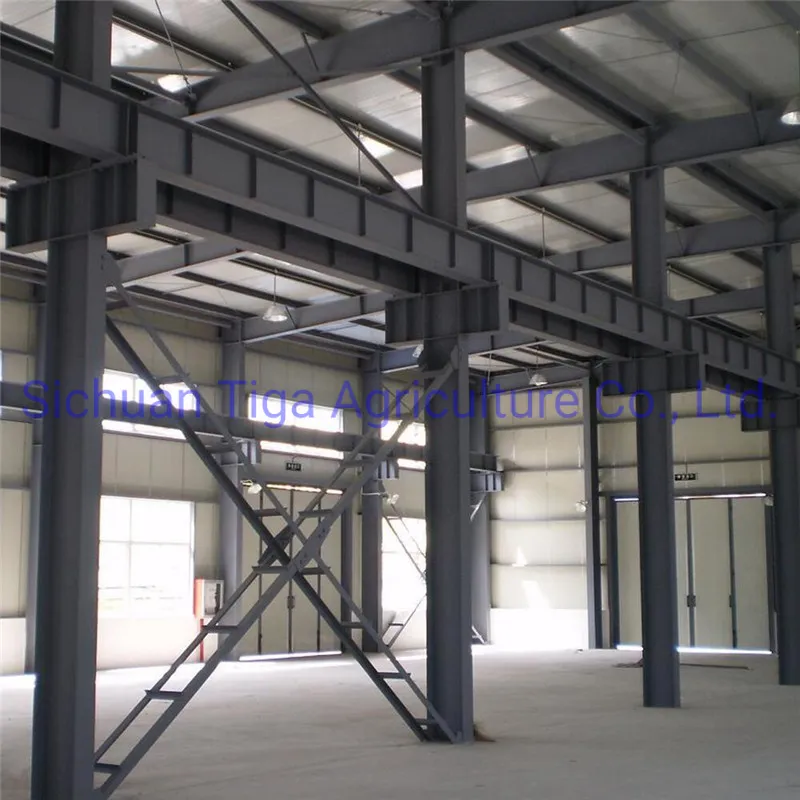

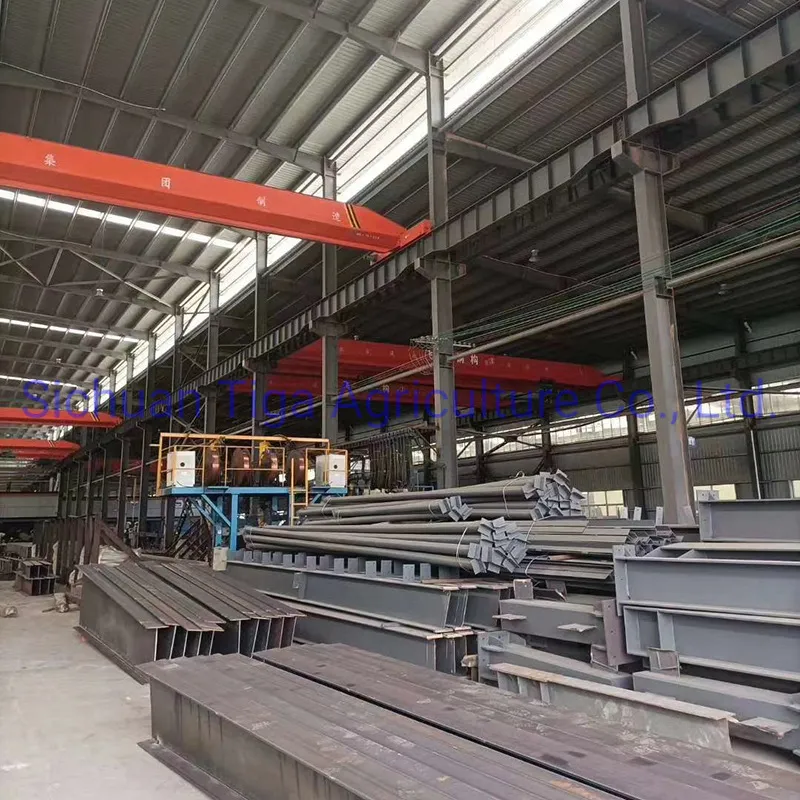

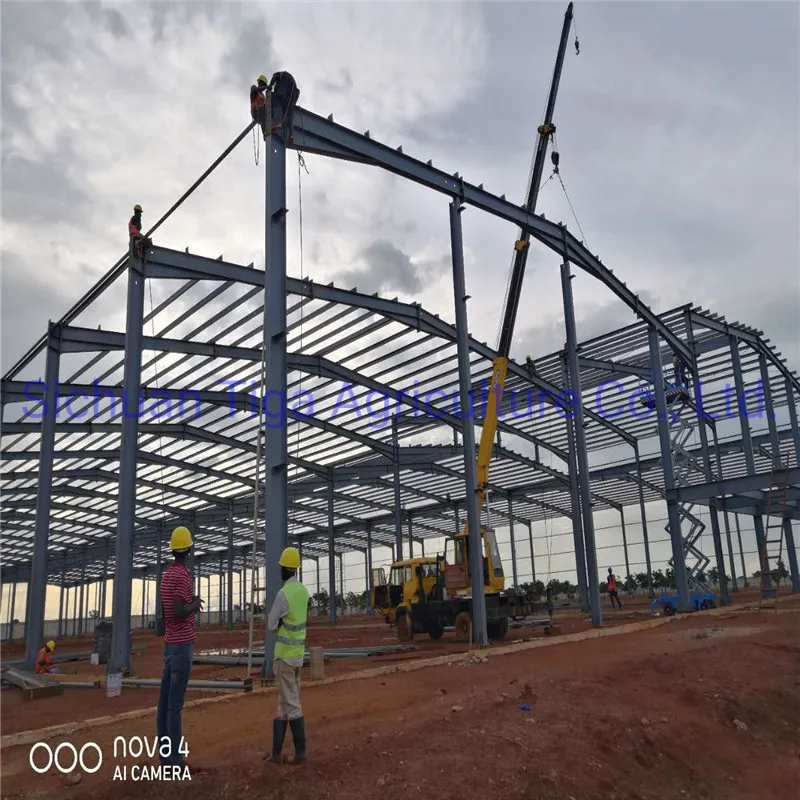

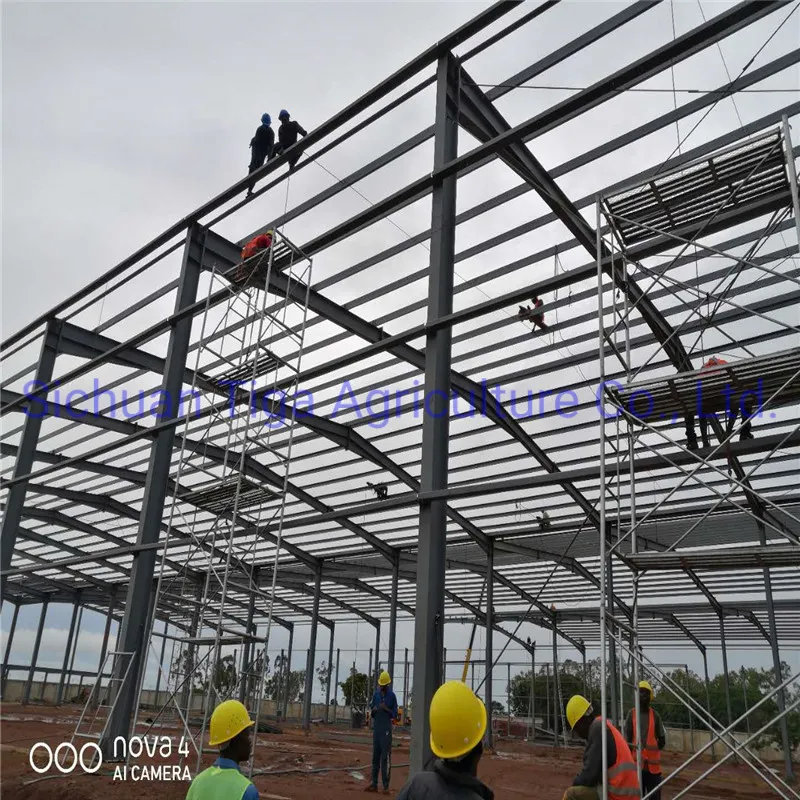

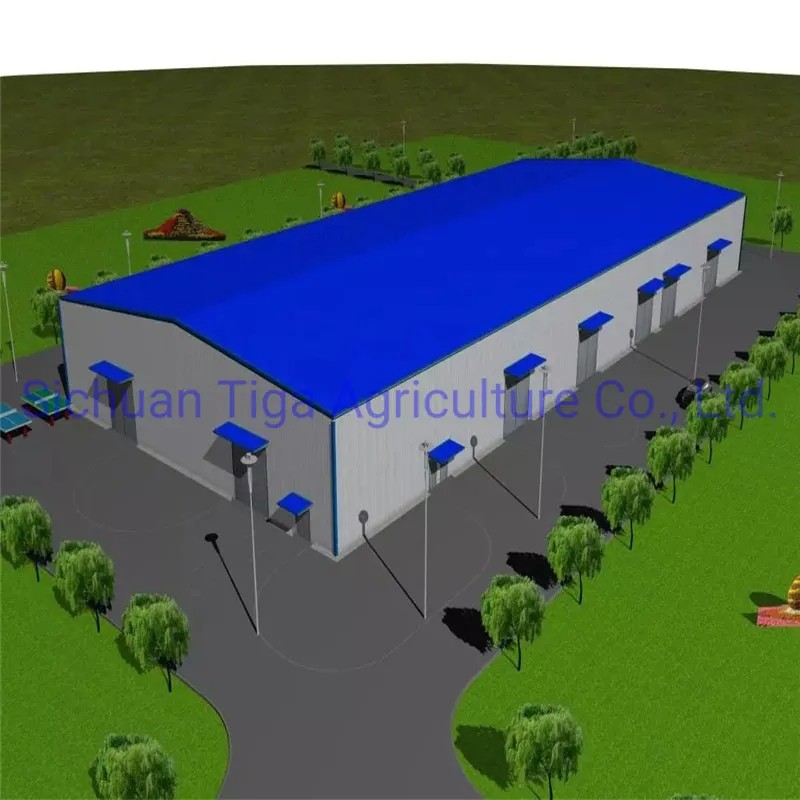

Product Gallery

Frequently Asked Questions

Q1: What is the expected lifespan of this steel structure? A: Our prefabricated steel structures are designed for a long-term using life of 30 to 50 years.

Q2: Can the steel structure withstand extreme weather conditions? A: Yes, we design based on specific parameters including local wind load, snow load, and anti-earthquake levels.

Q3: What materials are used for insulation in wall and roof panels? A: We offer various options including EPS, Rock Wool, Glass Wool, and PU (Polyurethane) sandwich panels.

Q4: Is the installation process fast? A: Absolutely. Steel structures are prefabricated in the factory and use bolt/welded connections, allowing for accurate and quick assembly on-site.

Q5: What steel grades do you use for the main frame? A: We primarily use high-strength Q235B and Q345B steel grades for columns and beams.

Q6: What is the maximum span length available? A: Our customized designs can support a maximum span of up to 70 meters without internal columns.
