Basic Specifications
Frame Feature
Durable Antirust, Engineered Trussed Structure
Sail Material
300g PE, 450g-850g PVC
Cover Feature
Waterproof/UV-Resistance/Fire-Retardant
Color
Green/White/Grey/Red/Blue or Customized
Usage
Warehouse, Workshop, Hangar
Certification
ISO, CE, SGS, TUV
Specification
W14.0 x L11.0 x H4.95m
Product Description

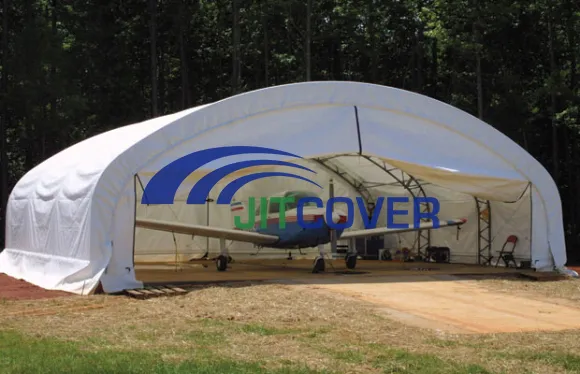

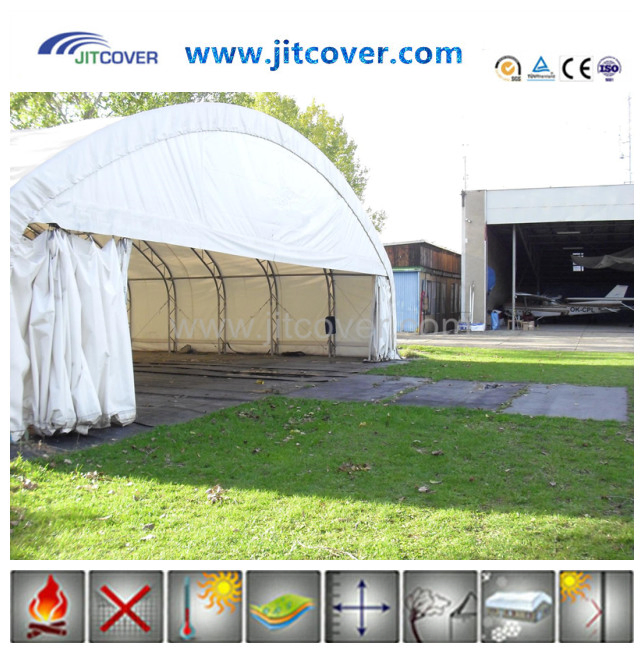

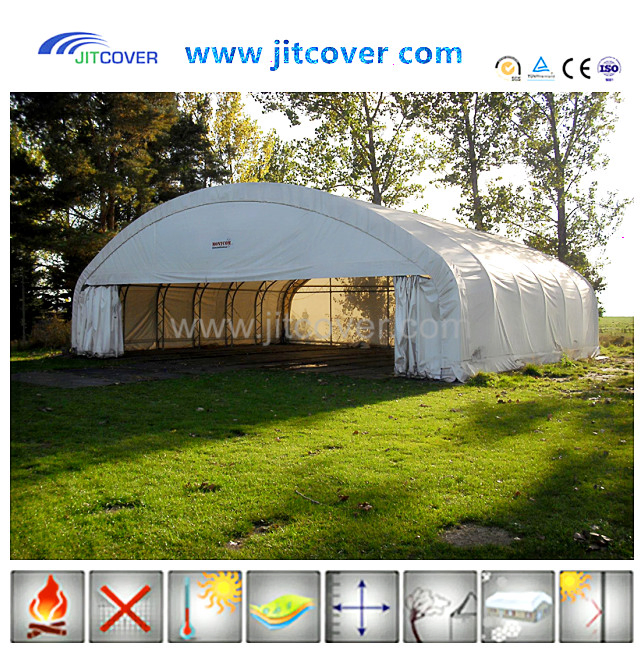

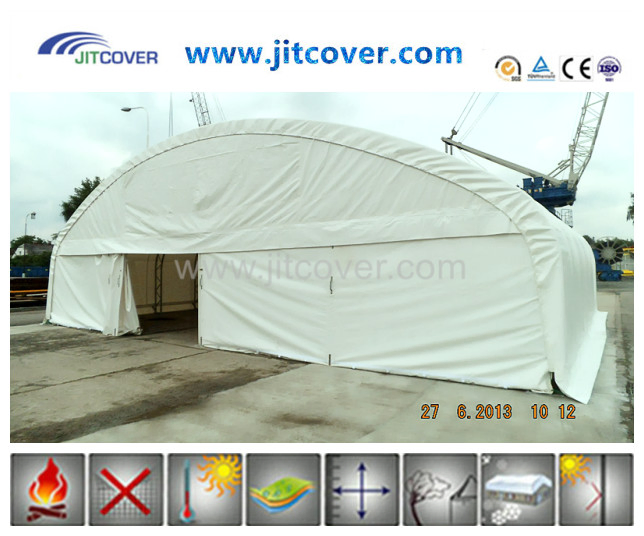

Our engineered aircraft hangar features an open-span design, customizable from 12-25m in width and available in any length to suit extreme weather conditions and various storage needs.
| Technical Data (Model JIT-463616) |
| Size (LxWxH) | 11.0 x 14.0 x 4.95m (36' x 45' x 16') |
| Shoulder height | 2.5m (8.2') |
| Frame material | Hot-dip galvanized steel tube |

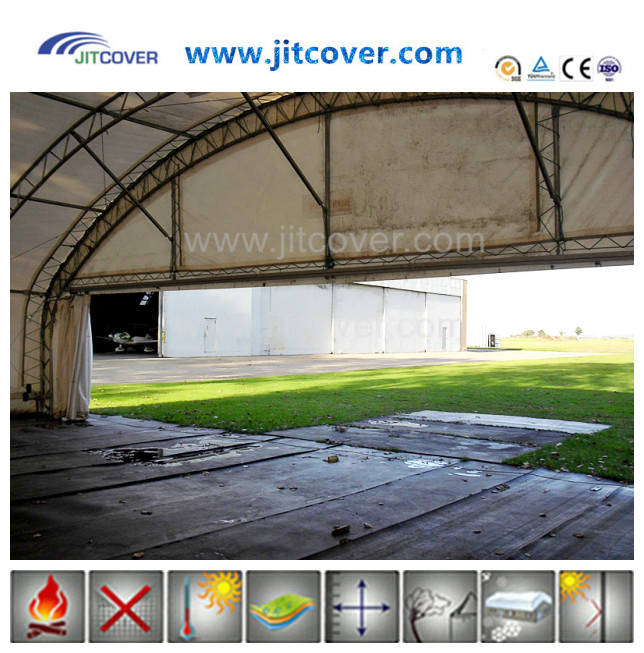

| Frame structure | Curved roof, heavy duty trussed structure frame |
| Tube thickness | 60x1.5mm |
| Cover material | PE or PVC (300g - 850g) |

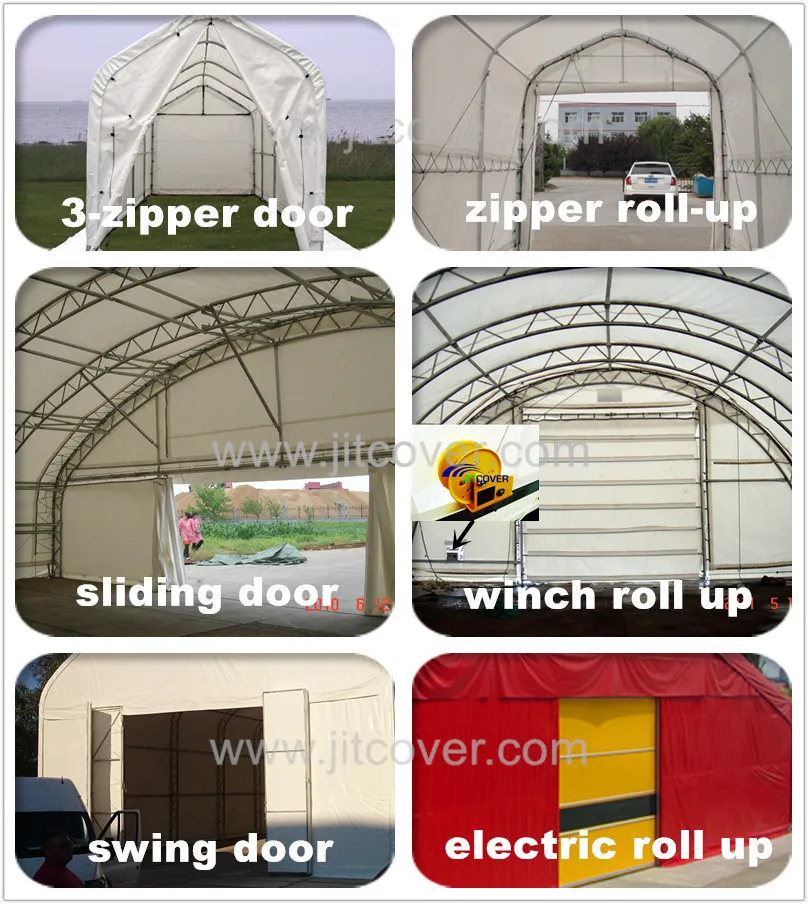

| Door options | 3-zipper door, Zipper rolling up, or Sliding door |
| Warranty | Frame: 8-15 years; PVC Cover: 8-10 years |
Core Specifications & Advantages
- Frame Truss: Strong hot-dip galvanized steel tube designed to last over 8 years.
- Fabric Cover: High-quality PVC-coated polyester, 100% waterproof, flame retardant, and UV resistant.
- Temperature Resilience: Operates efficiently in conditions from -30°C to +70°C.
- Maximum Space: Clear-span design with no interior poles, ensuring 100% usable interior space.

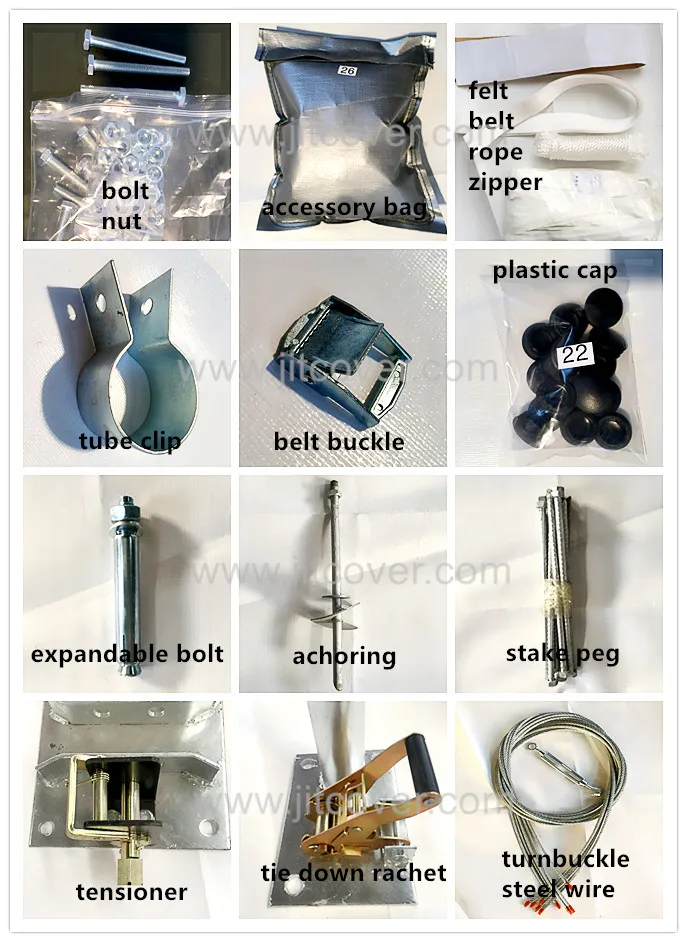

- Accessories: Customizable windows (mesh or clear PVC), flooring systems, and multiple door types.
Why Choose Our Solutions?
- Leading manufacturer with extensive plant area and skilled workforce.
- Premium raw materials including thick hot-galvanized steel and high-grade PVC.
- Professional engineering team with 20+ years of experience for fast technical response.
- Strict Quality Control System compliant with ISO 9001:2008 standards.
- One-stop service from design and drawing to customs clearance and shipping.
Frequently Asked Questions
What materials are available for the hangar covers?
We offer a range of materials including 300g PE and various PVC densities (450g, 610g, 750g, 850g). All options are waterproof, UV-resistant, and fire-retardant.
How long is the warranty for the steel structure?
The hot-dip galvanized steel frame comes with a warranty of 8 to 15 years against rust perforation, depending on the environment.
Can the size of the hangar be customized?
Yes, we provide customization for widths ranging from 12m to 25m, and the length can be adjusted to any requirement.
Is the interior space fully usable?

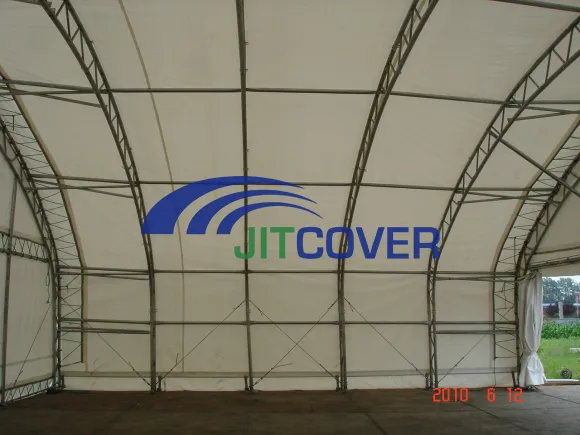

Absolutely. Our hangars are designed with a trussed structure that requires no internal poles, providing 100% clear interior space for aircraft or storage.
What is the typical delivery time for a standard order?
Standard models like the JIT-463616 are typically ready for delivery within 15 days of order confirmation.

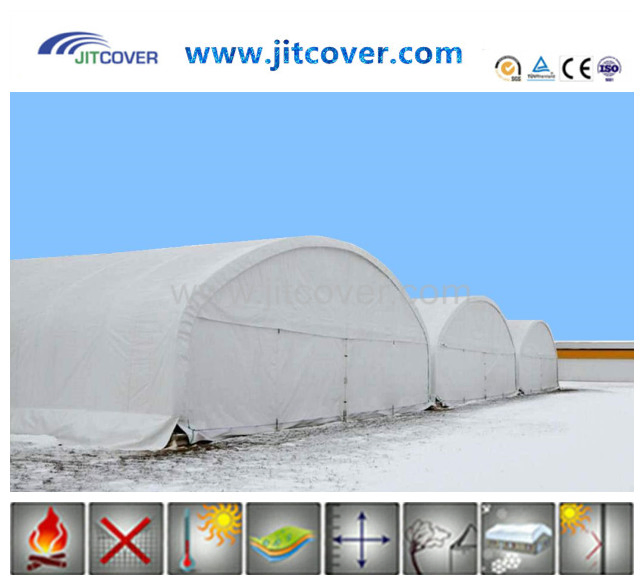

What weather conditions can these structures withstand?
They are engineered for durability in extreme climates, with an allowed temperature range of -30°C to +70°C.
