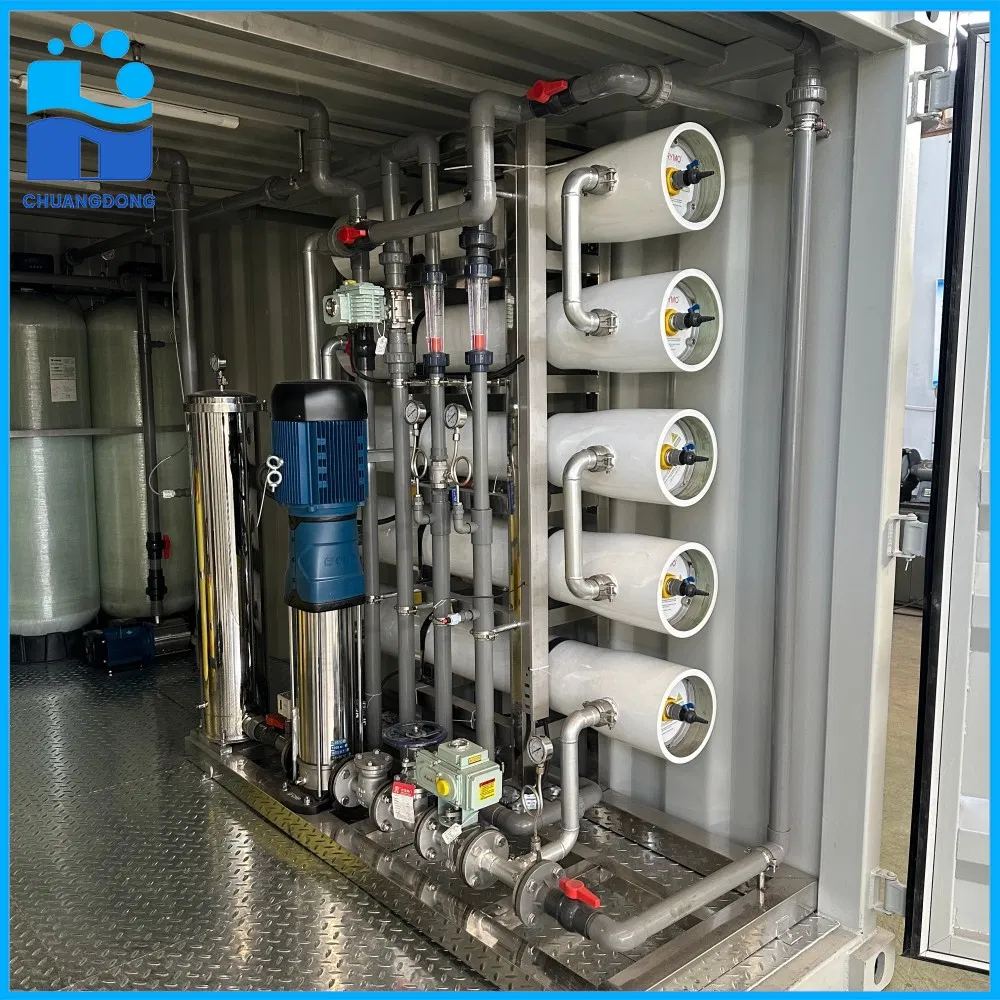

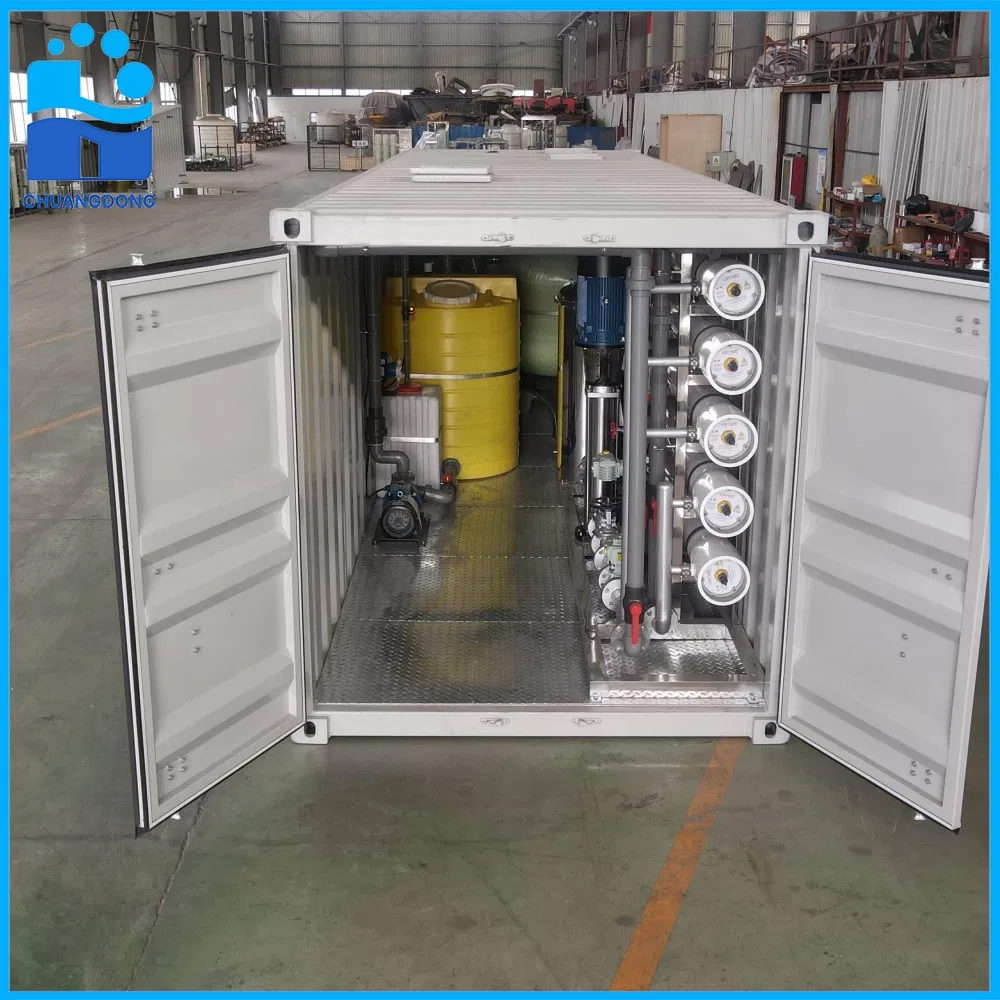

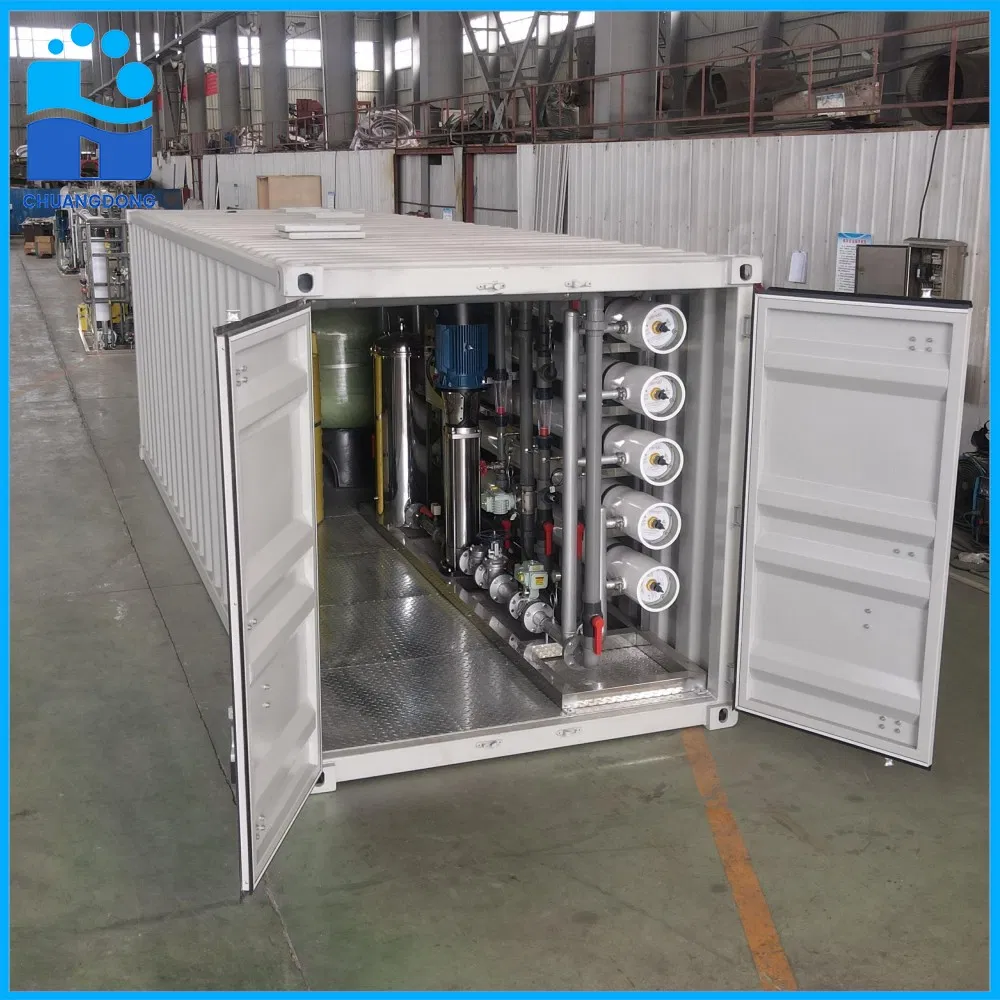

Reverse Osmosis Treatment System
Applicable Raw Water Sources:
• Municipal Tap Water / City Water
• Groundwater (Borehole/Well Water)
• Surface Water (Rivers, Lakes, Reservoirs)
• Challenging Sources: Brackish Water, Seawater, Wastewater / Reclaimed Water
RO Reverse Osmosis is a high-precision physical separation technology that uses selective semi-permeable membranes and external pressure to allow the solvent (usually water) to pass through while retaining solutes such as salts, ions, bacteria, and viruses.
Core Filtration Media
Resin
High exchange capacity (>2.0eq/L), uniform particles, low breakage rate, long service life.
Activated Carbon
Coal-based charcoal with high iodine value (>900-1000mg/g) for RO membrane protection.
Quartz Sand
High hardness (Mohs 7), large dirt-holding capacity, service life of 3 to 5 years.
| Parameter |
Two-stage Tank |
Three-stage Tank |
| Filter Cartridge Configuration |

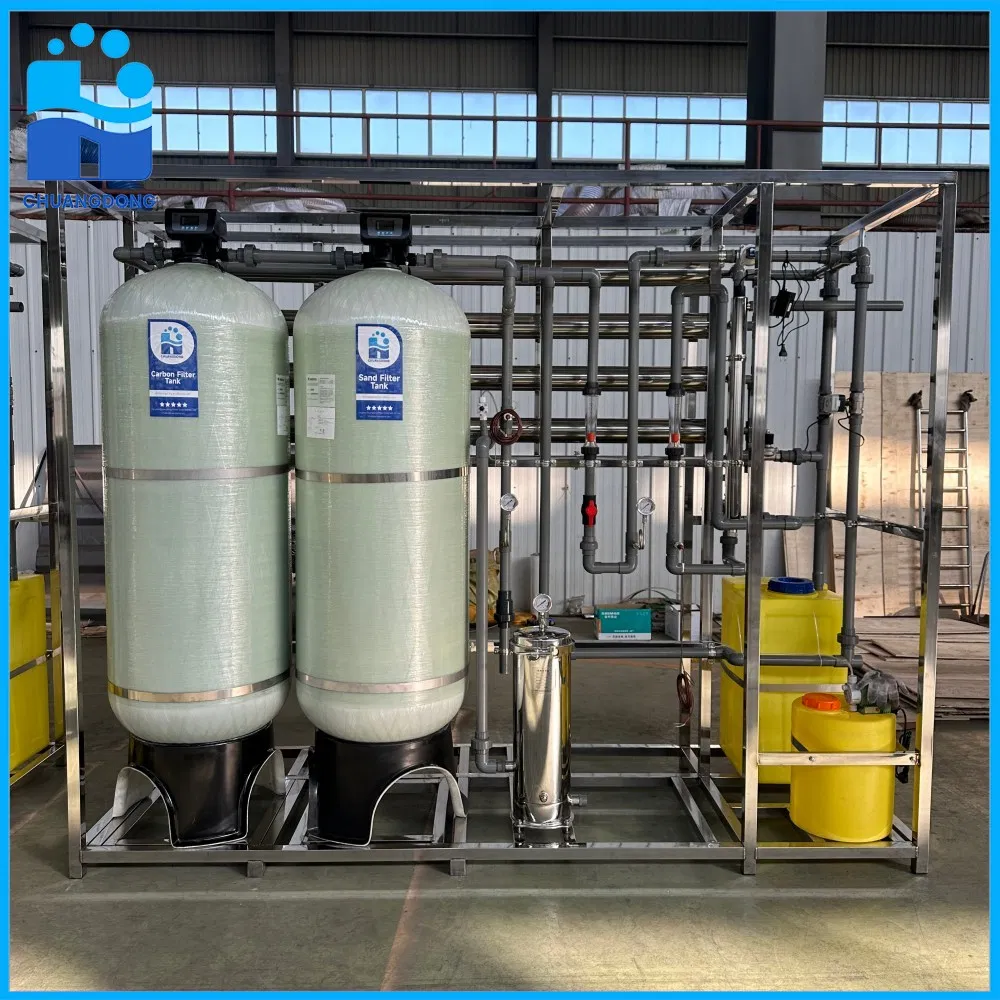

Quartz sand + activated carbon + PP cotton + Precision filter + RO membrane |
Quartz sand + activated carbon + resin + Precision filter + PP cotton + RO membrane |
| Pretreatment Tank Material |
FRP / Stainless Steel |
| Filtration Process |
Reverse osmosis filtration, 0.0001 micron |

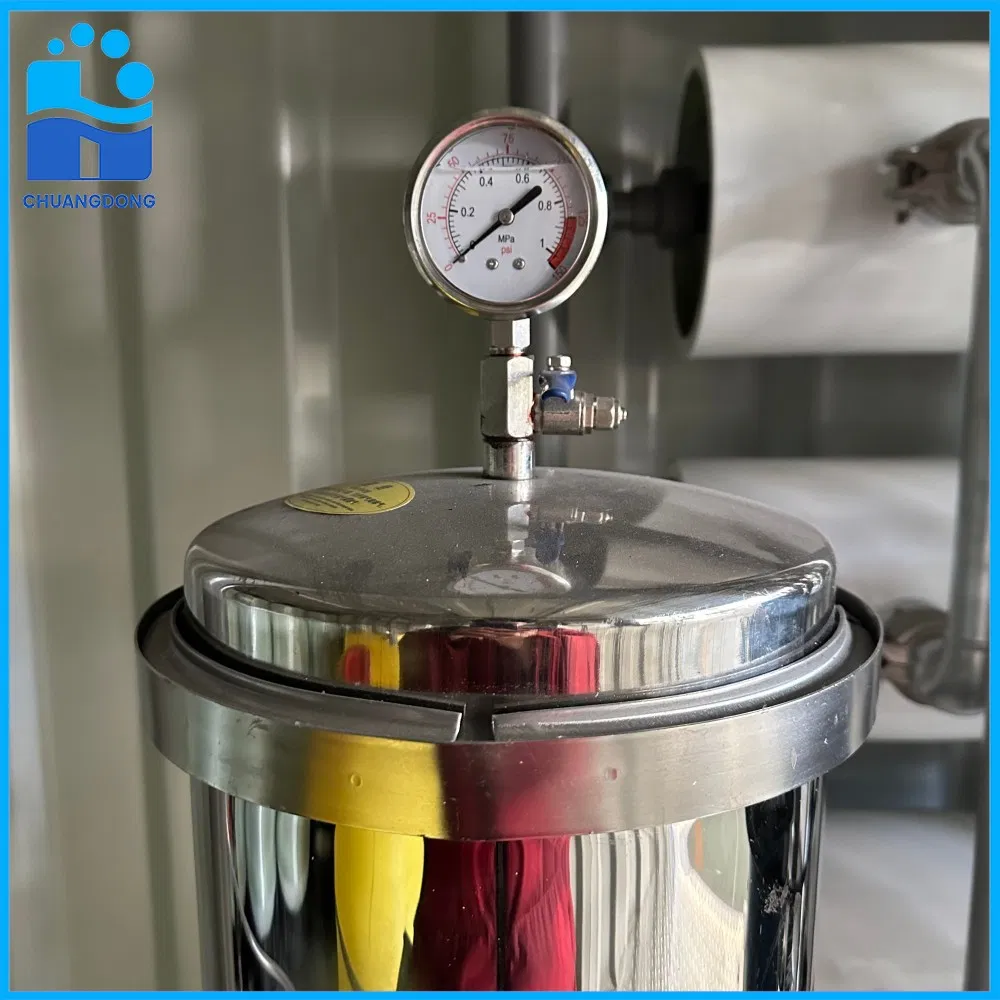

| Inlet Water Pressure |
0.1-0.4MPa |
| Usage Scenarios |
Islands, oil fields, disaster relief, well water, river water, groundwater |
System Capabilities
- Capacity: From 10 m³/day to 10,000 m³/day customized options.
- Recovery Rate: Optimized design to maximize water production and minimize waste.
- Salt Rejection: High-efficiency rejection meeting specific purity standards.
- Modular Design: Easy to transport, install, and expand.
- Automation: From basic control to full PLC & IoT remote monitoring.
Wide Range of Applications
Industrial
Semiconductors, Electronics, Chemicals, Pharmaceuticals
Food & Beverage
Bottled water, beverages, ice production, food processing
Desalination
Seawater and brackish water treatment for islands and offshore
Public Services
Schools, hotels, hospitals, and disaster relief water supply
Frequently Asked Questions
Q1: What is the treatment capacity of this RO system?
The system supports a wide range of capacities, from 1000LPH (1 m³/h) up to 50,000LPH, depending on your specific requirements.
Q2: Which water sources can the system process?
It is designed to treat municipal tap water, groundwater (well water), surface water (rivers/lakes), brackish water, and seawater.
Q3: What is the filtration precision of the RO membrane?
The reverse osmosis membrane provides high-precision physical separation at a level of 0.0001 microns, effectively removing salts, bacteria, and viruses.
Q4: Can the system be automated?
Yes, the system can be equipped with Automatic PLC controls (Siemens) and IoT remote monitoring for easy operation.
Q5: What is the standard warranty period?
We provide a 12-month warranty for the system, ensuring reliable performance and peace of mind for your investment.
Q6: What materials are used for the pretreatment tanks?
Pretreatment tanks are typically constructed from high-quality FRP (Fiber Reinforced Plastic) or Stainless Steel for durability and corrosion resistance.
