Customization: Available
Application: Aerospace Industry, Appliance Industry, Construction Industry
Coating Type: Powder Coating
Send Inquiry

Product Description

💠 Basic Info.
Heating System
Diesel, Electric
Warranty
One-Year Warranty
Certification
ISO
Airflow Direction
Door Inlet, Rear Return
Condition
New
Power Supply
220V-420V, 3-Phase AC
Turnkey Industrial Paint Plant
🚀 Product Description
Industrial Paint Plant Detail
Powder Coating Line

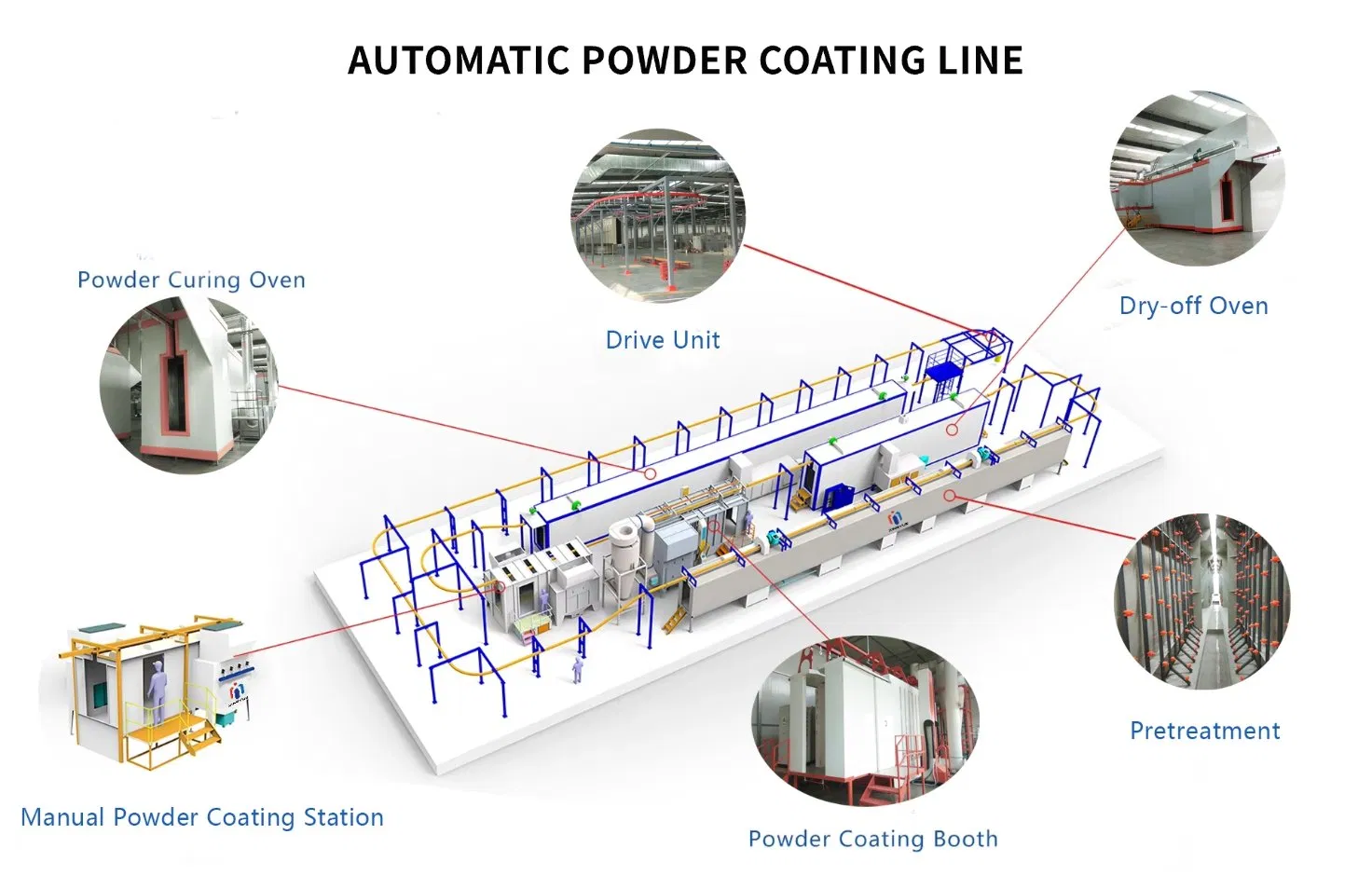

Features of Automatic Powder Coating Line

✔
Drive unit: Closed-circuit overhead conveyor designed for efficient powder coating transport.
✔
Powder coating booth: Equipped with a large cyclone recovery device to maximize utilization.
✔
Automatic spray gun: Paired with a reciprocator for consistent and uniform finishing.
✔
Powder supply center: Optimized performance for feeding, cleaning, and precision control.
✔
Curing oven: Top rack design matching manual conveyor lines for continuous production.

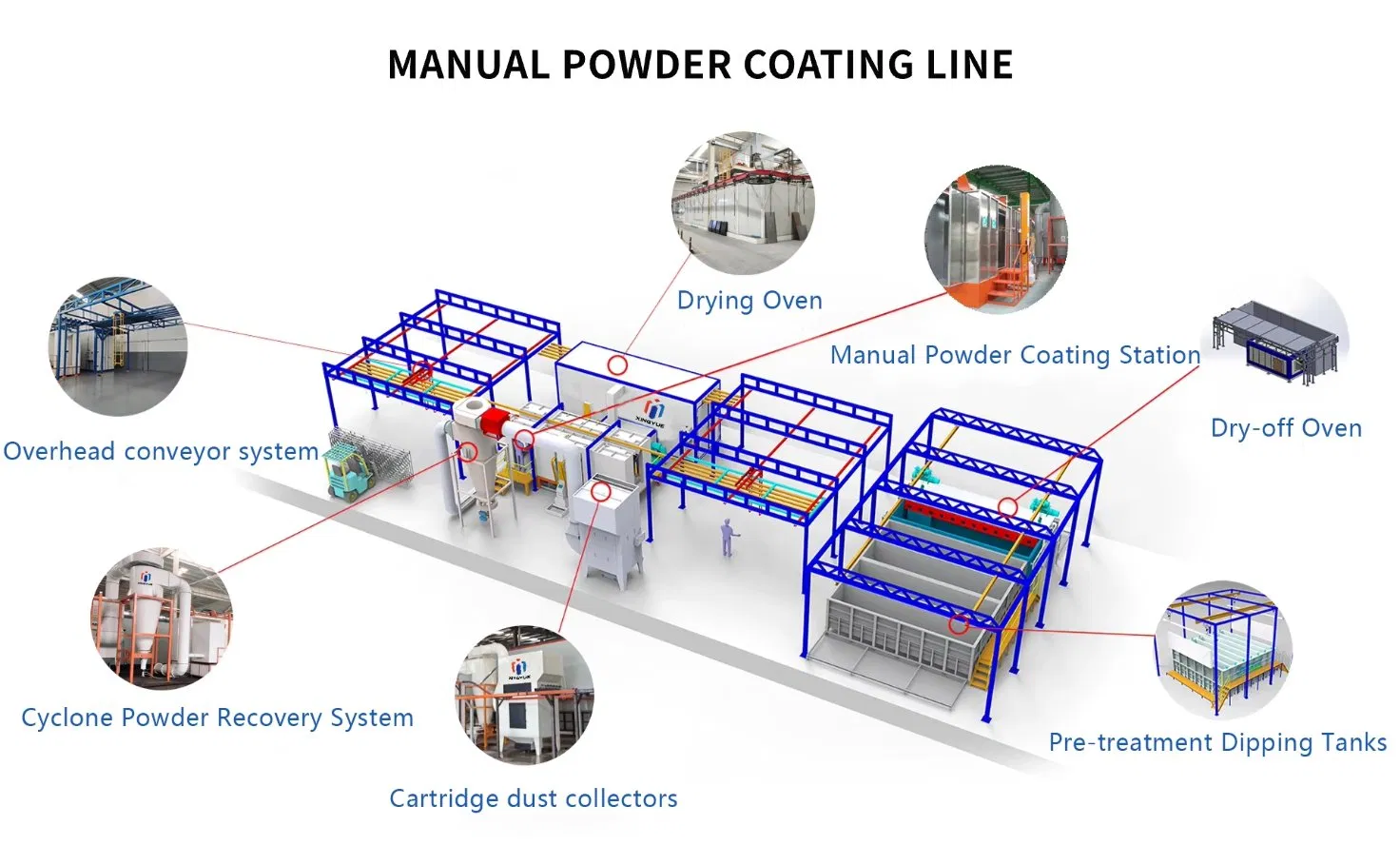

Manual Powder Coating Line

Complete Manual Powder Coating Line System

This powder coating line is ideal for continuous batch production based on manual operation. It is specifically designed for big, long, or heavy workparts that require precise coating jobs, such as metal frames and aluminum profiles.

The system includes an overhead track system, powder coating booth, curing ovens, and manual powder painting machines. The horizontal-pull conveyor minimizes effort when moving heavy objects through production.

📊 Technical Specifications
TypePowder Coating Line
CertificationISO
Warranty1 Year
Booth MaterialStainless steel, Galvanized steel, PP sheets
Powder Recovery Rate99.2%
Conveyor TypeAutomatic / Manual Horizontal-pull
Heating SystemDiesel, Electric, Gas, LPG
Color Change Time10–15 Mins
Control SystemSiemens Intelligent Control
Service LifeMore Than 10 Years
🏗️ Project Case

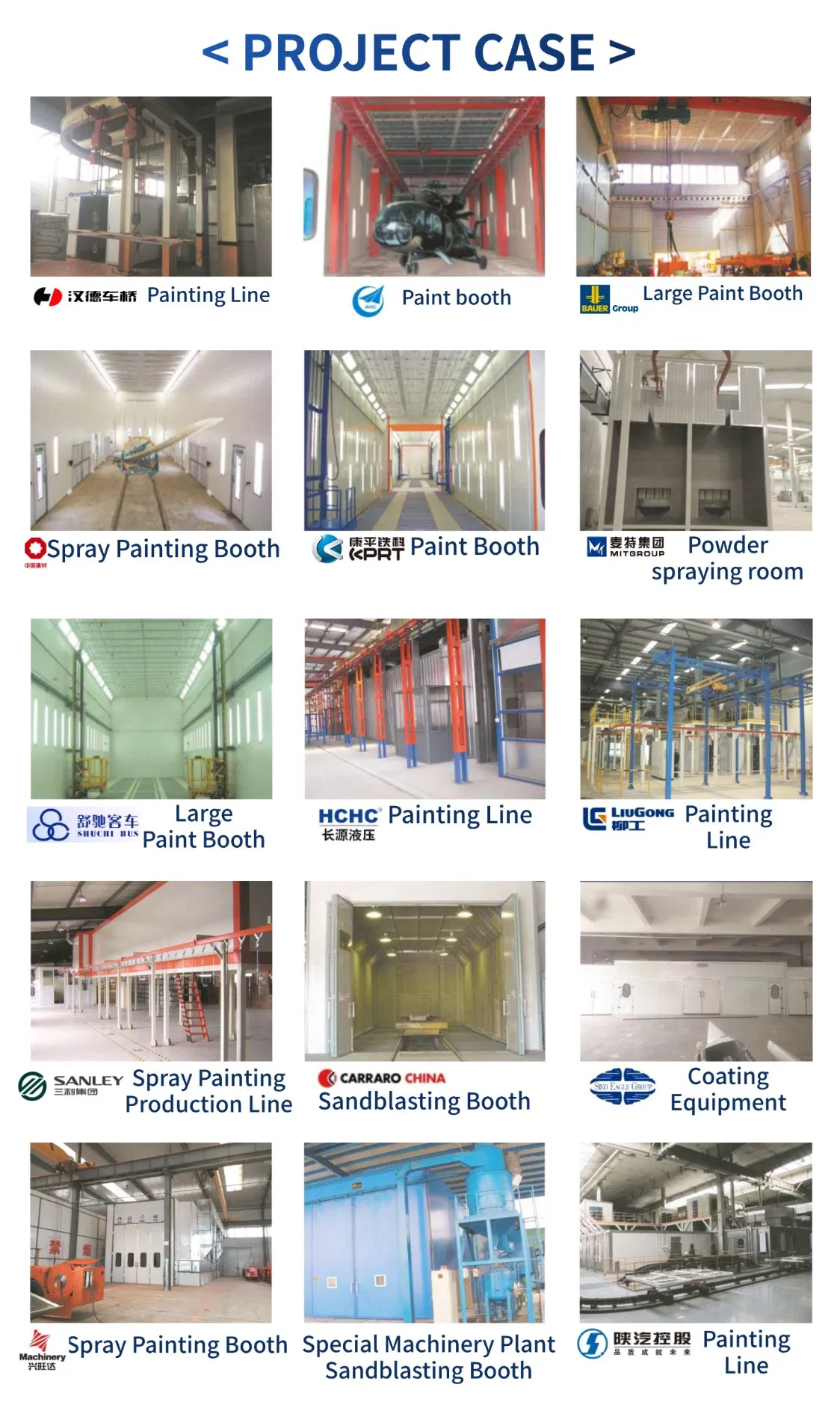

Industrial Project Case
💎 Why Choose Our System
Production Process 1
Production Process 2
Production Process 3
Quality Control
Advanced Equipment
Final Assembly
❓ Frequently Asked Questions
Q1: What types of heating systems can be used for the curing oven?
The system is highly flexible and supports diesel, electric, natural gas, and LPG heating options to suit your local energy costs.
Q2: How efficient is the powder recovery system?
Our large cyclone recovery device achieves a powder recovery rate of 99.2%, significantly reducing material waste.
Q3: Can this system handle large or heavy workpieces?
Yes, the overhead track system and horizontal-pull conveyor are specifically designed for heavy workparts like industrial metal frames and aluminum profiles.
Q4: How long does it take to change colors in the booth?
The big cyclone fast automatic color change equipment allows for a complete color change in just 10–15 minutes.
Q5: What is the expected lifespan of the equipment?
With high-quality materials like stainless steel and Siemens control systems, the equipment is designed for a service life of more than 10 years.
Q6: What is included in the control system?
We use a Siemens Digital Intelligent Control Panel, which ensures precise monitoring and ease of operation for all coating processes.
