Heavy-Duty Steel Columns & Beams for Industrial Plants

Customization:	Available
After-sales Service:	12 Months
Layers:	Customizable Number of Layers

📋Basic Specifications

Model NO.JY1971

Life Span50 Years

Delivery Time30-90 days

MaterialQ235B; Q355b; S275jr; S355jr

Seismic ResistanceGrade 8

Production Capacity3000 tons/Month

Usage: Dust-Proof Workshop, Electrostatic Workshop, Food and Chemical Industry, Heavy Industry, Power Plants, Research Facilities, Textile Processing, Warehouse.

🏗️Product Overview

We offer full life-cycle steel structure factory building services, with full control over the entire process from design and production to construction. Suitable for industrial plants, warehousing, logistics, and workshops. It adopts high-strength galvanized steel and combines modular prefabrication technology to achieve a 30% reduction in construction period and a 20% optimization in cost.

⚙️Technical Specifications

Item	Details
Structure Type	Steel Structure
Span Range	15m to 60m (Customizable)
Eave Height	6m - 12m
Roof/Wall Material	Color Steel Plate, Sandwich Panel (Rock wool, glass wool, PU)
Surface Treatment	Hot-dip galvanizing (275g/m²) / Anti-corrosion paint
Design Standard	Wind resistance ≥0.6kN/m², Earthquake magnitude 8
Fire Resistance	Grade A (1-2 hours)

🌟Key Advantages

High Strength: Steel possesses high tensile and compressive strength to withstand significant loads.

Fast Construction: Prefabricated components allow for quick on-site assembly and shorter timelines.

Large Spans: Achieve large-span designs suitable for massive industrial facilities.

Seismic Performance: Good ductility offers superior earthquake resistance compared to concrete.

📐Elevation Views

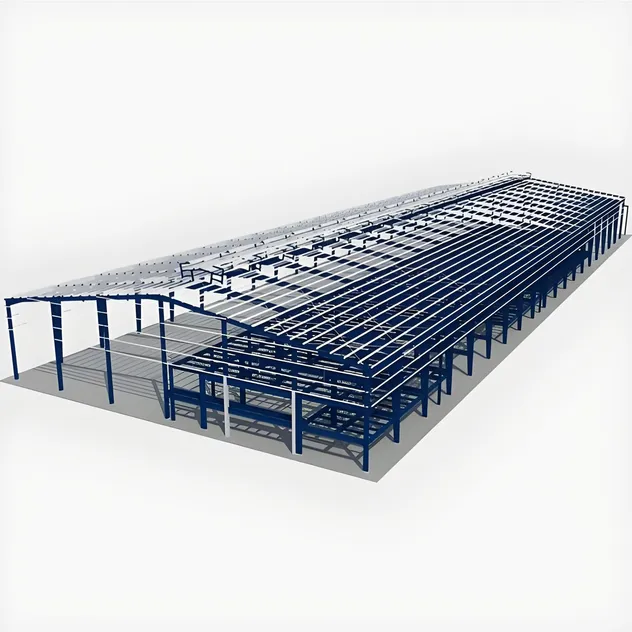

Left Elevation

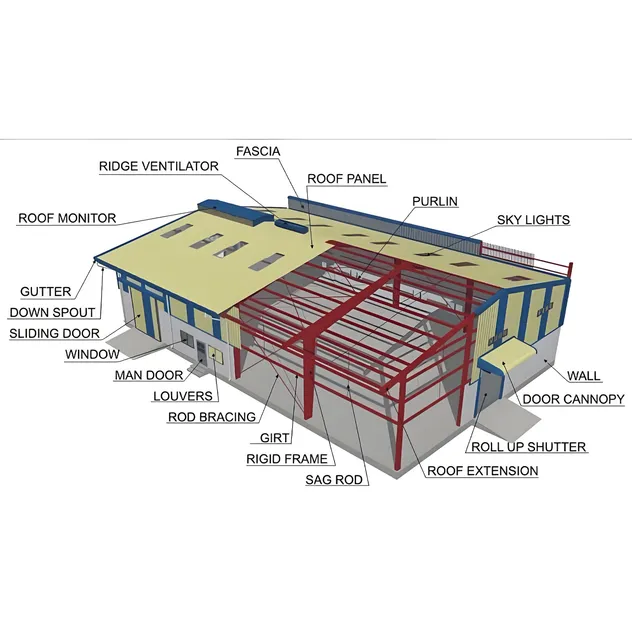

Front Elevation

🛡️After Sales Service

✅ Standard Warranty: 12 months or 2,000 operating hours.
✅ Extended Warranty: Optional coverage up to 36 months.
✅ Global Support: 24/7 technical assistance and spare parts supply.
✅ Training: On-site or remote operation and maintenance training.

🏢Company Profile Overview

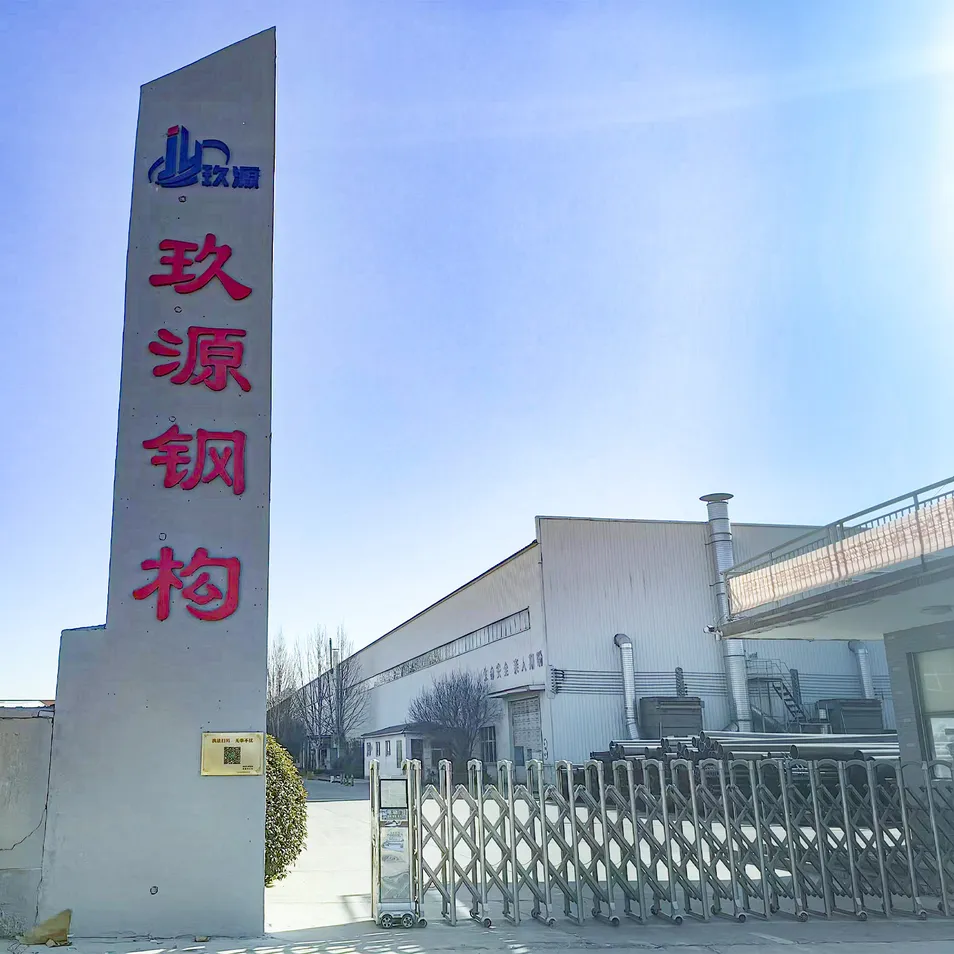

Established in 2020 with a registered capital of 10 million yuan, the company holds second-level qualifications for steel structure professional contracting. Certified under ISO9001:2015, ISO14001:2015, and ISO45001:2018 standards.

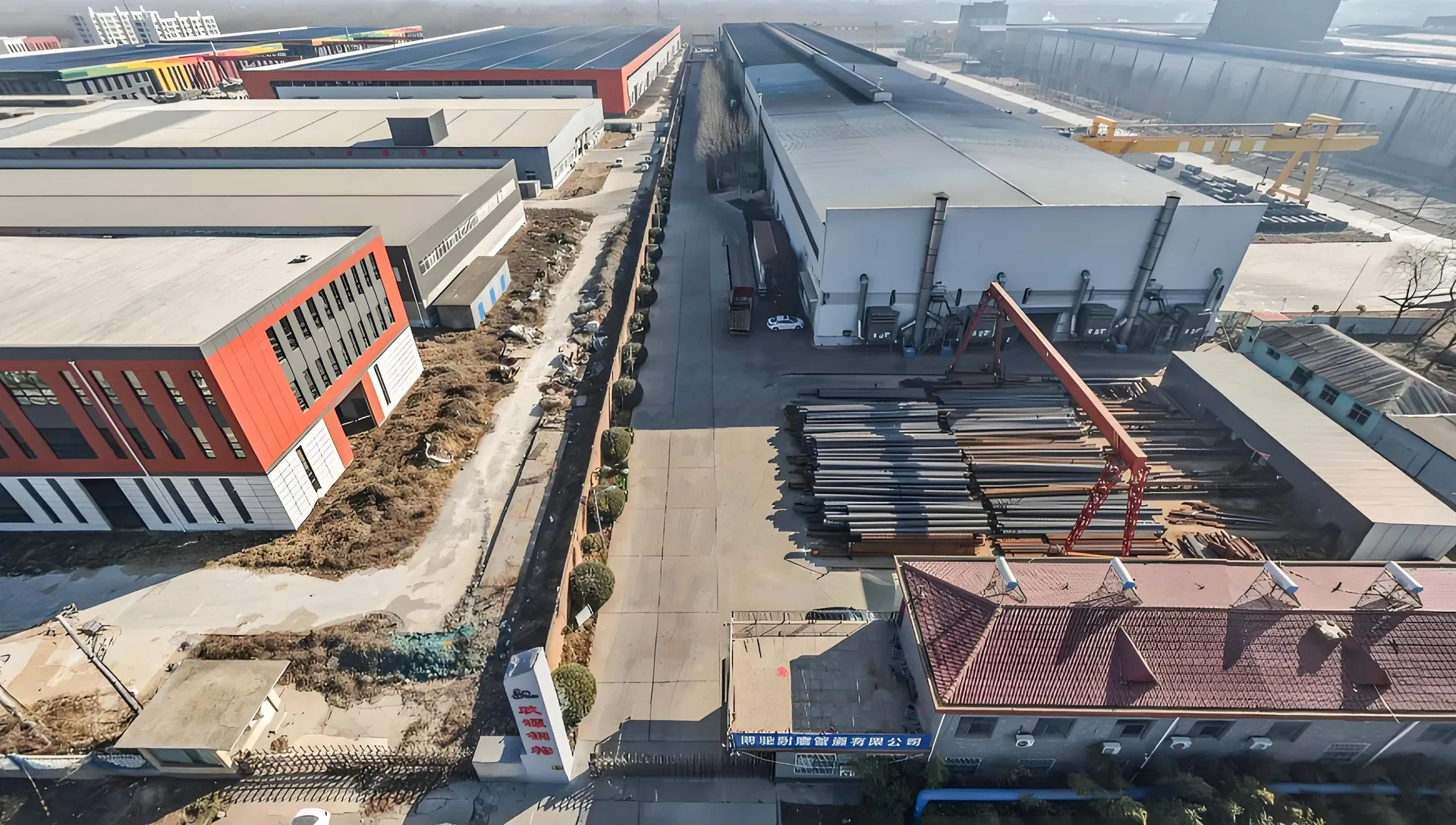

Operating two manufacturing workshops and a technology center, the annual output reaches 50,000 tons. Capabilities include light-weight housing, multi-story buildings, bridges, heavy steel structures, airports, and intelligent logistics centers.

❓FAQ

Q: Are steel structure factories cheaper than concrete buildings?

A: Yes, the overall cost is typically reduced by approximately 25%, and significant time is saved during the construction and land approval phases.

Q: Is the structure safe in extreme weather conditions?

A: Absolutely. Our designs are verified through wind tunnel experiments and can withstand level 12 typhoons and temperatures ranging from -30℃ to 50℃.

Q: What is the expected design life of these structures?

A: Our steel structures are designed for a service life of over 50 years, ensuring long-term durability and stability.

Q: Can I customize the colors and design?

A: Yes, we support full color selection based on the RAL color card and can accommodate irregular designs such as curved roofs.

Q: Does the structure require regular maintenance?

A: We recommend a simple inspection of bolt tightness and coating conditions every five years to maintain optimal performance.

Q: What is the typical delivery and construction timeline?

A: Delivery usually takes between 30 to 90 days. Prefabrication allows us to reduce the on-site construction period by about 30% compared to traditional methods.
