Complete 10TPH Automatic Animal Feed Production Line

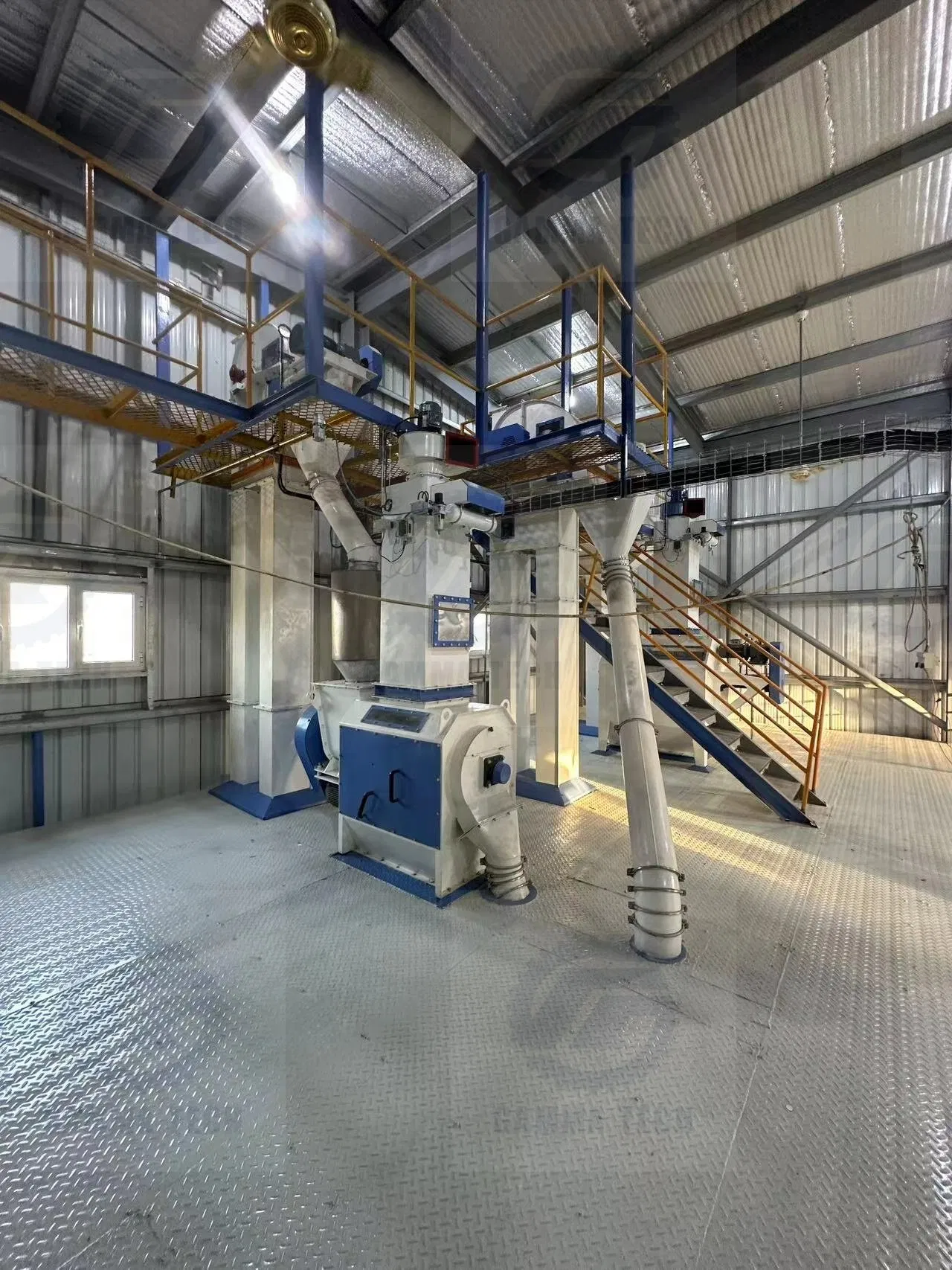

Witness the heartbeat of a modern agricultural enterprise. This high-efficiency 10TPH Feed Production Line is now fully operational, processing premium poultry and livestock feed. From the high-volume automated batching systems to the massive Gear-Driven Pellet Mill, every component is synchronized for maximum Feed Conversion Ratio (FCR). If you are looking for a reliable, Turnkey System Architect to turn your local inputs into high-performance feed, we deliver the full turnkey project engineering your 24/7 industrial production demands.
Utilizes high-capacity drum type cleaning sieves and permanent magnetic separators to remove impurities and metal debris, protecting high-precision rotors.

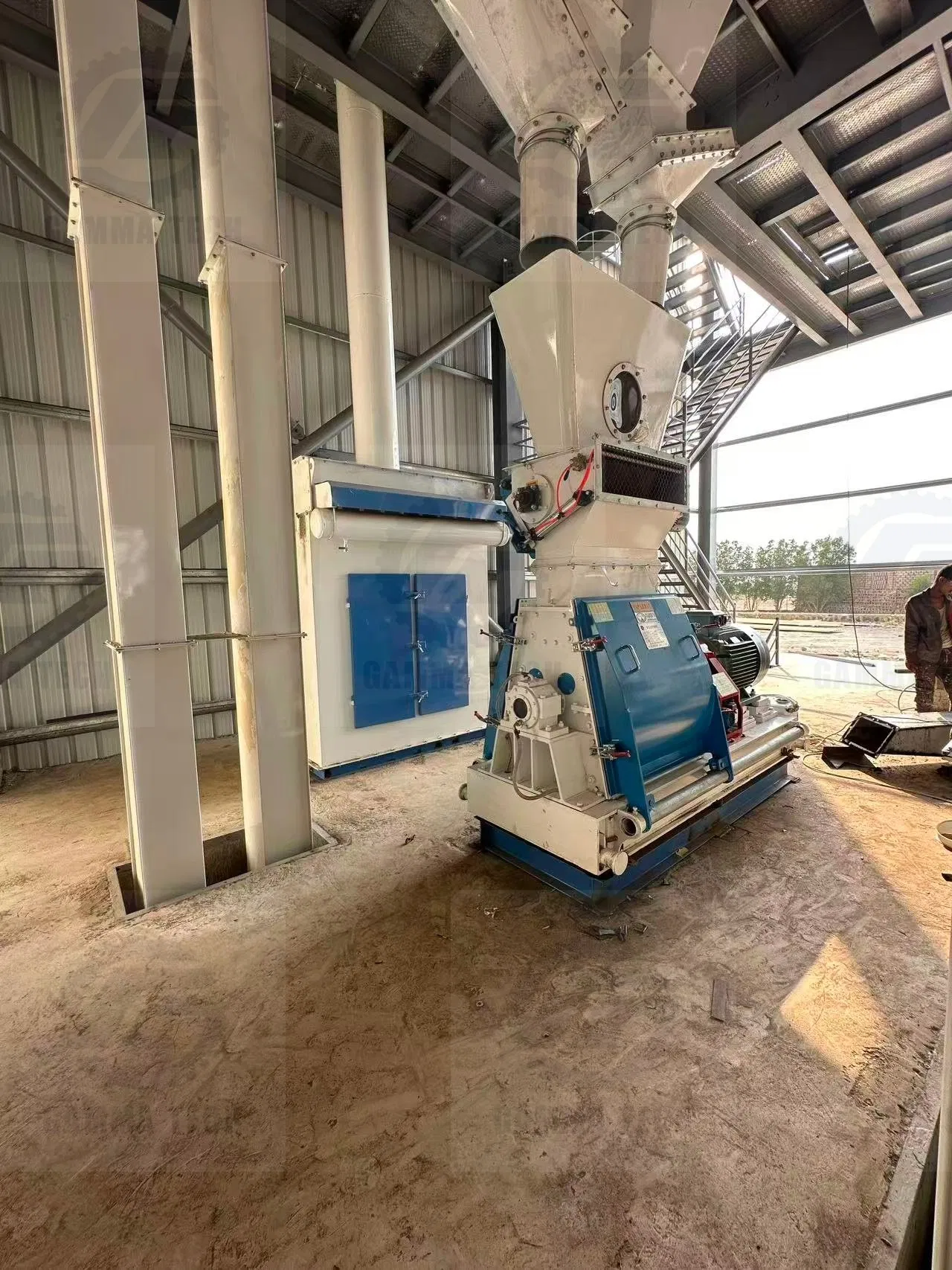

Heavy-duty Hammer Mills pulverize materials into uniform particle sizes. The patented "water-drop" structure ensures high-speed grinding with lower noise.

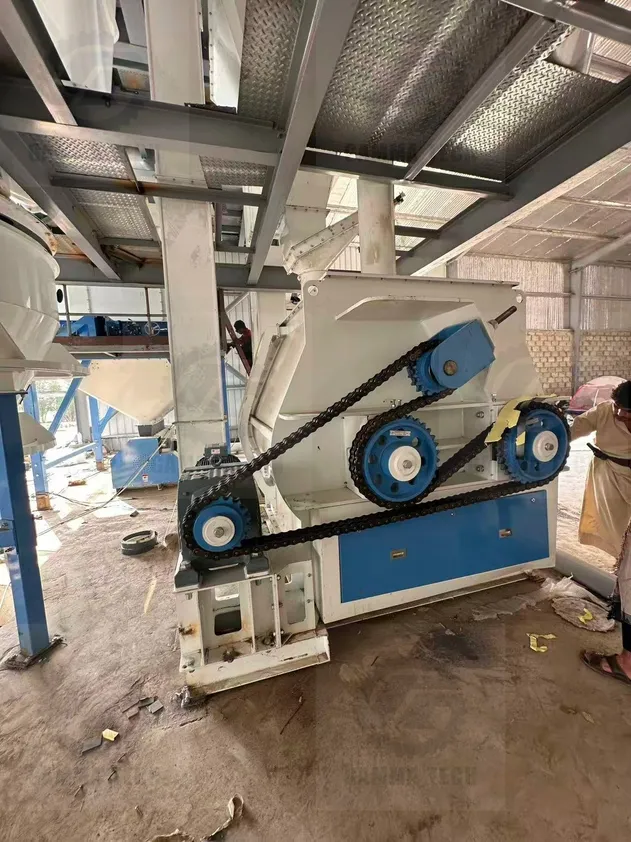

Controlled by a PLC System, the Double-Shaft Paddle Mixer achieves a coefficient of variation CV < 5% in just 45–90 seconds.
Stainless Steel (SUS304) Steam Conditioners treat mash before entering the Gear-Driven Pellet Mill. Offers 15% more efficiency than belt-driven models.
Pellets are cooled to within ±3 degree of ambient temperature, preventing cracks. Rotary sifters ensure only perfect pellets reach the final stage.
Features inflatable neck seals for dust-free operation and high weighing accuracy, ready for immediate distribution or bulk loading.
| Section | Main Equipment | Key Model | Power (Ref.) | Key Features |
|---|---|---|---|---|
| 1. Intake & Cleaning | Pre-cleaner & Magnet | SCY 63/ SQLZ80 | 3.0 - 5.5 kW | Double-layer sieve; Metal removal. |
| 2. Grinding | Wide-type Hammer Mill | SFSP 110 | 90 - 110 kW | CNC balanced rotor; Water-drop structure. |
| 3. Batching & Mixing | Twin-Shaft Paddle Mixer | SSHJ 2 | 18.5 - 22 kW | CV ≤ 5%; 45-90s cycle; Weightless tech. |
| 4. Pelleting | Gear-Driven Pellet Mill | SZLH 420D | 110 - 132 kW | Heavy-duty gear; SUS304 Conditioner. |
| 5. Cooling | Counter-flow Cooler | SKLN 22x22 | 1.1 - 7.5 kW | Stainless steel discharge; Uniform cooling. |
| 6. Crumbling | Double-Roll Crumbler | SSLG 20x170 | 11 - 15 kW | For Layer/Chick feed; Adjustable gap. |
| 7. Screening | Rotary Grading Sieve | SFJH 130x2 | 1.5 - 2.2 kW | High stability; Accurate sorting. |
| 8. Packing | Jumbo Bag Packing Scale | DCSF-1000 | 5.0 kW | 0.2% Accuracy; Inflatable seal. |

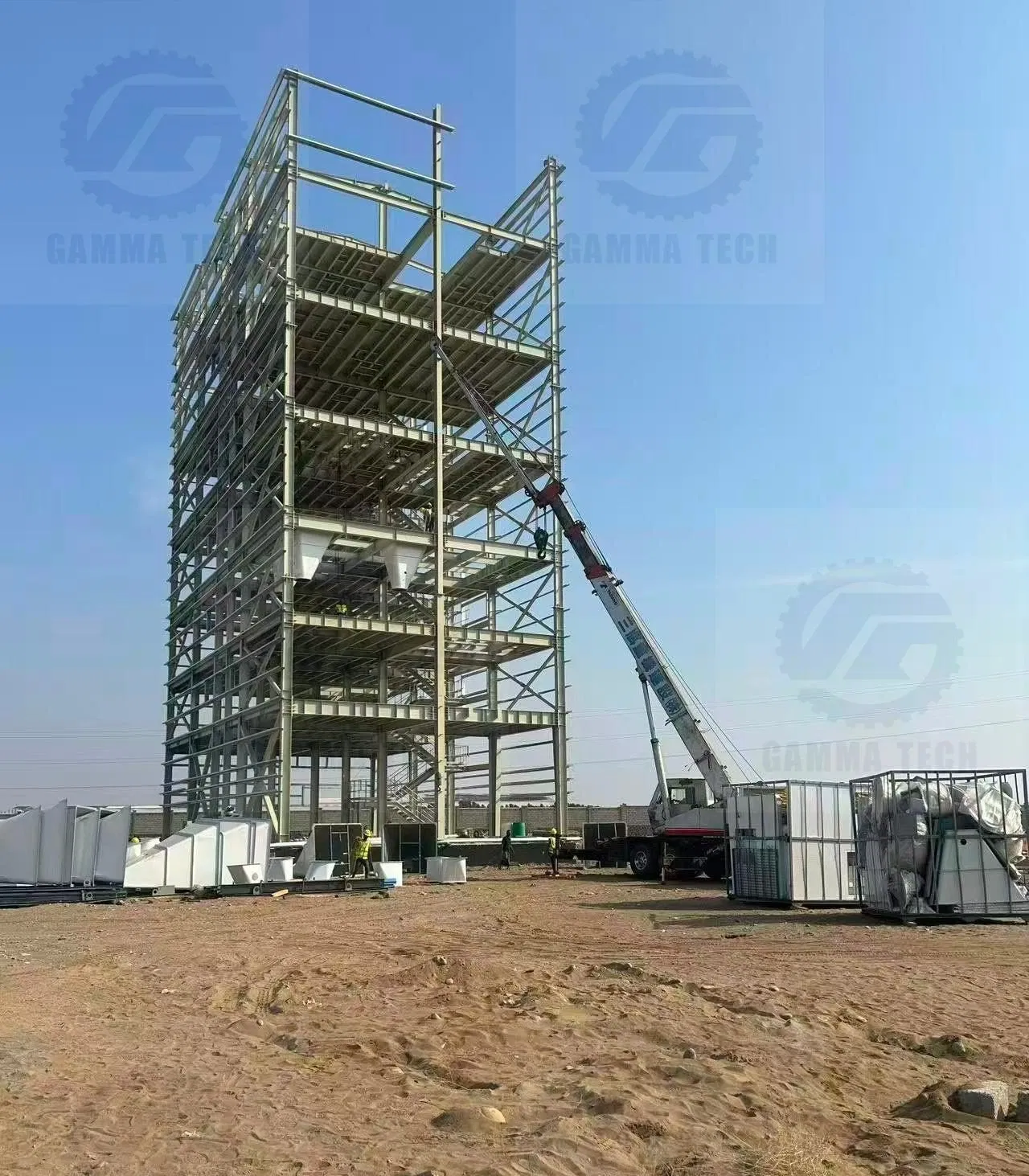

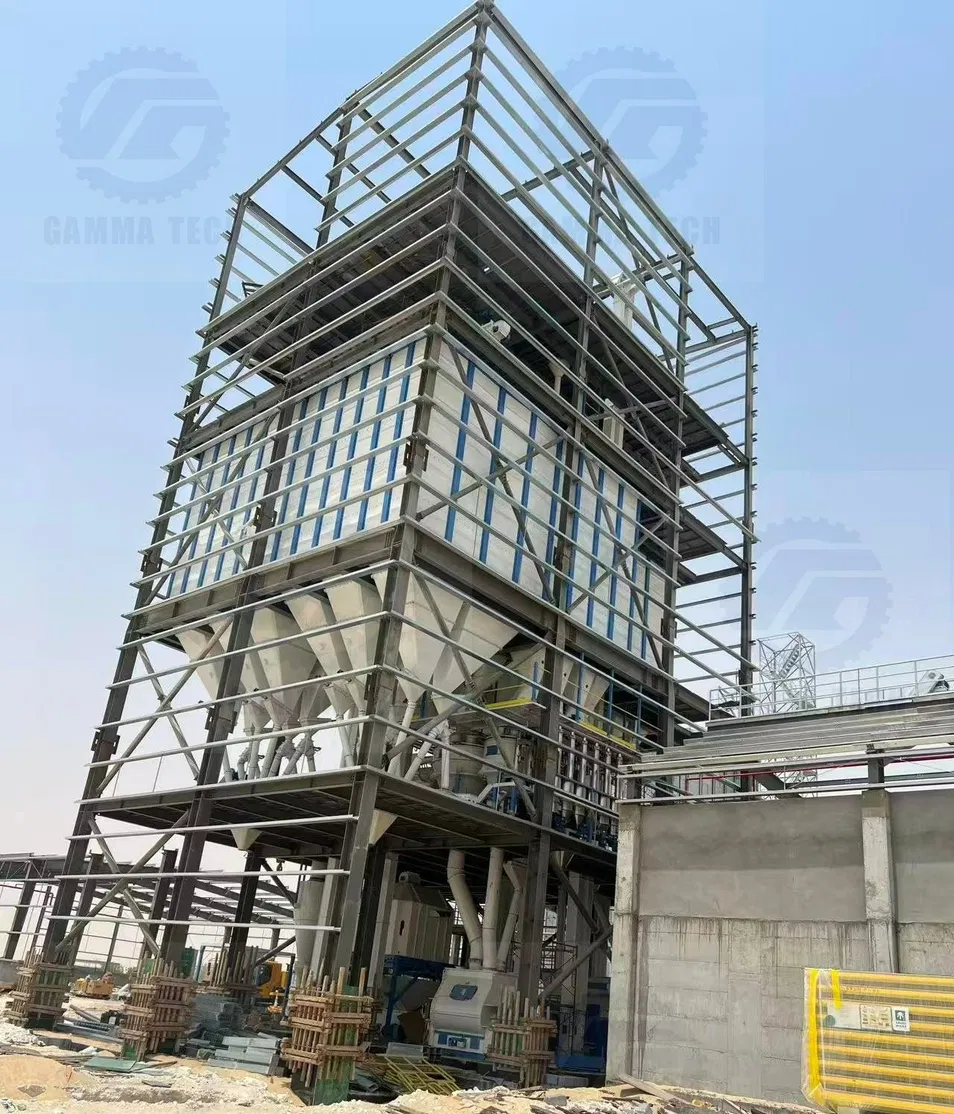

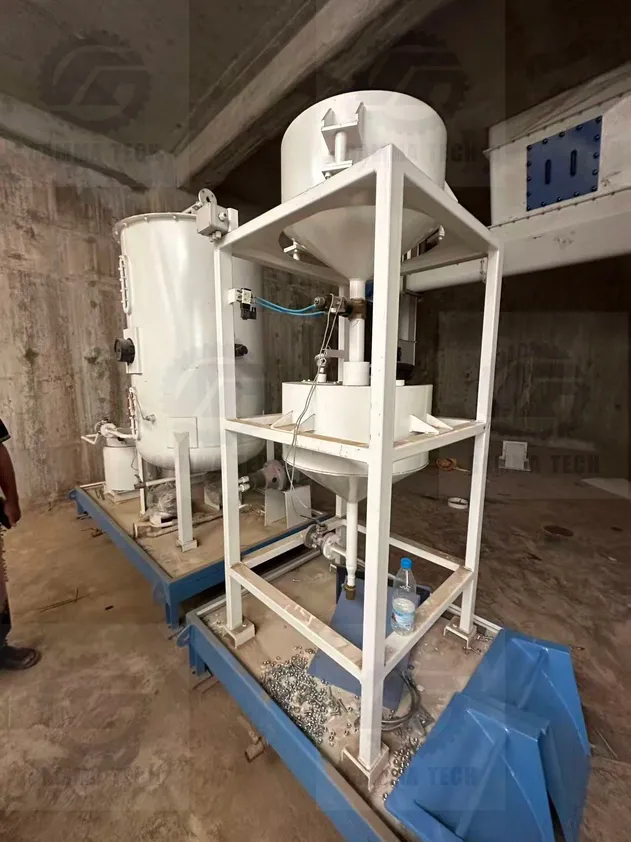

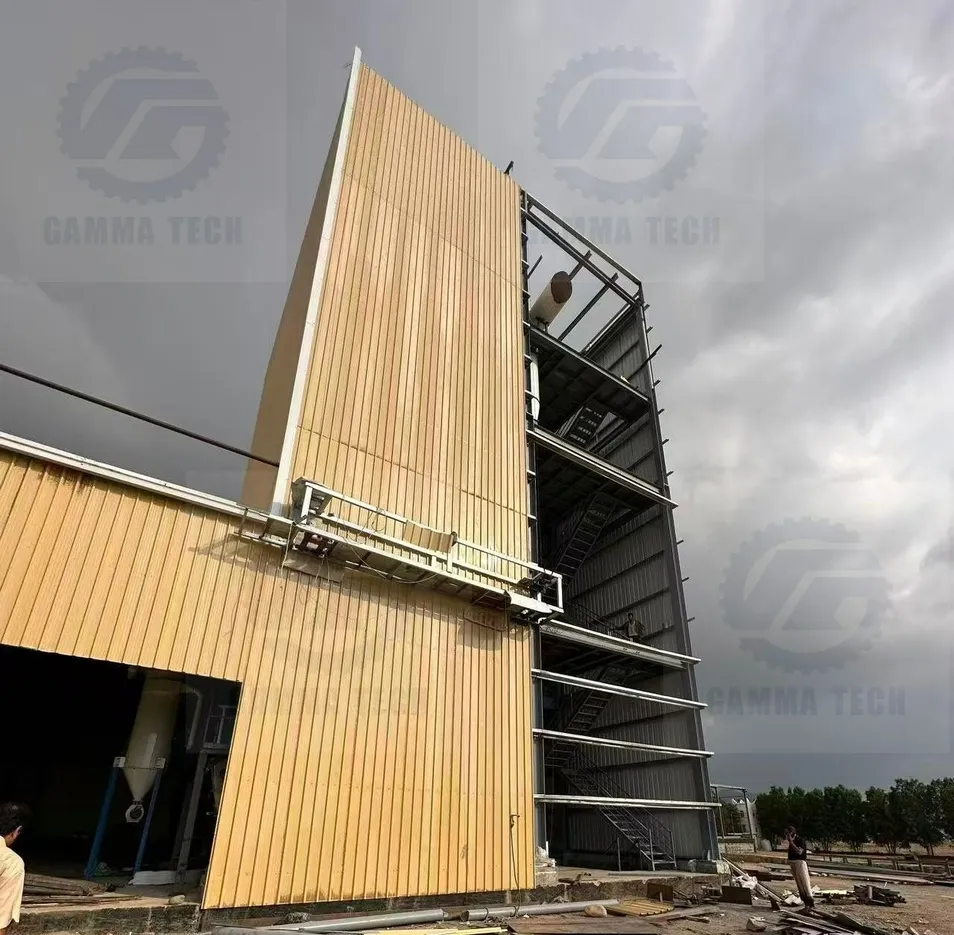

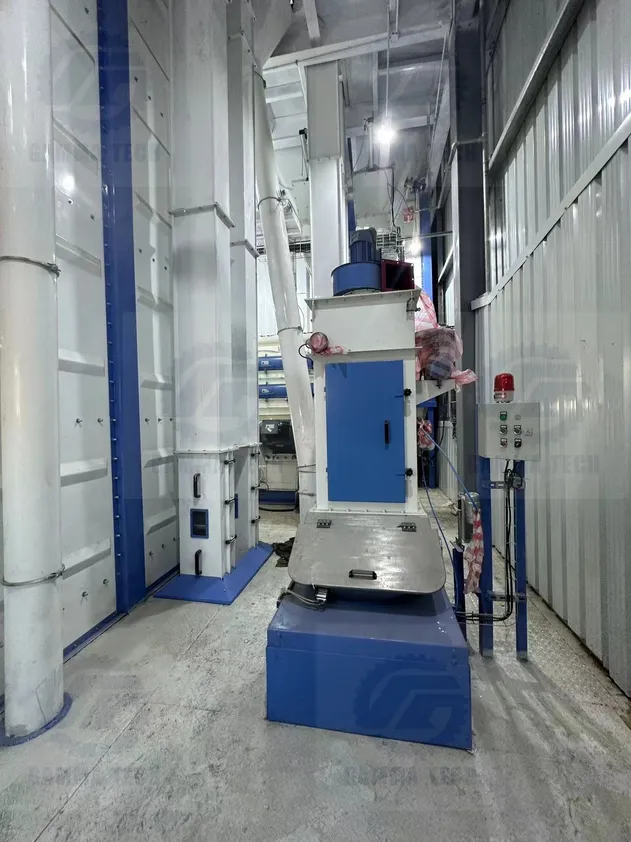

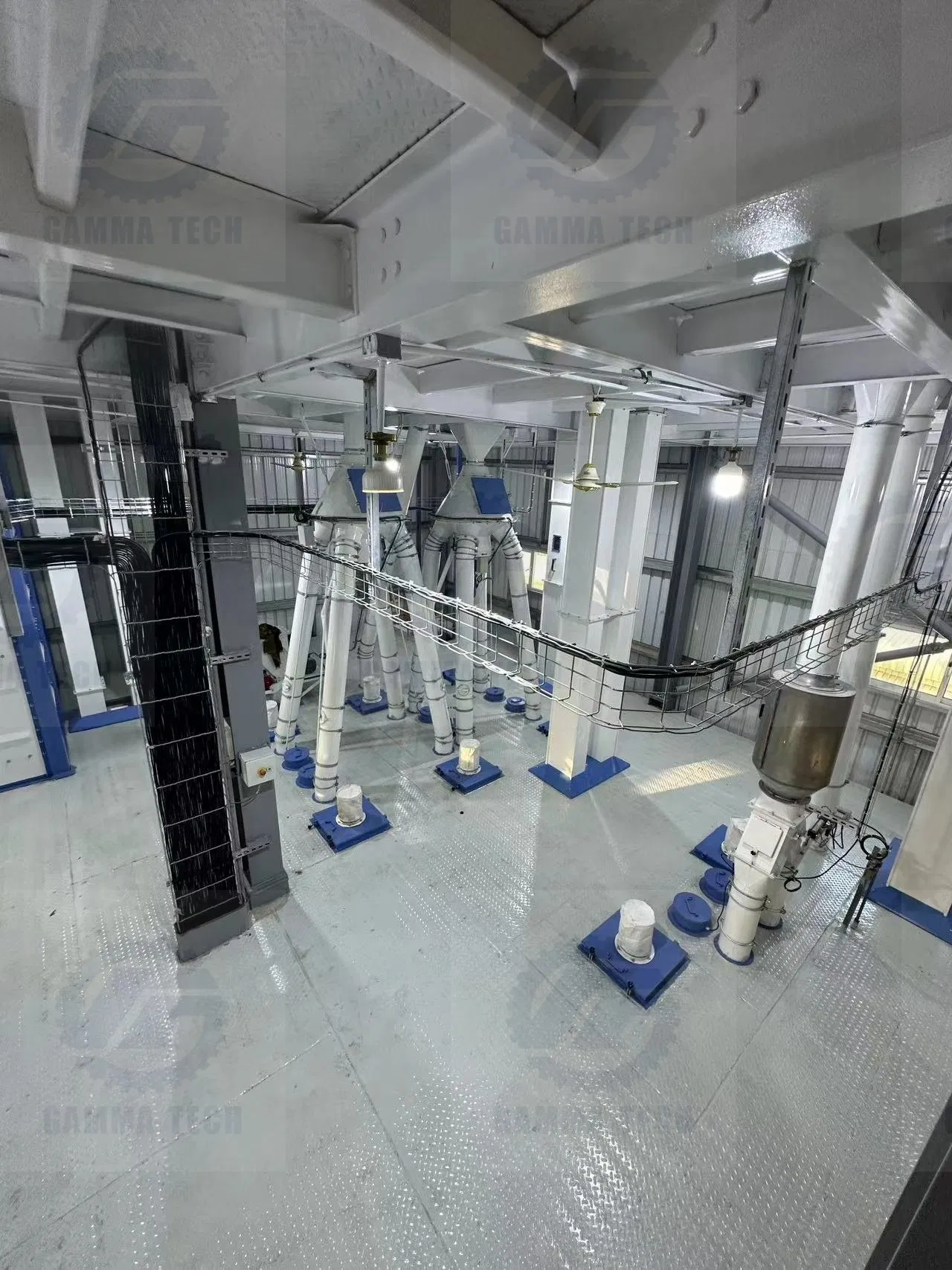

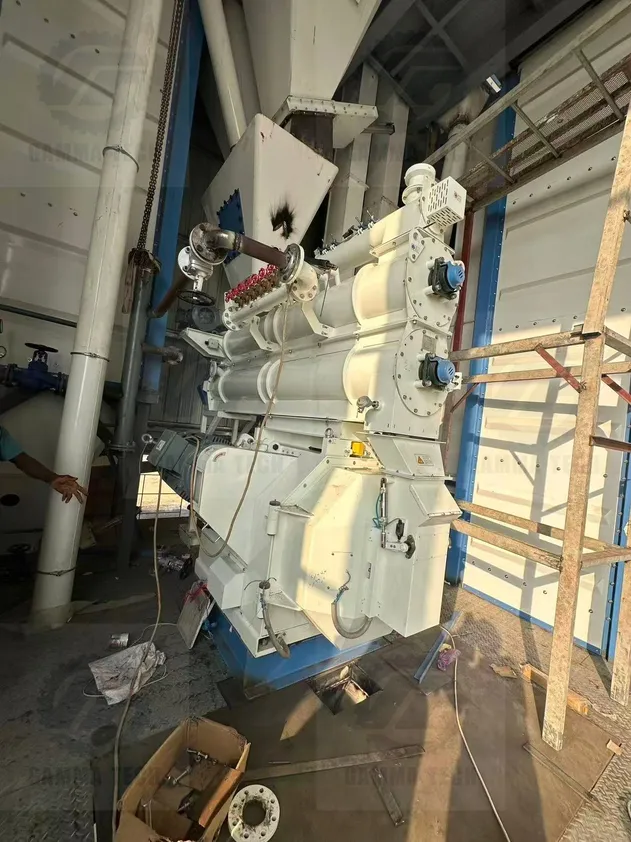

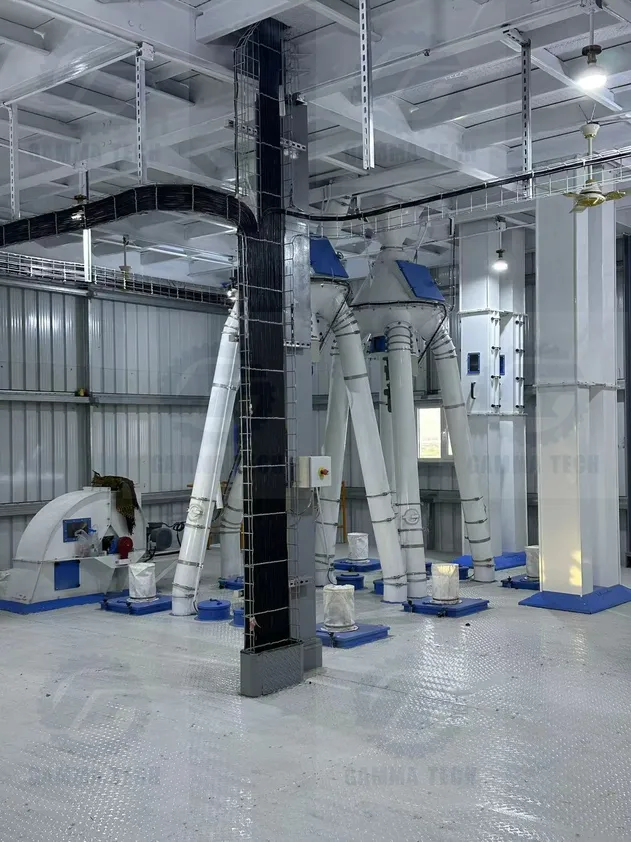

These authentic, on-site photos showcase the technical installation team expertly assembling complete 10TPH/20TPH Turnkey Feed Production Lines. Reliability is determined during installation; our engineers ensure gear-driven pellet mills are perfectly leveled and electrical cabinets are wired for maximum safety.

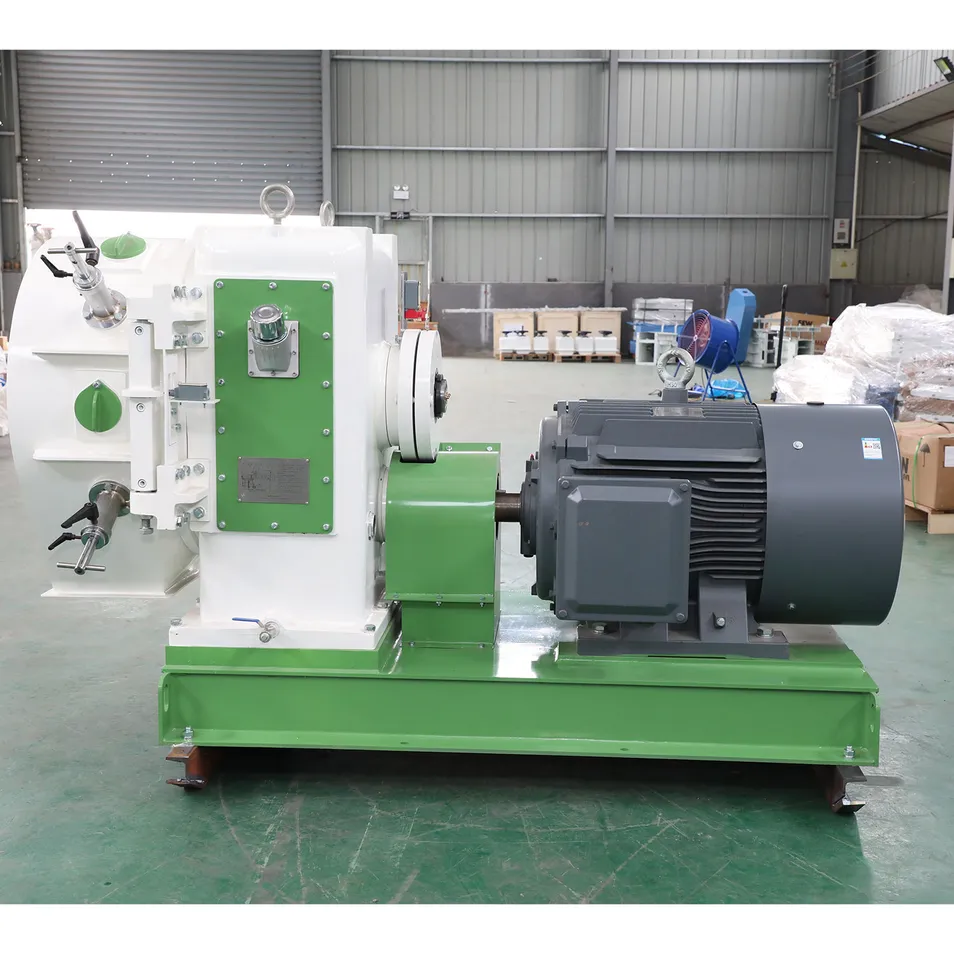

SZLH Gear Driving Pellet Mill: Designed for 24/7 industrial production, the SZLH series delivers a perfect balance of high output and low energy consumption. Engineered with premium SKF bearings and a robust gear transmission system, these mills provide 20% higher efficiency than traditional belt-driven models.

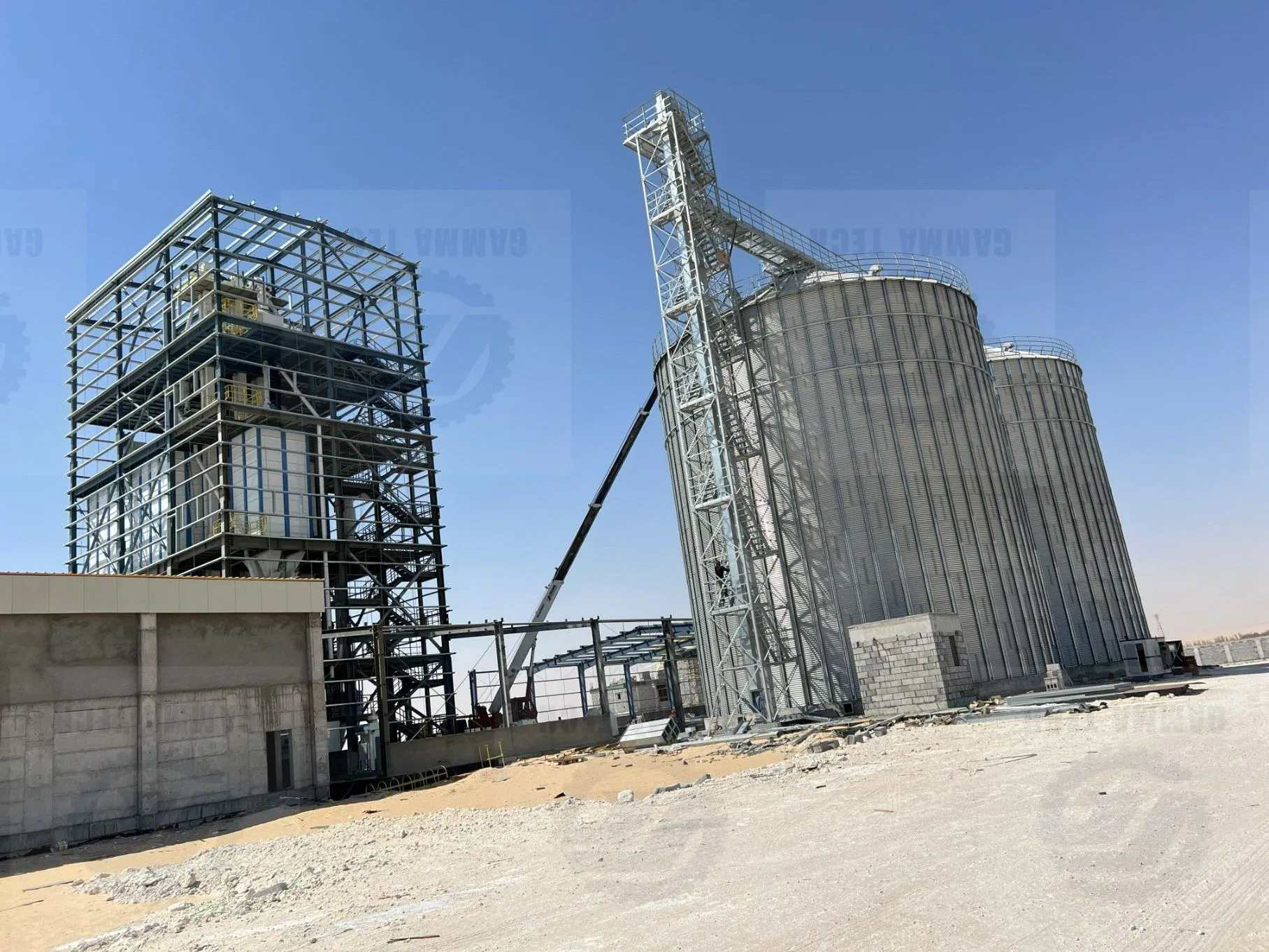

From the Middle East to Africa and South America, we provide Full-Spectrum Engineering Solutions (EPC). Whether building a 10TPH poultry plant or a 20TPH cattle feed line, we bridge the gap between complex engineering and long-term profitability.

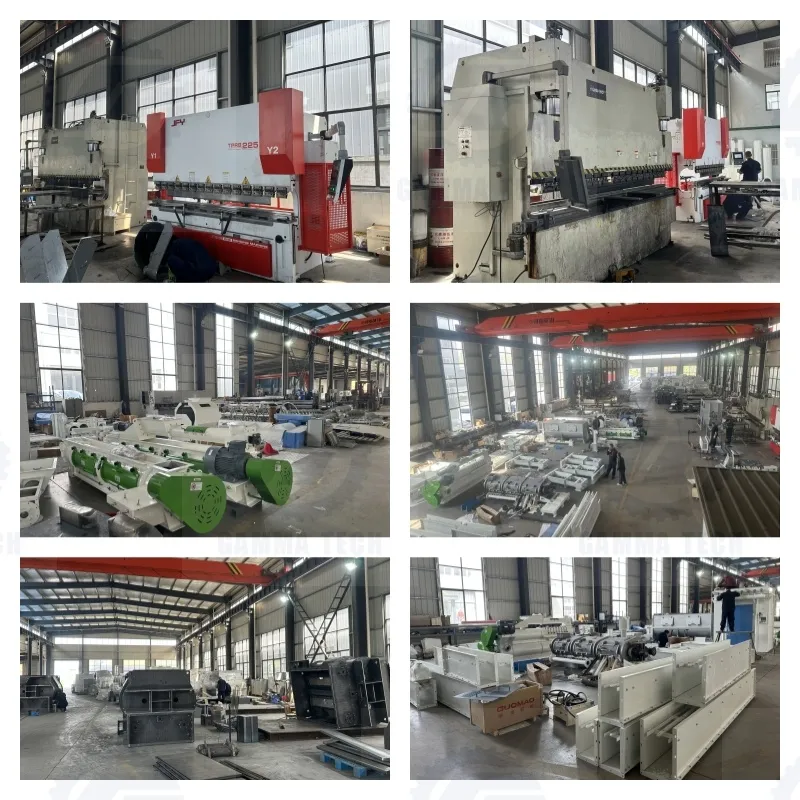

We utilize large-scale CNC Machining Centers to process core components—including pellet mill mainshafts and mixer rotors. Every production line undergoes rigorous dynamic balancing and pre-assembly testing before shipment.
