Basic Specifications
Type
Aerators / Biological Treatment
Usage
Industrial, Home, Agriculture, Hospital
Installation
Underground / Onground
Voltage
220V/ 380V/ Customized
Material
Carbon Steel, Stainless Steel, FRP, PE, PP
Technology
AO/AAO/MBR/MBBR/SBR
Product Description
Membrane bioreactor is a high-efficiency sewage treatment technology that combines membrane separation technology and traditional sludge process. With the filtration effect, the organisms are completely trapped in the bioreactor, which realizes the complete separation of water and sludge, and maintains a high MLSS in the bioreactor. It features strong nitrification ability and a high pollutant removal rate.

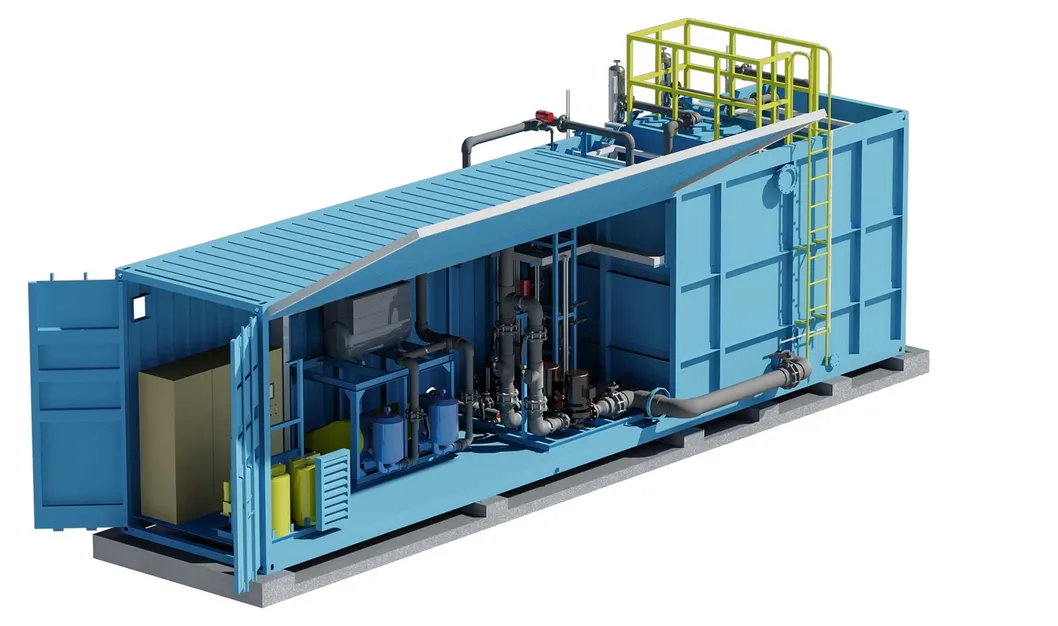

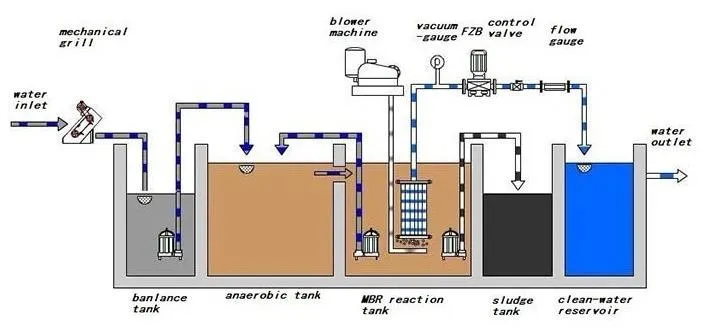

Working Principle
By replacing the secondary sedimentation tank of traditional biological treatment with membrane modules, the system maintains a high concentration of activated sludge. This increases the organic load capacity and reduces the overall footprint. It primarily utilizes activated sludge and macromolecular organic matter in the retention tank. The sludge concentration can reach 8,000~10,000mg/L, extending the sludge age (SRT) to more than 30 days.
Core Advantages
- A/O Biological Process: Utilizes elastic three-dimensional fillers with large specific surface area and high microbial activity for rapid organic pollutant removal and effective denitrification.
- Space Efficient: The equipment can be buried underground, occupying no surface area. The surface can be greened or used for driving.
- Low Maintenance: Designed for easy management and long-term durability with minimal maintenance requirements.
- Environmental Friendly: Minimal impact on the surrounding environment with effective odor and noise control.
Applications
Widely used in domestic industrial and mining enterprises, residential quarters, urban and rural areas, food processing, petrochemical, papermaking, breeding, textile, hospitals, and hotels.

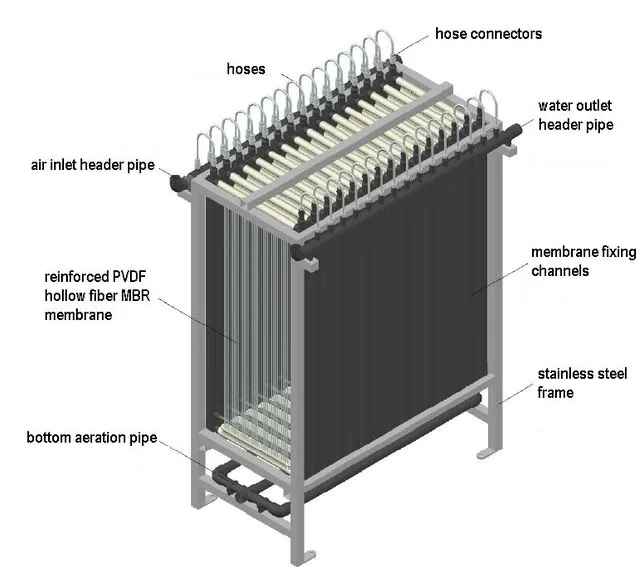

Technical Parameters
| Diaphragm Type |
MBR-8 |
MBR-10 |
MBR-16 |
| Dimensions L*W(mm) |
810*525 |
1025*525 |
1050*535 |
| Membrane Area (m2) |
8 |
10 |
16 |
| Water Rate |
1.0-1.2 |
1.2-2.5 |
2.0-2.5 |
| Water Turbidity |
<1 |
<1 |
<1 |
| SS (mg/L) |
<10 |
<10 |
<10 |
Manufacturing & Shipping

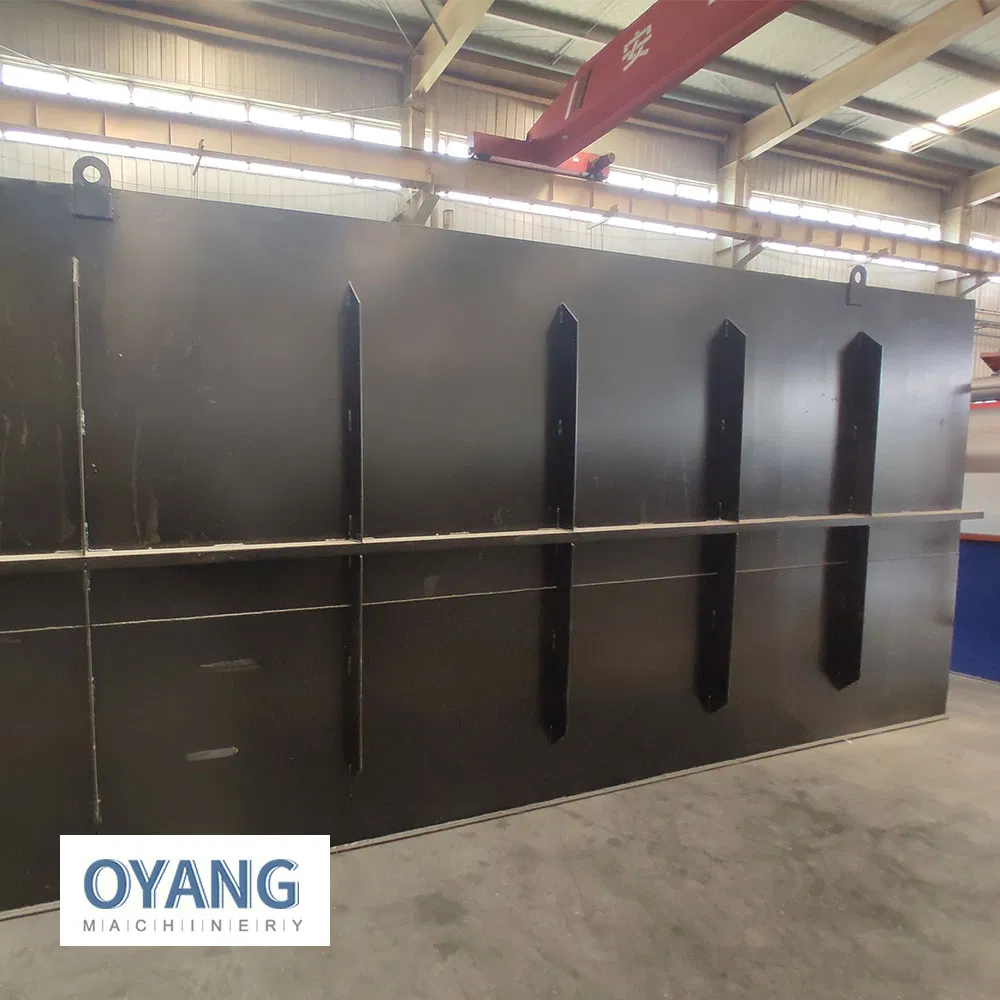

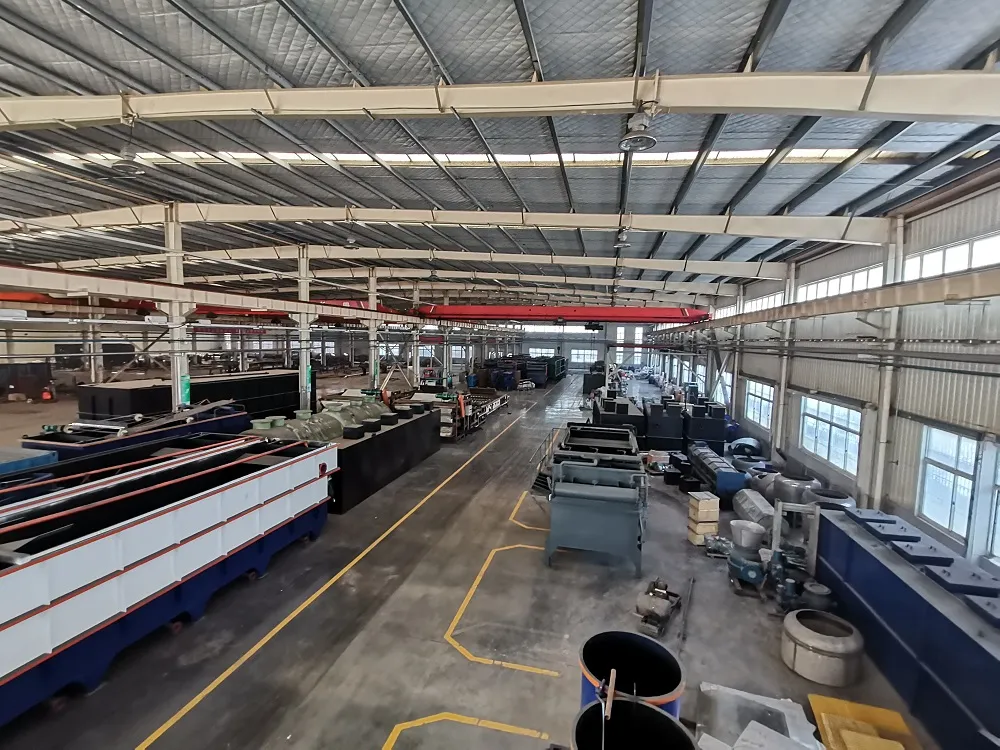

Corner of workshop

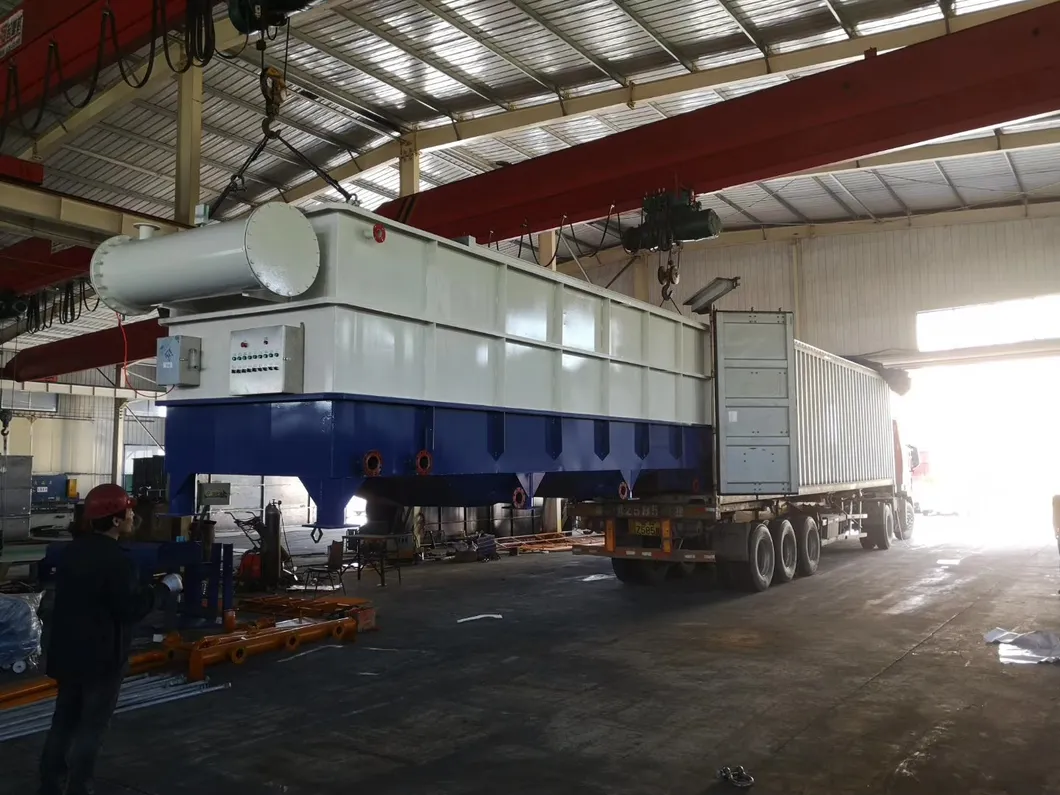

Packing & Shipment
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in wastewater treatment equipment with extensive industry experience.
Q: What are the main benefits of MBR technology?
A: MBR combines membrane separation with biological treatment, providing superior water quality, a smaller footprint, and reduced sludge production compared to traditional methods.
Q: Can the equipment be installed underground?
A: Yes, our integrated systems are designed for both underground and on-ground installation, allowing for surface greening or utilization for other purposes.
Q: Do you provide OEM services for specific requirements?
A: Yes, we offer comprehensive OEM services, including customized logos, materials, and technical specifications to meet project-specific needs.
Q: What is the expected service life of the treatment plant?
A: With proper maintenance, our systems are designed for a service life of 10 to 30 years depending on the material and operating conditions.
Q: How do you handle after-sales service and technical support?
A: We provide full technical assistance with engineers available to support installation, operation, and troubleshooting.
