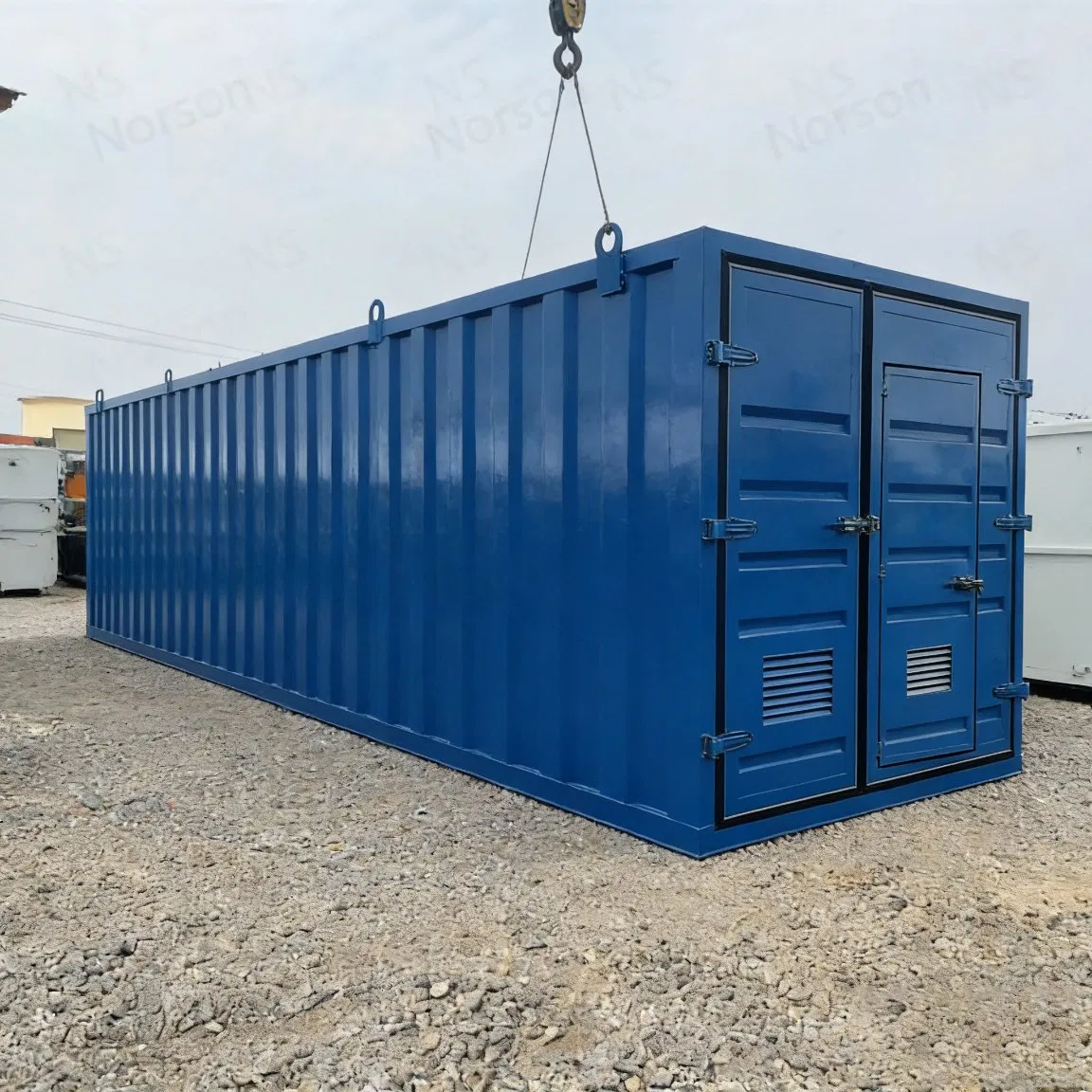

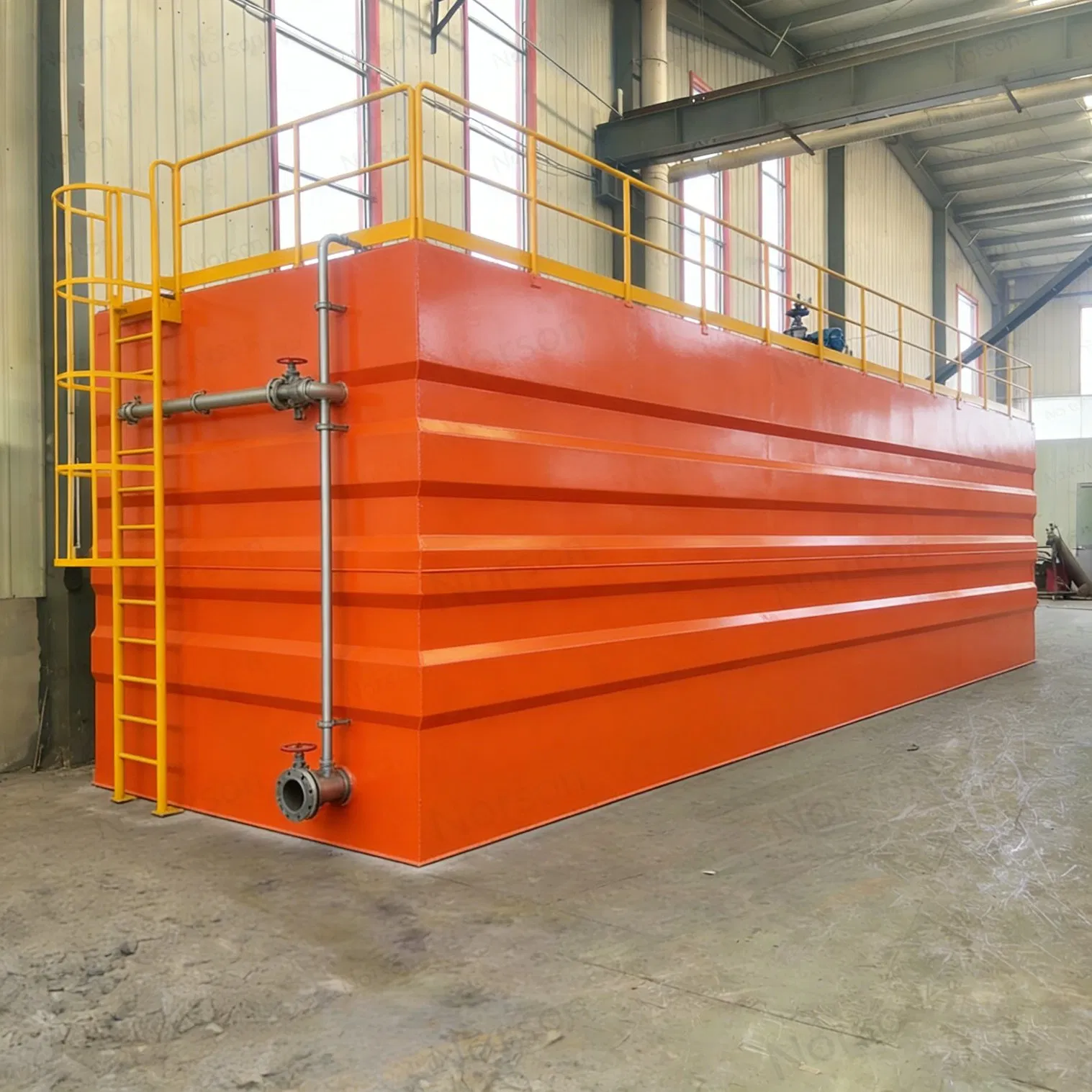

Heavy Duty Integrated Wastewater Treatment Plant for Mining Site Sewage

i

Basic Info & Overview

Model NO.STP-N1109

TypeSewage Treatment

MethodBiological Treatment

Daily Capacity10-5000m³ Per Day

MaterialCarbon Steel, Stainless Steel, Fiberglass

InstallationAbove Ground, Underground, Mobile

ProcessA2O, MBBR, MBR, SBR

Service Life30 Years

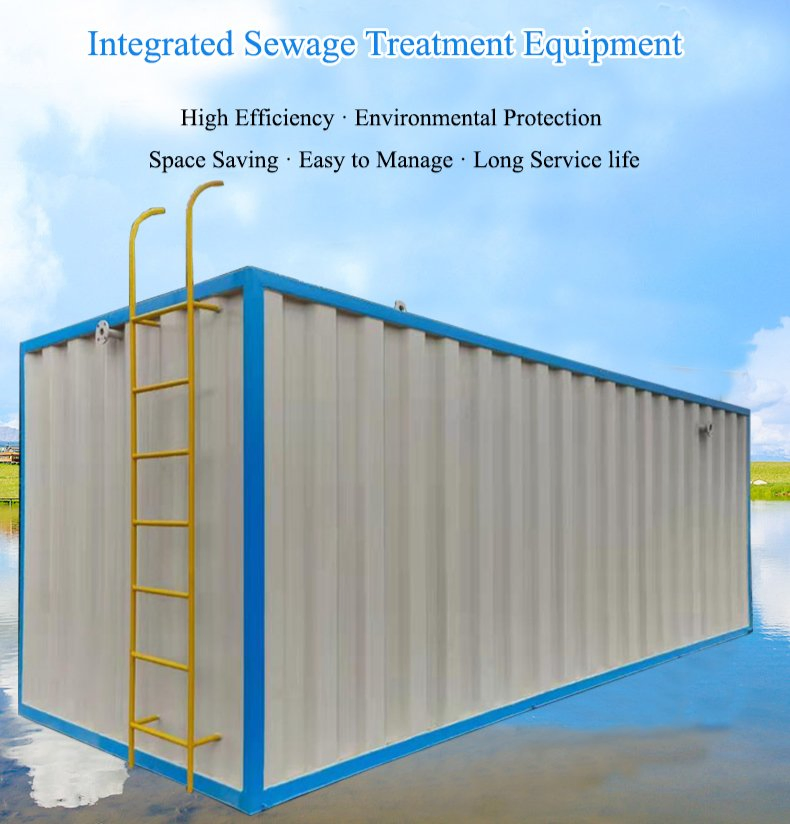

Integrated wastewater treatment equipment is an ideal solution for modern wastewater treatment systems. Utilizing advanced physical, chemical, and biological treatment technologies, it boasts advantages such as high efficiency, energy saving, small footprint, and convenient maintenance. This equipment typically integrates multiple stages including wastewater pretreatment, treatment, and discharge, capable of processing various types of urban, industrial, and domestic wastewater.

S

Product Specifications

Treatment Water Quality: Life, hospital, breeding, slaughter, industry, highway, car wash, plastic particle cleaning, cosmetics, food factory, aquatic products, breeding chemical industry.

Treatment Process: AO, AAO, AO+MBR, MBBR and other processes.

Treatment Water Volume: 10-5000m3/h, customized according to project conditions.

★

Key Benefits & Features

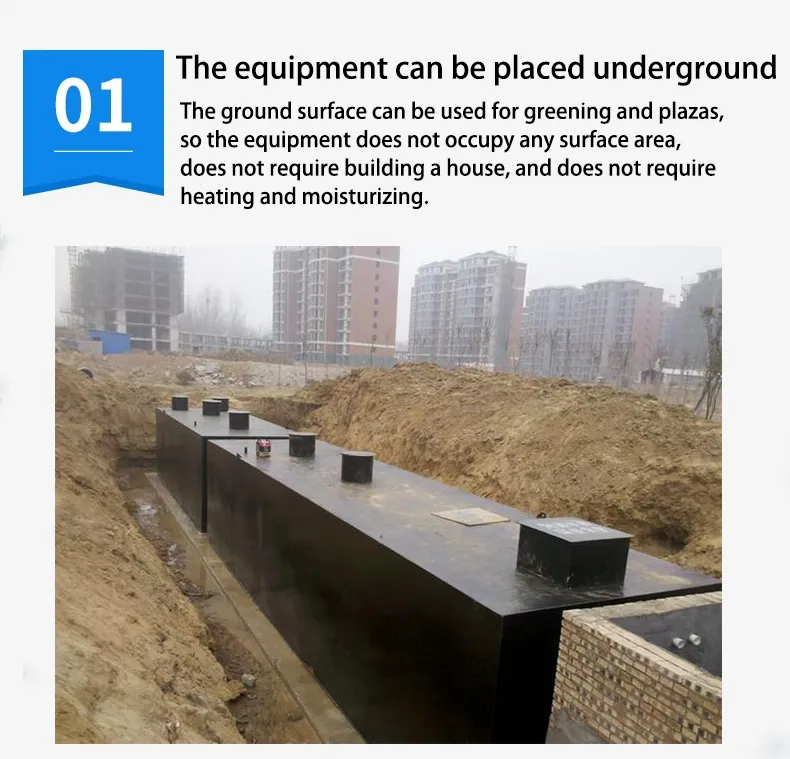

Underground Placement: Designed for concealed installation, allowing the ground above to be used for landscaping or walkways.

Low Noise Operation: Advanced noise-reduction technology ensures operational levels remain below 50 dB.

Automated Control: Equipped with a PLC-based system for unattended operation and fault alarms.

High Efficiency: Removes over 90% of organic pollutants and effectively reduces nitrogen and phosphorus.

T

Technical Parameters

Item	NS-1	NS-2	NS-3	NS-4	NS-5	NS-6	NS-7	NS-8
Capacity(m3/h)	1	3	5	7.5	10	15	20	30
Contact Oxidation(m3)	5	14.5	24	36	44	63	83	130
Air Blower Power(kw)	0.4	0.75	1.5	2.2	2.2	3.7	5.5	-
Sewage Pump Power(kw)	1.0	1.0	1.0	1.0	1.0	1.6	1.6	1.6
Total Weight(t)	5.5	6.5	8	11	17	20	21	29

P

Treatment Process & Applications

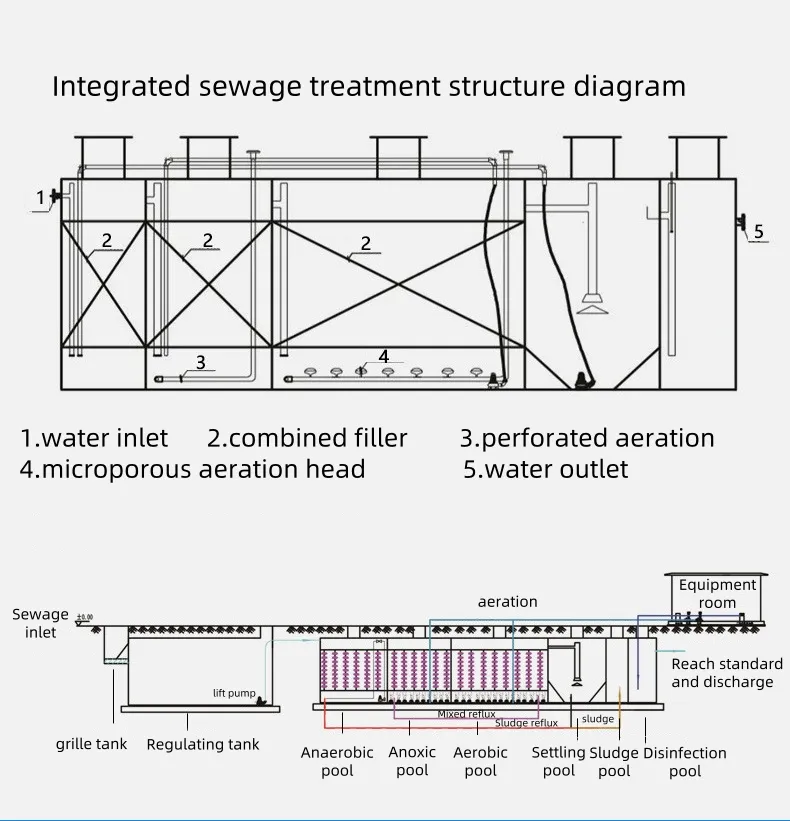

Integrated wastewater treatment equipment combines biodegradation with a membrane filtration system (MBR/MBBR), enabling efficient purification within a limited space.

Urban: Domestic wastewater in residential areas and office buildings.
Industrial: Chemical, pharmaceutical, food processing, and textile industries.
Medical: Effectively removes bacteria and harmful substances from hospitals.
Tourism: Hotels, resorts, and tourist sites.
Rural: Solving environmental pollution in remote towns.

C

Professional Capabilities

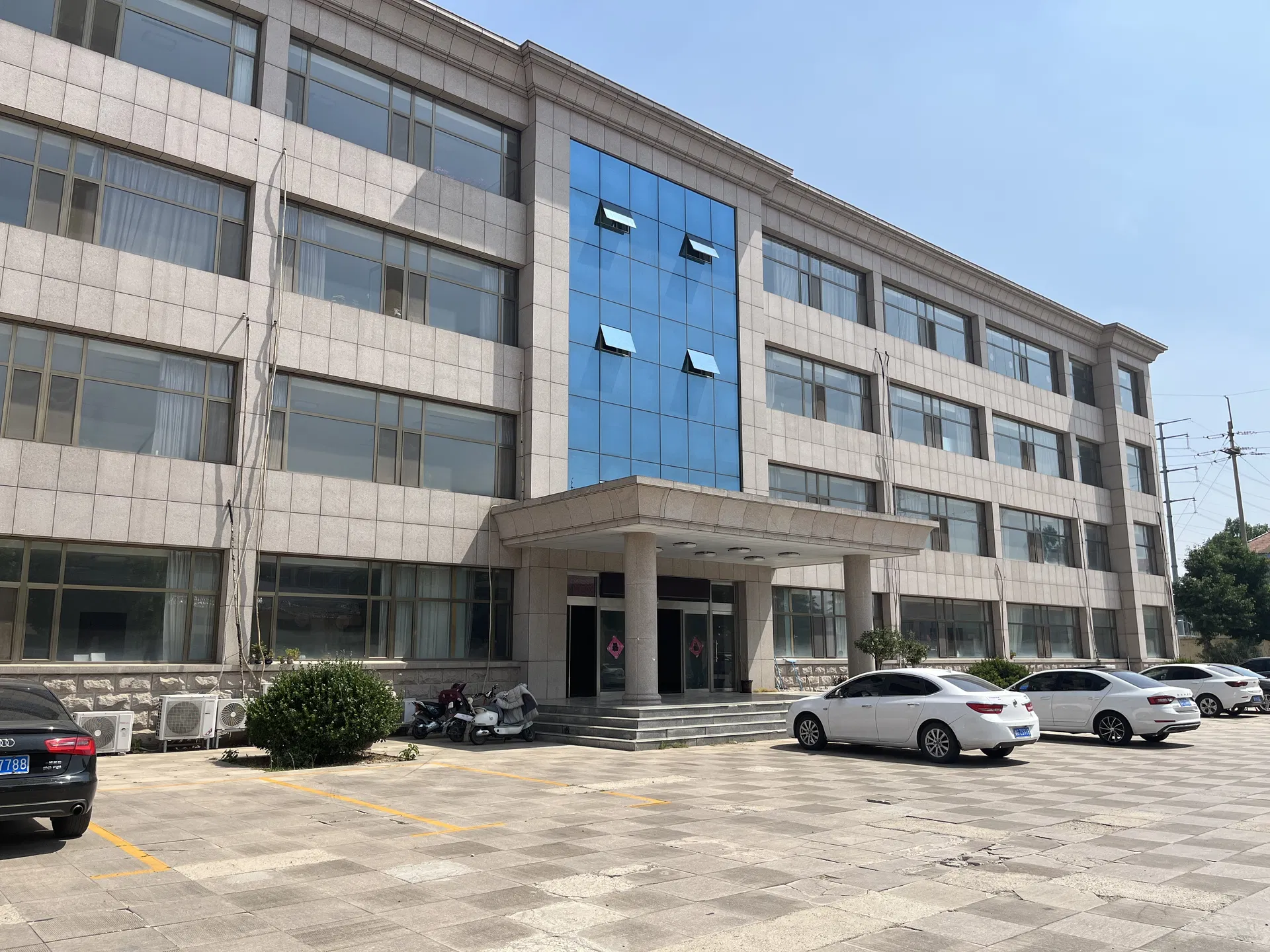

Specializing in the design and manufacture of environmental protection equipment, our production base features a 10,000 m² manufacturing workshop and a 25,000 m² area dedicated to assembly, inspection, and warehousing.

?

Frequently Asked Questions

How can I purchase your products?

Submit an inquiry, and our professional sales manager will promptly respond, understand your project details, and provide a professional solution and quote.

Do you offer OEM and ODM services?

Yes. We can customize your logo and products to your specific technical requirements.

What is your typical delivery time?

This depends on the order quantity and project scale. Generally, delivery takes three to four weeks for standard systems.

What is the warranty period for the equipment?

The standard warranty period is one year after the receipt of the goods.

How is the equipment installed at the destination?

We provide detailed installation instructions. If required, we can send a technician to assist with on-site commissioning and training.
