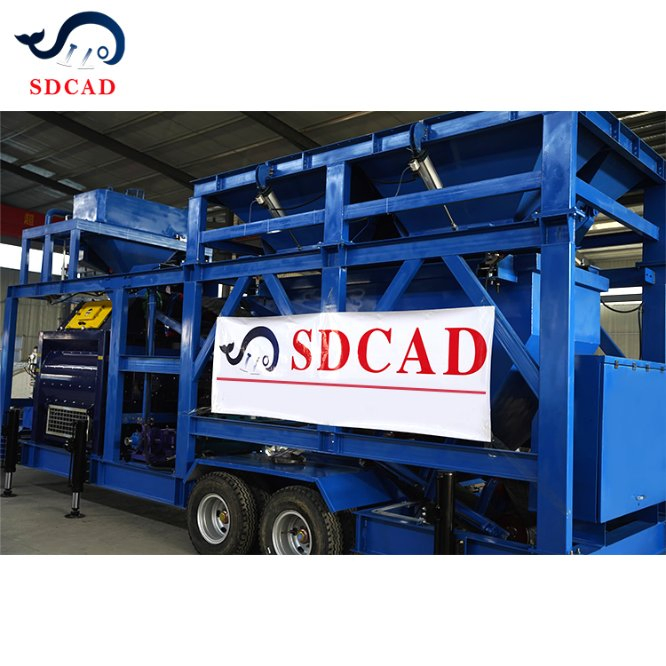

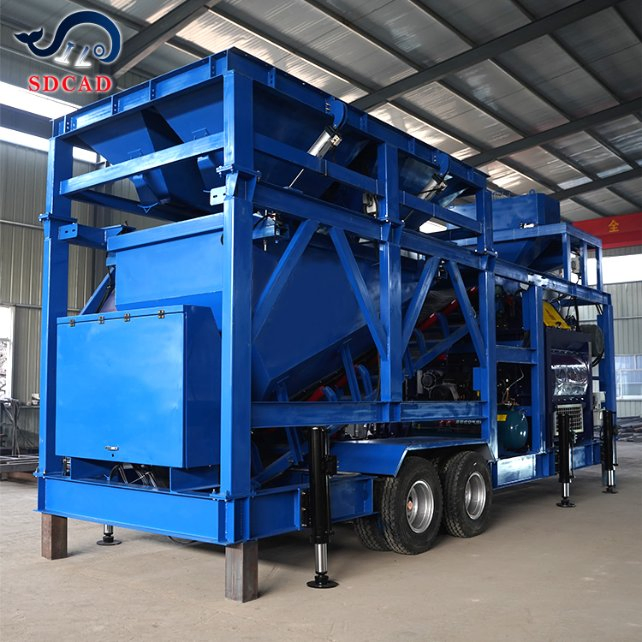

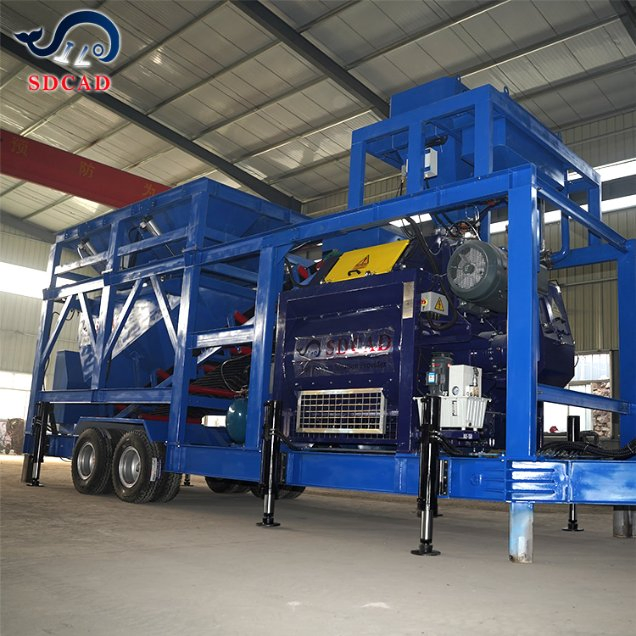

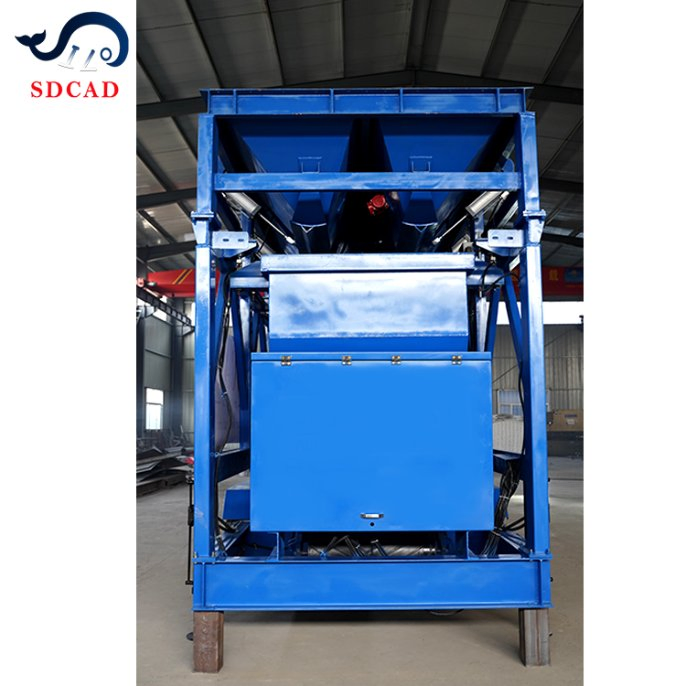

Mobile Concrete Plant with Advanced Dust Filter System

1 / 5

Mobile Concrete Plant with Advanced Dust Filter System

Customization:	Available
After-sales Service:	Provide a Complete Installation and Operation Manu
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Type

Concrete Mixing Plant

Shotcrete Type

Wet

Machining Process

Welded Molding Machine

Structure

Rotor Type

Productivity

25m3/H-100m3/H

Certification

ISO9001: 2000, CE

Condition

New

Work Temperature

-40°C

Main Structure Material

Q355b / Heavy Duty Steel

Origin

China

Product Description

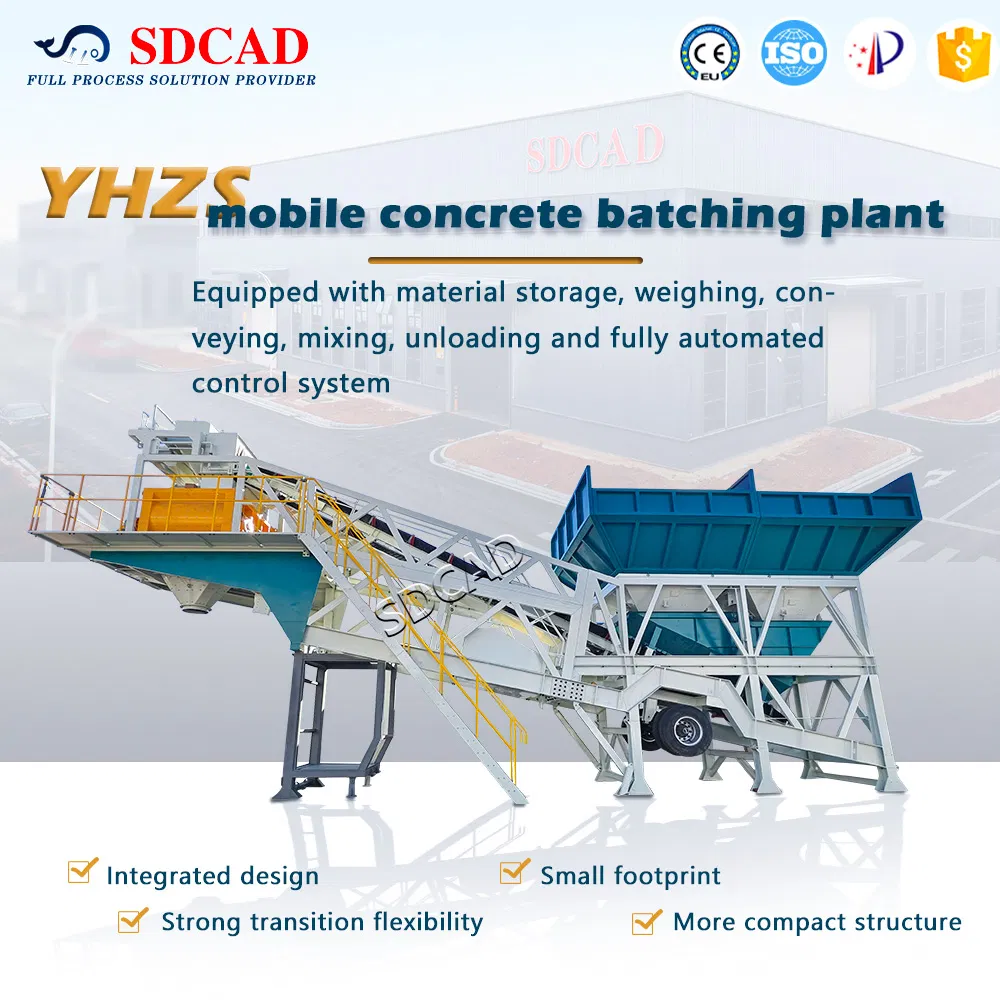

Construction machinery concrete batching plant

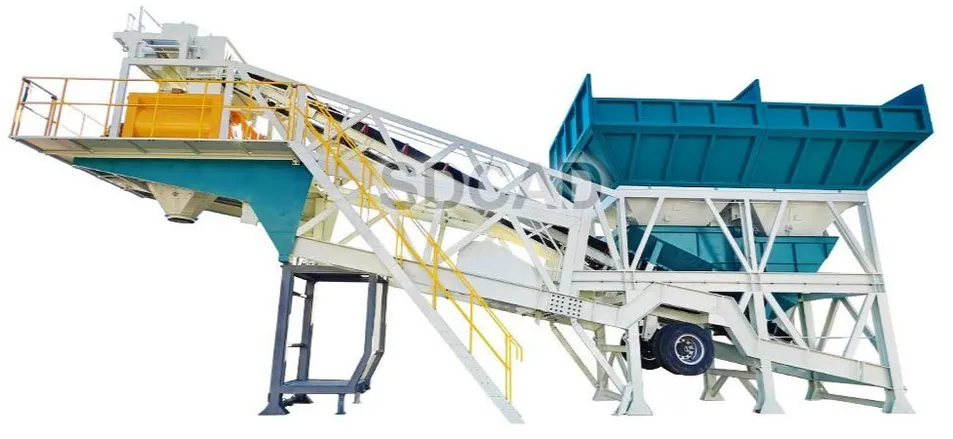

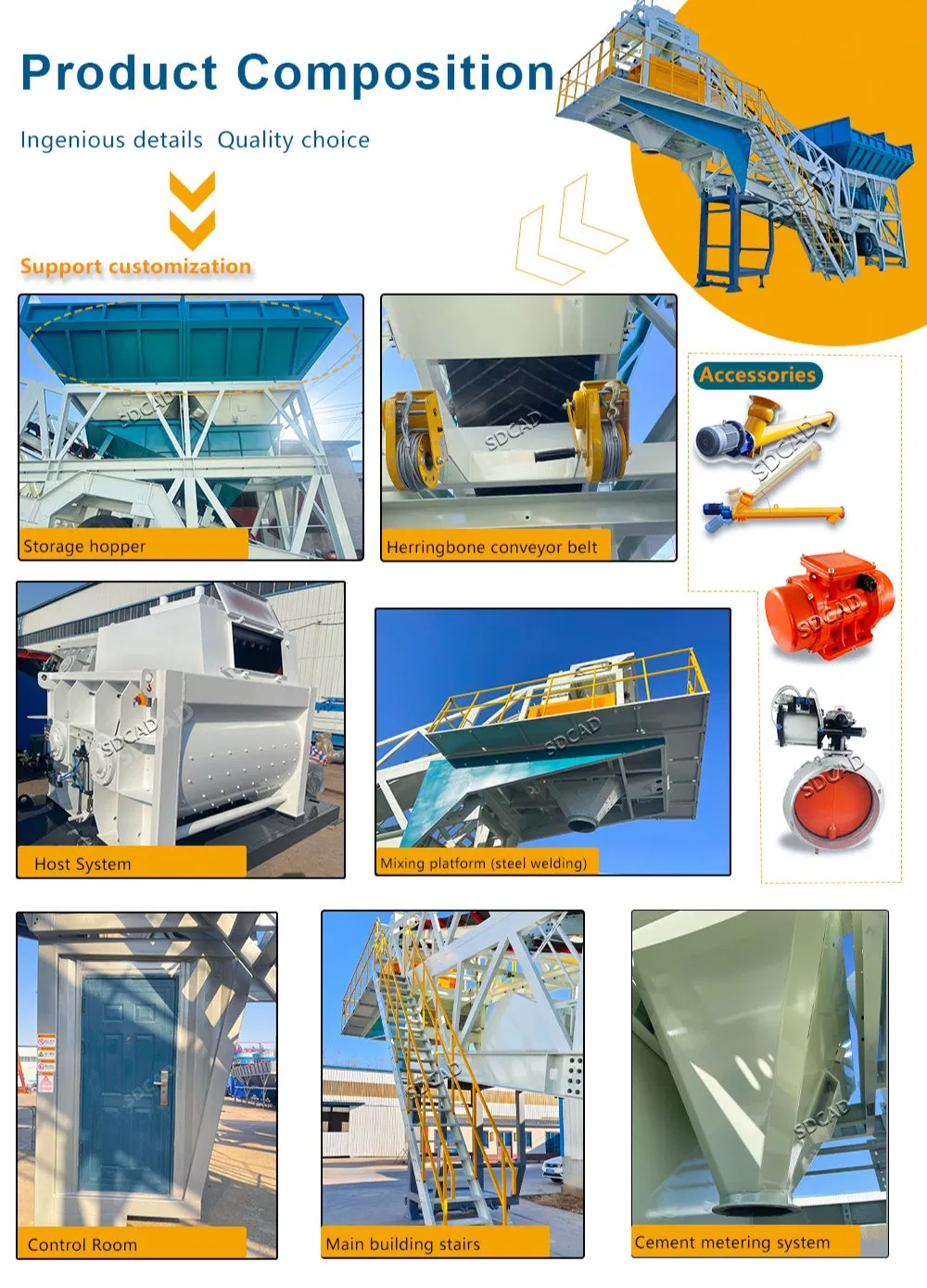

YHZS mobile concrete batching plant consists of aggregate, fly ash, cement, additive, and water batching systems, a mixing system, and an automatic control system. These plants are widely used in small and medium construction projects, road and bridge projects, and concrete precast factories.

Feature at a Glance

▶ Model: HZSY25 ~ HZSY100
▶ Capacity: 25 ~ 100 m³/h
▶ Discharge Size: 500 ~ 2000L
▶ Support: Technical support available 24 hours
▶ Installation: Guided setup and operation

Advantages

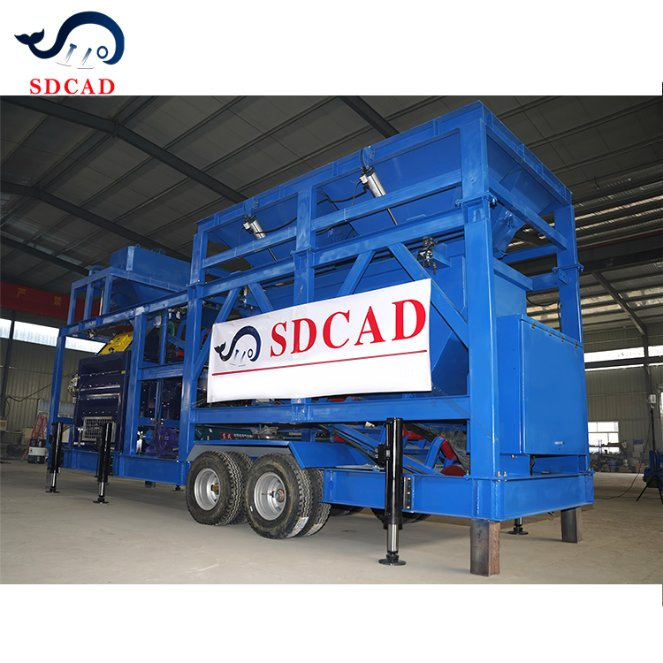

✓ Integrated trailer design, easy to transfer and drive on roads.
✓ Self-researched concrete mixer with high-quality wear-resistant parts.
✓ Compact structure with a small footprint for easy maintenance.
✓ Computer control with manual, semi-auto, and full-auto modes.
✓ Independent material measurement for high output accuracy.
✓ Flexible mixer options: planetary or double horizontal shaft.
✓ Efficient transport: entire equipment fits into one 40HQ container.
✓ Labor-saving: fully automatic operation manageable by one person.

Specification

Model	HZS25Y	HZS35Y	HZS50Y
Theoretical Production (m³/h)	25	35	50
Mixer	JS500	JS750	JS1000
Mixer Power (kw)	18.5	30	2×18.5kw
Aggregate Max Particle (mm)	60/40	60/40	80/60
Feeding Capacity (L)	750	1150	1500
Discharge Capacity (L)	500	750	1000
Aggregate Bin (m³)	2x3	2x3	2x3
Belt conveying Capacity (t/h)	300	300	200

Frequently Asked Questions

Are you a manufacturer?

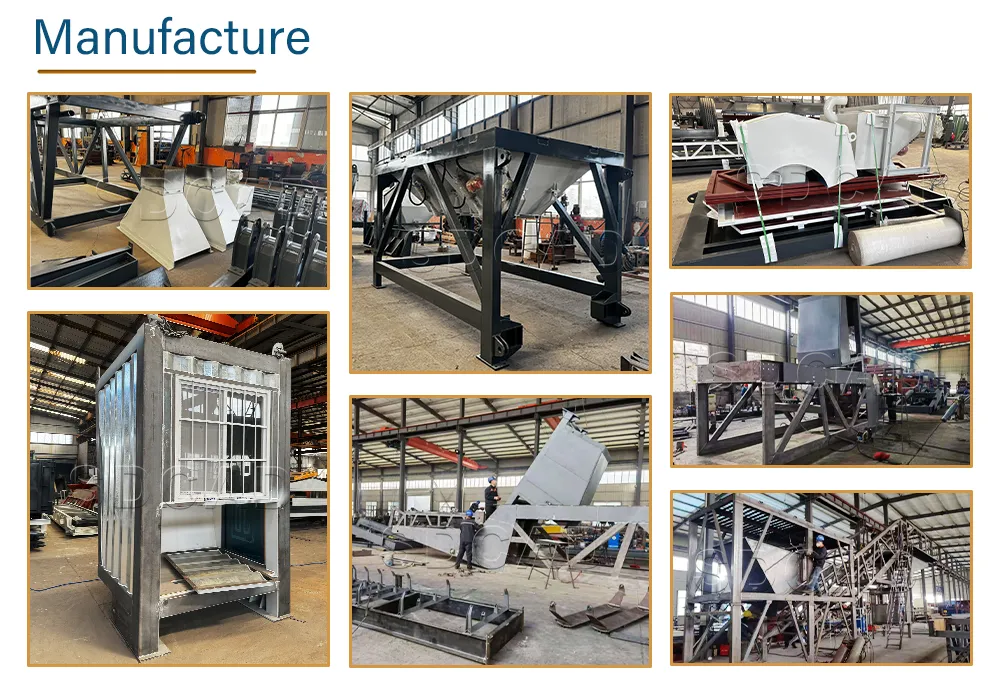

Yes, we are a factory. We design and manufacture products with our own patents. You are welcome to visit our facility to check the production process.

What are the terms of payment?

Normally we work on T/T or L/C terms. For T/T: 30% prepayment and 70% before delivery. For L/C: 100% irrevocable L/C at sight.

What is your after-sale service?

We provide a 12-month warranty for main parts. Our service includes on-site installation, debugging, and worker training to ensure proper operation and daily maintenance.

What is the delivery time?

Generally, goods are delivered within 30-45 days after receiving the deposit. If items are in stock, delivery can be as fast as 7-10 days.

How do you handle plant installation?

Our engineers provide detailed installation drawings before shipping. After arrival, our engineers go overseas to guide the installation and provide training once the site is ready.

Do your products have CE certification?

Yes, our products are patent-protected and have been fully certified with CE certificates.
