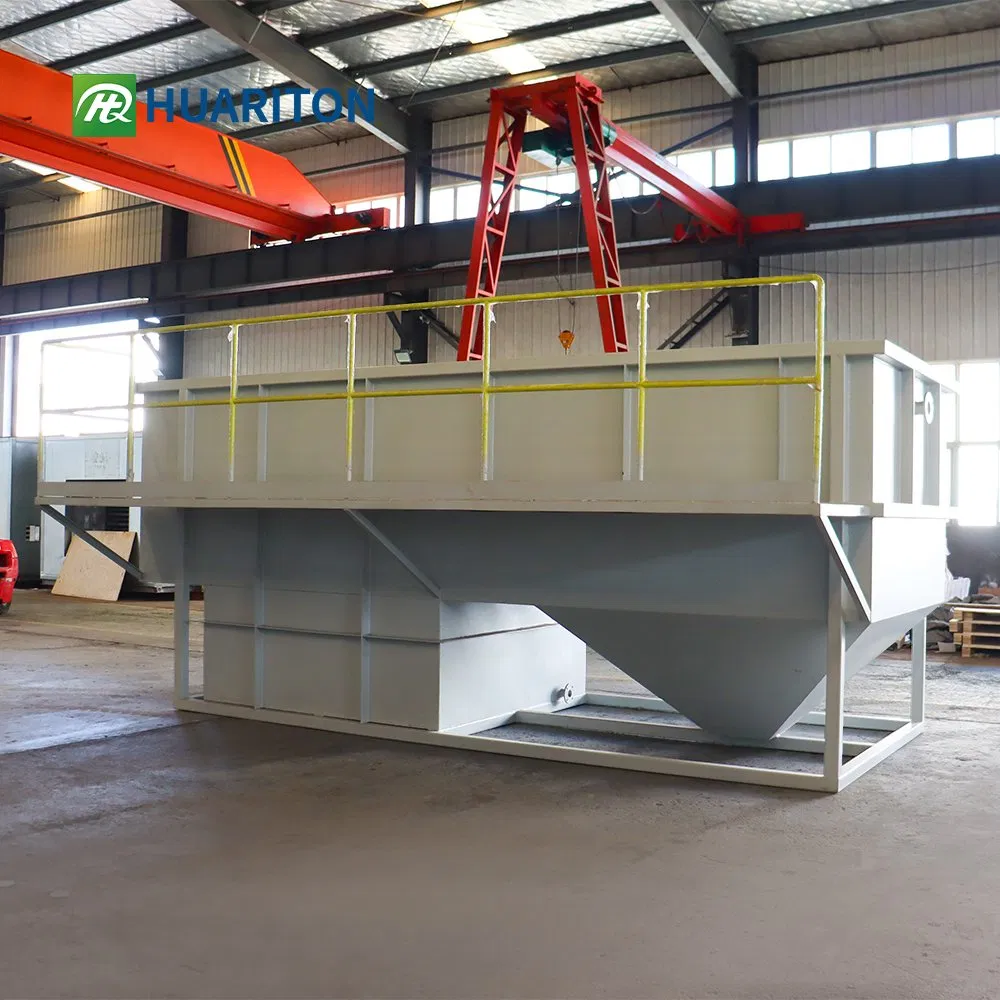

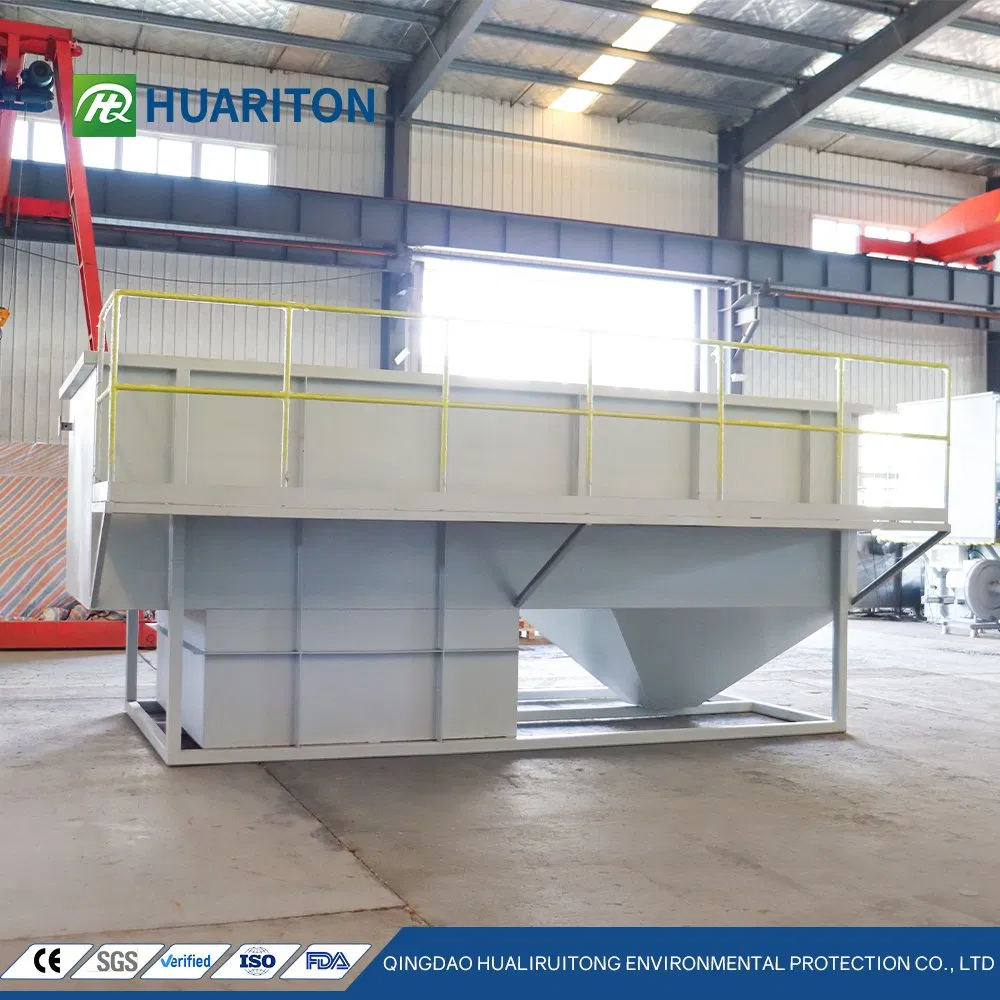

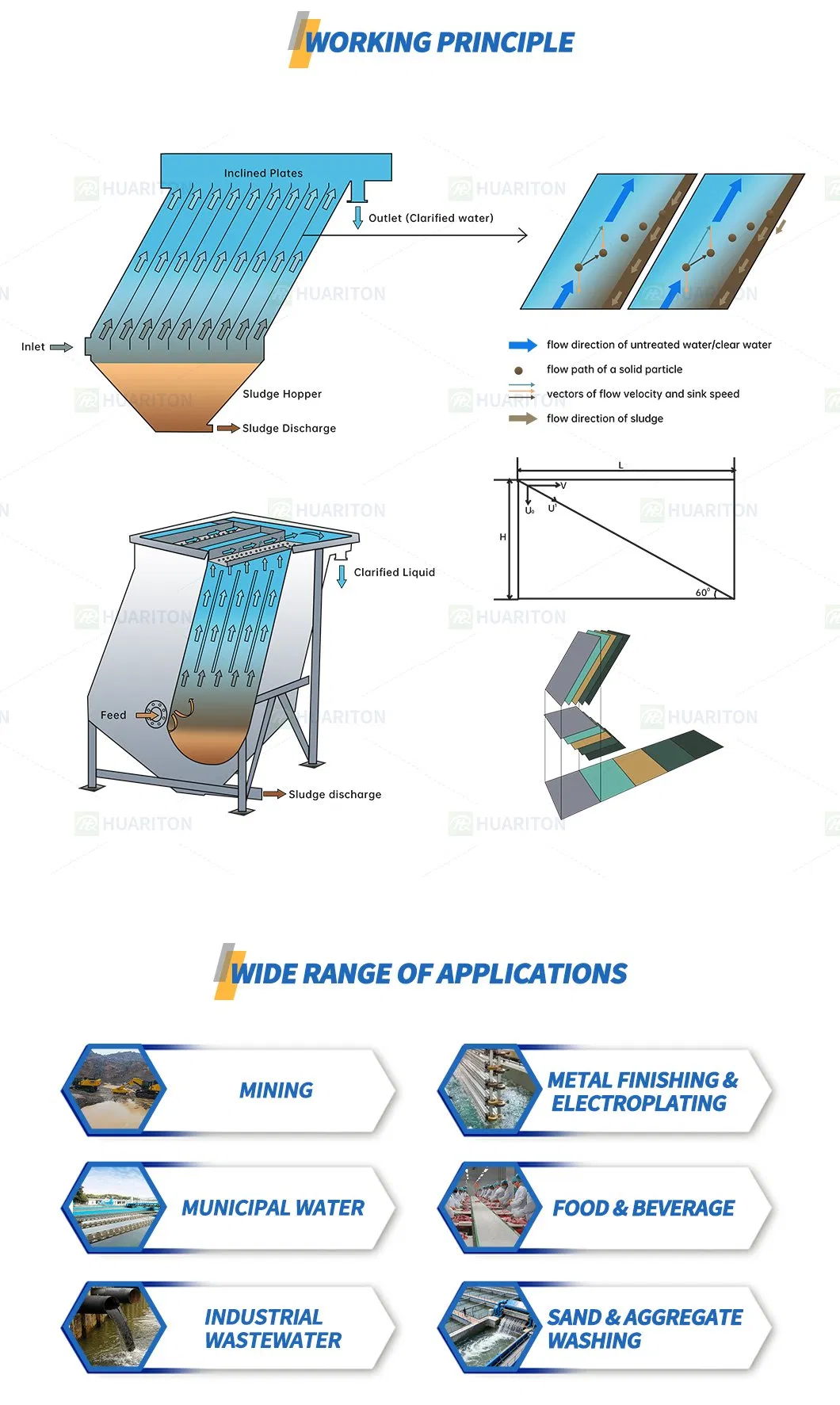

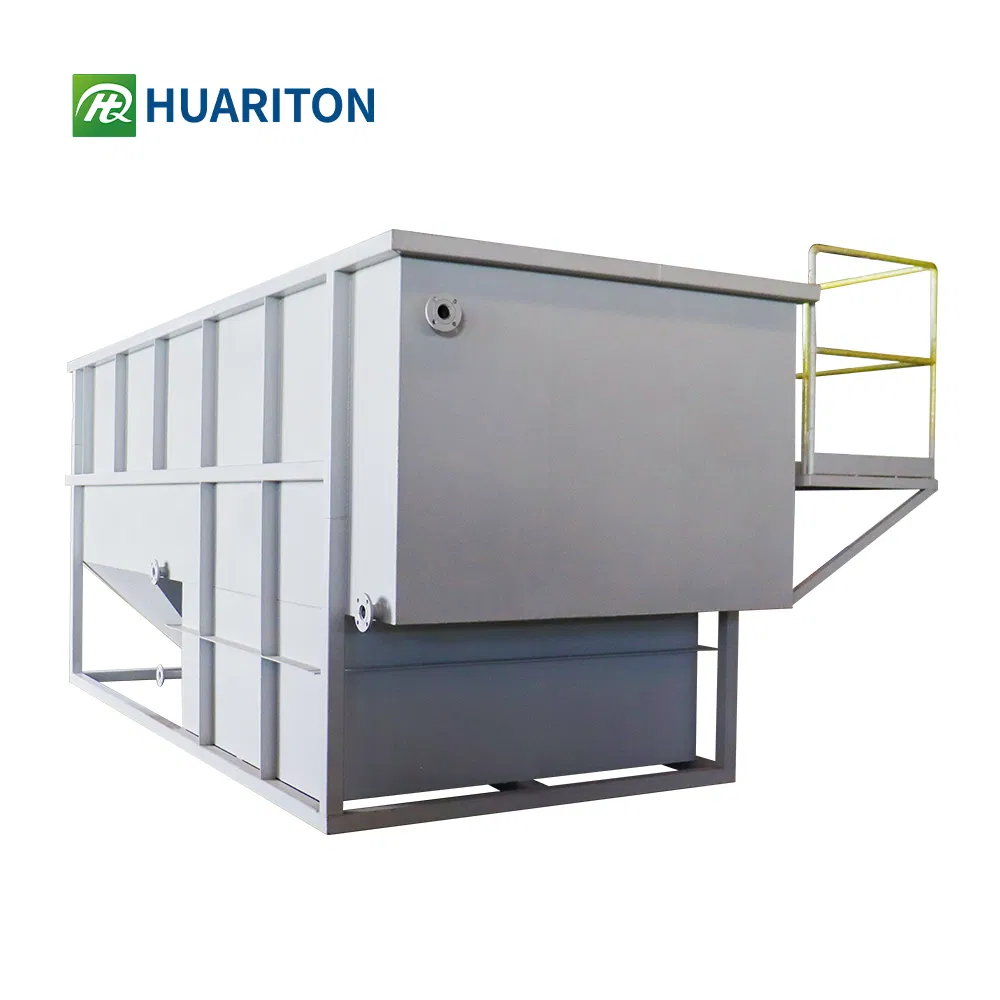

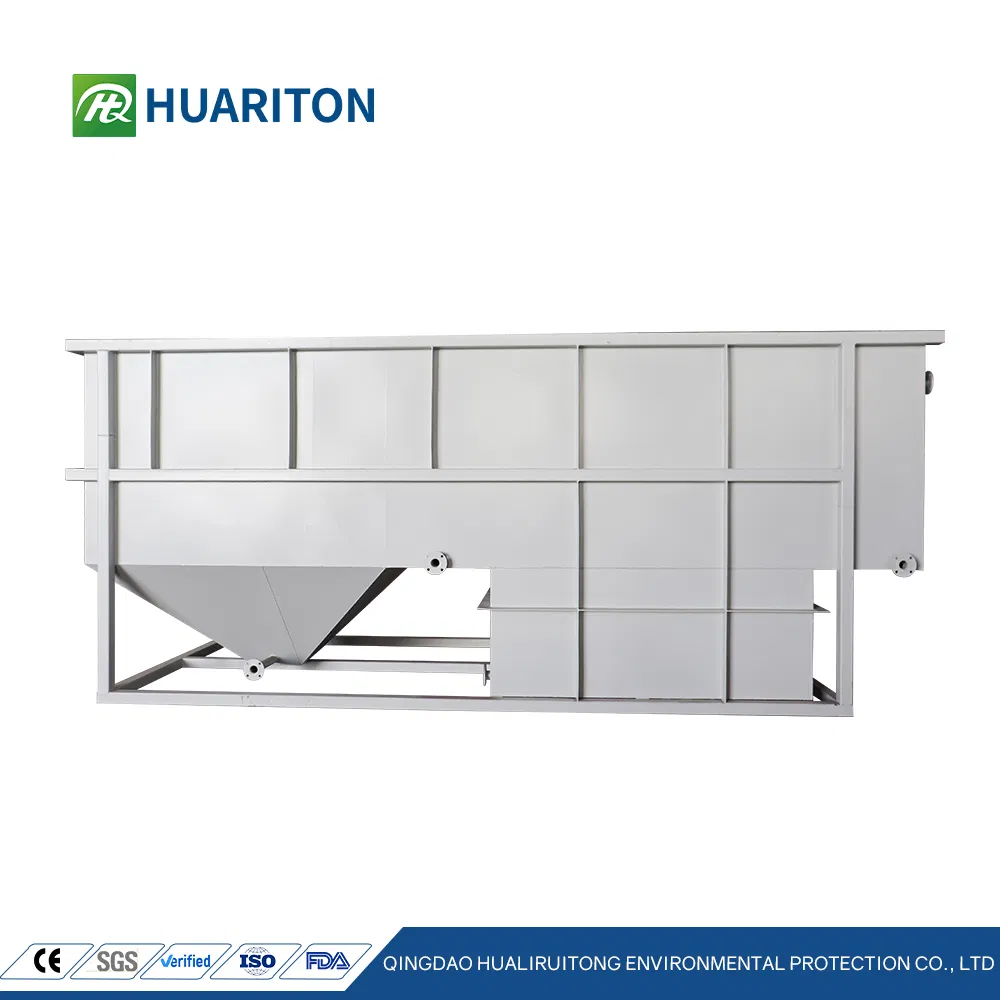

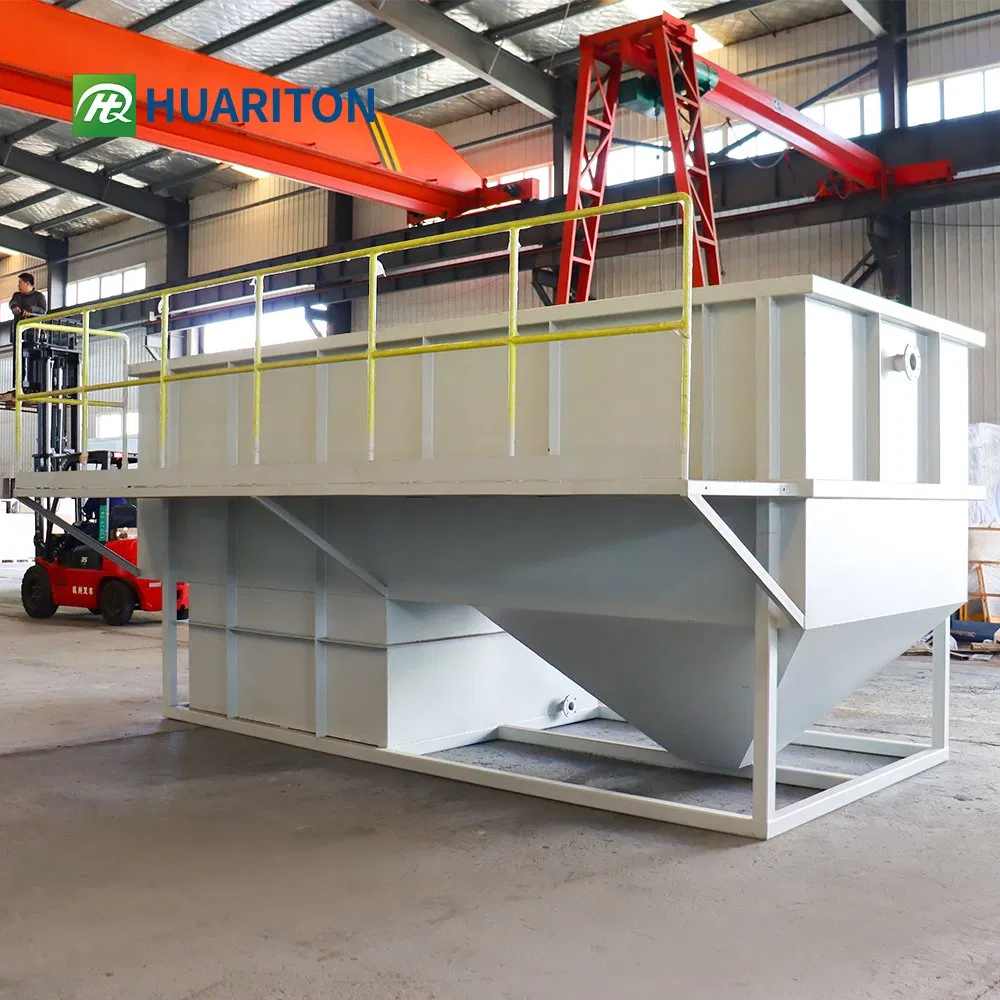

Lamella Clarifier (Inclined Plate Settler) is designed to provide a highly efficient solution for solid-liquid separation in industrial and municipal wastewater treatment.
Compared with traditional sedimentation tanks, our Lamella Clarifier offers a 90% smaller footprint while maintaining superior settling efficiency. It is the ideal choice for projects with limited space and high performance requirements.
| Model | Capacity | Dimension (m) | Power | Nozzle Size | ||||
|---|---|---|---|---|---|---|---|---|
| m³/h | L | W | H | kw | Inlet | Outlet | Sludge | |
| HLC-1 | 1 | 1.6 | 0.9 | 2.3 | / | DN40 | DN50 | DN80 |
| HLC-5 | 5 | 2.9 | 1.6 | 2.8 | / | DN40 | DN65 | DN80 |
| HLC-10 | 10 | 5.2 | 1.8 | 3.1 | / | DN65 | DN100 | DN80 |
| HLC-20 | 20 | 5.9 | 2.2 | 3.75 | / | DN100 | DN150 | DN100 |
| HLC-30 | 30 | 7.5 | 2.2 | 3.75 | / | DN100 | DN150 | DN100 |
| HLC-50 | 50 | 9.5 | 2.2 | 3.75 | / | DN125 | DN200 | DN100 |
| HLC-100 | 100 | 11.5 | 3 | 3.8 | / | DN200 | DN250 | DN100 |
